Basement
: $395.00
May require additional drawing time, please call to confirm before ordering.
Total Living Area may increase with Basement Foundation option.
Crawlspace
: $195.00
May require additional drawing time, please call to confirm before ordering.
Slab
: No Additional Fee
Walkout Basement
: $495.00
May require additional drawing time, please call to confirm before ordering.
Total Living Area may increase with Basement Foundation option.
Basement - * $395.00 Total Living Area may increase with Basement Foundation option. Crawlspace - * $195.00 Slab Walkout Basement - * $495.00 Total Living Area may increase with Basement Foundation option.
Exterior Walls:
2x4 2x6 - * $345.00
House Width:
78'9
House Depth:
71'5
Number of Stories:
1
Bedrooms:
3
Full Baths:
2
Max Ridge Height:
30' from Front Door Floor Level
Primary Roof Pitch:
12:12
Roof Load:
20 psf
Roof Framing:
Stick
Porch:
448 sq ft
Deck:
281 sq ft
Formal Dining Room:
Yes
FirePlace:
Yes
1st Floor Master:
Yes
Main Ceiling Height:
10'
Upper Ceiling Height:
9'
* May require additional drawing time.
Special Features:
Bonus Room
Front Porch
Lania
Outdoor Fireplace
Outdoor Kitchen
Pantry
Rear Porch
Storage Space
Workshop
Plan Description
Craftman Style Plan with Lania and BBQ Porch
Craftsman House Plan With Bonus Room 65867 has 1,848 square feet of living space. 3 bedrooms are located on the main floor. The plan also has options to expand the living space. There is an upstairs bonus room. You can also choose the optional basement and finish the space.

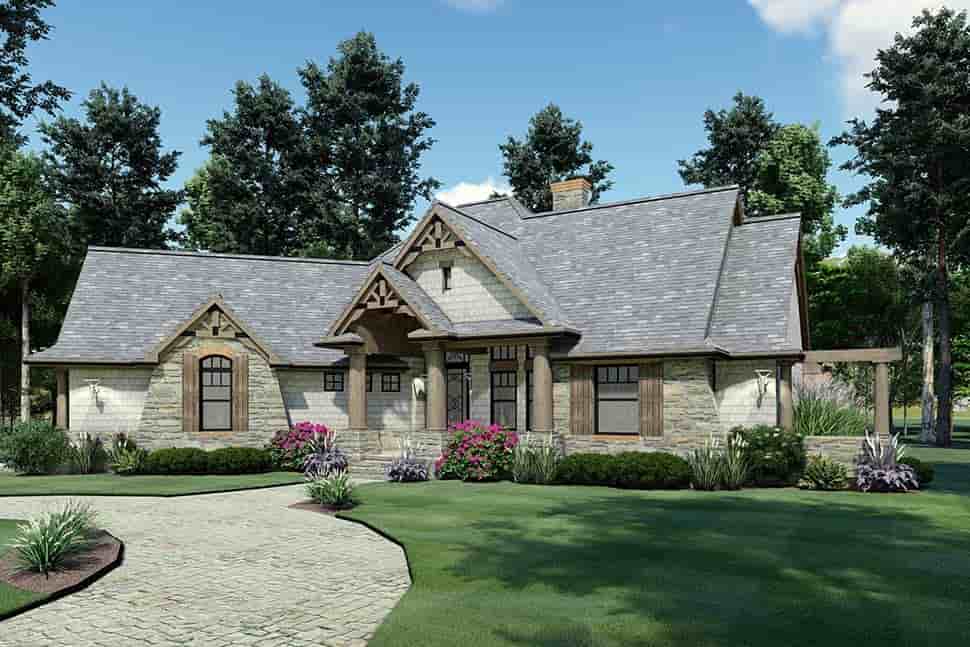

Exterior Design - Craftsman House Plan With Bonus Room
Craftsman House Plans are easy to identify. This home plan is no exception. Several features add curb appeal to this 3 bedroom home.
Firstly, the exterior has a combination of stone and cedar shake siding. Secondly, the porch columns rest on solid stone bases. Thirdly, the gables are adorned with decorative wood detail. Fourthly, we see some of the doors and windows topped with an arch. Board and batten shutters complete the "arts and crafts" look.
Craftsman detail is continued in the rear elevation. The lanai and grilling porch are bordered with thick stone. Here we see a suggested layout for a luxurious outdoor living space. Relax on a patio chair. Listen to the soft sound of the waterfall from the jacuzzi. Or take a dip in the lovely pool. The scene is simply peaceful outside this Craftsman House Plan With Bonus Room.
The home has an angled 2-car garage. This home plan will work well on a corner lot due to the angled garage. Inside, you have a storage room and a work shop. There is also an option for a 3-car garage. Call to speak with a sales rep to choose this option.

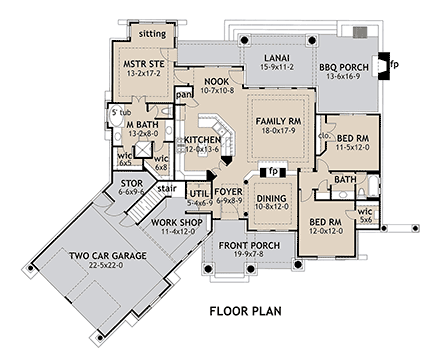

Interior Design With Open Floor Plan
Step into the foyer from the front porch. The utility room is to your left, and it has an exit to the garage. The dining room is to your right, and you have the option to add beautiful ceiling treatments to enhance the space.
We love the double-sided fireplace between the family room and the dining room. This leaves one long wall open for a great entertainment system in this Craftsman House Plan With Bonus Room.
The kitchen is an angled design. French doors face the dining room. The angled counter faces the family room. There is plenty of room to set up stools for the kids or for guests to sit and talk to the cook. For informal meals, a small table will fit in the nook which overlooks the back yard.
Interior Design With Split Floor Plan
This Craftsman House Plan With Bonus Room has a split floor plan. That means that mom and dad have more privacy. Their bedroom is located on the left side of the house. They enjoy a sitting room in the bedroom. Open a set of French doors to enter the luxurious ensuite. The ensuite includes two vanities, a 5 foot soaker tub, separate shower, private water closet, and his and hers walk-in closets.
The children's bedrooms are located on the right side of the house. They share the guest bathroom. The bathroom vanity is separated from the tub and toilet, and this arrangement makes morning preparation faster. For example, one child can brush their teeth while the other gets a shower. We know that every second counts in the morning!
3 Bedroom Craftsman House Plan With Bonus Room Special Features

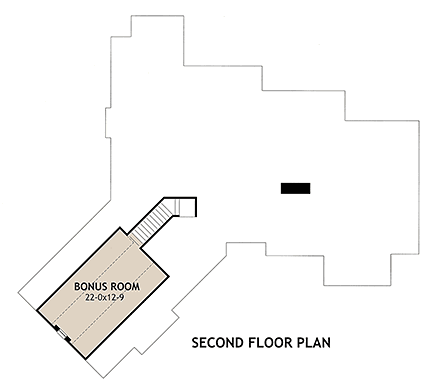

Above garage bonus room measuring 22' wide by 12'9 deep
3-car garage option

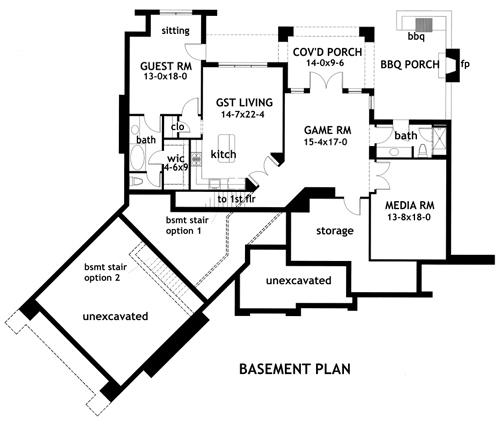

In-ground basement and walkout basement options
Outdoor fireplace
BBQ porch
Special ceiling treatments
Workshop
Storage
Sitting room in master suite
His and her walk-in closets
What's Included?
Our working drawings include the following..
We use AutoCAD to produce our working drawings. This allows us to be 100% accurate on our dimensions as well as coordinate all drawings with the highest level of precision. Below are examples of what comes in each working drawing set...
Floor Plans -
For each level we include... a 1/4"=1'-0" scale floor plan indicating frame walls and masonry with dimensions, notes, door and window sizes, room names and floor finishes, cabinet, shelving, fixture locations and notes, ceiling conditions, electrical/lighting fixtures and switches.
Exterior Elevations -
We include... Front Elevation at 1/4"=1'-0", side and rear elevations at 1/8"=1'-0", plate heights, roof overhangs, material/surface notes, window heights, roof pitches, material hatching for clarity, floor to floor dimensions and any other detail we feel is necessary to explain the construction.
Cabinets/Building Sections-
Cabinet elevations at 3/8"=1'-0", showing cabinets, appliance locations, plumbing fixtures, shelving, counter/backsplash surface, cabinet material and finish, niche details and any other special situation that cannot be understood from the plan view. Building Sections are included only when there is no other way to indicate the spatial characteristics of the home. This information is quite often indicated well enough on the elevations and plans.
Foundation Plans -
We offer a choice of three types of foundations, full basement, crawlspace, and slab foundations. Each comes fully dimensioned, and noted indicating wall composition and thickness, construction detail references to our detail page, beam, pier and column locations and sizes, stair locations for basements, reinforcing steel sizes and step downs in monolithic slabs and ventilation grilles for crawlspaces.
Framing Plans -
For each level we include... a 1/8"=1'-0" scale plan indicating rafter, ceiling and floor joists locations, sizes and spacing as well as lumber grade specified, additional bracing and blocking.
Details -
For each foundation type we include... 3/4"=1'-0" scale details indicating material composition, size and critical dimensions for construction of the primary foundation.
Modifications
Plan modification is a way of turning a stock plan into your unique custom plan. It's still just a small fraction of the price you would pay to create a home plan from scratch. You will receive a FREE, no obligation, modification estimate to get exactly the home plan you've been dreaming of. Simply contact the modification department 1 of 3 ways:
Call 866-465-5866 and talk to a live person that can give you and FREE modification estimate over the phone!
Email Us - Please Include your telephone number, plan number, foundation type, state you are building in and a specific list of changes.
Fax: 651-602-5050 - Make sure to include a cover sheet with your contact info. Make attention to the FamilyHomePlans.com Modification Department.
Cost To Build
No Risk Offer: Order your Home-Cost Estimate now for just $24.95! We provide a discount code in your receipt that will refund (plus some) the Home-Cost price when you decide to order any plan on our website!
Get more accurate results, quicker! No need to wait for a reliable cost.
Get a detailed cost report for your home plan with over 70 lines of summarized cost information in under 5 minutes!
Cost report for your zip code. (the zip code can be changed after you receive the online report)
Estimate 1, 1-1/2 or 2 story home plans. **
Interactive! Instantly see the costs change as you vary quality levels Economy, Standard, Premium and structure such as slab, basement and crawlspace.
QUICK Cost-To-Build estimates have the following assumptions:
QUICK Cost-To-Build estimates are available for single family, stick-built, detached, 1 story, 1.5 story and 2 story home plans with attached or detached garages, pitched roofs on flat to gently sloping sites.
QUICK Cost-To-Build estimates are not available for specialty plans and construction such as garage / apartment, townhouse, multi-family, hillside, flat roof, concrete walls, log cabin, home additions, and other designs inconsistent with the assumptions outlined in Item 1 above.
User is able to select and have costs instantly calculate for slab on grade, crawlspace or full basement options.
User is able to select and have costs instantly calculate different quality levels of construction including Economy, Standard, Premium. View Quality Level Assumptions.
Estimate will dynamically adjust costs based on the home plan's finished square feet, porch, garage and bathrooms.
Estimate will dynamically adjust costs based on unique zip code for project location.
All home plans are based on the following design assumptions: 8 foot basement ceiling height, 9 foot first floor ceiling height, 8 foot second floor ceiling height (if used), gable roof; 2 dormers, average roof pitch is 12:12, 1 to 2 covered porches, porch construction on foundations.
Summarized cost report will provide approximately 70 lines of cost detail within the following home construction categories: Site Work, Foundations, Basement (if used), Exterior Shell, Special Spaces (Kitchen, Bathrooms, etc), Interior Construction, Elevators, Plumbing, Heating / AC, Electrical Systems, Appliances, Contractor Markup.
QUICK Cost-To-Build generates estimates only. It is highly recommend that one employs a local builder in order to get a more accurate construction cost.
All costs are "installed costs" including material, labor and sales tax.
** Available for U.S. only.
Q & A
Ask the Designer any question you may have. NOTE: If you have a plan modification question, please click on the Plan Modifications tab above.
Previous Q & A
Q:House plans 65867 - 65871 in regards to heating or cooling system air handler. would this be in a utility closet, if not for these plans, could you please tell me where we could place the air handler for filter to be changed? We do Not want that to be in the attic. Thank You. Jan Emfinger
A:The attic is very large in this plan and that is where we have the HVAC equipment located. We show a walkout from the bonus room into the attic so its convenient. Locating the air handlers in a more central location makes them much more efficient. Not using valuable floor space for a unit makes sense as well. Alternatively, you could carve out some space in the garage, but it would not be as efficient.
Q:Hello, What would the total width of the home be with the 3rd car garage and what are the circles in front of the windows in the 3 car garage? -Joe Sheffield
A:Total 3car width is 83’-8” wide.
The circles you are asking about are actually hexagons which denote window size which is part of the construction documents.
Q:How much square footage does the walkout basement add?
A:1848 SF
Q:What is the box that is in the middle of the kitchen? The dimensions cover it up. Thank you.
A:A 3’x2’ island.
Q:Where are the steps leading to a basement if chosen?
A:In the garage under the bonus stairs.
Q:Plan 65867: where else could the stairs be located to omit going thru the garage? where are the stairs that go to the basement? having a concern that this has been omitted in the planning - they should come out the other direction, but do not like accessing stairs to bonus room or the basement thru the garage.
A:Refer to plan 65862 for a better option on the stairs.
Q:When I choose the walkout basement, is the basement staircase located inside the heated area of the house? I'm going to choose the 3 stall garage, and I need to make sure one of the doors will be 9.5 tall.
A:No, the basement stair for this one is in the garage. The ceiling is 8’. A modification would be required to get a 9.5’ tall garage door.
Q:Love the house, what size are the columns on the front porch?
A:21” diam.
Q:Wondering just about the roof pitches?
A:12:12
Q:Sorry, I wasn’t clear with my previous question. I’m the 2”x6” walls,
Are the studs 9’ ?
J D T
A:No. At the main living areas they are 12’, on the wings they are 10’ and at the garage 8’.
Q:Are most of the upper wall studs 2”x6” x 9’. ?
A:Everything is 2x4 studs @ 16” oc unless you order 2x6 exterior walls.
Q:Do you offer this plan in a 3 car garage plan and the 1/2 bath inside?
A:3 car garage yes. ½ bath no.
Q:Is your CAD compatible with AutoCAD Mechanical 2015?
A:Yes.
Q:On houseplan 65867, are the garage dimensions figured into the width and length figures? What is the square footage of the used area of the basement?
A:Yes, the overall includes the garage. The basement area is roughly equivalent to the main level, less the wall thickness.
Q:Is there a cathedral ceiling in the master bedroom? Is this plan the same as 75134?
A:Master ceiling is stepped. No this is not the same as 75134. Similar though.
Q:How big is the 3 car garage pictured with 65687? We can't quite tell from the diagram. Also trying to figure out how that would also change the size of the surrounding rooms, such as the storage room and workshop.
A:3rd bay is 11’x22’-5”. Does not effect size of storage or workshop. It does add footage to the bonus room above in the shape of a “T” going straight back over(perpendicular to) the 3rd bay - an extra 12’x15’.
Q:On the 3 car garage modification what is the inside dimensions.
A:11’ x 22’-5” for the 3rd bay.
Q:What version of AutoCad are the drawings? Are they AutoCad Architectural, Revit…, or can I use general AutoCad to make what ever modifications I need?
A:We use regular old Autodesk AutoCAD 2014. Yes, you can use any software that uses dwg files.
Q:House number 65867 I would like to add the third Bay to the garage and need the widest width of the house from foundation to foundation
A:We have a 3rd car option available for an additional $150. The width is 83’-8” .
Q:For the log siding, is it round logs or machine flat logs?
A:We specify shake siding for this plan. We have another plan, similar to this one which does specify log siding which is not whole logs, but log siding.
Q:What is the width and depth of the house in a three car design so i can see if it will fit on my lot
A:83’-8” wide x 71’-5” deep.
Q:what are the dimensions of the pantry?
A:3’-8”x3’-8” clear inside.
Q:What are the dimensions of the outside area between the Lanai and the Master bedroom? I wondering if it would be big enough to make into a screened porch.
A:14’ x 9’-6”
Q:What is the height of the front porch roof at its ridge?
A:23’ to the top of the higher of the two gables.
Q:What is the height of the front door dormers in comparison to the roof height?
A:2’ taller plate heights – 10’ vs 12’.
Q:What is the total square footage under roof on a slab foundation?
A:3378 SF Frame -
Q:What would the wide of the house if you do the 3 car garage?
A:83’-8” not including the decorative trellis on the right side.
Q:Also, the ceiling height in the bonus room is 9 ft...what is the height of the side walls?
A:5’
Q:What are the dimensions of the utility closet? And the foyer? Thanks!
A:Utility – 5-4 x 6-9
Foyer - 6-9 x 9-3
Q:Can you substitute the tray ceilings for an exposed beam look? Can you take square footage from the workshop and make a half bath
A:Yes and yes. These are changes that you can employ locally.
Q:Hi-could you tell me if the house plans come with: Structural Roof Framing plans Structural Foundation Plans Structural Roof and exterior details The potential home buyer is very interested in this set of plans and I would be the architect who would modify the plans to meet CBC. If the plans do include the above, then I would suggest her to purchase the plans. If the plans do not, then we most likely would take a different approach. Hopefully the plans do include the above. My number is 916 993-8886 and would welcome a phone call if you are able. Thanks you, Steve Pasion
A:Steve,
We do provide roof framing plans for ‘stick framing’ via dimensional lumber. We do not provide calculations nor are they ‘engineered’ as we cannot assume loading for every area of the country. We use industry standards and load/span tables as published in the 2012 IRC and as required for our location here in Texas. We also do not provide a truss framing plan for the roof(some people do request this also).
We do provide foundation plans(slab, crawlspace and basement – options as priced with FamilyHomePlans), again using the 2012 IRC and they are not ‘engineered’ and may need some local engineering/modifications. We provide details where we deem necessary to explain a detail that is non-standard for conventional framing.
Hope that helps your decision making process.
Q:What type of siding was used on this model?
A:We recommend Hardi-Board. They have a shake siding that looks and performs great.
Q:what is the total sq ft with the 3 car garage with the house please
A:3602 SF of covered area.
Q:Can the plans be modified to use Nudura ICF technology? Is the roof stick framed or can it be done with manufactured trusses? Can we buy the Archtectural Arches over the entry and gables? Are they prefabbed?
A:Plans can be modified to use ICF. Roof is stick framed but could be trussed. Decorative trusses on gables are a custom order.
Q:What is the roof elevation? Is there room in the attic for an unfinished bonus room in case we need it later?
A:Yes, plenty. The roof pitch is 12:12.
Q:Resending: We are interested in building this house with a ful basement option. Am I correct when I say that it looks like the staircase to the basement and the bonus room above the garage is IN the garage? And is the workshop inside the garage also, or is there a door that separates the workshop from the garage? We hate the fact that the only way to access the garage appears to be from the garage, unless we are seeing something incorrectly on the plan. Can you please clear this up for us? And if that is the case, is there any other option for the staircase? Thank you! Becky McMillan
A:The stair to the basement and the bonus are in the garage in our design. That could be modified (for a fee) to hall access though. The workshop is also in the garage, but could be partitioned off as part of the stair connection.
Q:Has this house been built anywhere near ontario, canada? Do you have an idea on what the total cost too build this house might be? Is there inside pictures of the home of one that was actually built?
A:Do not know if it has been built in the Ontario area. Cost varies greatly with region. Your best bet is to ask a builder. We have interior renderings and photos of a similar plan - http://www.familyhomeplans.com/plan_details.cfm?PlanNumber=65862
Q:Is this house built anywhere in TN?
A:Don’t have any info on that.
Q:My husband and I love this house. Do you know if this house was built anywhere in Wisconsin so we could see it? thanks jodi
A:Unfortunately, no.
Q:What is the inside depth of the third garage to the wheel stop?
A:We show about 16’ with a 6’(+) walk beyond that, so it could be deeper.
Q:If you choose to have the bonus space with this plan, can you still have a basement or do you have to choose one or the other?
A:They both come with the plan and are not mutually exclusive.
Q:Thanks for the answer. What is the new square footage of the bonus room with the 3-car garage?
A:514 sf
Q:This plan appears to come with a 3 car option and I would assume the optional bonus space would meet the requirements. Can you verify?
A:It does come with a 3 car and the bonus room becomes a T-shape with space expanding towards the rear of the garage where the 3rd car bay would be.
Q:Is there enough room to make utility room into a half bath and move utility room to work shop?
A:Yes there is plenty.
Q:Is the storage room and work shop part of the garage grade or is it on the subfloor level. It looks like the storage room is on the subfloor and the work shop is part of the garage. And if so could the walls between the storage room and the 2 walkin closets in the master bedroom be eliminated to make 1 large walkin closet?
A:The workshop and storage are on the garage level in our drawings. However you could easily modify the wic’s to claim space from the garage.
Q:Would it be feasible to have it a vaulted and or cathedral ceilings instead of the coffered ceilings?
A:Yes. Would probably still leave the designated squares and vault inside of them.
Q:Is a material list available? Wall studs, sheetrock, plywood, etc?
A:Sorry - no there is not.
Q:
what does bonus area mean. also can we reverse the plan from the back to the front what would be the total square footage. Is the garage separate footage thanks Keith
A:Bonus is area you have the option of using or not.
We can reverse the plan from left to right, not back to front.
The garage is not included in the heated area but is an additional 550 SF
Q:Do you have any interior renderings of this plan? If you do, could you please send them. thanks.
A:They are nearly identical to the interior renderings for plan 65862.
Q:Is the living room vaulted?
A:It is stepped (coffered).
Q:Is there a basement plan with stairs coming from in the house
A:Not for this one.
Q:I simply love this plan!!!! Wonder how it would look done in brick? We were looking for something a little smaller for the upstairs and maybe the same for our lower level walk-out. Does the square footage include the barbecue area and the linai? Is there any way we could lower the square footage without loosing the size of the bedrooms? I really love this plan and hope you can help me out. Thanks, Jackie
A:The square footage is just the air conditioned space. No porches, bonus space or garage areas were included.
Q:Can this be built with a walk out lower level?
A:Yes, Reference plan 65862 walk-out basement. They are very similar.
Q:where would the steps go in the house to get to the basement.
A:The basement stairs are in the Garage going from left to right.
Q:It looks like the stair to bonus goes up from workshop. If basement foundation is ordered, how would it be accessed? Hoping for interior stairway
A:In this plan it is only accessible from the Garage... unfortunately.
Q:Can you send me some pictures of the inside of the home so we can visualize the layout better with kitchen cabinets and furniture etc.
A:The interior layout is the same as plan 65862 with the exception of the views of the study. Those interior renderings will show how it looks.
Q:Do you have any rear elevation photos with a walk-out basement? Do you have any interior pictures?
A:The interior renderings are similar to our plan no. 65862. The only difference is the elimination of the Study/Media in lieu of a workshop area in the Garage. I have attached a sketch of a walk-out basement condition.
Q:House Plan: 65867
Could you please supply the total under roof footage for this plan
A:Total under roof = 3437 SF
Q:where are the furnace and water heater situated? how does the laundry area vent out?
A:The furnace and water heater will fit nicely in the attic space and be more centrally located. The dryer vent will have to go up thru the attic and out the roof. It may require an additional blower fan.
David Wiggins
Common Q & A
Q:Can I make modifications to this plan?
A:Yes you can! Please click the "Modifications" tab above to get more information.
Q:What is the estimated price to build this plan?
A:The national average for a house is running right at $125.00 per SF. You can get more detailed information by clicking the Cost-To-Build tab above. Sorry, but we cannot give cost estimates for garage, multifamily or project plans.
FHP Low Price Guarantee
If you find the exact same plan featured on a competitor's web site at a lower price, advertised OR special SALE price, we will beat the competitor's price by 5% of the total, not just 5% of the difference! Our guarantee extends up to 4 weeks after your purchase, so you know you can buy now with confidence.
If you find the exact same plan featured on a competitor's web site at a lower price, advertised OR special SALE price, we will beat the competitor's price by 5% of the total, not just 5% of the difference! To take advantage of our guarantee, please call us at 800-482-0464 or email us the website and plan number when you are ready to order. Our guarantee extends up to 4 weeks after your purchase, so you know you can buy now with confidence.
