Multi-Family Plan 66676

• PDF File: $2,030.00
• PDF File Unlimited Build: $2,530.00
  Unlimited Build License issued on PDF File Unlimited Build orders.
• CAD File: $3,045.00
  Single Build License issued on CAD File orders.
• CAD File Unlimited Build: $3,545.00
  Unlimited Build License issued on CAD File Unlimited Build orders.
• Materials List: $195.00
• Right Reading Reverse: $299.00
  All sets will be Readable Reverse copies. Turn around time is usually 3 to 5 business days.

Available Foundation Types:

• Basement : $295.00
  May require additional drawing time, please call to confirm before ordering.
  Total Living Area may increase with Basement Foundation option.
• Crawlspace : $295.00
  May require additional drawing time, please call to confirm before ordering.
• Slab : No Additional Fee

Available Exterior Wall Types:

• 2x4: No Additional Fee

Prices subject to approval prior to fulfillment.

• Shipping Policy

Total Living Area:	3124 sq ft
Main Living Area:	1552 sq ft
Upper Living Area:	1772 sq ft
Garage Area:	924 sq ft
Garage Type:	Attached
Garage Bays:	4
Foundation Types:	Basement - * $295.00 Total Living Area may increase with Basement Foundation option. Crawlspace - * $295.00 Slab
Exterior Walls:	2x4
House Width:	52'0
House Depth:	48'0
Number of Stories:	2
Bedrooms:	6
Full Baths:	4
Half Baths:	2
Max Ridge Height:	28'0 from Front Door Floor Level
Primary Roof Pitch:	6:12
Roof Load:	30 psf
Roof Framing:	Stick
Porch:	56 sq ft
FirePlace:	Yes
2nd Floor Laundry:	Yes
Main Ceiling Height:	9
Upper Ceiling Height:	8

* May require additional drawing time.

Cover Page
Each home plan features the rendered elevation and informative reference sections including: general notes and design criteria; abbreviations; and symbols for your plan.

Foundation
Drafted at 1/4" scale. Poured or block basement or slab foundations are standard. We also show the structural information, steel beam and pole locations and the direction and spacing of the floor system above. Optional basement, slab and crawl space foundations are available.

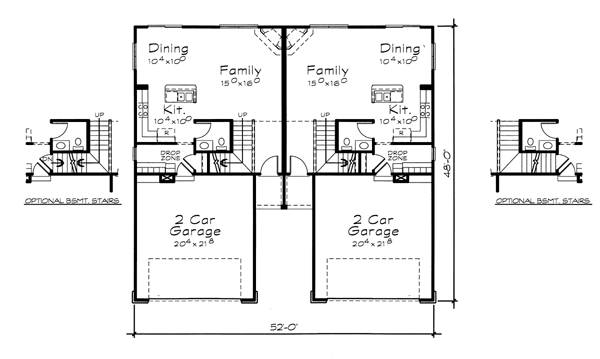

Main Level Floor Plan
1/4" scale. Fully dimensioned from stud to stud for ease of framing. 2"x4" walls are standard. The detailed drawings include such things as structural header locations, framing layout and kitchen layout

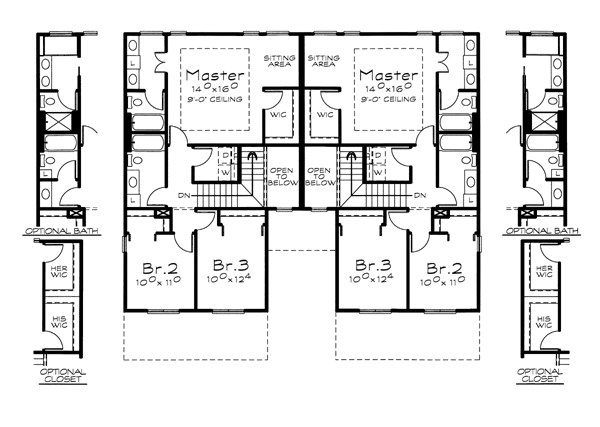

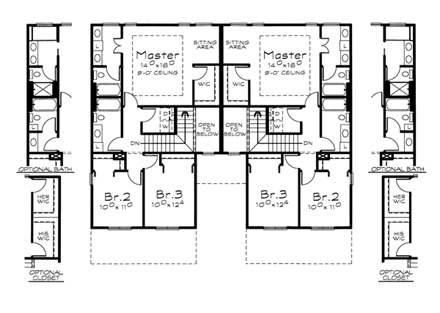

Second Level Floor Plan.
1/4" scale. Dimensioned from stud to stud and drafted to the same degree of detail as the main level floor plan.

Electrical and Sections
Illustrated on a separate page for clarity, the electrical plan shows suggested electrical layout for the foundation, main and second level floor plans. Typical wall, cantilever, stair, brick and fireplace sections are provided to further explain construction of these areas.

Roof Framing Plan.
Illustrated on a separate page for clarity, the roof framing plan shows the suggested dimensional plan showing lengths, runs, ridge heights and wall plate heights.
