House Plan 71570

Florida Style with 5 Bed, 7 Bath, 3 Car Garage | Plan 71570

sq ft

5239

beds

baths

5.5

bays

width

84'

depth

79'

Turn ON Image Gallery

Add to cart

Plan Pricing from $4,500.00

Plan Pricing

PDF File: $4,500.00
CAD File: $5,000.00
Single Build License issued on CAD File orders.

Need A Materials List?

It seems that this plan does not offer a stock materials list, but we can make one for you. Please call 1-800-482-0464, x403 to discuss further.

Right Reading Reverse: $300.00
All sets will be Readable Reverse copies. Turn around time is usually 3 to 5 business days.

Need Printed Sets?

It seems that this plan only offers electronic (PDF or CAD) files. If you also need Printed Sets, please call 1-800-482-0464, x403 to discuss possible options.

Available Foundation Types:

Slab : No Additional Fee

Available Exterior Wall Types:

Concrete: No Additional Fee

Prices subject to approval prior to fulfillment.

Shipping Policy

Add to cart

Specifications

Total Living Area:	5239 sq ft

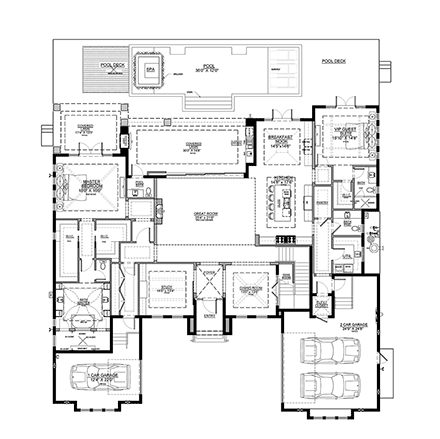

Main Living Area:	3467 sq ft

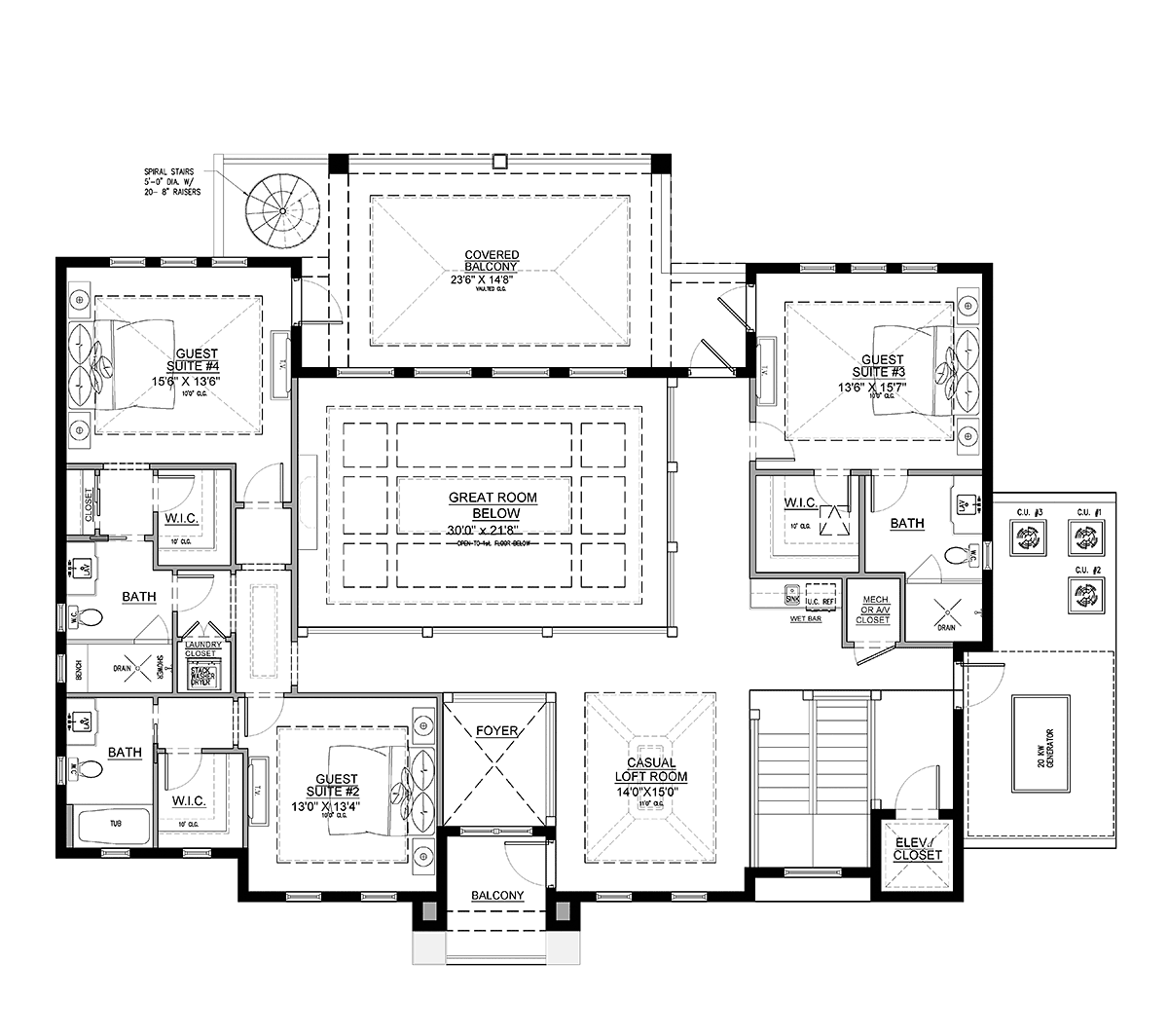

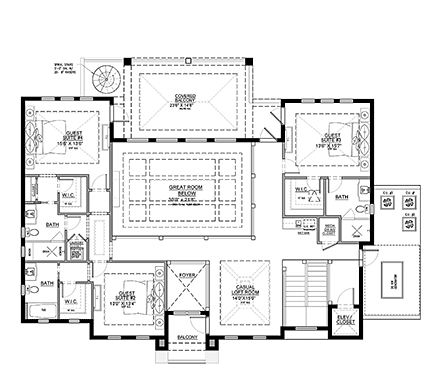

Upper Living Area:	1772 sq ft
Garage Area:	1100 sq ft
Garage Type:	Attached
Garage Bays:	3
Foundation Types:	Slab
Exterior Walls:	Concrete
House Width:	84'0"
House Depth:	78'8"
Number of Stories:	2
Bedrooms:	5
Full Baths:	5
Half Baths:	2
Max Ridge Height:	30'0" from Front Door Floor Level
Primary Roof Pitch:	6:12
Roof Framing:	Truss
Porch:	716 sq ft
Deck:	476 sq ft
Formal Dining Room:	Yes
FirePlace:	Yes
1st Floor Master:	Yes
Main Ceiling Height:	10'
Upper Ceiling Height:	10'

Special Features:

2nd Floor Balcony
Deck or Patio
Elevator
Entertaining Space
Guest Room
Lania
Open Floor Plan
Outdoor Fireplace

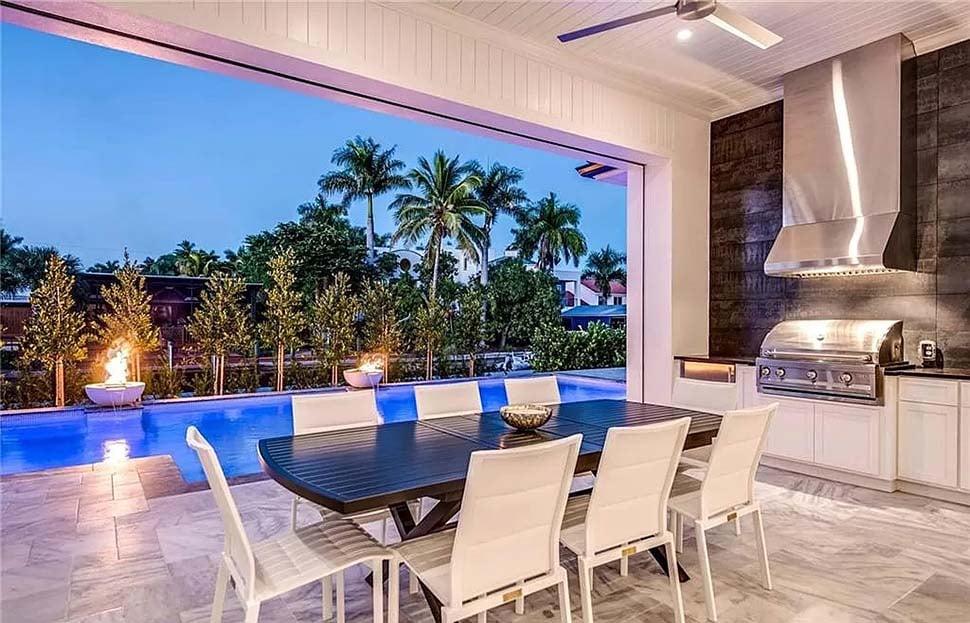

Outdoor Kitchen
Pantry
Storage Space

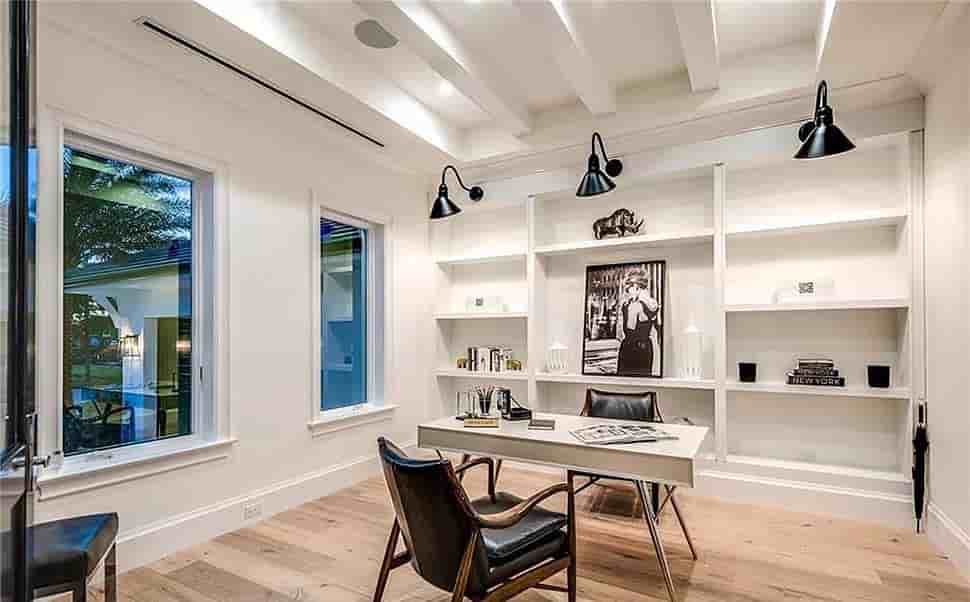

Study
Wet Bar
Wine Cellar

What's Included?

The plan set shall include the following sheets and information:

Exterior Elevations
Drawn at 1/8" to 1/4" = 1'-0" Scale,and Includes:
Material Labels
Floor-to-Floor Heights
Roof Slope Indicators

Dimensional and Noted Floor Plans
Drawn at 1/8" to 1/4" = 1'-0" Scale, and Includes:
Door and Window Sizes
Completely Dimensioned Floor Plan
Room Labels and Interior Room Sizes

Electrical Layouts
All Electrical Outlets, Fixtures, and Switching

Slab Plan
Drawn at 1/8" to 1/4" = 1'-0" Scale, and Includes:
Floor and Deck Joist Size and Spacing
Rough-in Plumbing Location (if applicable)
Mechanical Equipment Locations (if applicable)
Electrical Locations (if applicable)

Building Sections
Drawn at 1/8" to 1/4" = 1'-0" Scale, and Includes:
Floor-to-Floor Heights
Non-Typical Plate Heights Indicated

Typical Wall Sections
Drawn at 1/8" to 1/2" = 1'-0" Scale, and Includes:
All Labels Indicating Wall Construction
Foundation Wall Thickness and Reinforcing
Insulation Type and Thickness

Miscellaneous Notes and Details
Miscellaneous General Notes
Stairway details (if applicable)
