House Plan 74014
Narrow Lot Style with 1 Bed, 1 Bath, 1 Car Garage | Plan 74014
sq ft
840beds
1baths
1bays
1width
20'depth
28'
Plan Pricing
Need Prints?
It seems that this plan only offers electronic (PDF or CAD) files. If you also need Printed Sets, please call 1-800-482-0464, x403 to discuss possible options.Available Foundation Types:
Available Exterior Wall Types:
Prices subject to approval prior to fulfillment.Specifications
| Total Living Area: | 840 sq ft |
| Main Living Area: | 560 sq ft |
| Upper Living Area: | 280 sq ft |
| Garage Area: | 560 sq ft |
| Garage Type: | Drive Under |
| Garage Bays: | 1 |
| Foundation Types: | Basement |
| Exterior Walls: | 2x6 |
| House Width: | 20' |
| House Depth: | 28' |
| Number of Stories: | 2 |
| Bedrooms: | 1 |
| Full Baths: | 1 |
| Max Ridge Height: | 30' from Front Door Floor Level |
| Primary Roof Pitch: | 12:12 |
| Roof Load: | 32 psf |
| Roof Framing: | Truss |
| Porch: | 32 sq ft |
| Main Ceiling Height: | 8' & 21 |
| Upper Ceiling Height: | 3' - 11'8 |
| Vaulted Ceiling: | Yes |
Plan Description
The versatile two storey great room features a window wall enhancing all the available rear views. A spiral staircase helps maximize the living space and adds a charming detail to the living area.
What's Included?
Working drawings usually comprises of the following:

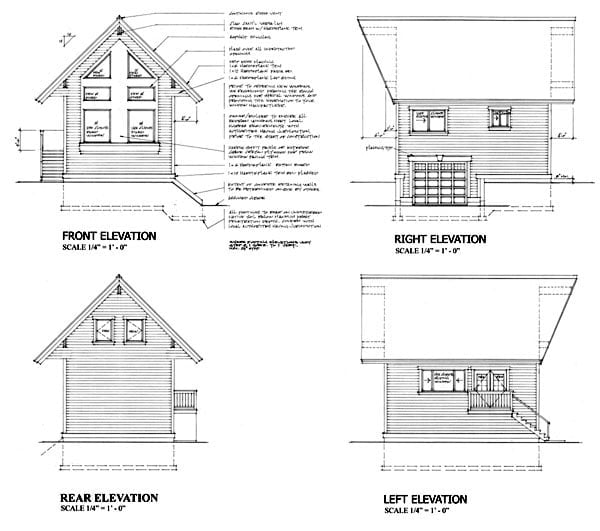

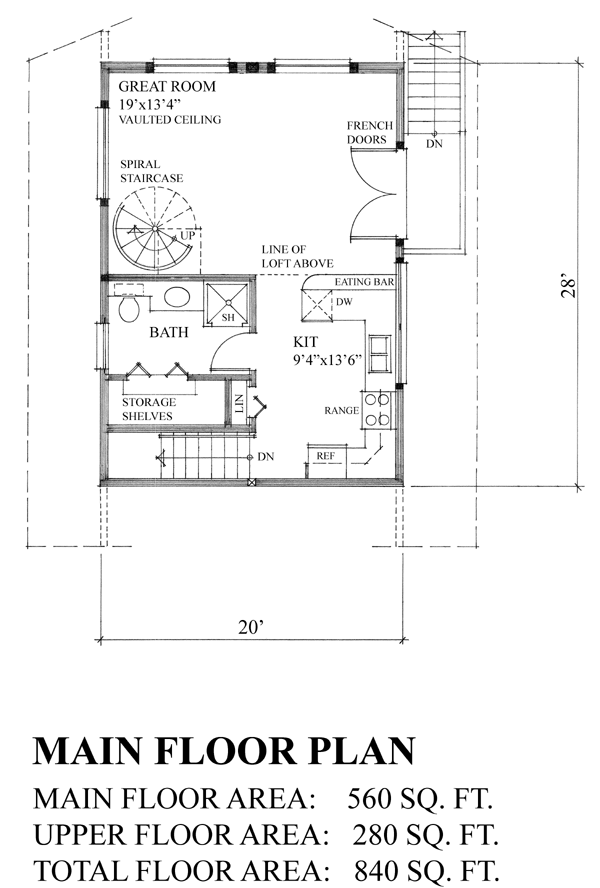

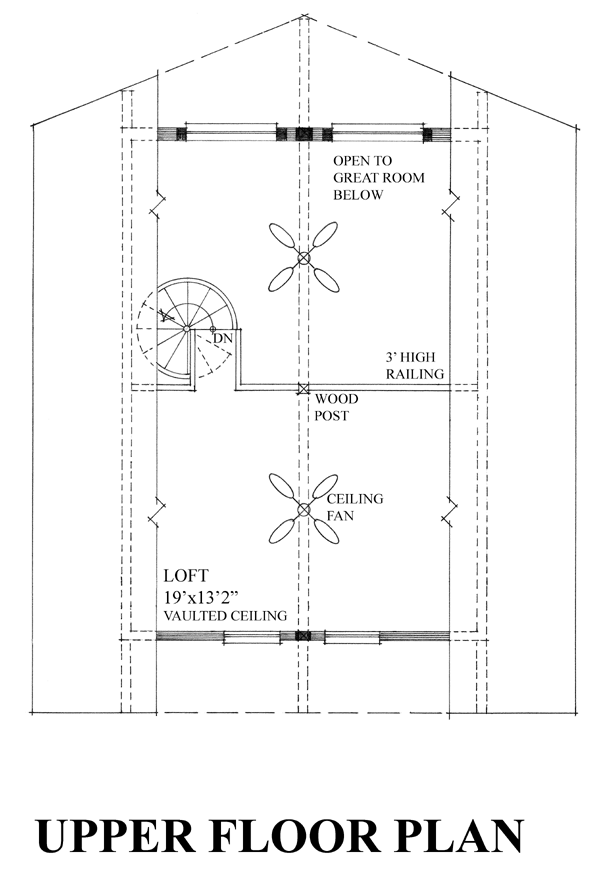

General notes. Site plan at 1/8"=1'-0". Foundation plan at 1/4"=1'-0". Some plans have foundation options, client to specify at time of order. Two cross sections at 1/4"=1'-0". Details as required. Main floor plan at 1/4"=1'-0". Second floor at 1/4"=1'-0", if applicable. All four elevations at 1/4"=1'-0". Structural floor / roof information indicated either on the floor plans or separate framing plans for complicated designs. Plans are engineered by a structural engineer, but not stamped or sealed. Ground snow load 40 psf. (or composite roof live load 32 psf, dead load 10 psf for total roof design load 42 psf) Floor live load 40 psf. Assumed soil bearing capacity 1560 psf.
Electrical fixtures / switches / smoke alarms by location on floor plans. Plumbing fixtures by location on floor plans. Windows are called out as generic nominal sizes on floor plans, opening directions indicated on elevations.
Items not including with plans: Interior cabinet elevations. Window schedules.
Situations beyond the scope of these drawings: High wind speeds. Seismic, shear walls, holddowns, nailing patterns. Energy code compliance.
