House Plan 75993

• PDF File: $7,142.85
• Reproducible Set: $7,142.85
• CAD File: $7,142.85
  Single Build License issued on CAD File orders.
• Right Reading Reverse: $655.00
  All sets will be Readable Reverse copies. Turn around time is usually 3 to 5 business days.

THIS PLAN CANNOT BE SOLD FOR CONSTRUCTION ANYWHERE IN THE STATE OF FLORIDA WITHOUT DESIGNER APPROVAL. Please call for availability.

Available Foundation Types:

• Slab : No Additional Fee

Available Exterior Wall Types:

• 2x6: $655.00
  (Please call for drawing time.)
• Concrete: No Additional Fee

Prices subject to approval prior to fulfillment.

• Shipping Policy

Total Living Area:	6549 sq ft

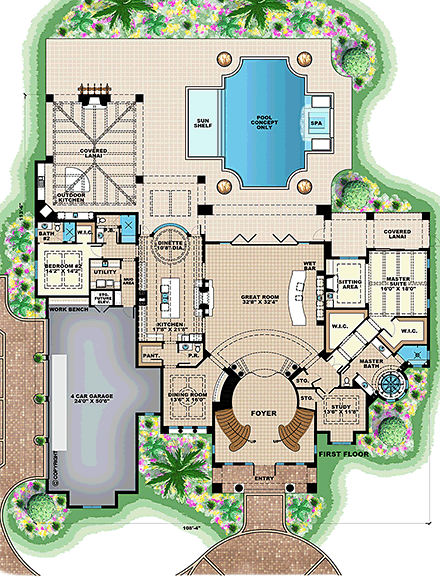

Main Living Area:	4026 sq ft

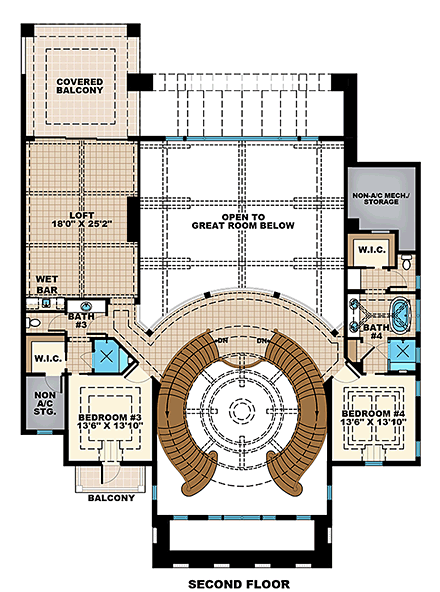

Upper Living Area:	1723 sq ft
Garage Area:	1453 sq ft
Garage Type:	Attached
Garage Bays:	4
Foundation Types:	Slab
Exterior Walls:	2x6 - * $655.00 Concrete
House Width:	108'4
House Depth:	113'6
Number of Stories:	2
Bedrooms:	4
Full Baths:	4
Half Baths:	2
Max Ridge Height:	43'0 from Front Door Floor Level
Primary Roof Pitch:	8:12
Roof Framing:	Truss
Porch:	1830 sq ft
Formal Dining Room:	Yes
FirePlace:	Yes
1st Floor Master:	Yes

* May require additional drawing time.

Special Features:

• 2nd Floor Balcony
• Office
• Outdoor Fireplace
• Outdoor Pool
• Pantry
• Wet Bar

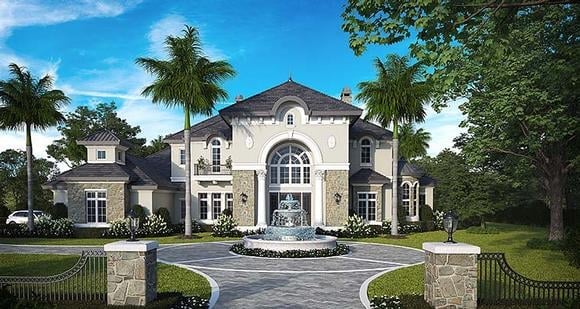

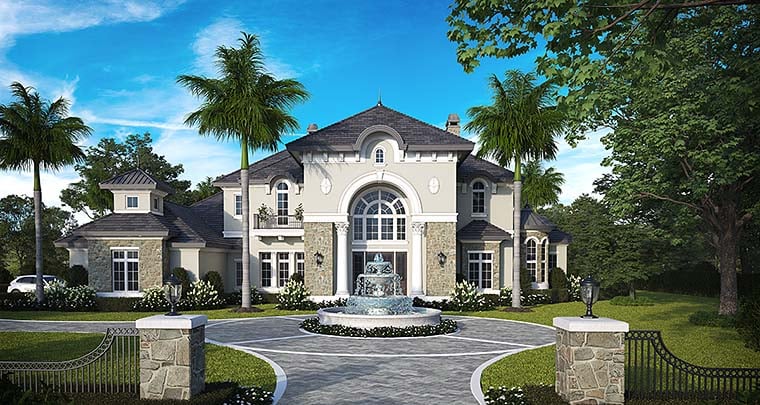

French Chateau Style House Plan

Start building your dream home today! Find everything you want and so much more with our Waterfront House Plan. The home plan has 4 bedrooms, 5 full baths, 1 half bath, a great room layout, formal dining room, spacious wet bar, a loft, study, cathedral ceilings and an imperial staircase, plus an upstairs covered balcony just begins to describe this luxury home plan. You will also find plenty of storage and even a hobby area inside the 4-car garage of this floor plan. Enjoy gorgeous rear views from all angles of the house plan while entertaining on your massive lanai that even features a built-in pizza oven! Have a waterfront lot? This French Chateau style house plan would be perfect!

Elevations

Drawn at 1/8" to 1/4" = 1'-0" Scale,and Includes:
Material Labels
Floor-to-Floor Heights
Roof Slope Indicators

Floor Plans

Drawn at 1/8" to 1/4" = 1'-0" Scale, and Includes:
Door and Window Sizes
Completely Dimensioned Floor Plan
Room Labels and Interior Room Sizes

Electrical Layouts

Building Section Markers
All Electrical Outlets, Fixtures, and Switching

Slab Plan

Drawn at 1/8" to 1/4" = 1'-0" Scale, and Includes:
Floor and Deck Joist Size and Spacing
Rough-in Plumbing Location (if applicable)
Mechanical Equipment Locations (if applicable)
Electrical Locations (if applicable)

Roof Design Plan

Drawn at 1/8" to 1/4" = 1'-0"scale, and Includes:
All Beam and Header Heights and Locations
All Hips, Gables, Ridges and Valleys
Building Section Markers

Building Sections

Drawn at 1/8" to 1/4" = 1'-0" Scale, and Includes:
Floor Joist Size and Spacing
Floor-to-Floor Heights
Non-Typical Plate Heights Indicated

Typical Wall Sections

Drawn at 1/8" to 1/2" = 1'-0" Scale, and Includes:
All Labels Indicating Wall Construction
Foundation Wall Thickness and Reinforcing
Insulation Type and Thickness

Miscellaneous Notes and Details

Miscellaneous General Notes
Stairway details (if applicable)

Receive a FREE modification estimate in one of 3 ways. Our modification team is ready to help you adjust any plan to fit your needs. The ReDesign process is simple and estimates are free!

1. Complete this On-Line Request Form

2. Print, complete and fax this PDF Form to us at 1-800-675-4916.

3. Want to talk to an expert? Call us at 913-938-8097 (Canadian customers, please call 800-361-7526) to discuss modifications.

Note: - a sketch of the changes or the website floor plan marked up to reflect changes is a great way to convey the modifications in addition to a written list.

We Work Fast!

When you submit your ReDesign request, a designer will contact you within 24 business hours with a quote.
You can have your plan redesigned in as little as 14 - 21 days!

We look forward to hearing from you!

Start today planning for tomorrow!

• No Risk Offer: Order your Home-Cost Estimate now for just $24.95! We provide a discount code in your receipt that will refund (plus some) the Home-Cost price when you decide to order any plan on our website!
• Get more accurate results, quicker! No need to wait for a reliable cost.
• Get a detailed cost report for your home plan with over 70 lines of summarized cost information in under 5 minutes!
• Cost report for your zip code. (the zip code can be changed after you receive the online report)
• Estimate 1, 1-1/2 or 2 story home plans. **
• Interactive! Instantly see the costs change as you vary quality levels Economy, Standard, Premium and structure such as slab, basement and crawlspace.
• Your estimate is active for 1 FULL YEAR!
