House Plan 76016
Cottage Style, 1741 Sq Ft, 3 Bed, 2 Bath | Plan 76016
sq ft
1741beds
3baths
2bays
0width
42'depth
51'
Plan Pricing from $945.00
Plan Pricing
Need Printed Sets?
It seems that this plan only offers electronic (PDF or CAD) files. If you also need Printed Sets, please call 1-800-482-0464, x403 to discuss possible options.Additional Notes
Deck: 629 sq. ftBalcony: 128 sq. ft.
Available Foundation Types:
Available Exterior Wall Types:
Prices subject to approval prior to fulfillment.Specifications
| Total Living Area: | 1741 sq ft |
| Main Living Area: | 978 sq ft |
| Upper Living Area: | 763 sq ft |
| Unfinished Basement Area: | 978 sq ft |
| Garage Type: | None |
| See our garage plan collection. If you order a house and garage plan at the same time, you will get 10% off your total order amount. | |
| Foundation Types: | Basement |
| Exterior Walls: | 2x6 |
| House Width: | 42' |
| House Depth: | 50'6 |
| Number of Stories: | 2 |
| Bedrooms: | 3 |
| Full Baths: | 2 |
| Max Ridge Height: | 25' from Front Door Floor Level |
| Primary Roof Pitch: | 12:12 |
| Roof Load: | 44 psf |
| Roof Framing: | Stick |
| Porch: | 72 sq ft |
| Deck: | 757 sq ft |
| Main Ceiling Height: | 8' |
| Upper Ceiling Height: | 10' |
| Vaulted Ceiling: | Yes |
Plan Description

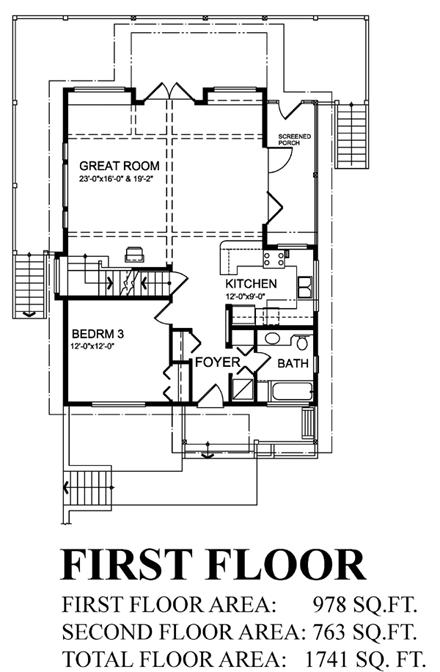

The Great room in this compact narrow lot cottage design boasts: a versatile floor plan, a wood stove, partially vaulted ceilings, window seats, access through French doors to a partially covered wrap around sundeck, access to a side screened porch via folding French doors, all while being open to the adjacent kitchen . An abundance of windows and glass door openings transforms this expansive space into a truly inviting ever evolving multipurpose environment.
The vaulted second floor is dedicated to two bedrooms, one a massive open studio bedroom with access to a large private covered balcony. The ceilings on this floor level flatten out at a voluminous ten foot height.
The daylight basement plan is a totally open unfinished space awaiting your personal development, whether it be additional bedrooms, recreational space, home theatre media room or hobby / workshop. The separate private entrance easily transforms this level into an in-law suite, a home office or business space.
What's Included?
These designs packages usually run between three and five 24" x 36" sheets.
Working drawings usually comprises of the following:
General notes. Site plan at 1/8"=1'-0". Foundation plan at 1/4"=1'-0". Some plans have foundation options, client to specify at time of order. Two cross sections at 1/4"=1'-0". Details as required. Main floor plan at 1/4"=1'-0". Second floor at 1/4"=1'-0", if applicable. All four elevations at 1/4"=1'-0". Structural floor / roof information indicated either on the floor plans or separate framing plans for complicated designs. Plans are engineered by a structural engineer, but not stamped or sealed. Ground snow load 40 psf. (or composite roof live load 32 psf, dead load 10 psf for total roof design load 42 psf) Floor live load 40 psf. Assumed soil bearing capacity 1560 psf.
Electrical fixtures / switches / smoke alarms by location on floor plans. Plumbing fixtures by location on floor plans. Windows are called out as generic nominal sizes on floor plans, opening directions indicated on elevations.
Items not including with plans: Interior cabinet elevations. Window schedules.
Situations beyond the scope of these drawings: High wind speeds. Seismic, shear walls, holddowns, nailing patterns. Energy code compliance.
Working drawings usually comprises of the following:
General notes. Site plan at 1/8"=1'-0". Foundation plan at 1/4"=1'-0". Some plans have foundation options, client to specify at time of order. Two cross sections at 1/4"=1'-0". Details as required. Main floor plan at 1/4"=1'-0". Second floor at 1/4"=1'-0", if applicable. All four elevations at 1/4"=1'-0". Structural floor / roof information indicated either on the floor plans or separate framing plans for complicated designs. Plans are engineered by a structural engineer, but not stamped or sealed. Ground snow load 40 psf. (or composite roof live load 32 psf, dead load 10 psf for total roof design load 42 psf) Floor live load 40 psf. Assumed soil bearing capacity 1560 psf.
Electrical fixtures / switches / smoke alarms by location on floor plans. Plumbing fixtures by location on floor plans. Windows are called out as generic nominal sizes on floor plans, opening directions indicated on elevations.
Items not including with plans: Interior cabinet elevations. Window schedules.
Situations beyond the scope of these drawings: High wind speeds. Seismic, shear walls, holddowns, nailing patterns. Energy code compliance.
Modifications
Plan modification is a way of turning a stock plan into your unique custom plan. It's still just a small fraction of the price you would pay to create a home plan from scratch. You will receive a FREE, no obligation, modification estimate to get exactly the home plan you've been dreaming of. Simply contact the modification department 1 of 3 ways:
Call 866-465-5866 and talk to a live person that can give you and FREE modification estimate over the phone!
Email Us - Please Include your telephone number, plan number, foundation type, state you are building in and a specific list of changes.
Fax: 651-602-5050 - Make sure to include a cover sheet with your contact info. Make attention to the FamilyHomePlans.com Modification Department.
Call 866-465-5866 and talk to a live person that can give you and FREE modification estimate over the phone!
Email Us - Please Include your telephone number, plan number, foundation type, state you are building in and a specific list of changes.
Fax: 651-602-5050 - Make sure to include a cover sheet with your contact info. Make attention to the FamilyHomePlans.com Modification Department.
Cost To Build
QUICK Cost-To-Build estimates have the following assumptions:
QUICK Cost-To-Build estimates are available for single family, stick-built, detached, 1 story, 1.5 story and 2 story home plans with attached or detached garages, pitched roofs on flat to gently sloping sites.QUICK Cost-To-Build estimates are not available for specialty plans and construction such as garage / apartment, townhouse, multi-family, hillside, flat roof, concrete walls, log cabin, home additions, and other designs inconsistent with the assumptions outlined in Item 1 above.
User is able to select and have costs instantly calculate for slab on grade, crawlspace or full basement options.
User is able to select and have costs instantly calculate different quality levels of construction including Economy, Standard, Premium. View Quality Level Assumptions.
Estimate will dynamically adjust costs based on the home plan's finished square feet, porch, garage and bathrooms.
Estimate will dynamically adjust costs based on unique zip code for project location.
All home plans are based on the following design assumptions: 8 foot basement ceiling height, 9 foot first floor ceiling height, 8 foot second floor ceiling height (if used), gable roof; 2 dormers, average roof pitch is 12:12, 1 to 2 covered porches, porch construction on foundations.
Summarized cost report will provide approximately 70 lines of cost detail within the following home construction categories: Site Work, Foundations, Basement (if used), Exterior Shell, Special Spaces (Kitchen, Bathrooms, etc), Interior Construction, Elevators, Plumbing, Heating / AC, Electrical Systems, Appliances, Contractor Markup.
QUICK Cost-To-Build generates estimates only. It is highly recommend that one employs a local builder in order to get a more accurate construction cost.
All costs are "installed costs" including material, labor and sales tax.
** Available for U.S. only.
Q & A
Previous Q & A
Q: We are interested in possibly purchasing this home plan, but we would like to have the dimensions on the main floor including the deck. Most of the home plans include dimensions on the pictures. Could you possibly help us with this? Thank you!
A: Hi,
The dimensions for design 76016 are as follows:
The front verandah is 16’ wide by 4’-6” deep.
The right side screened porch is 17’ wide by 6’ deep.
The rear sundeck is 36’ wide by 10’ deep..
The left side deck is 17’-10” wide by 6’ deep.
The main floor footprint is 30’ (24’ + 6’ screened porch) wide by 36’ deep. (not including the 1’-6” rear window seats)
The overall dimensions including the decks and verandah is 42’ wide by 50’-6” deep.
The second level rear balcony is 16’ wide by 8’ deep.
Please email with any questions or if you require any additional information.
Best regards,
Regan
Common Q & A
Q: Can I make modifications to this plan?
A: Yes you can! Please click the "Modifications" tab above to get more information.
Q: What is the estimated price to build this plan?
A: The national average for a house is running right at $125.00 per SF. You can get more detailed information by clicking the Cost-To-Build tab above. Sorry, but we cannot give cost estimates for garage, multifamily or project plans.
