Multi-Family Plan 81878

• PDF File: $2,490.00
• CAD File: $3,990.00
  Single Build License issued on CAD File orders.

Need A Materials List?

It seems that this plan does not offer a stock materials list, but we can make one for you. Please call 1-800-482-0464, x403 to discuss further.
• Right Reading Reverse: $250.00
  All sets will be Readable Reverse copies. Turn around time is usually 3 to 5 business days.
• Additional Sets: $65.00

Available Foundation Types:

• Basement : No Additional Fee
  Total Living Area may increase with Basement Foundation option.
• Crawlspace : $495.00
  May require additional drawing time, please call to confirm before ordering.
• Slab : $495.00
  May require additional drawing time, please call to confirm before ordering.
• Stem Wall Slab : $495.00
  May require additional drawing time, please call to confirm before ordering.

Available Exterior Wall Types:

• 2x6: No Additional Fee

Prices subject to approval prior to fulfillment.

• Shipping Policy

Total Living Area:	3600 sq ft
Lower Living Area:	1800 sq ft
Main Living Area:	1800 sq ft
Garage Type:	None
Foundation Types:	Basement Crawlspace - * $495.00 Slab - * $495.00 Stem Wall Slab - * $495.00
Exterior Walls:	2x6
House Width:	50'0
House Depth:	36'0
Number of Stories:	1
Bedrooms:	6
Full Baths:	4
Max Ridge Height:	25'9 from Front Door Floor Level
Primary Roof Pitch:	7:12
Roof Load:	55 psf
Roof Framing:	Unknown
Porch:	100 sq ft
1st Floor Master:	Yes
Main Ceiling Height:	9'

* May require additional drawing time.

Special Features:

• Deck or Patio
• Entertaining Space
• Front Porch
• Open Floor Plan
• Pantry
• Storage Space

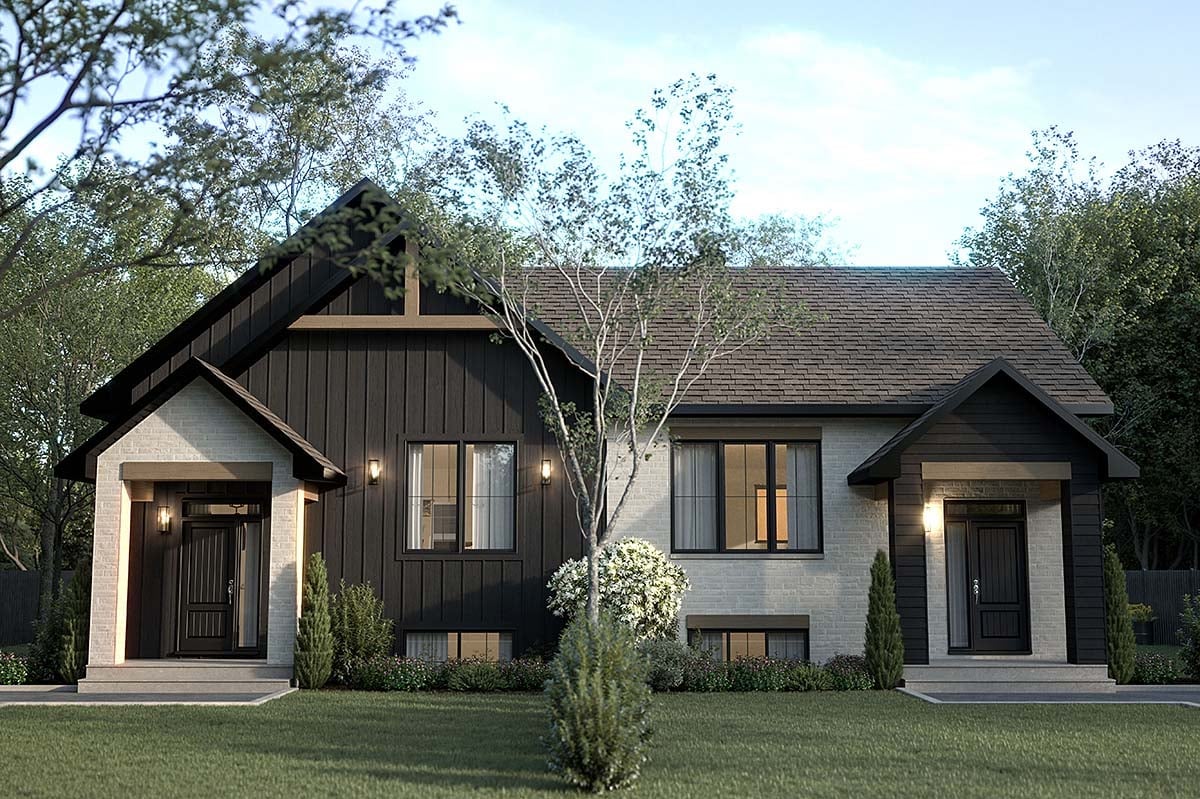

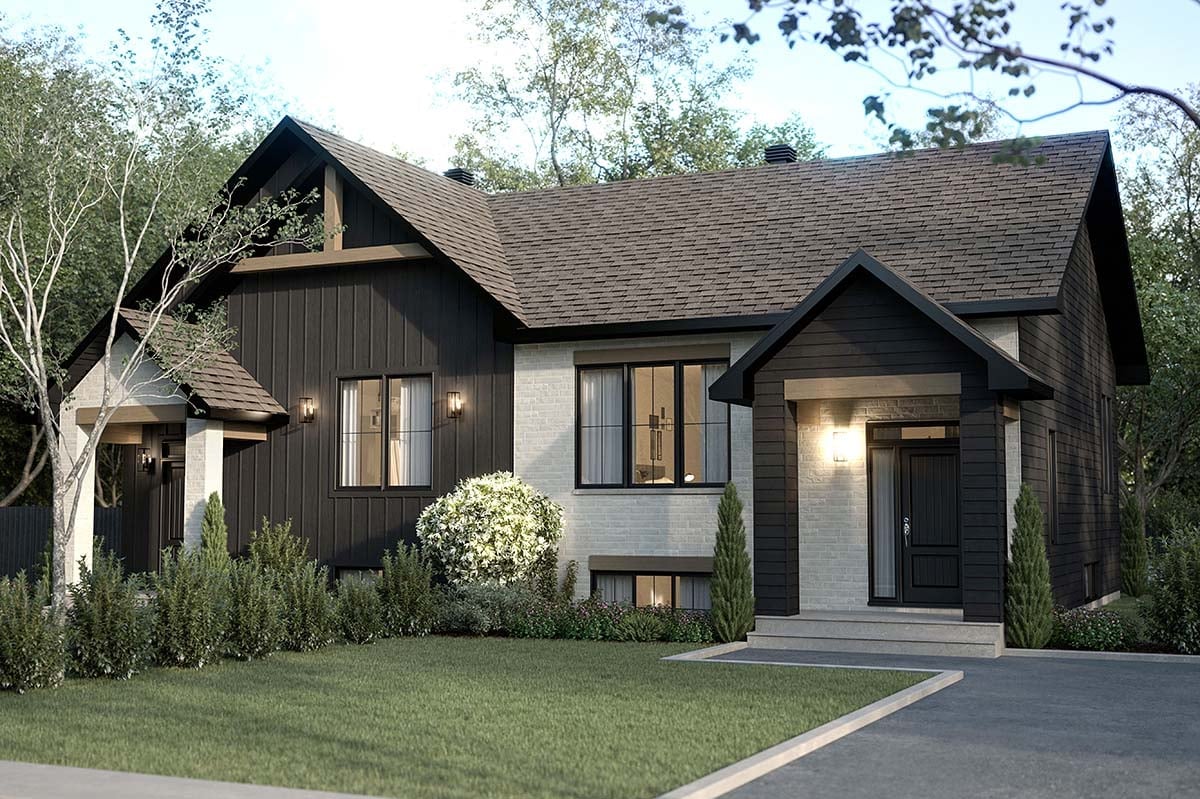

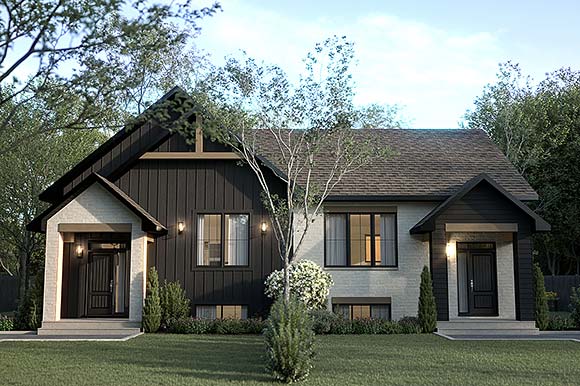

Very Trendy Modern Craftsman Look for this Sem-detached Home with 3 Bedrooms 2 Baths Per Unit

A multi-family home offers a total of 3,600 sq. ft. on the ground floor and fully finished basement. Each of the dwellings therefore has a total of 1,800 sq. ft. on the ground floor and finished basement. The modern yet rustic style will attract the eye as much in the countryside as in new residential areas! Also note that both dwellings offer 9' high ceilings on the main floor.

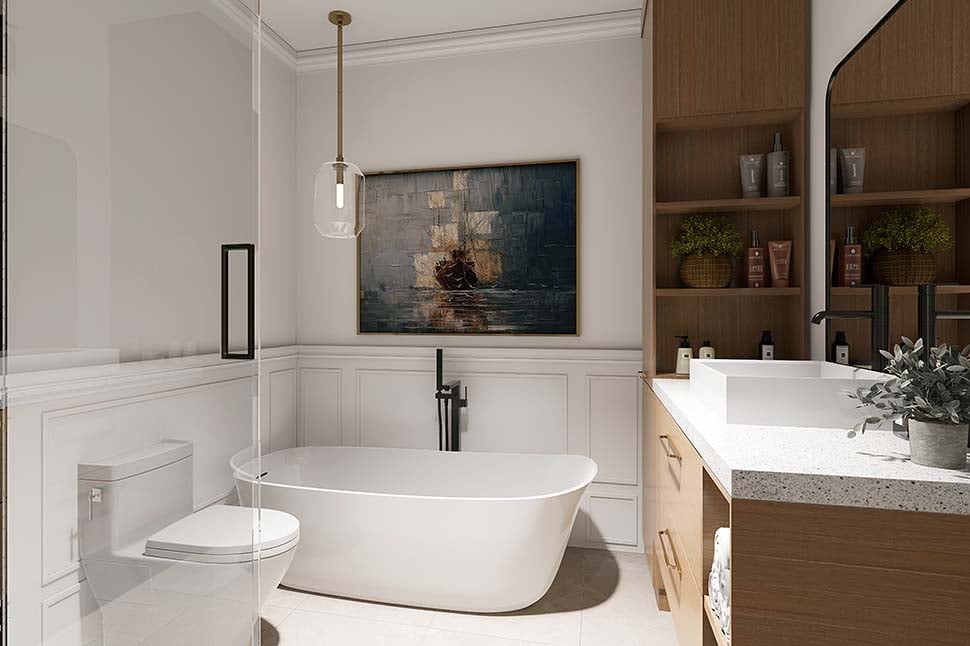

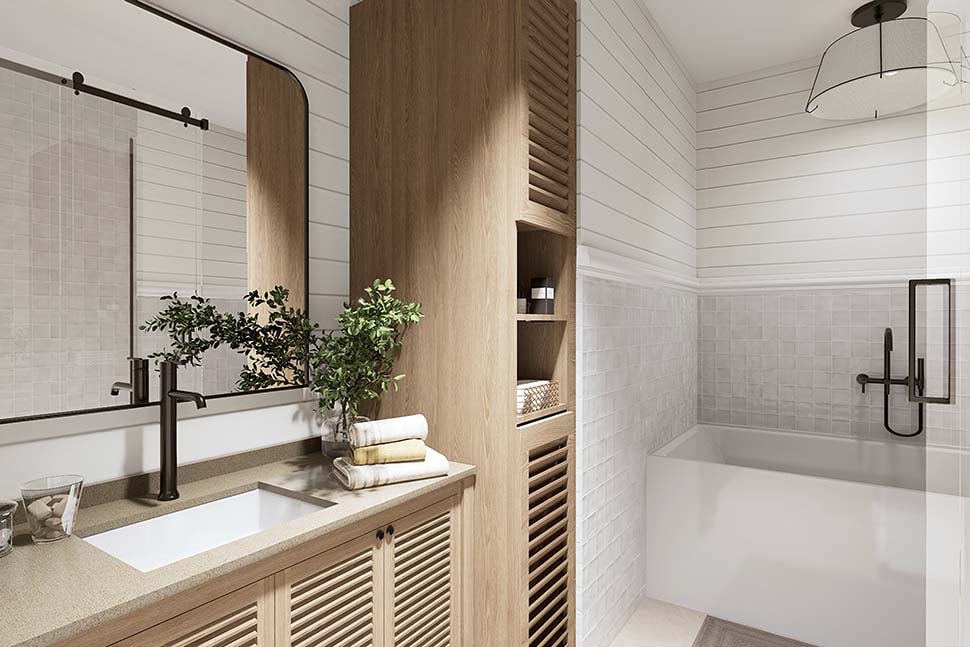

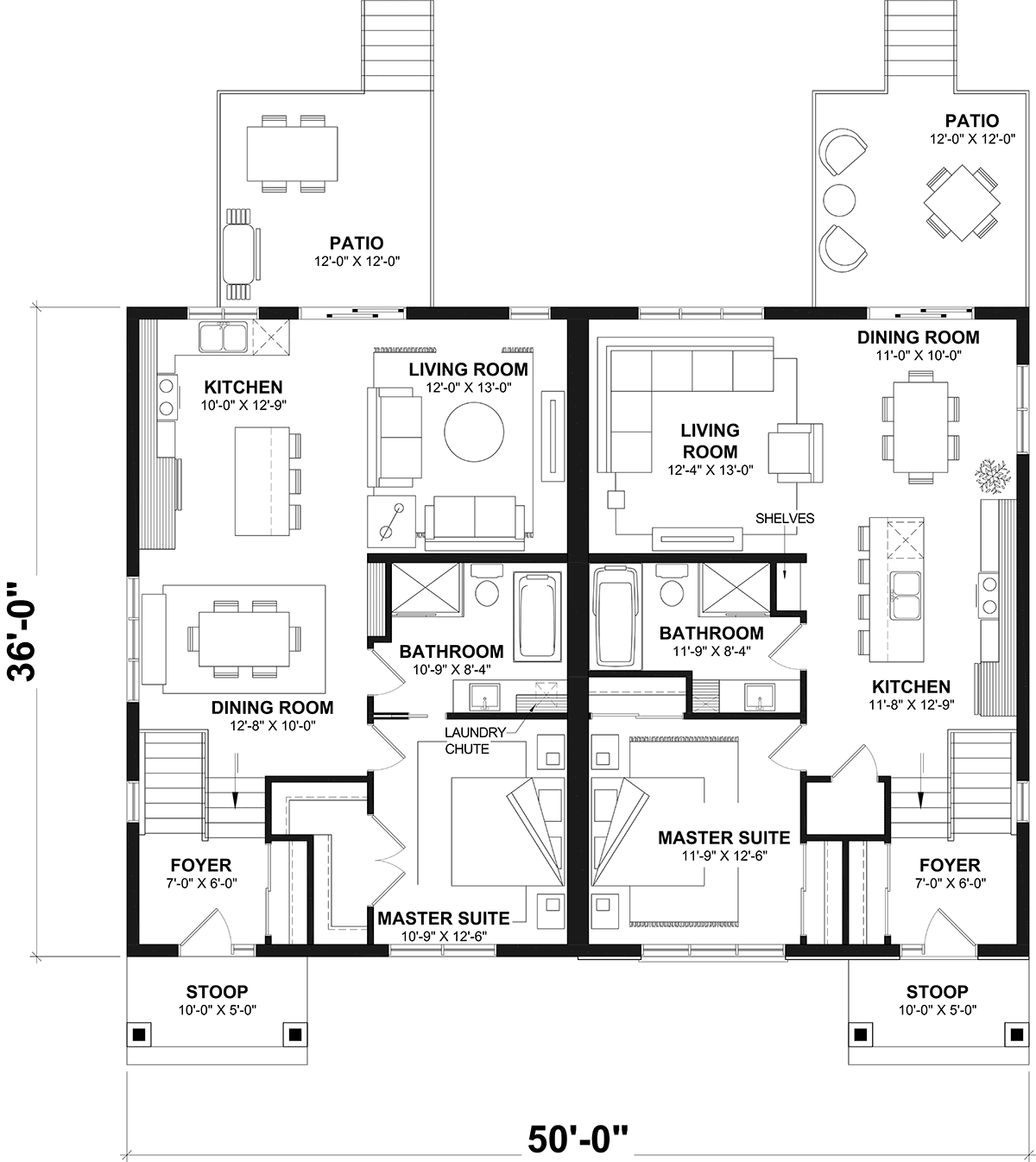

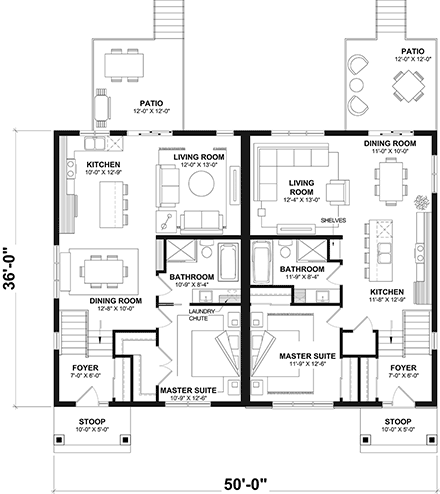

For both dwellings, the ground floor opens onto a split-type entrance, allowing the basement rooms to receive beautiful natural light through the windows. The master bedroom is located on the ground floor and has access to the large full bathroom which is also on this level. The latter offers a bath and a separate shower.

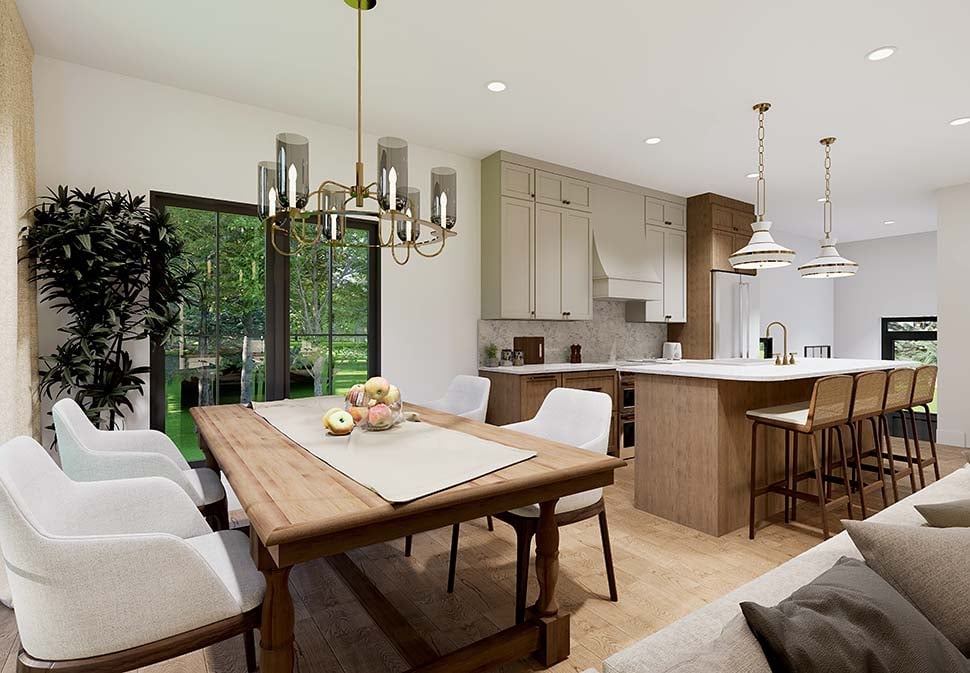

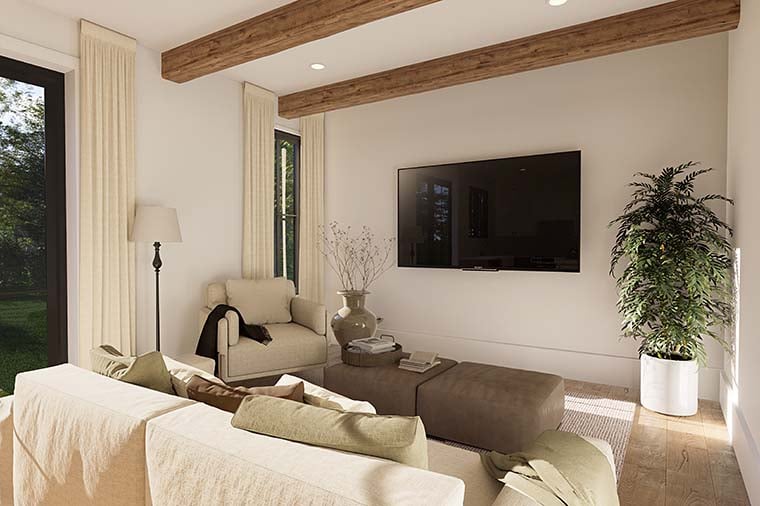

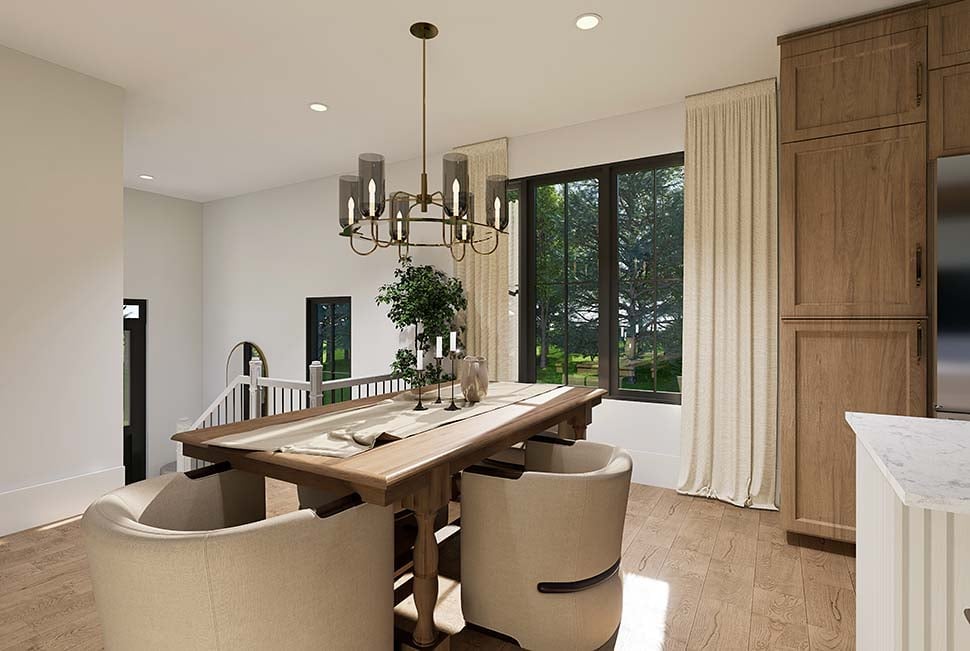

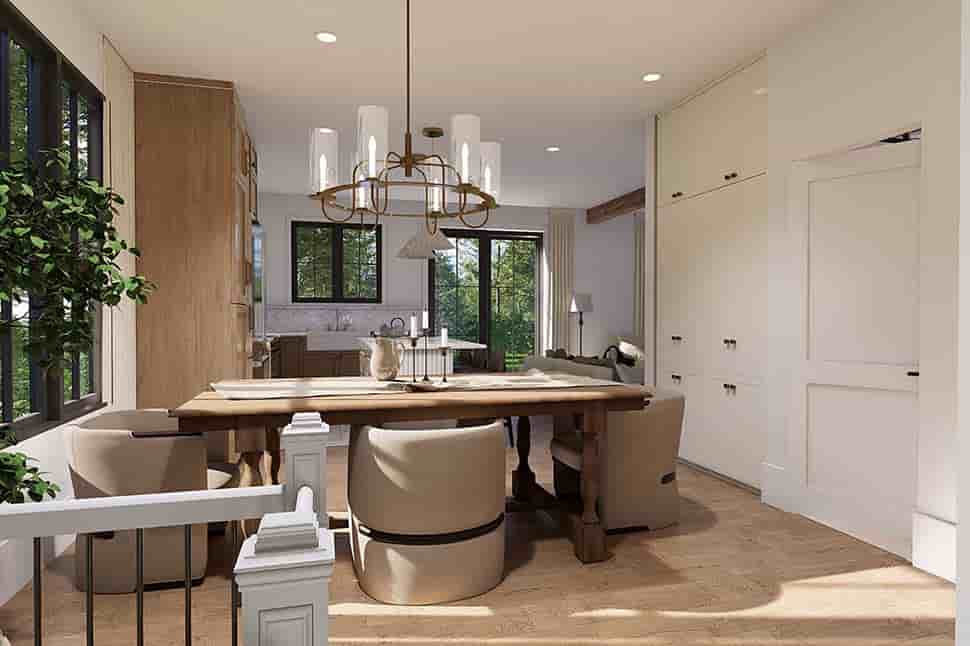

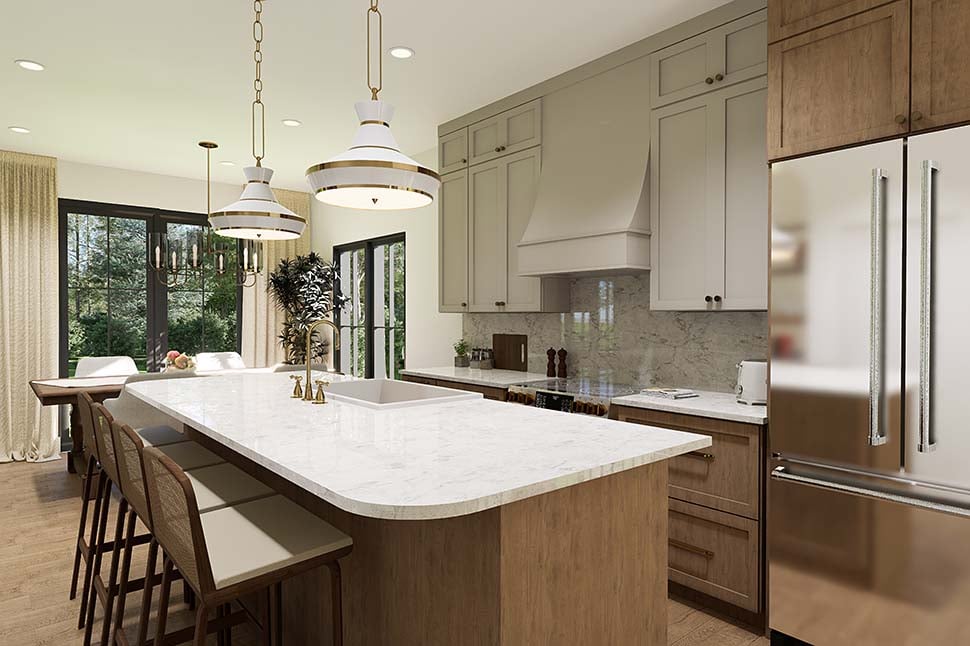

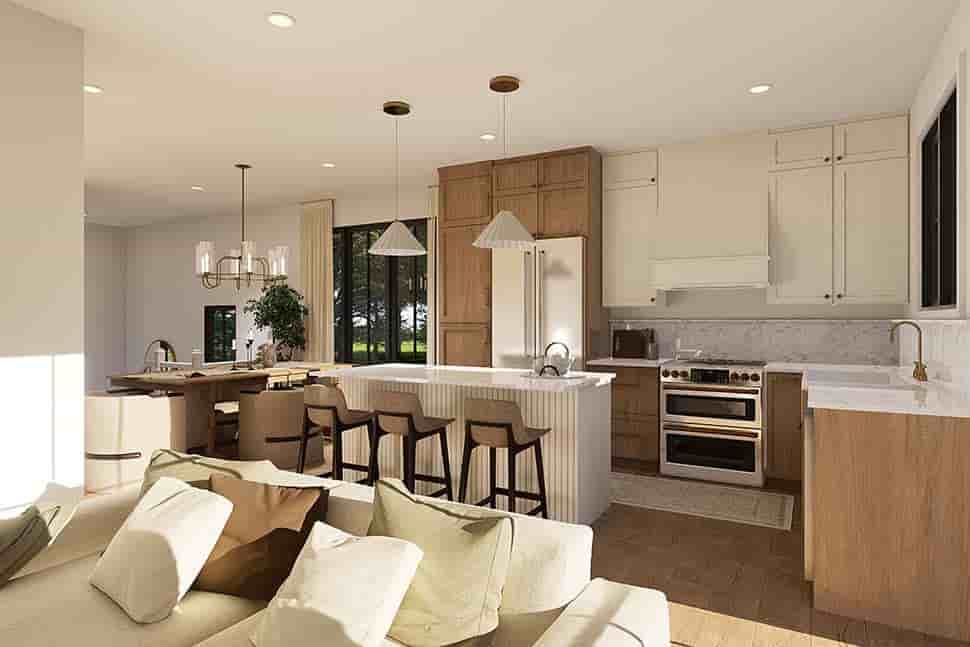

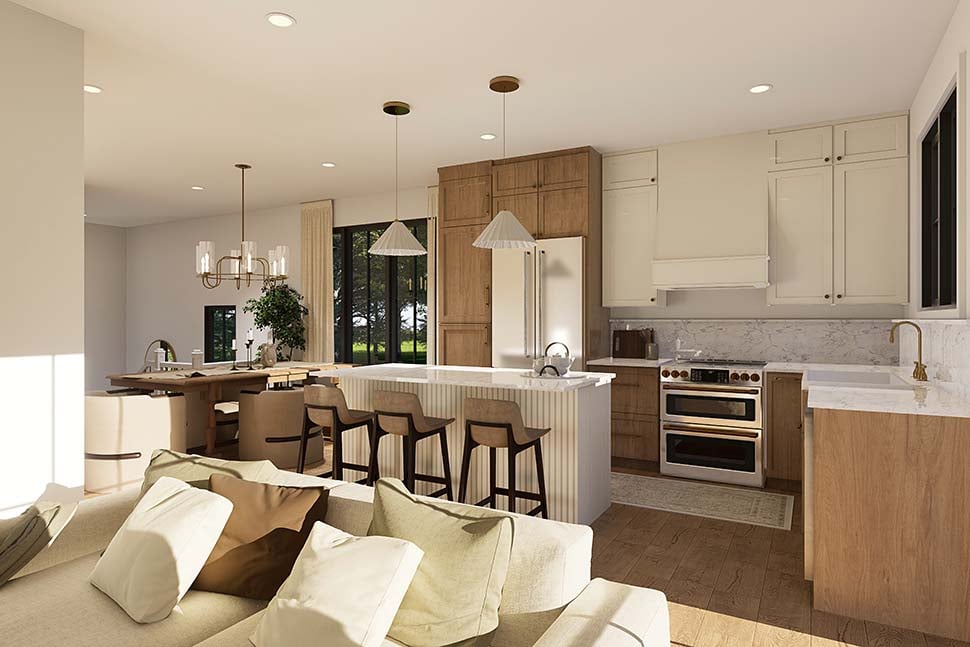

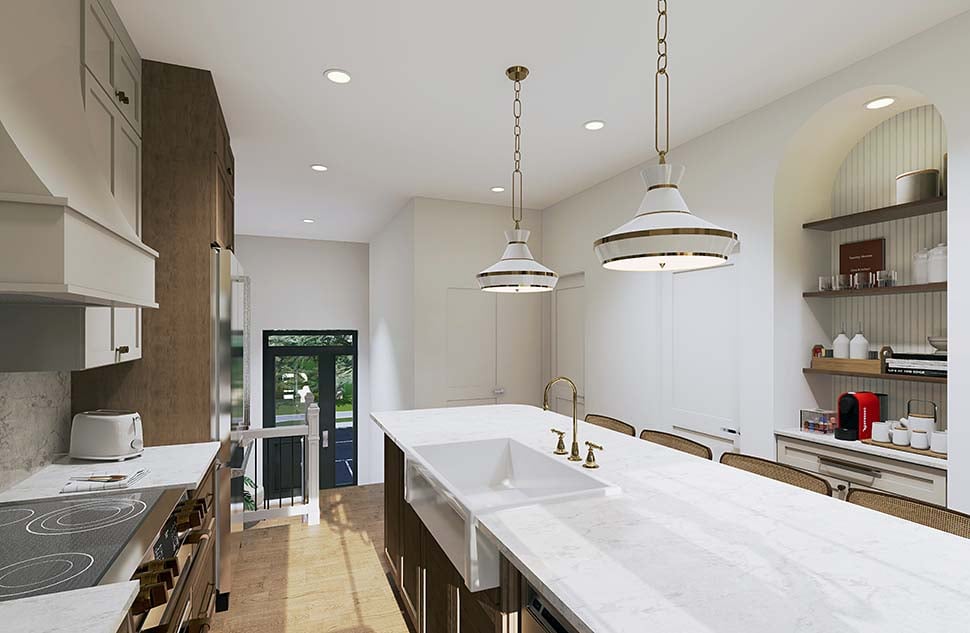

The kitchen with island is open to the living room and these two spaces are at the back of the house, for the dwelling on the left (1). The dining room is central for apartment 1, and at the back of the house for apartment 2. The latter offers a different layout for the ground floor which allowed us to add a pantry (still in apartment 2).

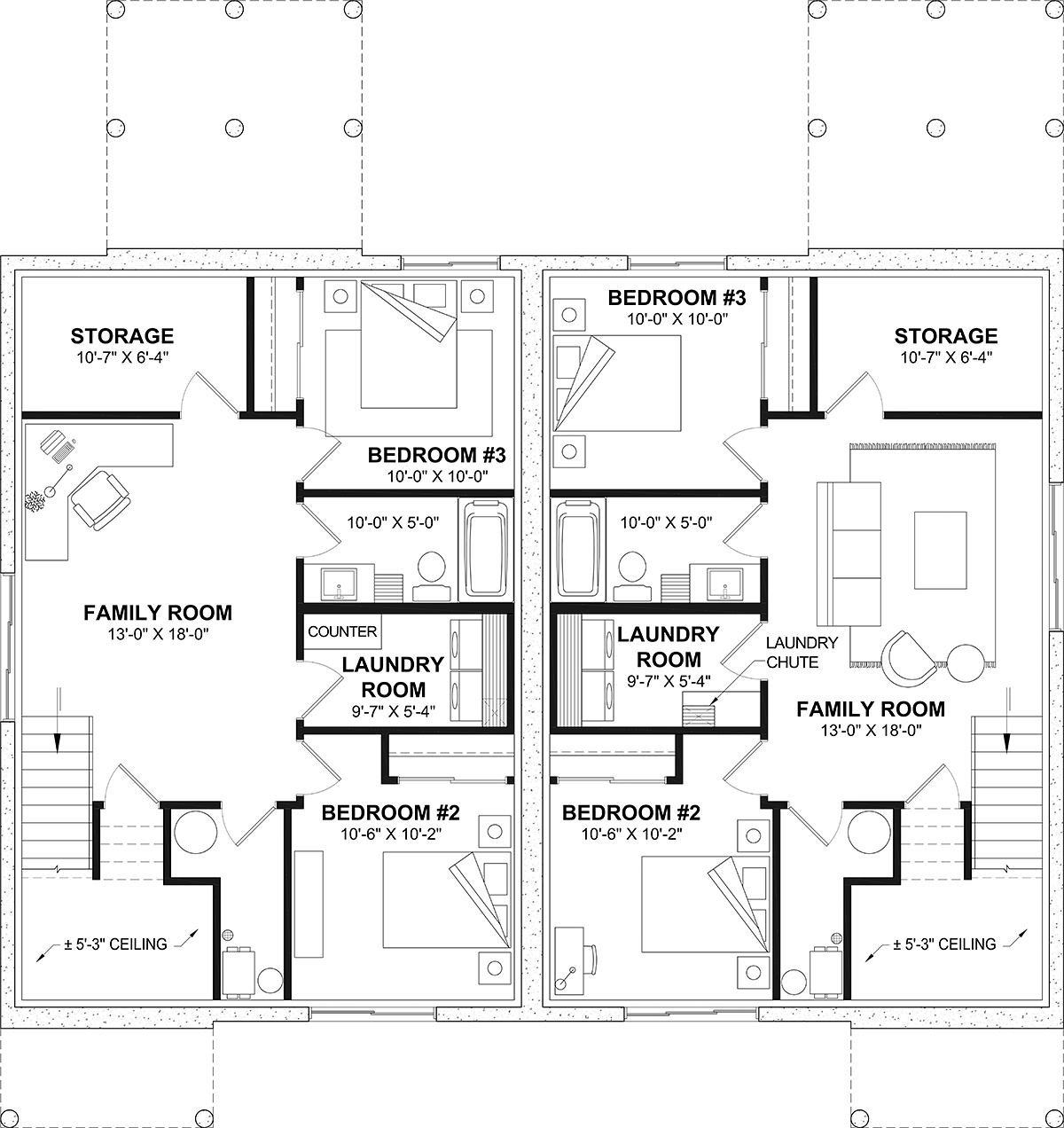

The finished daylight basements are identical and each include 2 secondary bedrooms, a bathroom, the laundry room and a storage area.

All our house plans include:

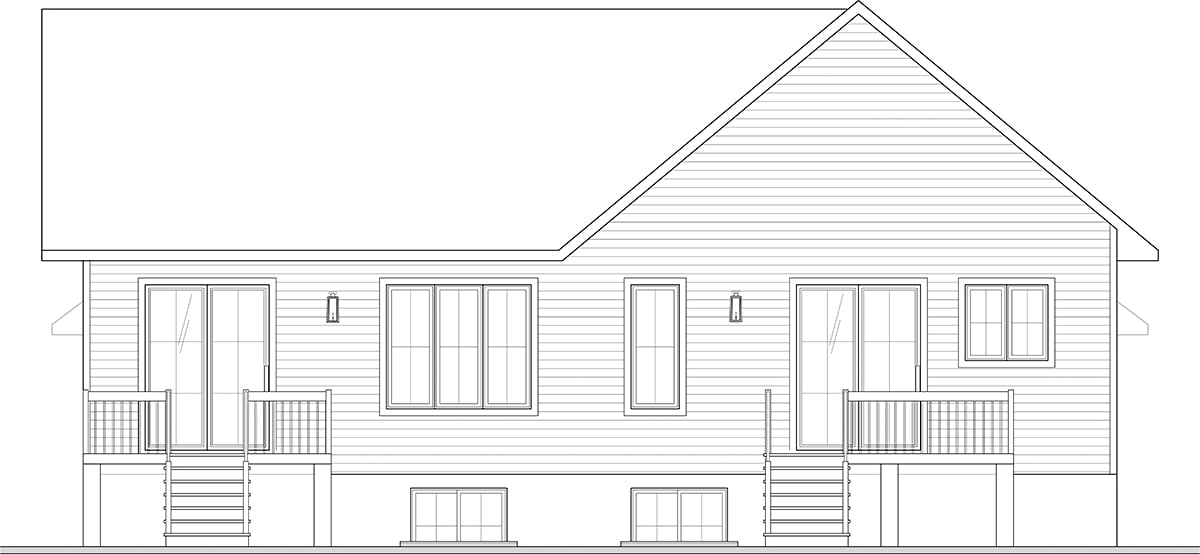

-4 elevations
-Foundation plan
-Ground floor plan
-Upper floor plan (if applicable)
-Roof plan
-Truss diagrams and building sections (manufactured trusses required – no structural details included)
-Construction details
-Typical wall section

NOT included:

-Engineering
-HVAC (Heating, ventilation and air conditioning)
-Electrical and plumbing plans

What's included in our house plans detail

BCIN # for Ontario customers is available at an additional charge

-House plans with or without garage and / or apartment $300
-Multi-unit plans $400
-All other plans $150
-Garage plans with NO heating elements, $200 charge for BCIN
  If you are purchasing a BCIN number for Ontario customers, and wish to purchase the PDF, a copy per Ontario rules must be mailed as well. There is no charge for the actual copy, but shipping on the copy must be purchased.

Plan modification is a way of turning a stock plan into your unique custom plan. It's still just a small fraction of the price you would pay to create a home plan from scratch. You will receive a FREE, no obligation, modification estimate to get exactly the home plan you've been dreaming of. Simply contact the modification department 1 of 3 ways:

Call 866-465-5866 and talk to a live person that can give you and FREE modification estimate over the phone!

Email Us - Please Include your telephone number, plan number, foundation type, state you are building in and a specific list of changes.

Fax: 651-602-5050 - Make sure to include a cover sheet with your contact info. Make attention to the FamilyHomePlans.com Modification Department.

Ask the Designer any question you may have. NOTE: If you have a plan modification question, please click on the Plan Modifications tab above.

Common Q & A
