Multi-Family Plan 81886

• PDF File: $2,490.00
• CAD File: $3,990.00
  Single Build License issued on CAD File orders.

Need A Materials List?

It seems that this plan does not offer a stock materials list, but we can make one for you. Please call 1-800-482-0464, x403 to discuss further.
• Right Reading Reverse: $250.00
  All sets will be Readable Reverse copies. Turn around time is usually 3 to 5 business days.
• Additional Sets: $65.00

Available Foundation Types:

• Basement : No Additional Fee
  Total Living Area may increase with Basement Foundation option.

Available Exterior Wall Types:

• 2x6: No Additional Fee

Prices subject to approval prior to fulfillment.

• Shipping Policy

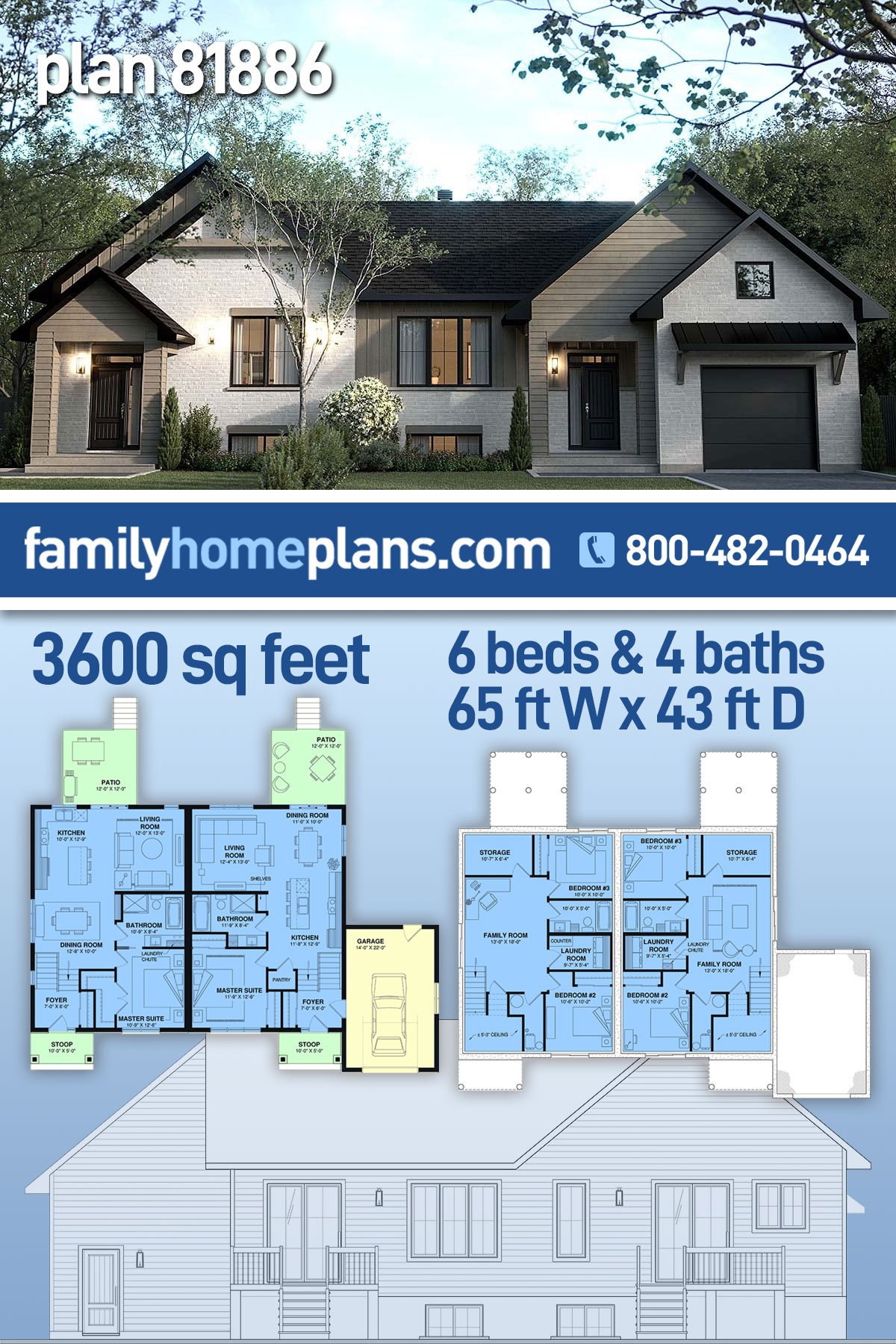

Total Living Area:	3600 sq ft
Lower Living Area:	1800 sq ft
Main Living Area:	1800 sq ft
Garage Area:	358 sq ft
Garage Type:	Attached
Garage Bays:	1
Foundation Types:	Basement
Exterior Walls:	2x6
House Width:	64'8
House Depth:	42'4
Number of Stories:	1
Bedrooms:	6
Full Baths:	4
Max Ridge Height:	25'9 from Front Door Floor Level
Primary Roof Pitch:	7:12
Roof Framing:	Unknown
Porch:	100 sq ft
1st Floor Master:	Yes
Main Ceiling Height:	9'

* May require additional drawing time.

Special Features:

• Coat Closet
• Deck or Patio
• Entertaining Space
• Front Porch
• Open Floor Plan
• Pantry
• Storage Space

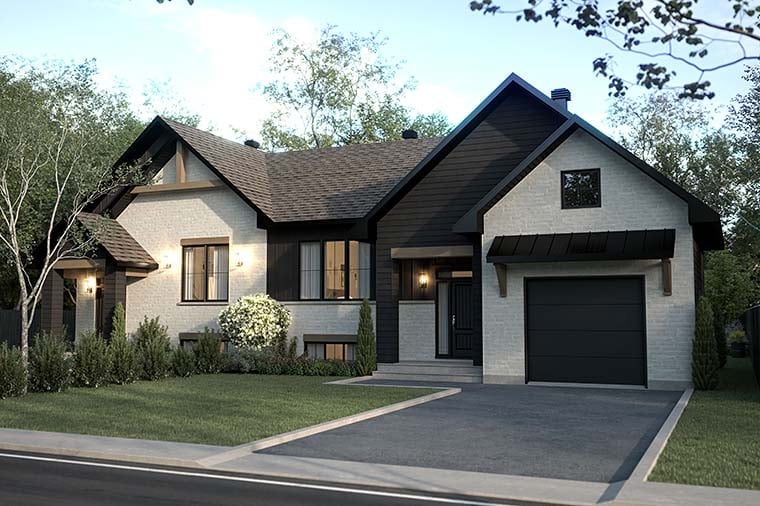

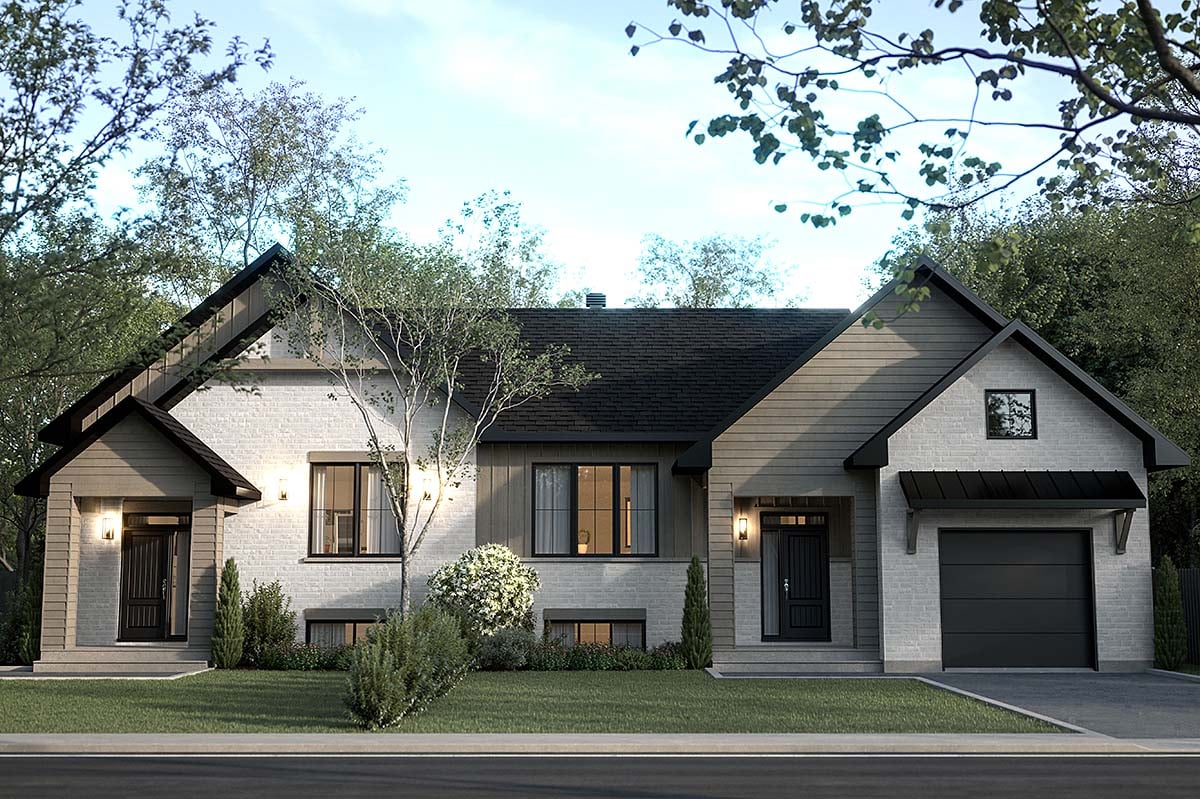

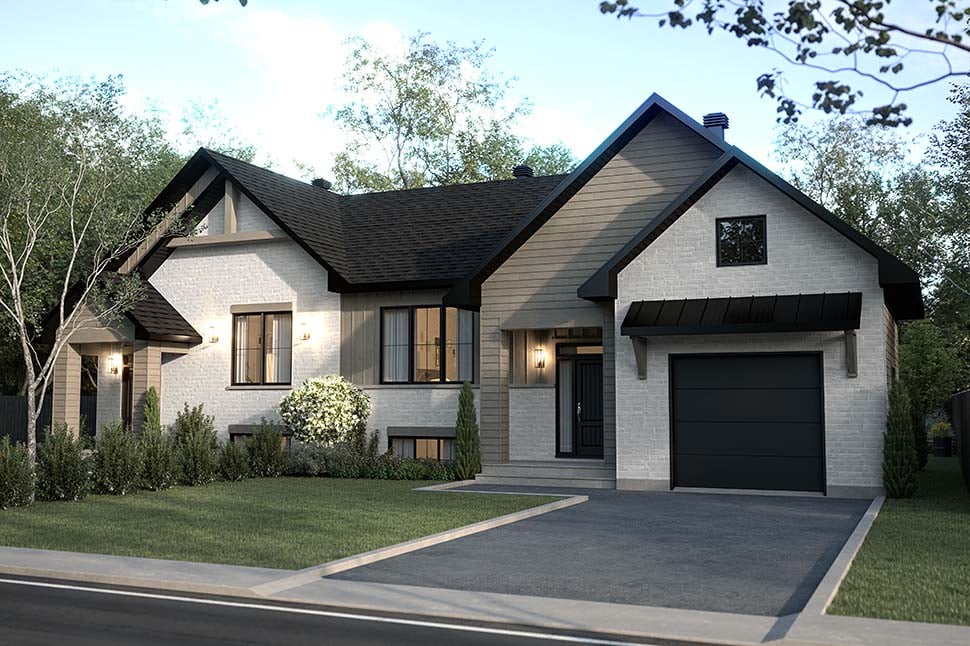

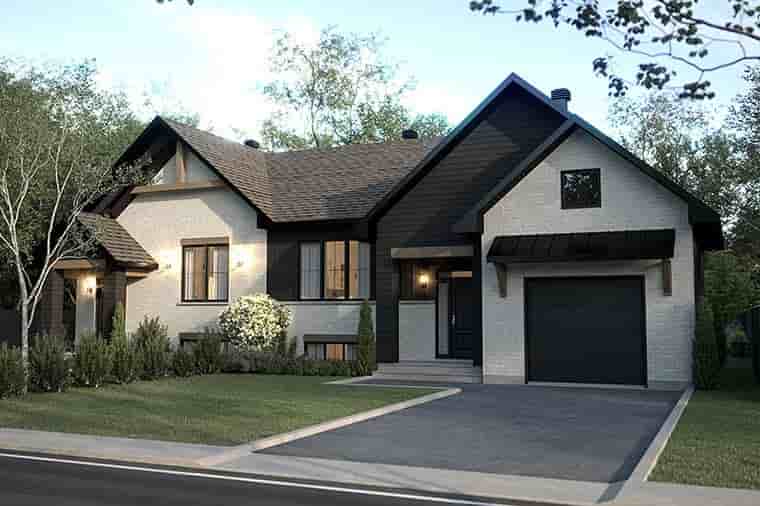

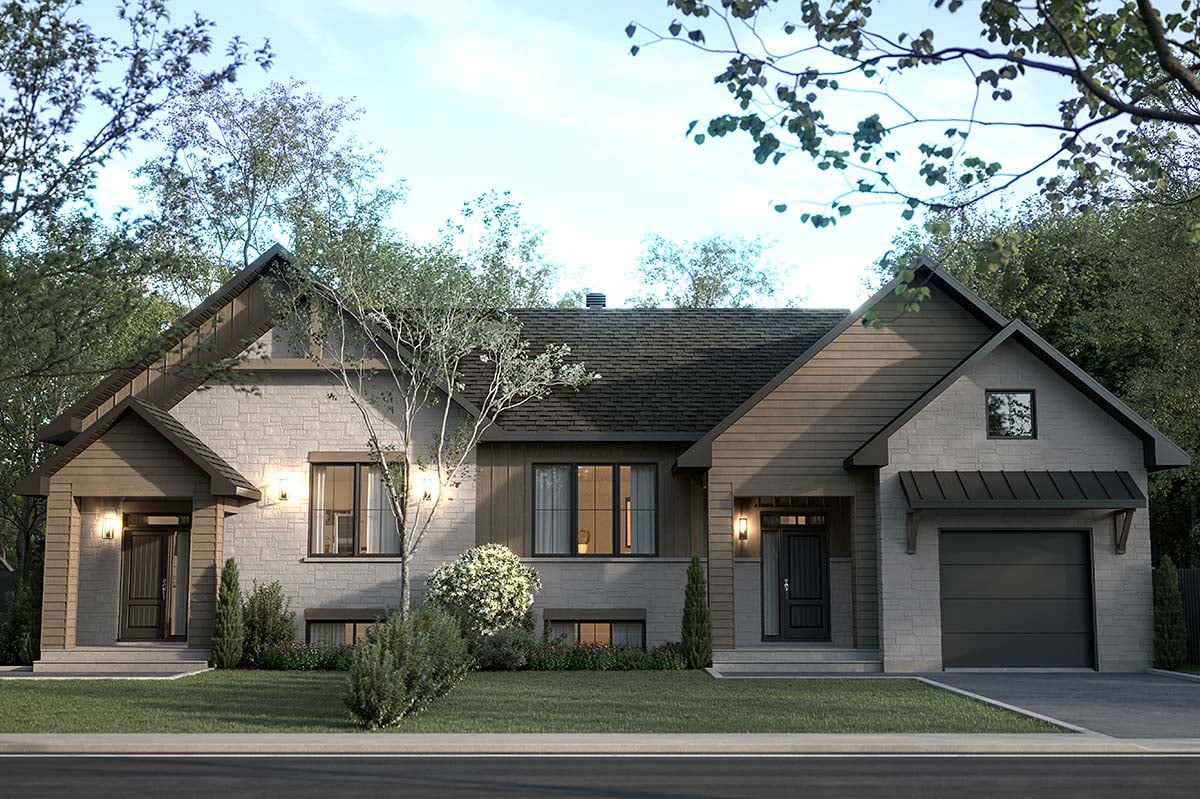

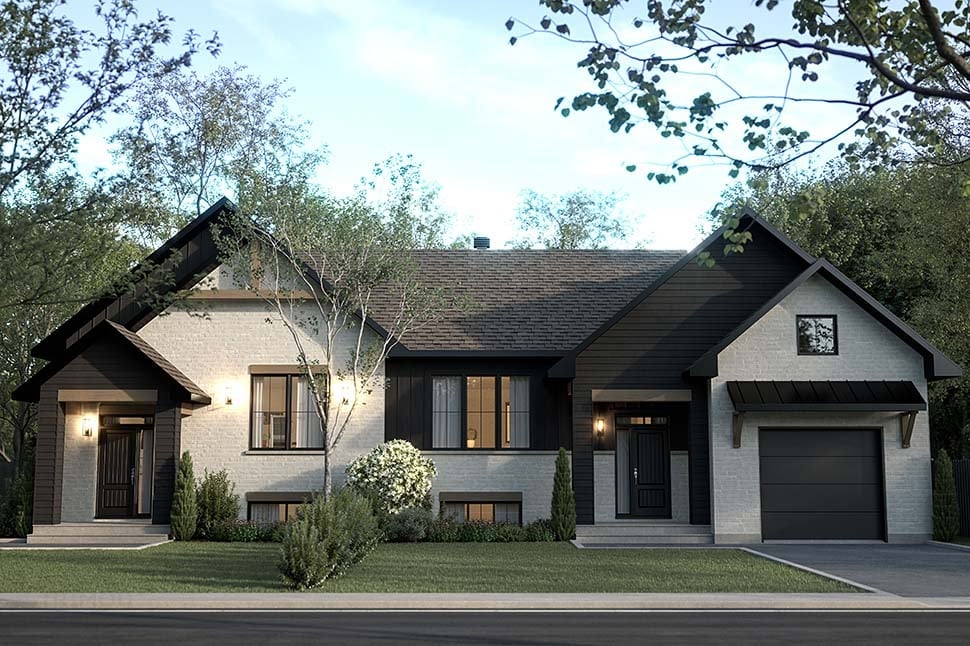

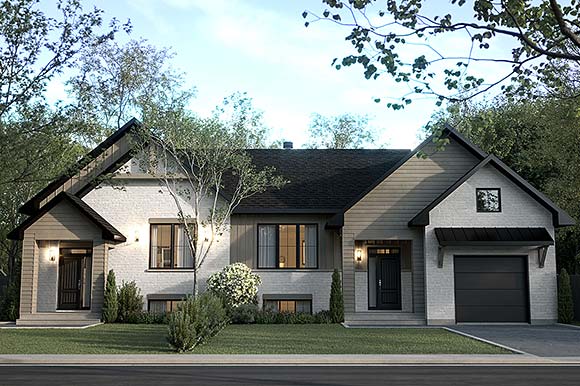

Modern Duplex Plan with Upper Floor Laundry Room

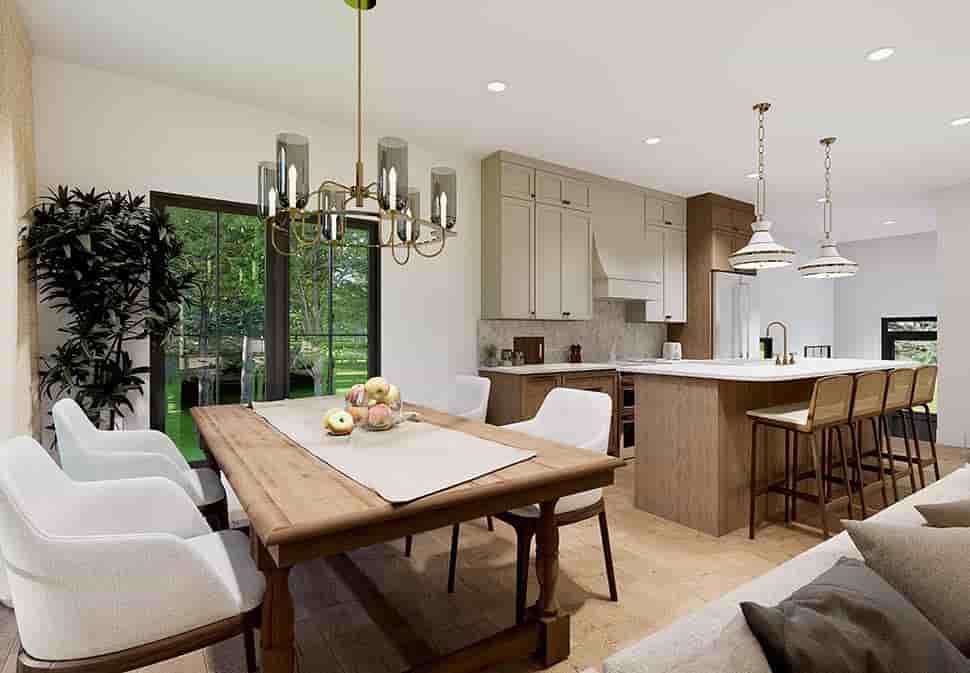

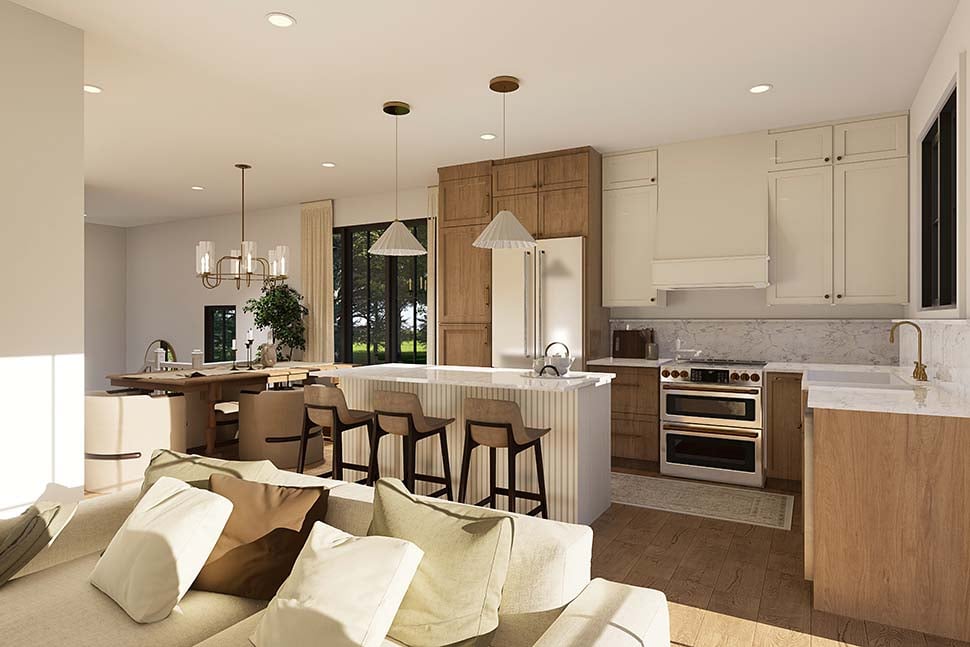

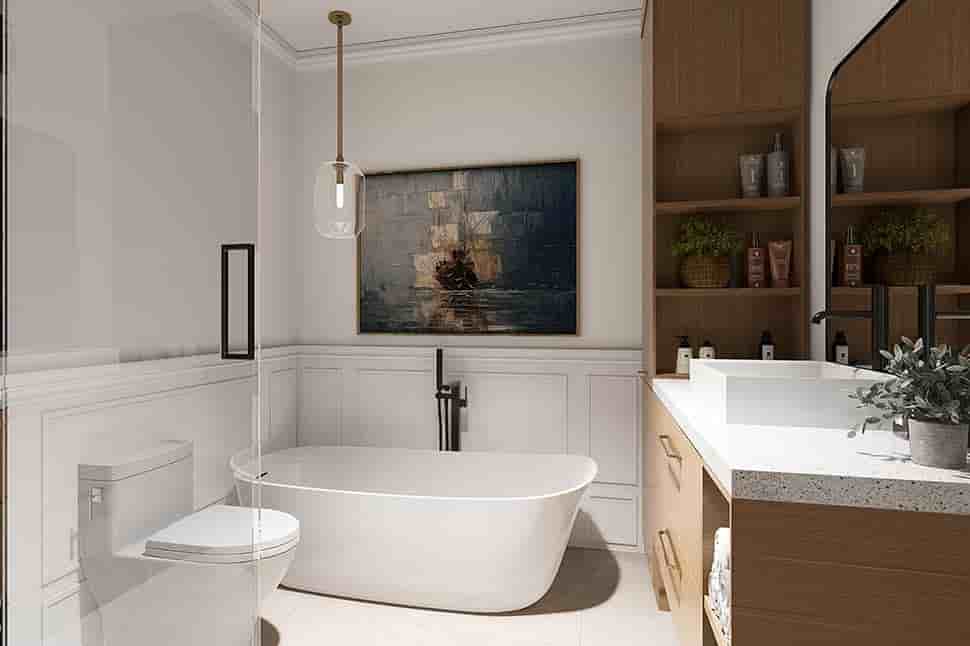

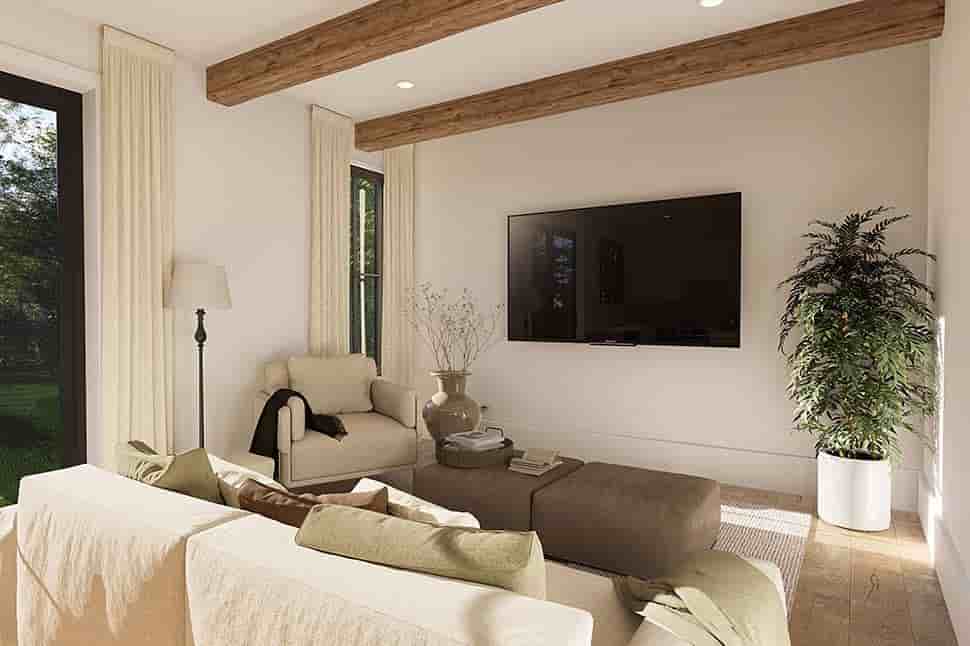

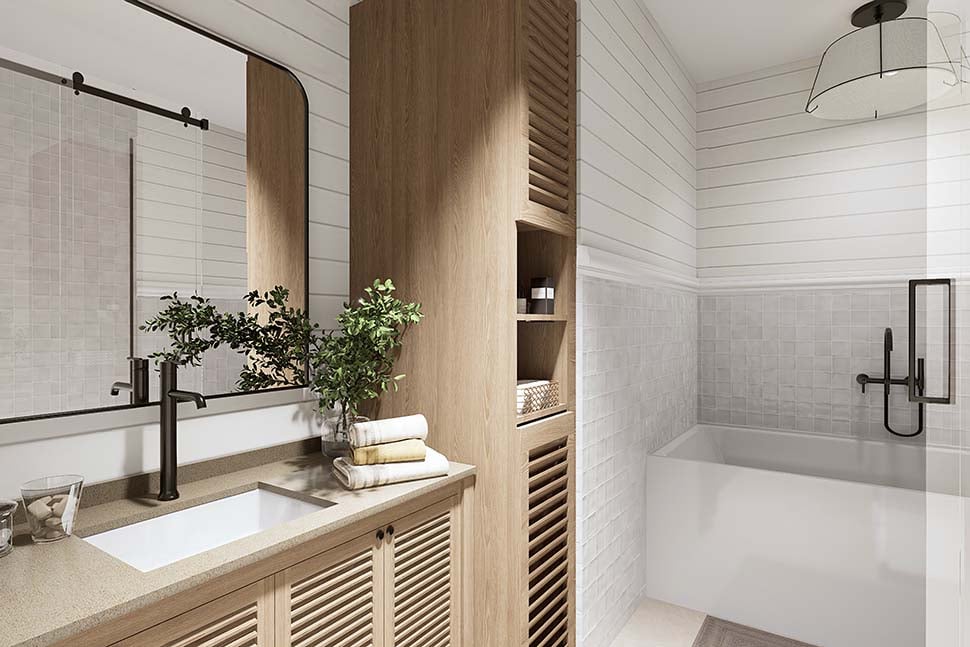

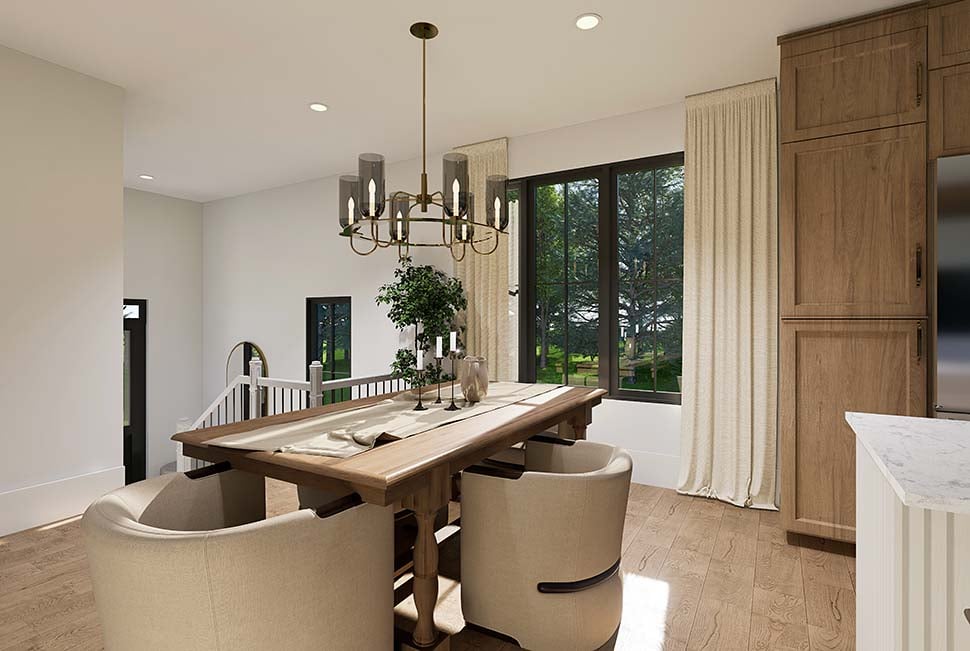

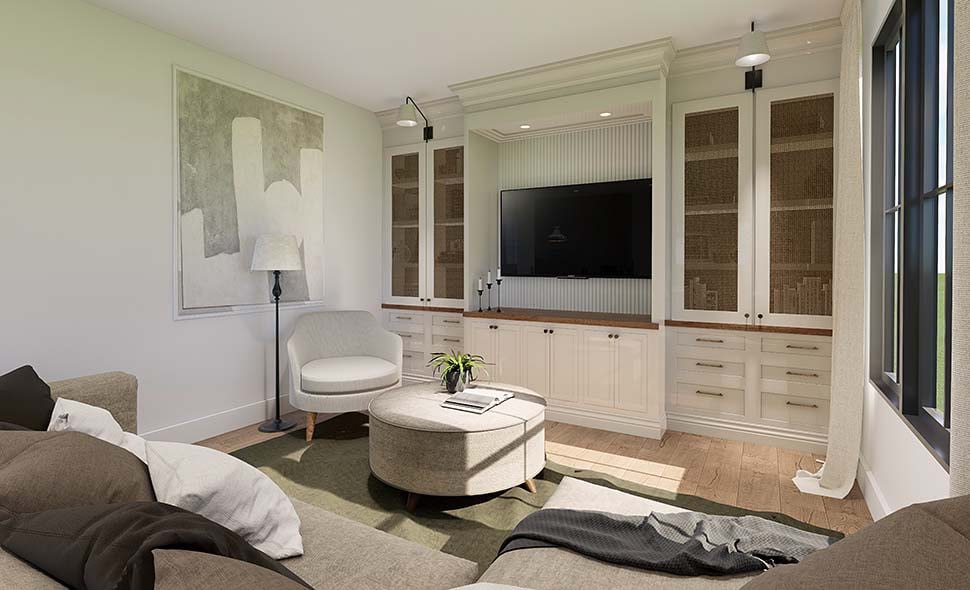

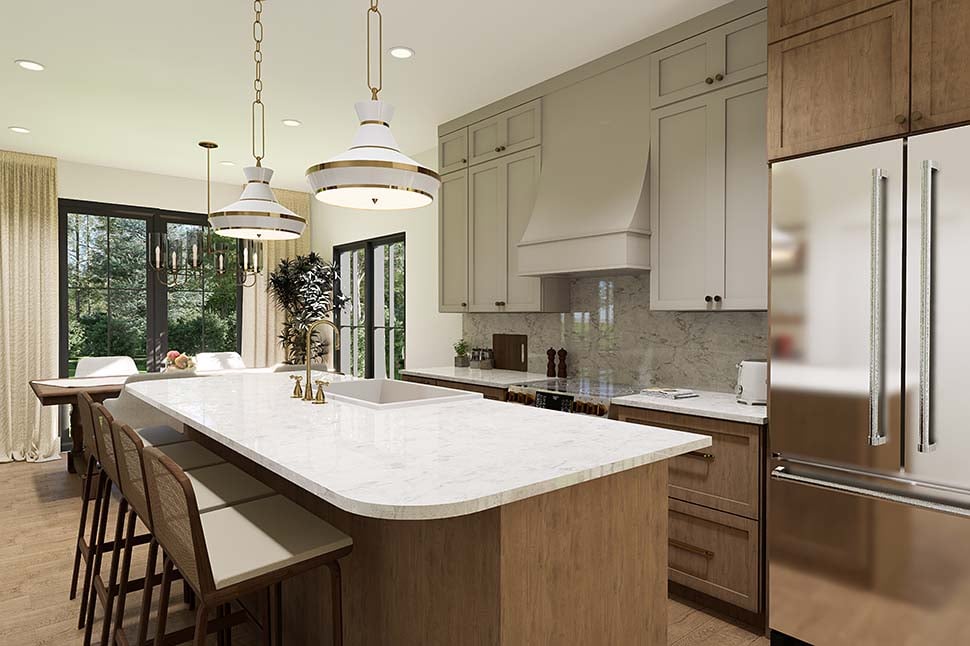

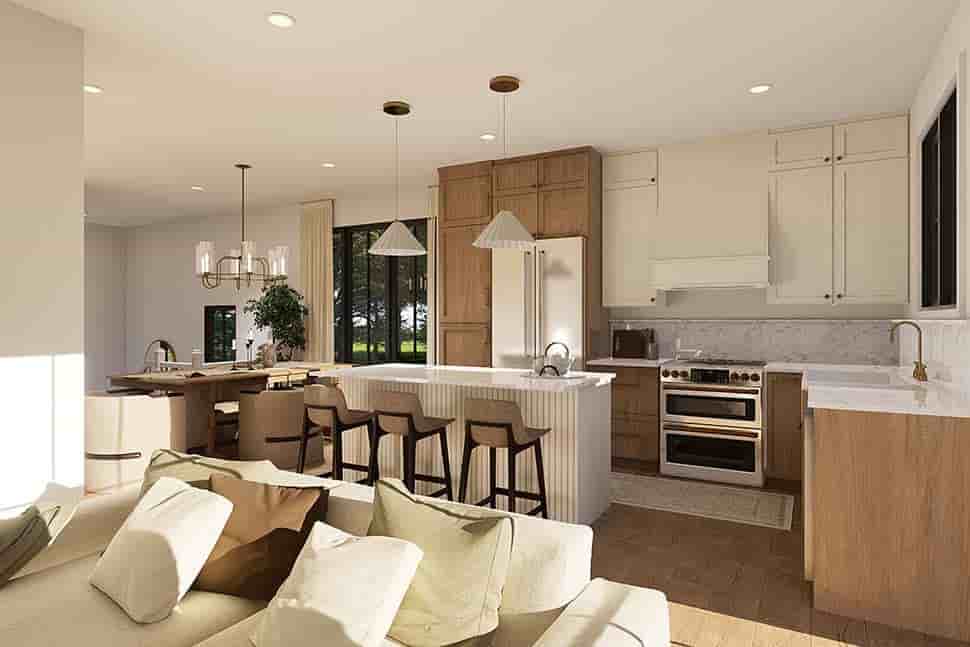

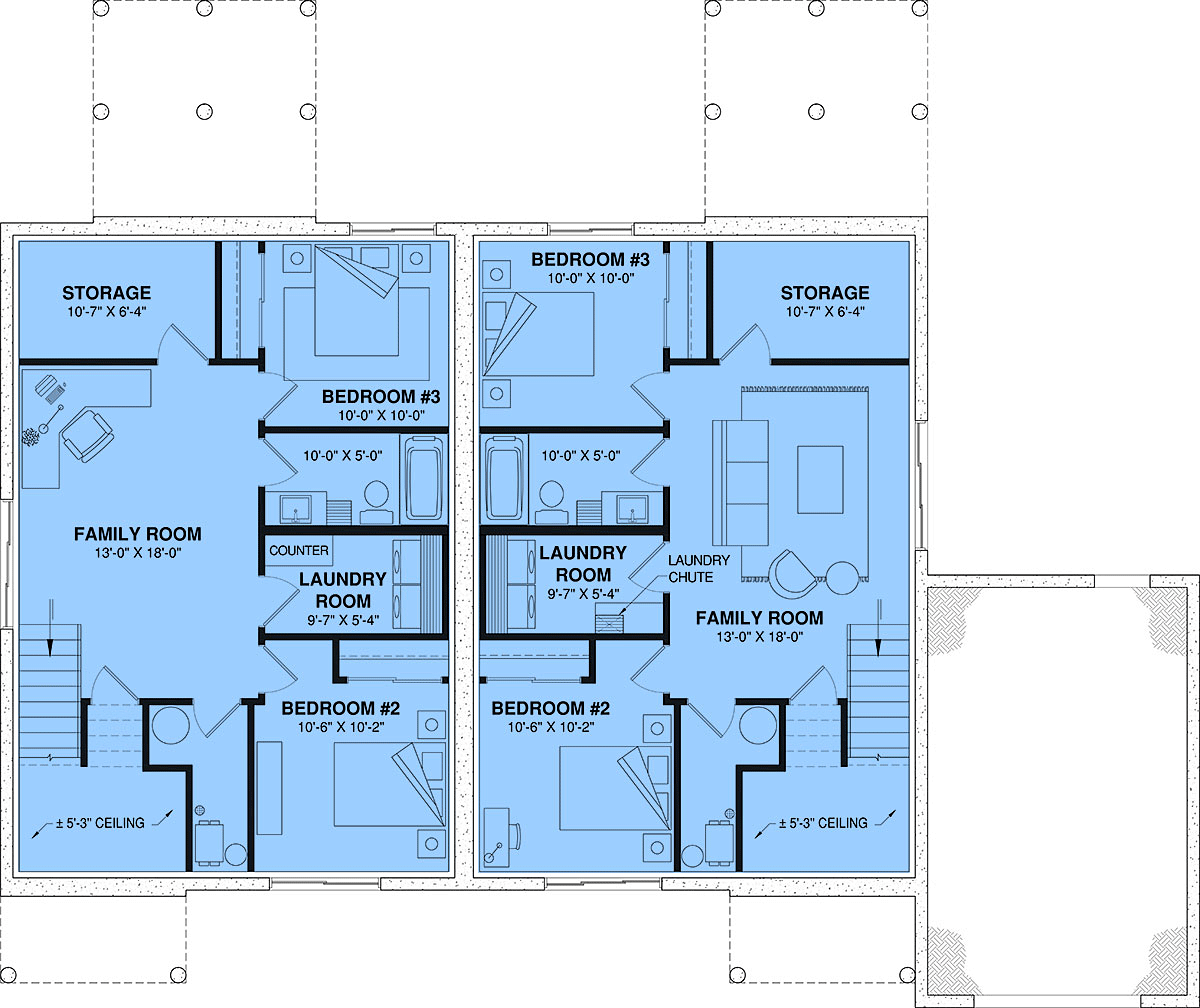

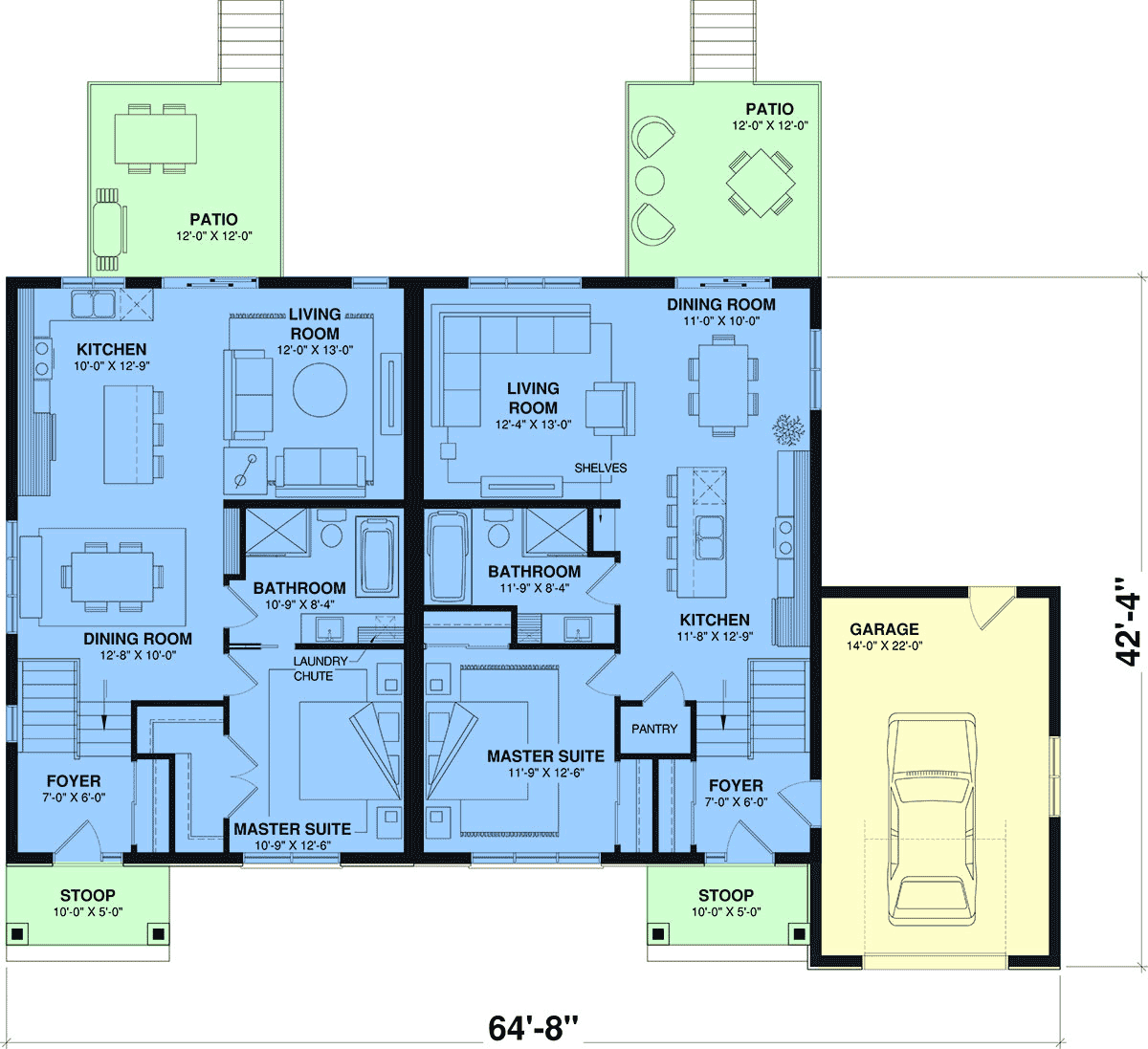

Modern Duplex Plan with Upper Floor Laundry Room is 3600 sq ft overall, and that's divided into two units with 3 beds and 2 baths each. Unit 2 also has an attached one car garage. Tenants of both units enjoy a covered back patio and efficient design in the main floor. The master suite shares the guest bathroom on the main level, and two bedrooms upstairs are joined with an open family room, large storage room, full bathroom, and laundry room with counter space for setting your clothes basket.

All our house plans include:

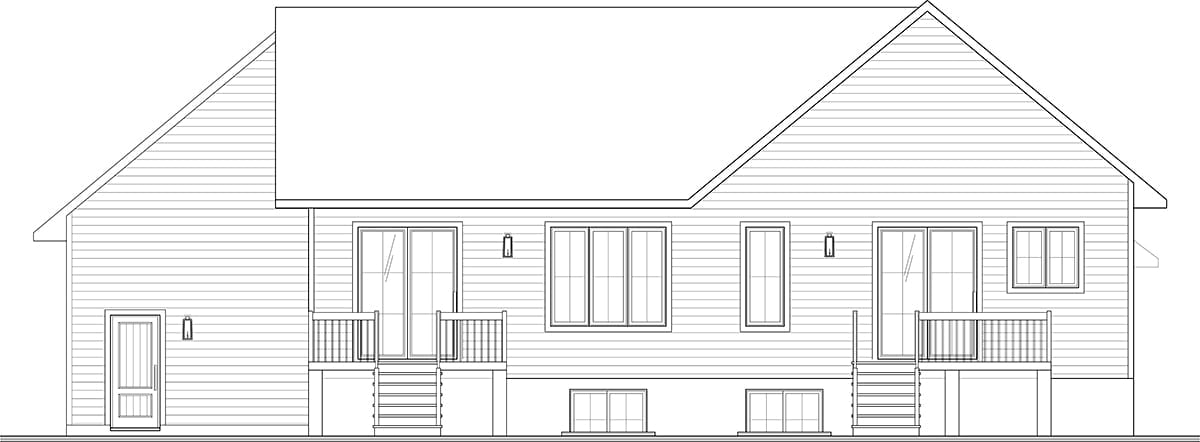

-4 elevations
-Foundation plan
-Ground floor plan
-Upper floor plan (if applicable)
-Roof plan
-Truss diagrams and building sections (manufactured trusses required – no structural details included)
-Construction details
-Typical wall section

NOT included:

-Engineering
-HVAC (Heating, ventilation and air conditioning)
-Electrical and plumbing plans

What's included in our house plans detail

BCIN # for Ontario customers is available at an additional charge

-House plans with or without garage and / or apartment $300
-Multi-unit plans $400
-All other plans $150
-Garage plans with NO heating elements, $200 charge for BCIN
  If you are purchasing a BCIN number for Ontario customers, and wish to purchase the PDF, a copy per Ontario rules must be mailed as well. There is no charge for the actual copy, but shipping on the copy must be purchased.

Plan modification is a way of turning a stock plan into your unique custom plan. It's still just a small fraction of the price you would pay to create a home plan from scratch. You will receive a FREE, no obligation, modification estimate to get exactly the home plan you've been dreaming of. Simply contact the modification department 1 of 3 ways:

Call 866-465-5866 and talk to a live person that can give you and FREE modification estimate over the phone!

Email Us - Please Include your telephone number, plan number, foundation type, state you are building in and a specific list of changes.

Fax: 651-602-5050 - Make sure to include a cover sheet with your contact info. Make attention to the FamilyHomePlans.com Modification Department.

Ask the Designer any question you may have. NOTE: If you have a plan modification question, please click on the Plan Modifications tab above.
