House Plan 84873

Home Plan With Drive-Under Garage and Wall of Windows | Plan 84873

sq ft

4005

beds

baths

bays

width

86'

depth

58'

Turn OFF Image Gallery

Add to cart

Plan Pricing from $2,425.00

Plan Pricing

PDF File: $2,425.00
5 Sets: $2,675.00
5 Sets plus PDF File: $2,775.00
CAD File: $2,975.00
Single Build License issued on CAD File orders.
Concerning PDF or CAD File Orders: Designer requires that a End User License Agreement be signed before fulfilling PDF and CAD File order.
Materials List: $562.50
Right Reading Reverse: $300.00
All sets will be Readable Reverse copies. Turn around time is usually 3 to 5 business days.
Additional Sets: $50.00

Additional Notes

Third Floor Ceiling Height: 9' to 15'9" (Sloped)

Materials List may take 3-5 weeks to fulfill depending on availability.

Available Foundation Types:

Basement : $650.00
May require additional drawing time, please call to confirm before ordering.
Total Living Area may increase with Basement Foundation option.
Crawlspace : $300.00
May require additional drawing time, please call to confirm before ordering.
Slab : No Additional Fee
Walkout Basement : $800.00
May require additional drawing time, please call to confirm before ordering.
Total Living Area may increase with Basement Foundation option.

Available Exterior Wall Types:

2x6: No Additional Fee

Prices subject to approval prior to fulfillment.

Shipping Policy

Add to cart

Specifications

Total Living Area:	4005 sq ft
Main Living Area:	1174 sq ft
Upper Living Area:	2831 sq ft
Garage Area:	894 sq ft
Garage Type:	Attached
Garage Bays:	4
Foundation Types:	Basement - * $650.00 Total Living Area may increase with Basement Foundation option. Crawlspace - * $300.00 Slab Walkout Basement - * $800.00 Total Living Area may increase with Basement Foundation option.
Exterior Walls:	2x6
House Width:	86'0
House Depth:	58'0
Number of Stories:	3
Bedrooms:	3
Full Baths:	4
Max Ridge Height:	38'0 from Front Door Floor Level
Primary Roof Pitch:	10:12
Roof Framing:	Stick
Deck:	545 sq ft
FirePlace:	Yes
Main Ceiling Height:	10'
Upper Ceiling Height:	9'

* May require additional drawing time.

Special Features:

Coat Closet
Deck or Patio
Entertaining Space
Mudroom
Open Floor Plan
Pantry
Storage Space

Plan Description

Home Plan With Drive-Under Garage and Wall of Windows

Home Plan With Drive-Under Garage and Wall of Windows #84873 offers more than average garage space. Firstly, there's a deep RV garage w/tall doors, so you can fit both the RV and your truck with attached jet skis. Next, the lower level of the house has parking for two more average-sized vehicles. Fantastic living space on the main floor is bright and cheerful thanks to the floor-to-ceiling windows you saw on the front of the home. In total, we have 4,005 sq ft living area, 3 beds, and 4 baths.

What's Included?

Plans include

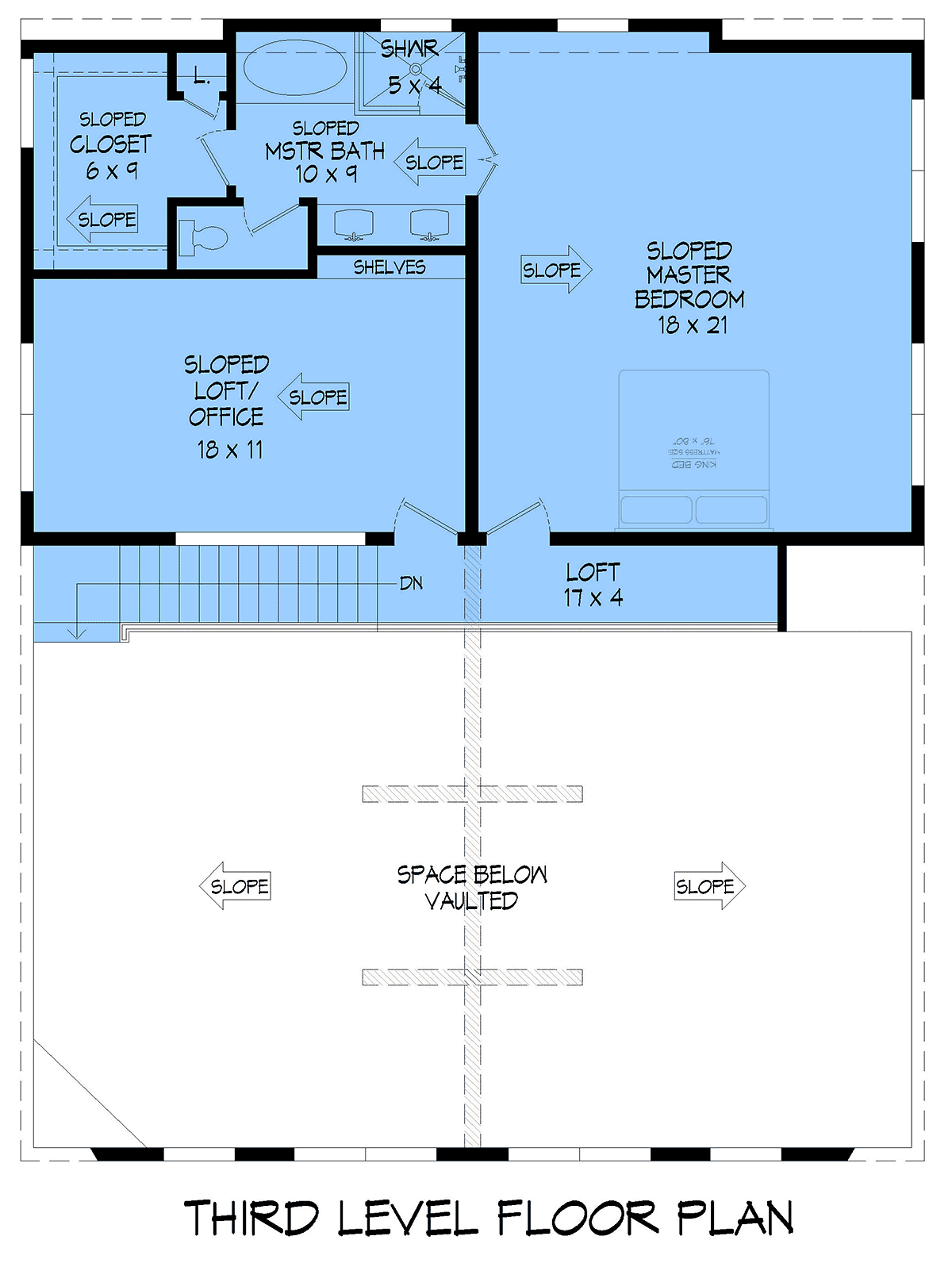

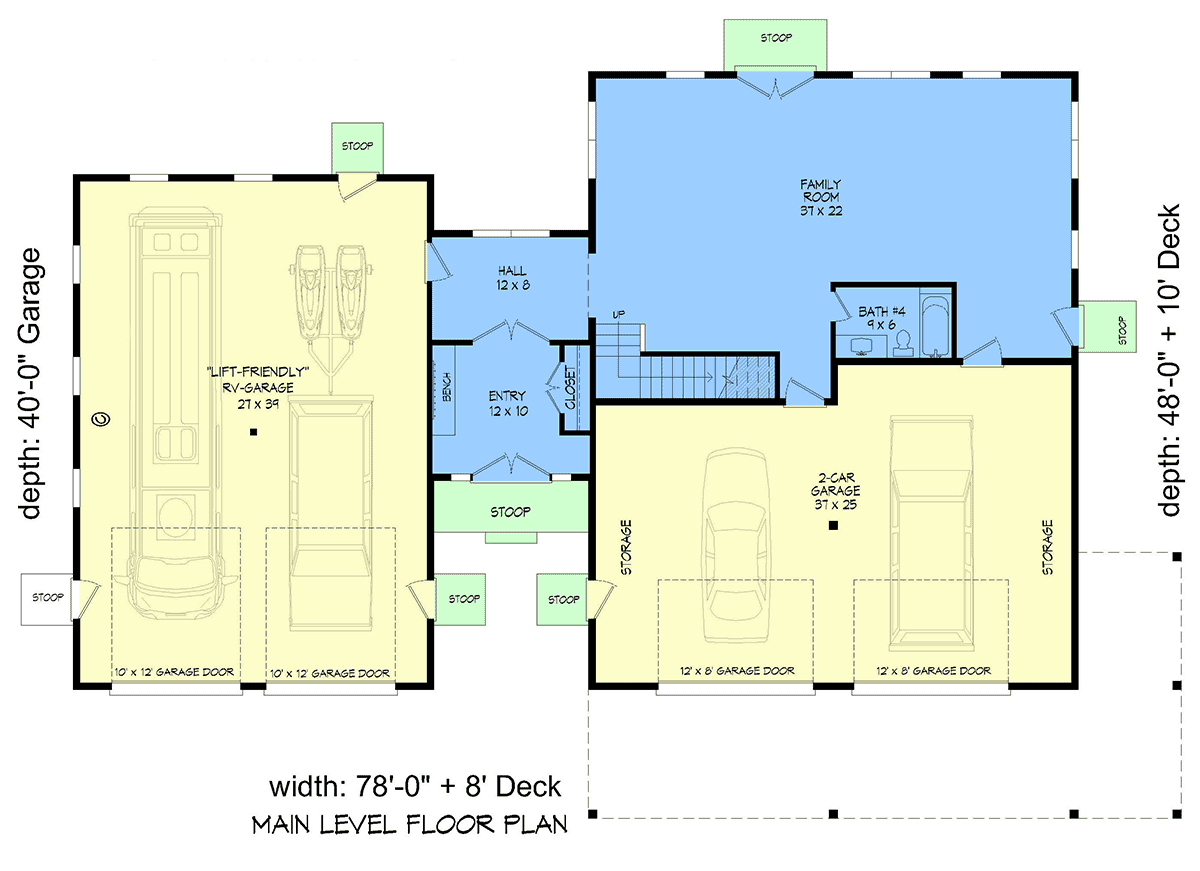

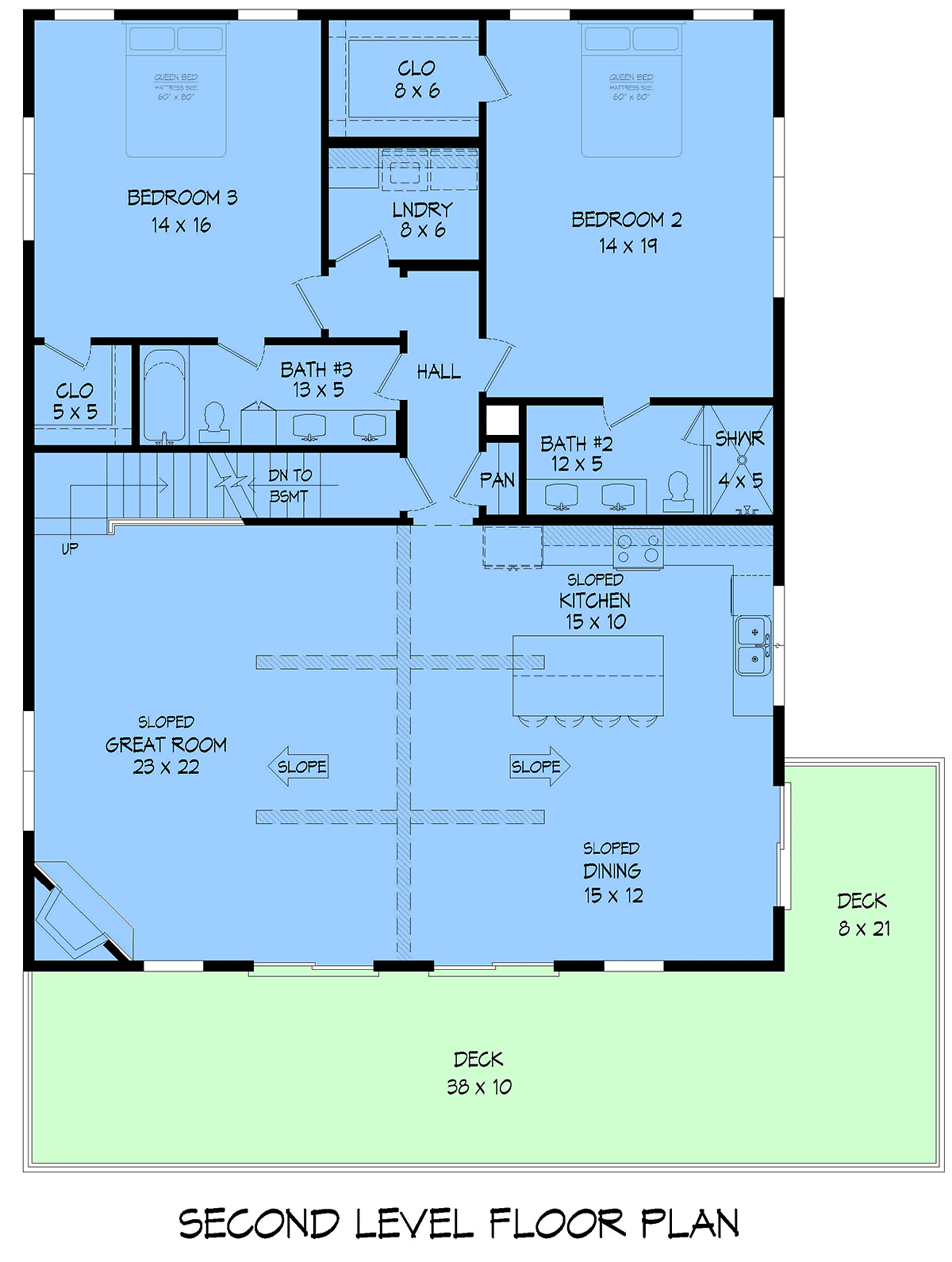

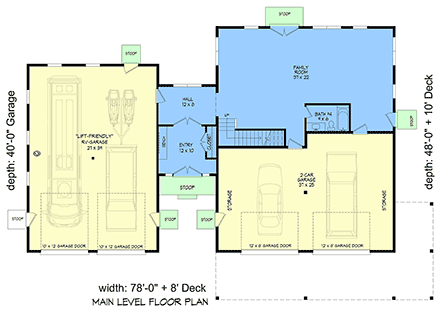

a: Floor Plans: House plan drawings indicating dimensions for construction
b: Roof Plan: Drawings indicating roof slopes and unique conditions

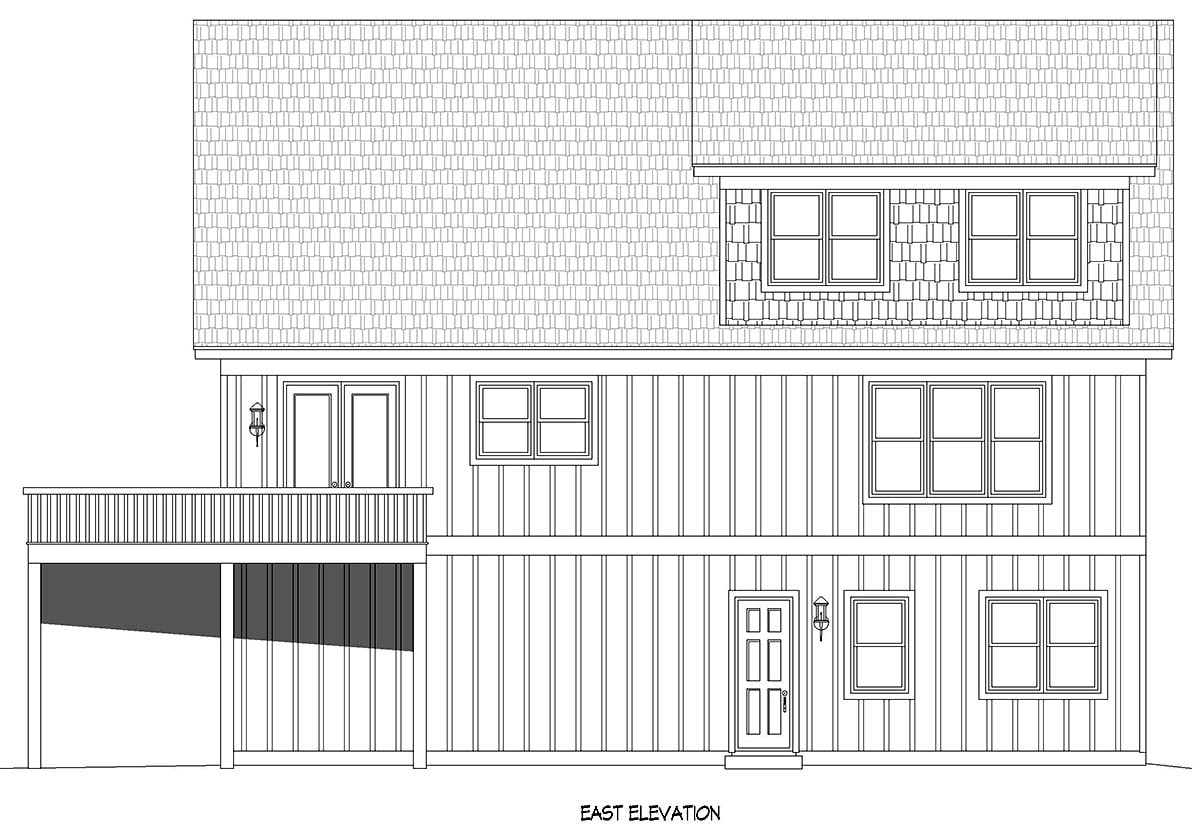

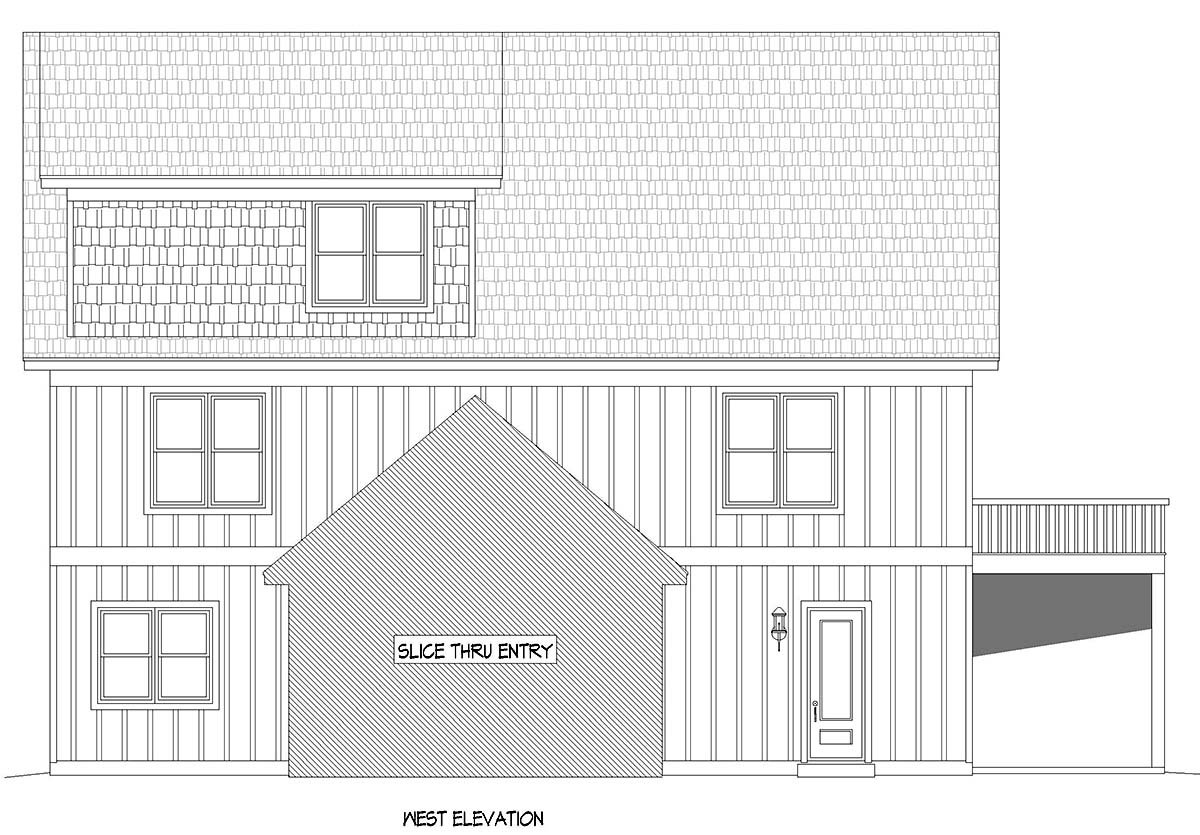

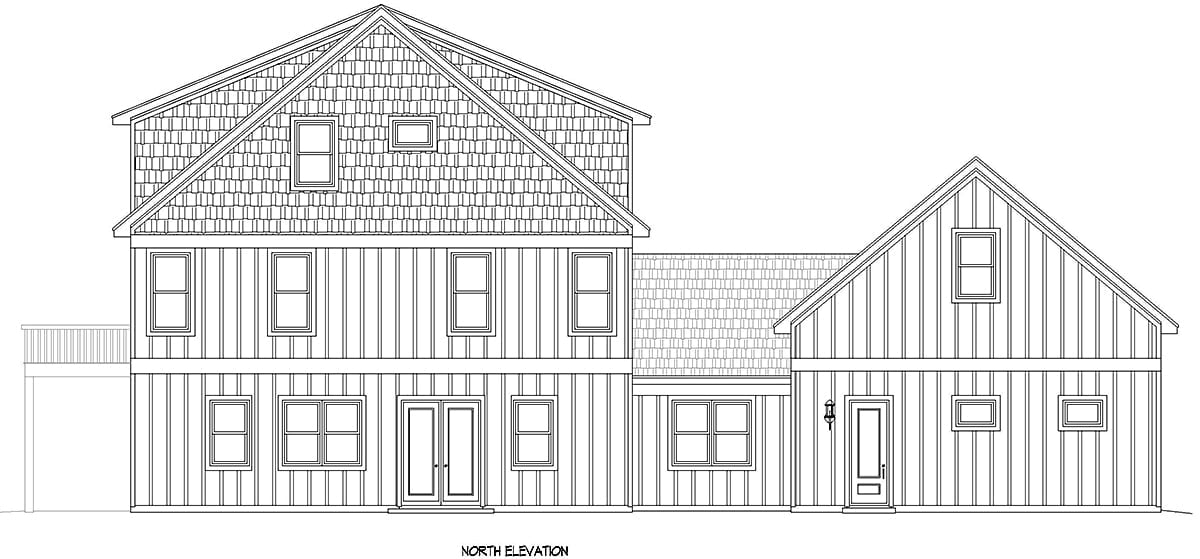

c: Exterior Elevations: Drawings showing appearance and the types of materials used for the exterior finish
