House Plan 84917

• PDF File: $1,399.00
• 5 Sets plus PDF File: $1,694.00
• PDF File Unlimited Build: $2,398.00
  Unlimited Build License issued on PDF File Unlimited Build orders.
• CAD File: $1,998.00
  Single Build License issued on CAD File orders.
• CAD File Unlimited Build: $2,997.00
  Unlimited Build License issued on CAD File Unlimited Build orders.
• Materials List: $299.00
• Right Reading Reverse: $299.00
  All sets will be Readable Reverse copies. Turn around time is usually 3 to 5 business days.
• Additional Sets: $59.00

Available Foundation Types:

• Basement : $299.00
  May require additional drawing time, please call to confirm before ordering.
  Total Living Area may increase with Basement Foundation option.
• Crawlspace : $299.00
  May require additional drawing time, please call to confirm before ordering.
• Slab : No Additional Fee
• Walkout Basement : $299.00
  May require additional drawing time, please call to confirm before ordering.
  Total Living Area may increase with Basement Foundation option.

Available Exterior Wall Types:

• 2x6: No Additional Fee

Prices subject to approval prior to fulfillment.

• Shipping Policy

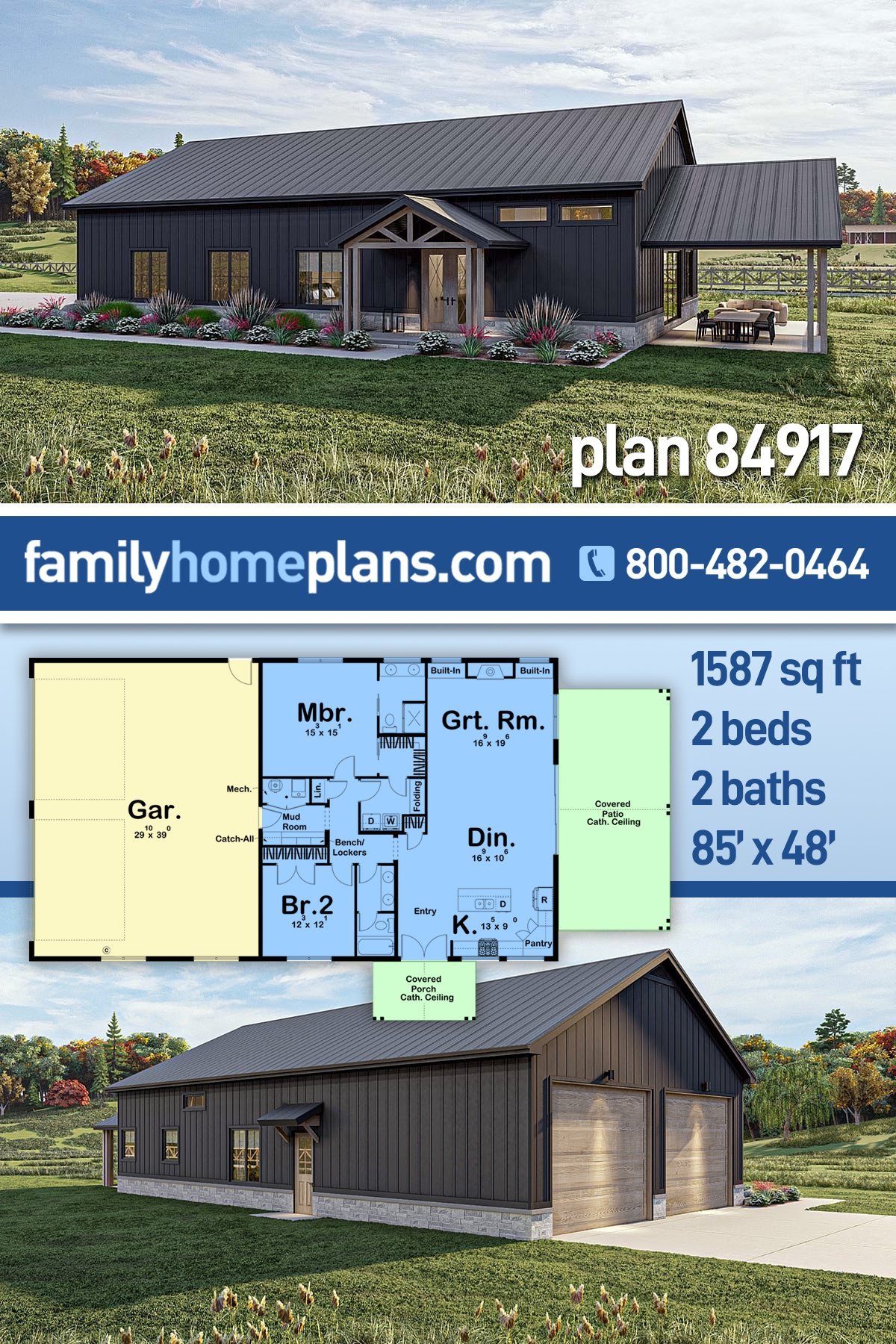

Total Living Area:	1587 sq ft
Main Living Area:	1587 sq ft

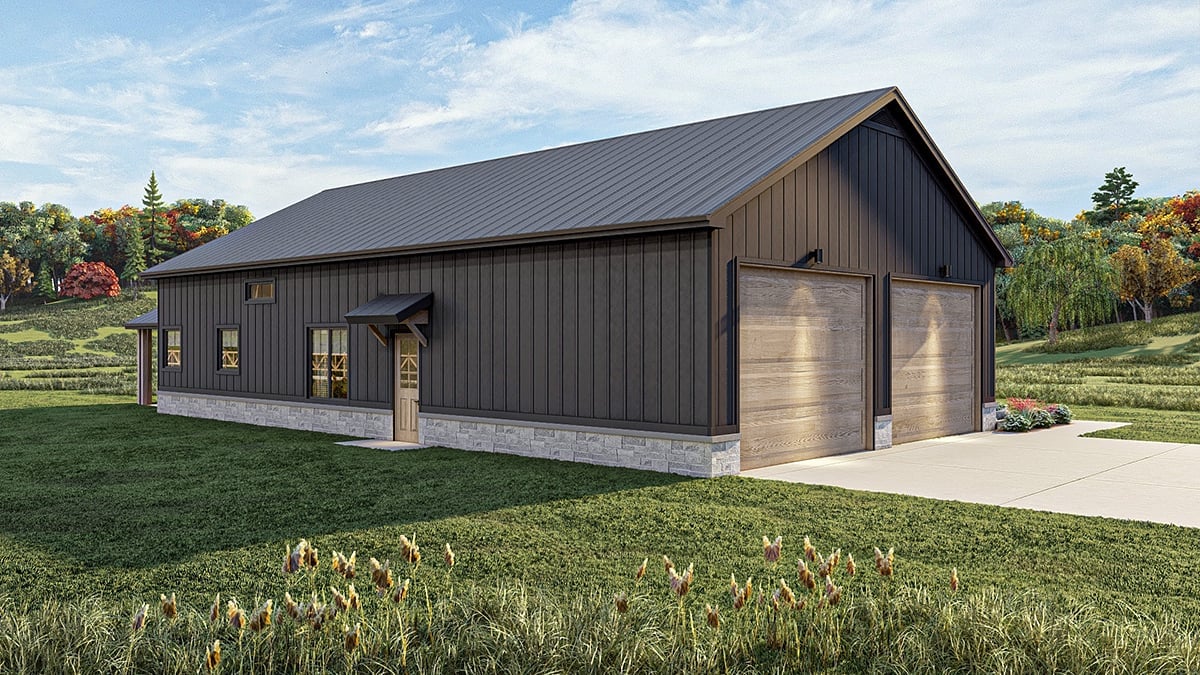

Garage Area:	1213 sq ft
Garage Type:	Attached
Garage Bays:	2
Foundation Types:	Basement - * $299.00 Total Living Area may increase with Basement Foundation option. Crawlspace - * $299.00 Slab Walkout Basement - * $299.00 Total Living Area may increase with Basement Foundation option.
Exterior Walls:	2x6
House Width:	85'0
House Depth:	48'0
Number of Stories:	1
Bedrooms:	2
Full Baths:	2
Max Ridge Height:	24'7 from Front Door Floor Level
Primary Roof Pitch:	6:12
Roof Framing:	Unknown
Porch:	589 sq ft
FirePlace:	Yes
Main Ceiling Height:	14'

* May require additional drawing time.

Special Features:

• Coat Closet
• Deck or Patio
• Entertaining Space
• Front Porch
• Mudroom
• Open Floor Plan
• Pantry
• Storage Space

Barndominium Style House Plan

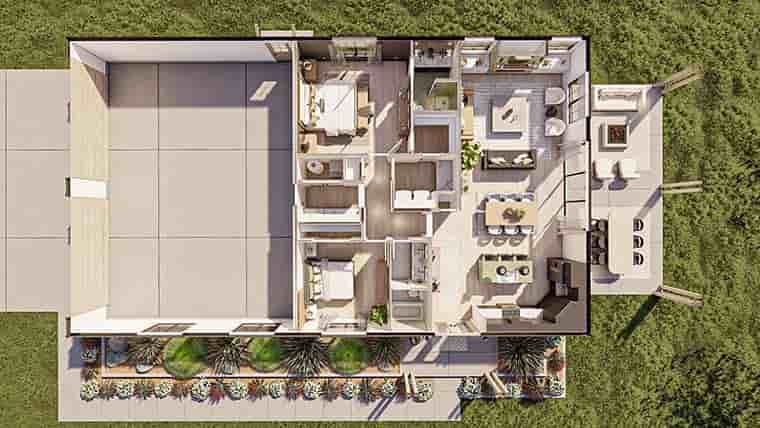

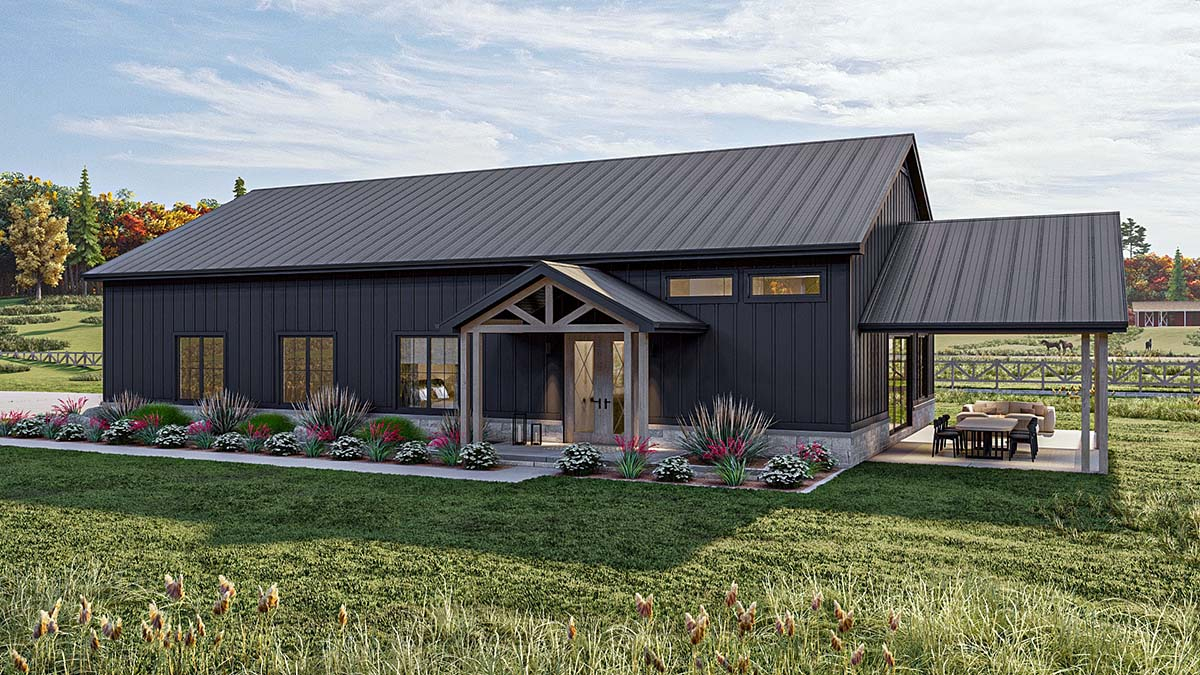

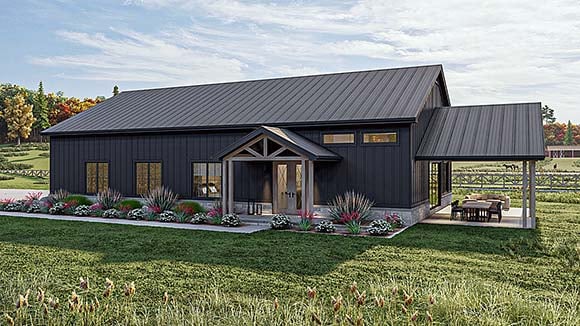

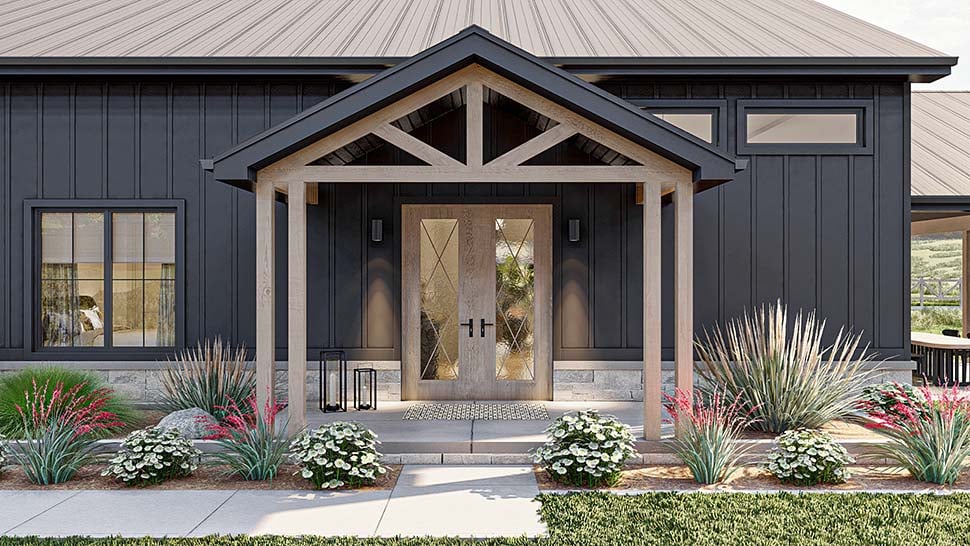

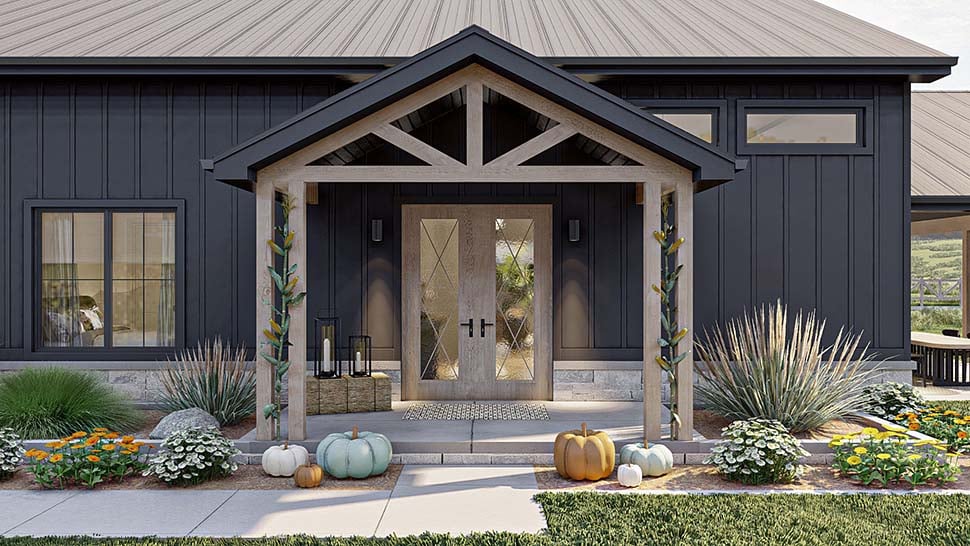

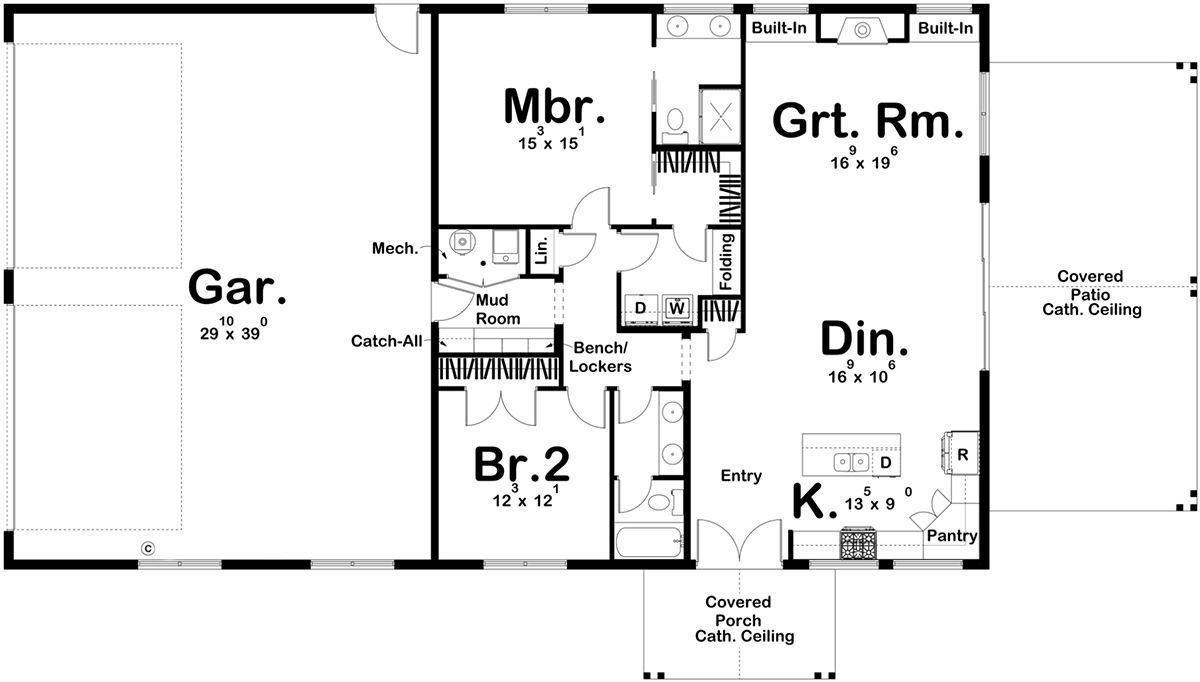

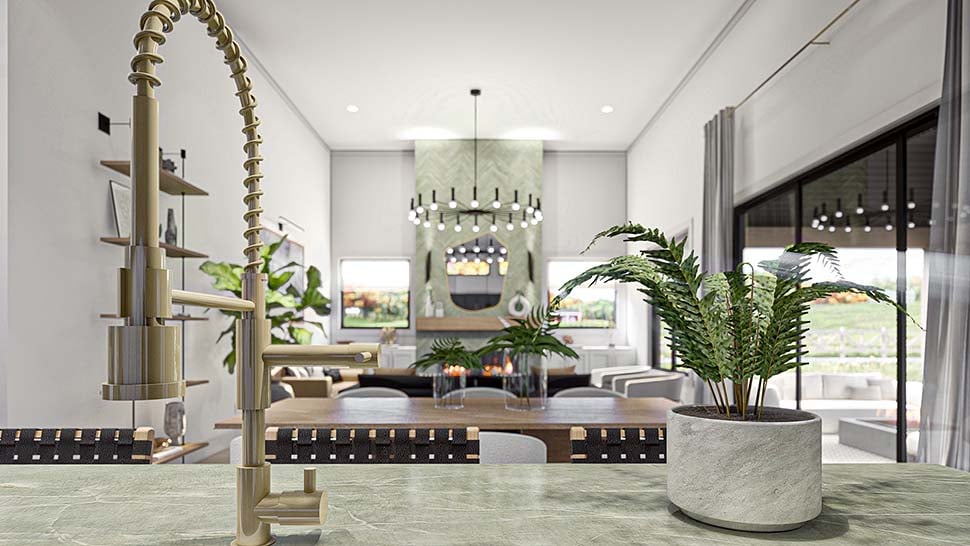

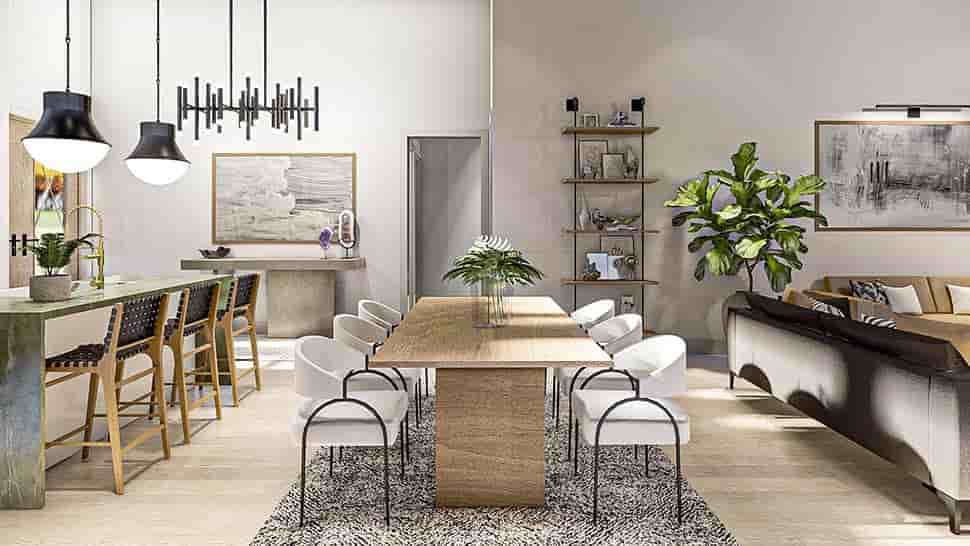

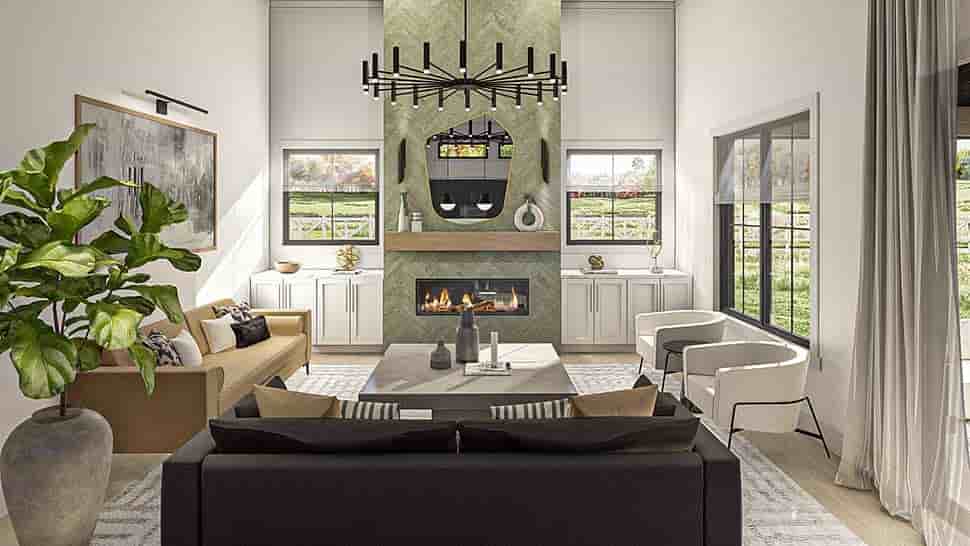

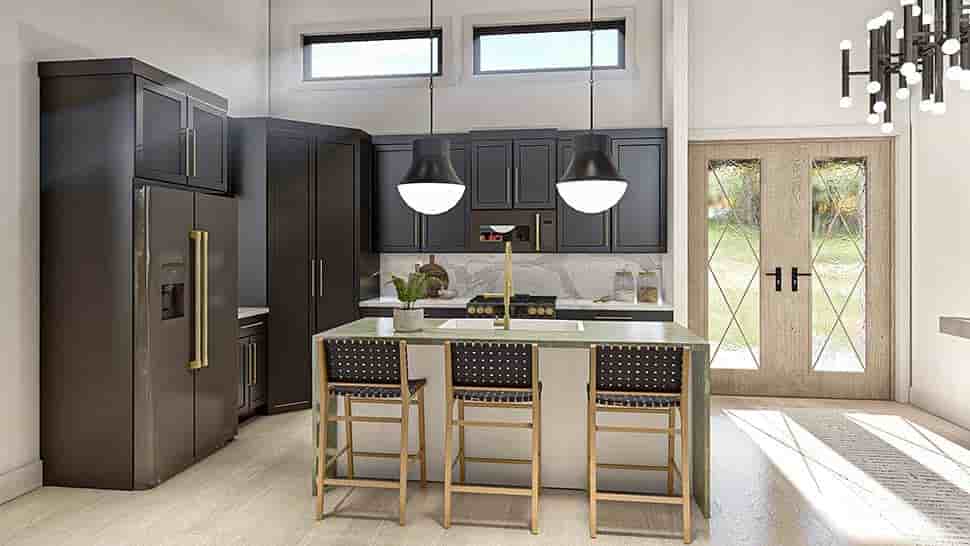

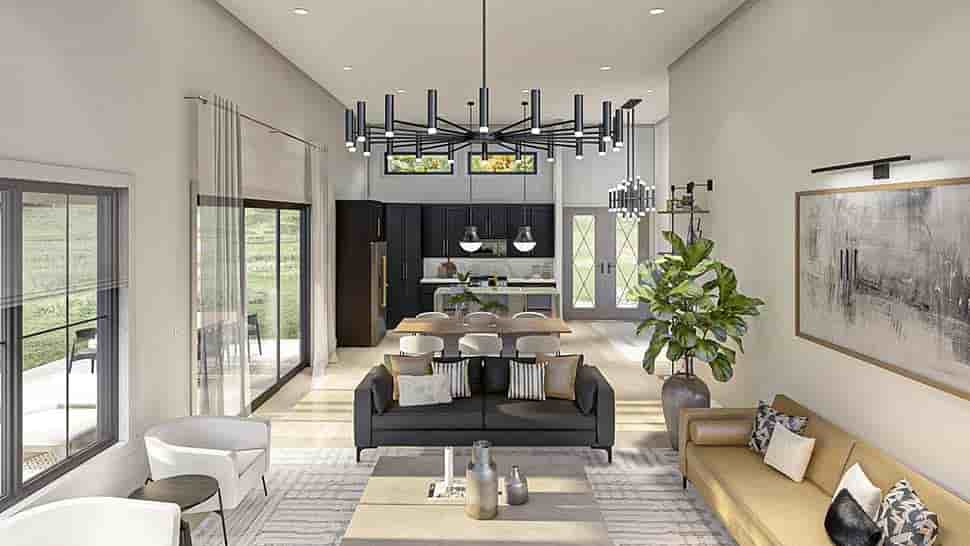

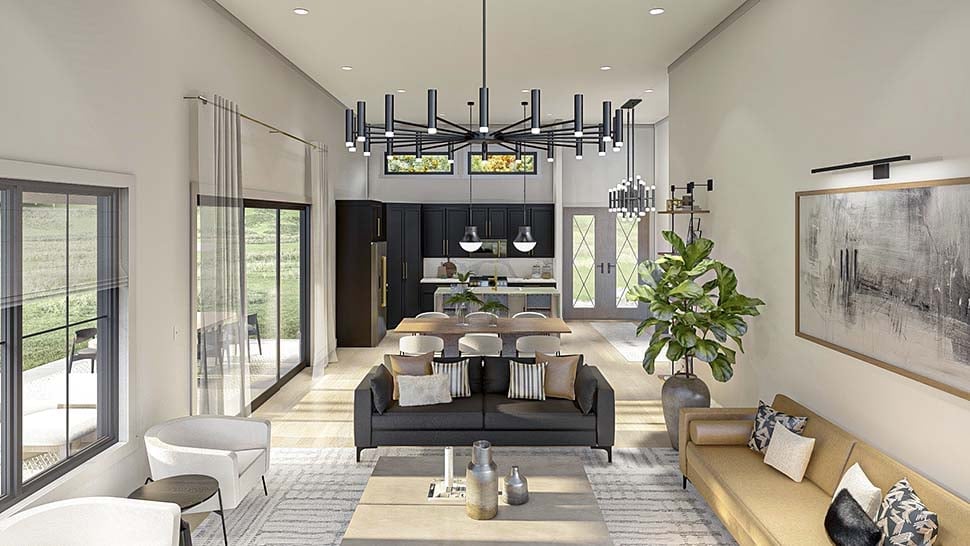

This new barndominium plan is not only efficient, but also affordable. With the plan being 1587 square feet, it is the perfect size for a small family, couple, or even one who wants the additional space without there being too much to deal with. As soon as you walk up to the home, you are greeted with a covered patio and cathedral ceilings. Step inside to see a large space for the kitchen, great room, and dining room, an open floor plan that allows the space to feel much bigger than it is.

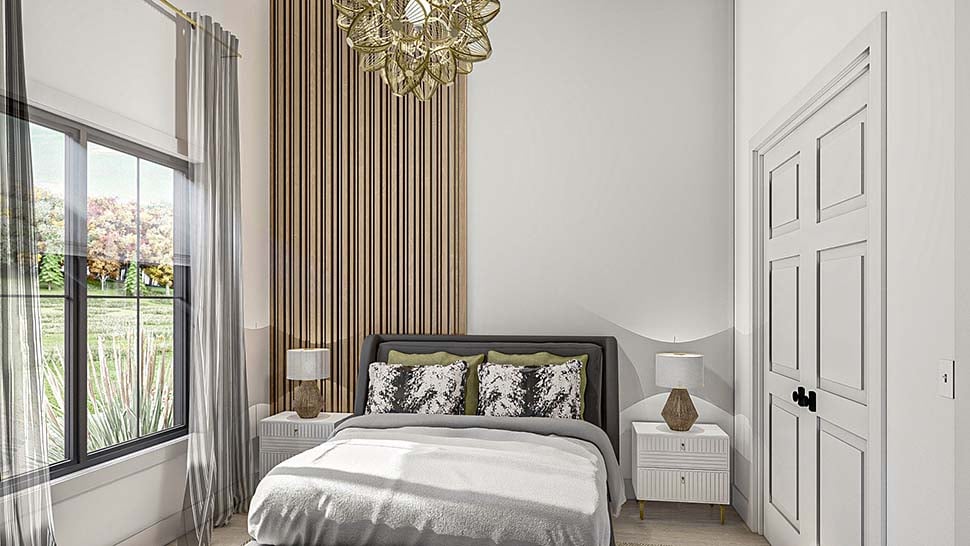

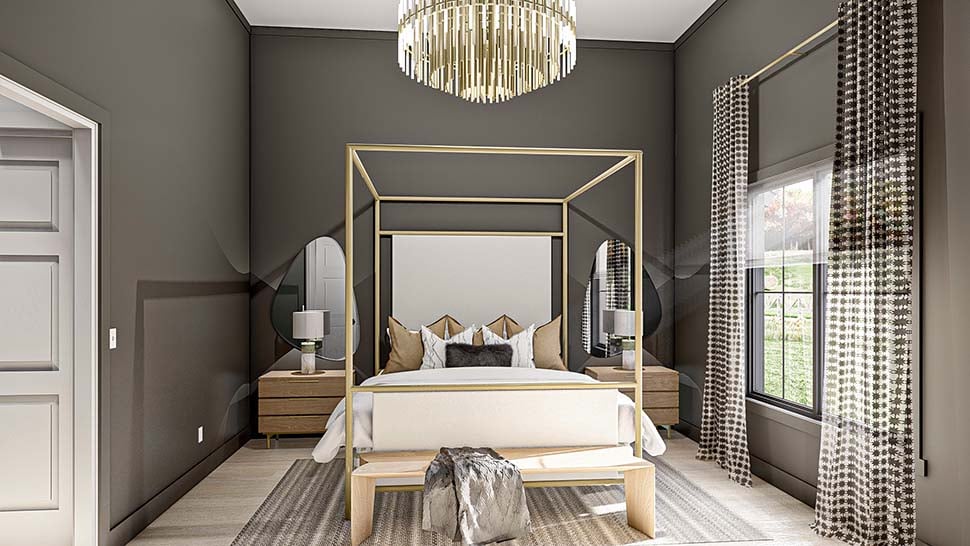

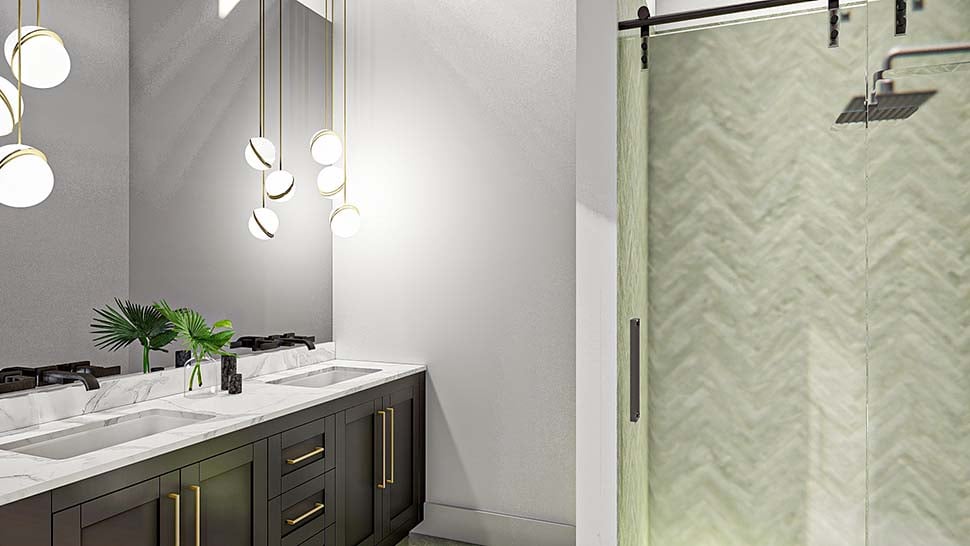

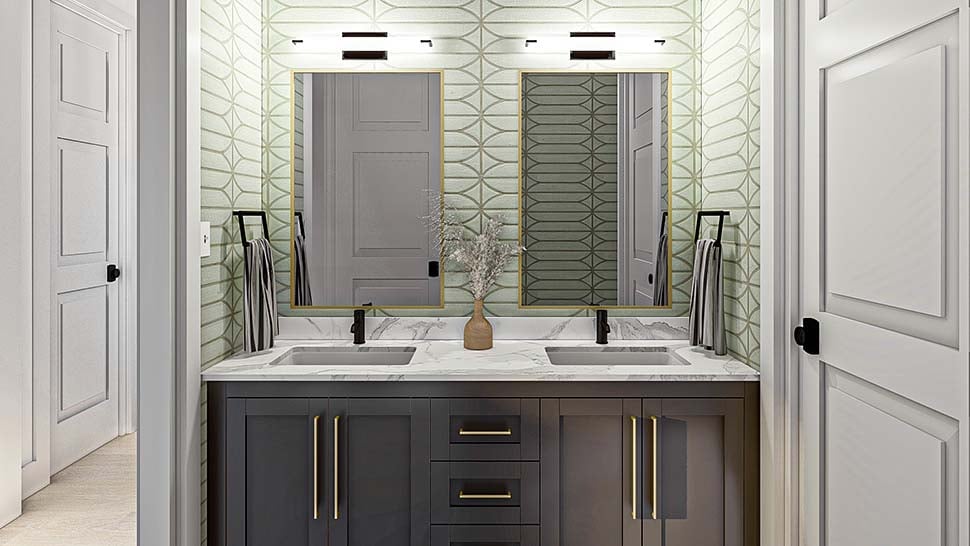

As you continue throughout the plan, you can find a mud room, as well as two bedrooms, the master including a walk-in closet with access to the laundry room. Both bathrooms also have double vanities, which makes this space great for having guests over and remaining close without becoming claustrophobic.

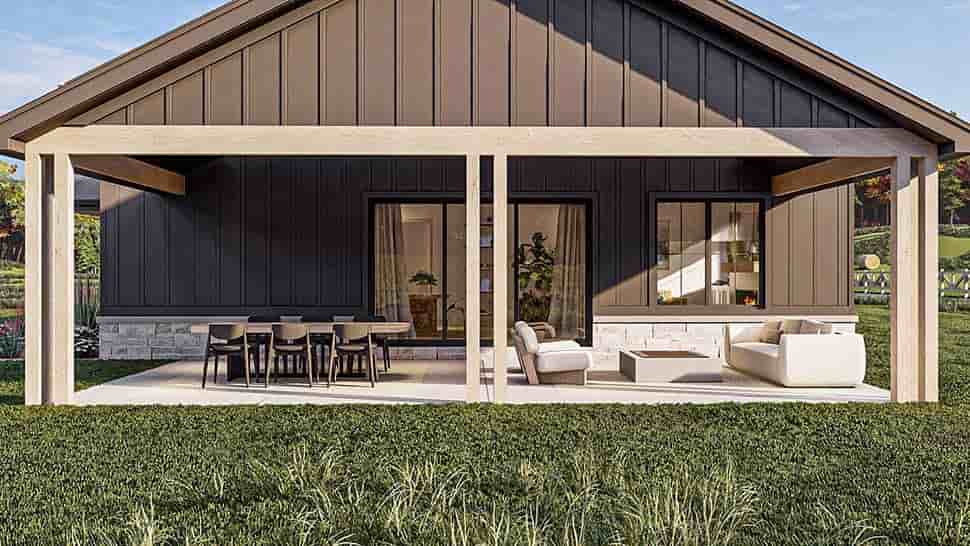

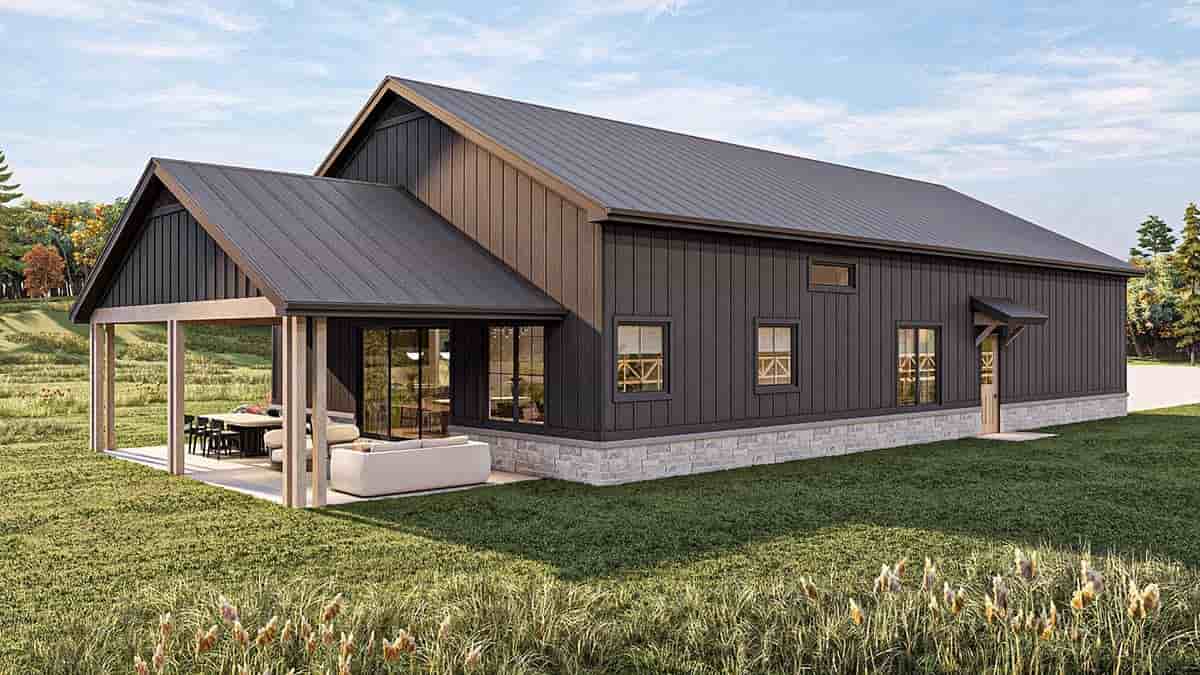

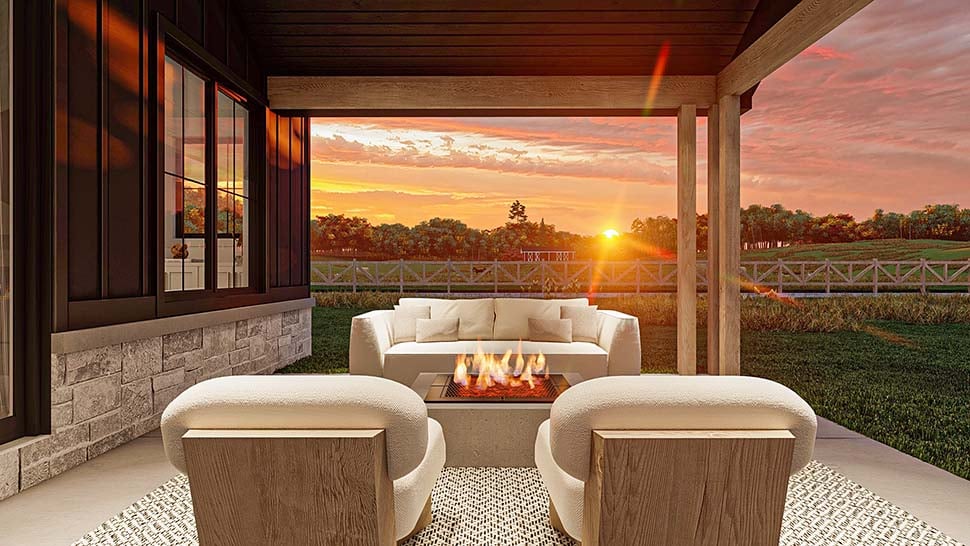

The backyard also includes a covered porch for enjoying the views and relaxing after a long day. This plan is great for those who want the barndominium style while staying on budget.

Each set of home plans that we offer will provide you with the necessary information to build the home. There may be some adjustments necessary to the home plans or garage plans in order to comply with your state or county building codes. The following list shows what is included within each set of home plans that we sell.

Our blueprints include:

Cover Sheet: Shows the front elevation and typical notes and requirements.

Exterior Elevations: Shows the front, rear and sides of the home including exterior materials, details and measurements.

Floor Plans: Shows the placement of walls and the dimensions for rooms, doors, windows, stairways, etc. for each floor.

Electrical Plans: Shows the location of outlets, fixtures and switches. They are shown as a separate sheet to make the floor plans more legible. Detached garage plans may not include an electrical plan. Please call to verify.

Foundation Plans: will include a basement, crawlspace or slab depending on what is available for that home plan. (Please refer to the home plan's details sheet to see what foundation options are available for a specific home plan.) The foundation plan details the layout and construction of the foundation.

Roof Plan

Typical wall section

Typical stair section

Cabinets are shown on all plans
