Plan Pricing from $849.00

Plan Pricing

PDF File: $849.00
5 Sets: $849.00
CAD File: $1,249.00
Single Build License issued on CAD File orders.
Concerning PDF or CAD File Orders: Designer requires that a End User License Agreement be signed before fulfilling PDF and CAD File order.
Materials List: $125.00
Additional Sets: $50.00

Additional Notes

CAD file, if ordered, will take 7-10 business days to fulfill.

Available Foundation Types:

Crawlspace : No Additional Fee
Slab : $250.00
May require additional drawing time, please call to confirm before ordering.

Available Exterior Wall Types:

2x4: No Additional Fee

Prices subject to approval prior to fulfillment.

Shipping Policy

Add to cart

Specifications

Total Living Area:	983 sq ft
Main Living Area:	983 sq ft
Garage Area:	393 sq ft
Garage Type:	Attached
Garage Bays:	2
Foundation Types:	Crawlspace Slab - * $250.00
Exterior Walls:	2x4
House Width:	25'
House Depth:	60'
Number of Stories:	1
Bedrooms:	3
Full Baths:	2
Max Ridge Height:	18' from Front Door Floor Level
Primary Roof Pitch:	8:12
Roof Load:	30 psf
Roof Framing:	Truss
Porch:	50 sq ft
1st Floor Master:	Yes
Main Ceiling Height:	8'

* May require additional drawing time.

Plan Description

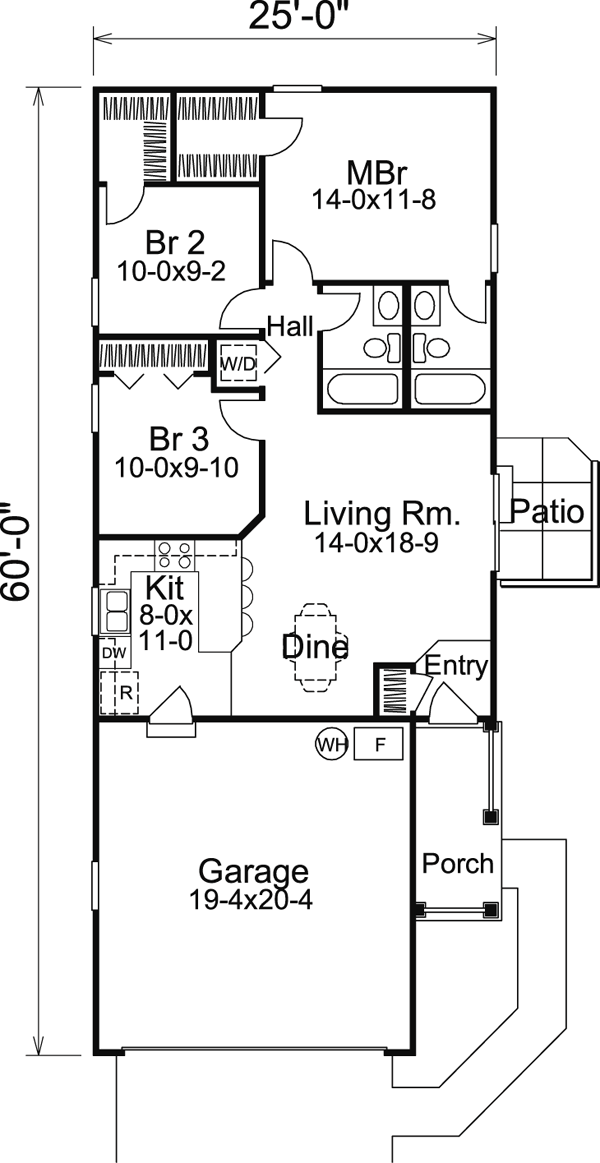

The Trailbridge Narrow Lot Home has 3 bedrooms and 2 full baths. The spacious front porch leads you into the adorable living area and relaxing dining area that opens to the well designed kitchen with convenient breakfast bar. A small patio with privacy fence creates an awesome exterior and is accessed from the enchanting living room. The comfortable master bedroom includes a large walk-in closet and its own private full bath.

What's Included?

Foundation: This shows the layout of the basement, crawl space, or slab foundation.

Floor Plans: Placement of walls, windows, doors, plumbing fixtures, electrical outlets, beams, etc..

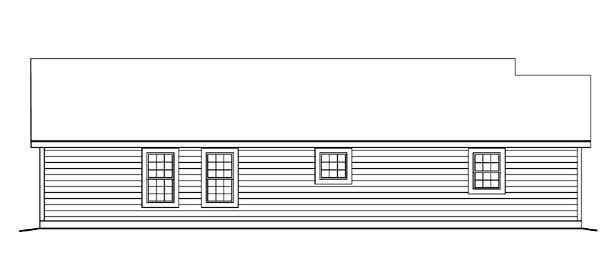

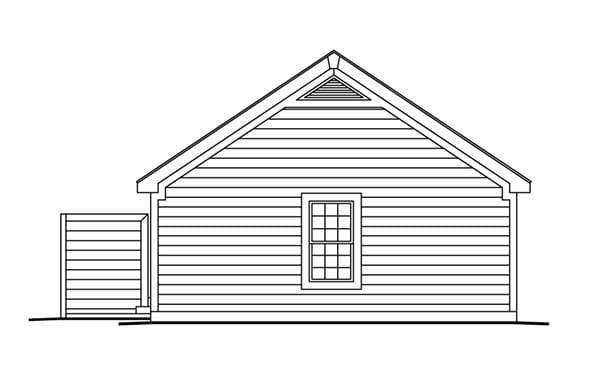

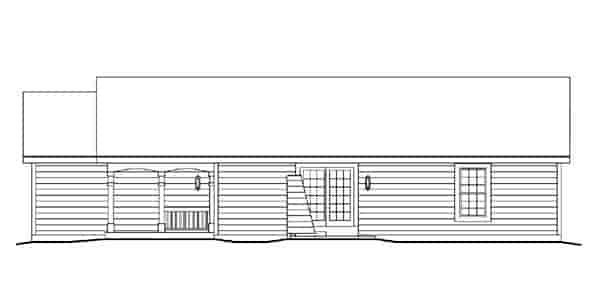

Exterior Elevations: Illustrates the front, rear, and sides of the house, in detail, including instructional notes such as materials, roof pitch, ceiling heights, etc.

Interior Elevations: Views of special interior elements such as kitchen & bath cabinets, fireplaces, etc.

Cross Section: Views of areas such as load-bearing walls, stairs, trusses, or other structural elements.

Details: How to construct certain parts of your home, such as the roof system, stairs, or deck.

Modifications

Want to make changes to a house plan at Family Home Plans?

Receive a FREE modification estimate in one of 3 ways. Our modification team is ready to help you adjust any plan to fit your needs. The ReDesign process is simple and estimates are free!

1. Complete this On-Line Request Form

2. Print, complete and fax this PDF Form to us at 1-800-675-4916.

3. Want to talk to an expert? Call us at 913-938-8097 (Canadian customers, please call 800-361-7526) to discuss modifications.

Note: - a sketch of the changes or the website floor plan marked up to reflect changes is a great way to convey the modifications in addition to a written list.

We Work Fast!

When you submit your ReDesign request, a designer will contact you within 24 business hours with a quote.
You can have your plan redesigned in as little as 14 - 21 days!

We look forward to hearing from you!

Start today planning for tomorrow!

Cost To Build

No Risk Offer: Order your Home-Cost Estimate now for just $24.95! We provide you with a 10% discount code in your receipt for when you decide to order any plan on our website that will more than pay you back!
Get more accurate results, quicker! No need to wait for a reliable cost.
Get a detailed cost report for your home plan with over 70 lines of summarized cost information in under 5 minutes!
Cost report for your zip code. (the zip code can be changed after you receive the online report)
Estimate 1, 1-1/2 or 2 story home plans. **
Interactive! Instantly see the costs change as you vary quality levels Economy, Standard, Premium and structure such as slab, basement and crawlspace.
Your estimate is active for 1 FULL YEAR!

View Sample

demo purposes only

Purchase

$24.95 per plan

** Available for U.S. only.

QUICK Cost-To-Build estimates have the following assumptions:

QUICK Cost-To-Build estimates are available for single family, stick-built, detached, 1 story, 1.5 story and 2 story home plans with attached or detached garages, pitched roofs on flat to gently sloping sites.
QUICK Cost-To-Build estimates are not available for specialty plans and construction such as garage / apartment, townhouse, multi-family, hillside, flat roof, concrete walls, log cabin, home additions, and other designs inconsistent with the assumptions outlined in Item 1 above.
User is able to select and have costs instantly calculate for slab on grade, crawlspace or full basement options.
User is able to select and have costs instantly calculate different quality levels of construction including Economy, Standard, Premium. View Quality Level Assumptions.
Estimate will dynamically adjust costs based on the home plan's finished square feet, porch, garage and bathrooms.
Estimate will dynamically adjust costs based on unique zip code for project location.
All home plans are based on the following design assumptions: 8 foot basement ceiling height, 9 foot first floor ceiling height, 8 foot second floor ceiling height (if used), gable roof; 2 dormers, average roof pitch is 12:12, 1 to 2 covered porches, porch construction on foundations.
Summarized cost report will provide approximately 70 lines of cost detail within the following home construction categories: Site Work, Foundations, Basement (if used), Exterior Shell, Special Spaces (Kitchen, Bathrooms, etc), Interior Construction, Elevators, Plumbing, Heating / AC, Electrical Systems, Appliances, Contractor Markup.
QUICK Cost-To-Build generates estimates only. It is highly recommend that one employs a local builder in order to get a more accurate construction cost.
All costs are "installed costs" including material, labor and sales tax.
** Available for U.S. only.

Q & A

Ask the Designer any question you may have. NOTE: If you have a plan modification question, please click on the Plan Modifications tab above.

Previous Q & A

Q: What are the dimensions of the porch? What type of siding and shingles are called out for this design? Does the design include gutters? Also, what's the size of the garage door? Thank you! Bob

A: Please see below – Main Floor - 983 sf Front porch – 66 sf Side porch – 52 sf Garage 393 sf - Garage Door 16x7 The exterior shows 100% frame siding 100% Composite Shingles The plan shows metal gutter

Common Q & A

Q: Can I make modifications to this plan?

A: Yes you can! Please click the "Modifications" tab above to get more information.

Q: What is the estimated price to build this plan?

A: The national average for a house is running right at $125.00 per SF. You can get more detailed information by clicking the Cost-To-Build tab above. Sorry, but we cannot give cost estimates for garage, multifamily or project plans.
