Plan Pricing from $1,149.00

Plan Pricing

PDF File: $1,149.00
5 Sets: $1,149.00
CAD File: $1,849.00
Single Build License issued on CAD File orders.
Concerning PDF or CAD File Orders: Designer requires that a End User License Agreement be signed before fulfilling PDF and CAD File order.
Materials List: $125.00
Additional Sets: $50.00

Available Foundation Types:

Basement : No Additional Fee
Total Living Area may increase with Basement Foundation option.
Crawlspace : $250.00
May require additional drawing time, please call to confirm before ordering.
Slab : $250.00
May require additional drawing time, please call to confirm before ordering.

Available Exterior Wall Types:

2x4: No Additional Fee

Prices subject to approval prior to fulfillment.

Shipping Policy

Add to cart

Specifications

Total Living Area:	2318 sq ft
Main Living Area:	1159 sq ft
Garage Type:	Attached
Garage Bays:	2
Foundation Types:	Basement Crawlspace - * $250.00 Slab - * $250.00
Exterior Walls:	2x4
House Width:	80'
House Depth:	41'
Number of Stories:	1
Bedrooms:	6
Full Baths:	4
Max Ridge Height:	21' from Front Door Floor Level
Primary Roof Pitch:	8:12
Roof Load:	30 psf
Roof Framing:	Truss
FirePlace:	Yes
1st Floor Master:	Yes
Main Ceiling Height:	8'

* May require additional drawing time.

What's Included?

Foundation: This shows the layout of the basement, crawl space, or slab foundation.

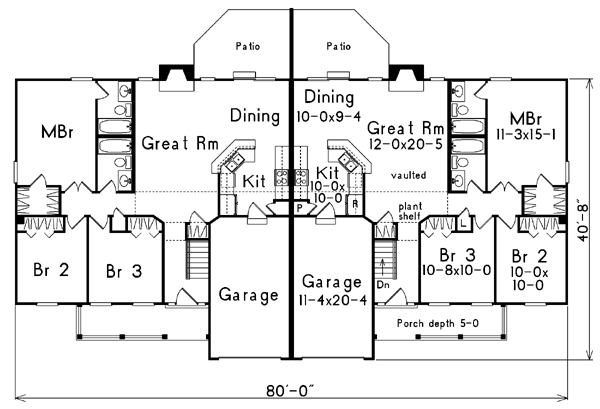

Floor Plans: Placement of walls, windows, doors, plumbing fixtures, electrical outlets, beams, etc..

Exterior Elevations: Illustrates the front, rear, and sides of the house, in detail, including instructional notes such as materials, roof pitch, ceiling heights, etc.

Interior Elevations: Views of special interior elements such as kitchen & bath cabinets, fireplaces, etc.

Cross Section: Views of areas such as load-bearing walls, stairs, trusses, or other structural elements.

Details: How to construct certain parts of your home, such as the roof system, stairs, or deck.

Modifications

Want to make changes to a house plan at Family Home Plans?

Receive a FREE modification estimate in one of 3 ways. Our modification team is ready to help you adjust any plan to fit your needs. The ReDesign process is simple and estimates are free!

1. Complete this On-Line Request Form

2. Print, complete and fax this PDF Form to us at 1-800-675-4916.

3. Want to talk to an expert? Call us at 913-938-8097 (Canadian customers, please call 800-361-7526) to discuss modifications.

Note: - a sketch of the changes or the website floor plan marked up to reflect changes is a great way to convey the modifications in addition to a written list.

We Work Fast!

When you submit your ReDesign request, a designer will contact you within 24 business hours with a quote.
You can have your plan redesigned in as little as 14 - 21 days!

We look forward to hearing from you!

Start today planning for tomorrow!

Q & A

Ask the Designer any question you may have. NOTE: If you have a plan modification question, please click on the Plan Modifications tab above.

Previous Q & A

Q: Do you have this plan with a laundry room option?

A: Good morning Bonnie, The basement version of this plan currently calls for the laundry areas to be established in the basement. The crawl space and slab version on the plans converts the area that would otherwise be the basement steps into an area for a stacking washing and dryer and a mechanical closet. If the customer wished to have true full main-floor laundry rooms in both units, they could also work with Lifestyle Design Services to modify the existing plans. Lifestyles will know best but I think these would be wonderful with the garages pulled out a bit closer to the street so that small mud / utility rooms could be placed between the existing garage and kitchen areas. Please let me know if you have any additional questions. I’m happy to be of assistance.

Q: On the slab foundation where do you locate washer, dryer and water heater. Can you show us that lay out.

A: There is not a layout I can send since this plan is drawn on a basement foundation only. You could work with your builder on the best place to locate the washer dryer and water heater.

Q: Thanks for your quick reply. Is there a specified place for a washer and dryer?

A: This plan assumes the washer and dryer would go in the basement, but if the owner were to modify the plan to a slab or crawl space foundation, then the plans would need to be changed so the washer and dryer could reside were the stairs are currently shown

Q: Can you please send me the Basement layout for plan 87347? Thanks Brady

A: Thank you for your inquiry. The basement foundation follows the footprint of the first floor.

Common Q & A

Q: Can I make modifications to this plan?

A: Yes you can! Please click the "Modifications" tab above to get more information.

Q: What is the estimated price to build this plan?

A: The national average for a house is running right at $125.00 per SF. You can get more detailed information by clicking the Cost-To-Build tab above. Sorry, but we cannot give cost estimates for garage, multifamily or project plans.
