3 Car Garage Apartment Plan 94347

• PDF File: $1,065.00
• 5 Sets: $1,190.00
• 5 Sets plus PDF File: $1,315.00
• CAD File: $1,560.00
  Single Build License issued on CAD File orders.
• Concerning PDF or CAD File Orders: Designer requires that a End User License Agreement be signed before fulfilling PDF and CAD File order.

Need A Materials List?

It seems that this plan does not offer a stock materials list, but we can make one for you. Please call 1-800-482-0464, x403 to discuss further.
• Right Reading Reverse: $200.00
  All sets will be Readable Reverse copies. Turn around time is usually 3 to 5 business days.
• Additional Sets: $50.00

Available Foundation Types:

• Slab : No Additional Fee

Available Exterior Wall Types:

• 2x4: No Additional Fee

Prices subject to approval prior to fulfillment.

• Shipping Policy

Total Living Area:	432 sq ft
Upper Living Area:	432 sq ft
Garage Type:	Detached
Garage Bays:	3
Foundation Types:	Slab
Exterior Walls:	2x4
House Width:	36'
House Depth:	24'
Number of Stories:	2
Bedrooms:	1
Full Baths:	1
Max Ridge Height:	22' from Front Door Floor Level
Primary Roof Pitch:	12:12
Roof Framing:	Stick
Main Ceiling Height:	8'
Upper Ceiling Height:	7'6

Foundation plan - Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.

Exterior Elevations - A blueprint picture of all four sides showing exterior materials and measurements.

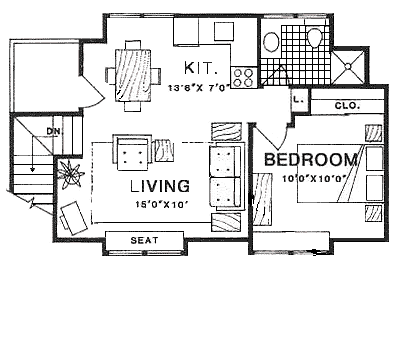

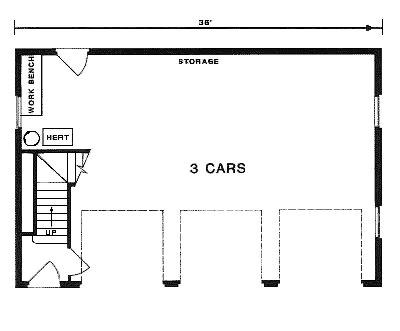

Floor plans - Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.

Cross Section - A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.

Interior Elevations - Detailed drawings of kitchen cabinet elevations and other elements as required.
