Quick Specs
342 Total Living Area105 Main Level
237 Upper Level
1 Bedrooms, 1 Full Baths
1 Car Garage
17' W x 27' D
Quick Pricing
PDF File: $575.001 Set: $575.00
5 Sets: $625.00
8 Sets: $665.00
CAD File: $1,025.00
Plan Pricing from $575.00
Plan Pricing
** 1 Set order does not include a License-To-Build. For bidding purposes only. Customer can upgrade order within 90 days.
Available Foundation Types:
Available Exterior Wall Types:
Prices subject to approval prior to fulfillment.Specifications
| Total Living Area: | 342 sq ft |
| Main Living Area: | 105 sq ft |
| Upper Living Area: | 237 sq ft |
| Garage Area: | 291 sq ft |
| Garage Type: | Drive Under |
| Garage Bays: | 1 |
| Foundation Types: | Slab |
| Exterior Walls: | 2x4 |
| House Width: | 17' |
| House Depth: | 27' |
| Number of Stories: | 2 |
| Bedrooms: | 1 |
| Full Baths: | 1 |
| Max Ridge Height: | 22'5 from Front Door Floor Level |
| Primary Roof Pitch: | 8.5:12 |
| Roof Load: | 30 psf |
| Roof Framing: | Truss |
| Main Ceiling Height: | 8' |
| Upper Ceiling Height: | 8' |
Associated Styles:
Plan Description
Garage Apartment House Plan 95833 with 342 Sq Ft, 1 Bed, 1 Bath, 1 Car Garage

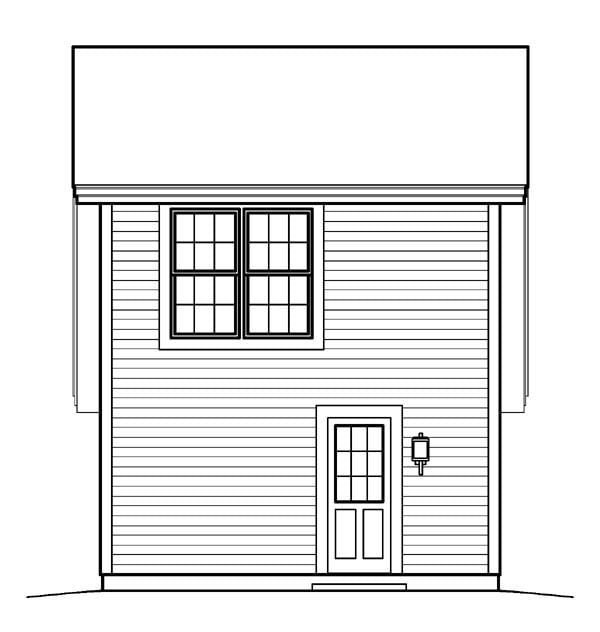

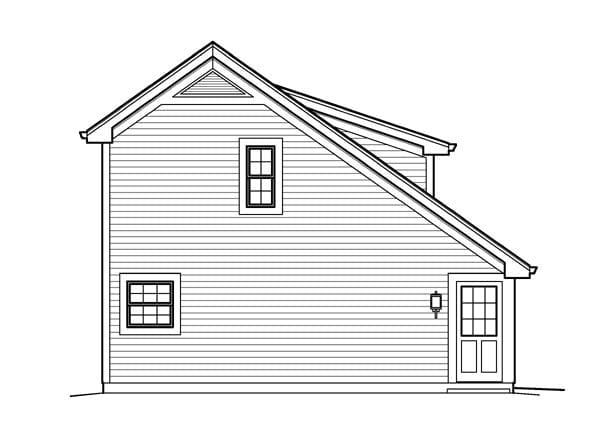

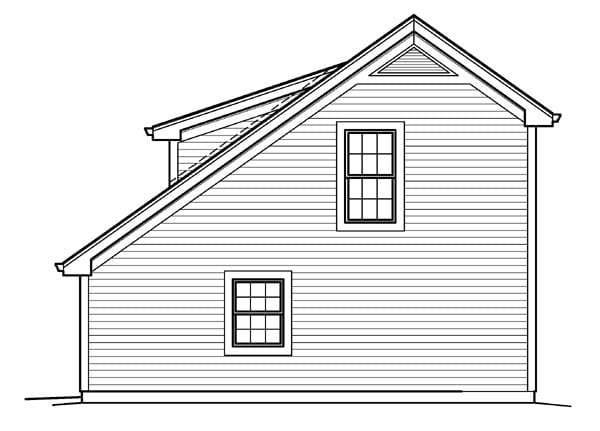

Discover the perfect blend of functionality and style with this Garage Apartment house plan 95833, offering 342 square feet of total living space, 1 bedroom, 1 full bath, and a convenient 1-car drive-under garage. Designed in a charming mix of Cabin, Cottage, Country, Saltbox, and Traditional architectural styles, this compact plan is ideal for those seeking a versatile accessory dwelling unit, guest house, or independent rental opportunity.The exterior showcases classic curb appeal, featuring a narrow 17-foot wide by 27-foot deep footprint, traditional rooflines, and practical siding options. With a maximum ridge height of 22'5", the structure stands out while complementing a variety of lot types. The elevation imagery reflects a welcoming look that fits seamlessly into any neighborhood or rural setting.

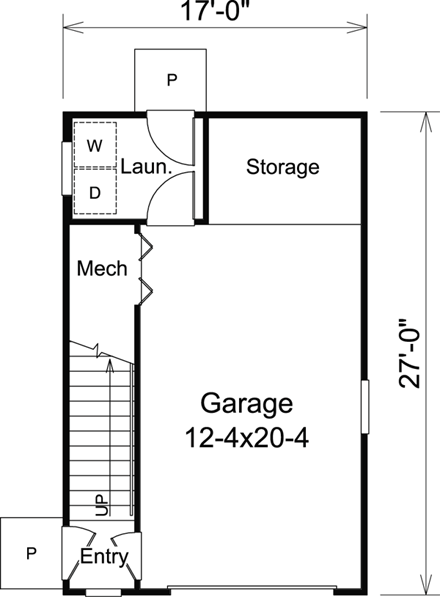

Inside, the main level is efficiently arranged, providing a private entryway and direct access to the garage, perfect for secure parking and additional storage. Upstairs, the open-concept living area is thoughtfully designed for comfort, with 8-foot ceilings enhancing the sense of space. The flexible layout allows for cozy living and dining arrangements, making entertaining or relaxing effortless.

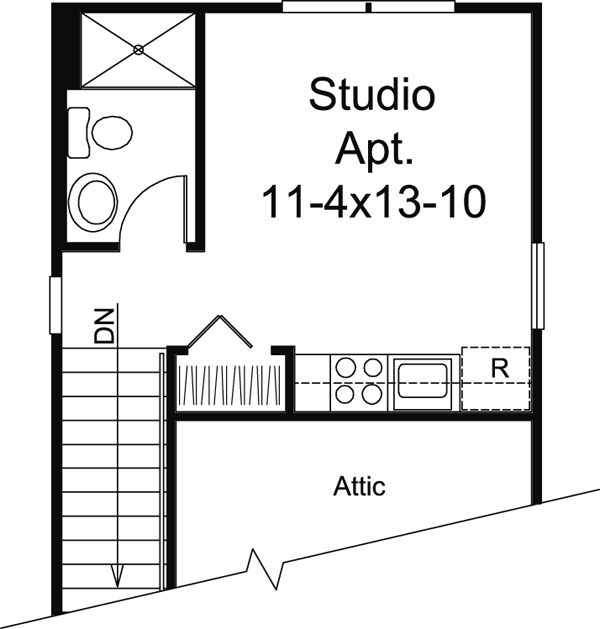

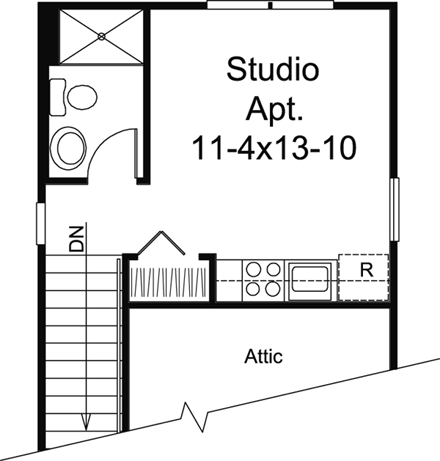

The upper floor houses a comfortable bedroom with easy access to a full bath, making it ideal for homeowners, guests, or renters seeking privacy. Ample closet space and practical flow ensure all the essentials are within reach.
This garage apartment plan includes bonus features like a slab foundation for straightforward construction and truss roof framing for long-term durability. The drive-under garage not only provides shelter for your vehicle but also offers options for workshop or hobby space.
Outdoor living is subtly integrated, with the structure's compact design allowing for creative landscaping, patios, or small garden areas, tailored to your lifestyle needs.
Whether you're a homeowner adding a guest suite, a family looking for multigenerational living, or an investor seeking rental income, this Garage Apartment house plan 95833 delivers comfort, style, and flexibility in a manageable footprint. Experience efficient living without sacrificing architectural charm or everyday convenience.
What's Included?
Foundation: This shows the layout of the basement, crawl space, or slab foundation.
Floor Plans: Placement of walls, windows, doors, plumbing fixtures, electrical outlets, beams, etc..
Exterior Elevations: Illustrates the front, rear, and sides of the house, in detail, including instructional notes such as materials, roof pitch, ceiling heights, etc.
Interior Elevations: Views of special interior elements such as kitchen & bath cabinets, fireplaces, etc.
Cross Section: Views of areas such as load-bearing walls, stairs, trusses, or other structural elements.
Details: How to construct certain parts of your home, such as the roof system, stairs, or deck.
Floor Plans: Placement of walls, windows, doors, plumbing fixtures, electrical outlets, beams, etc..
Exterior Elevations: Illustrates the front, rear, and sides of the house, in detail, including instructional notes such as materials, roof pitch, ceiling heights, etc.
Interior Elevations: Views of special interior elements such as kitchen & bath cabinets, fireplaces, etc.
Cross Section: Views of areas such as load-bearing walls, stairs, trusses, or other structural elements.
Details: How to construct certain parts of your home, such as the roof system, stairs, or deck.
Modifications
Receive a FREE modification estimate in one of 3 ways. Our modification team is ready to help you adjust any plan to fit your needs. The ReDesign process is simple and estimates are free!
1. Complete this On-Line Request Form
2. Print, complete and fax this PDF Form to us at 1-800-675-4916.
3. Want to talk to an expert? Call us at 913-938-8097 (Canadian customers, please call 800-361-7526) to discuss modifications.
Note: - a sketch of the changes or the website floor plan marked up to reflect changes is a great way to convey the modifications in addition to a written list.
We Work Fast!
When you submit your ReDesign request, a designer will contact you within 24 business hours with a quote.
You can have your plan redesigned in as little as 14 - 21 days!
We look forward to hearing from you!
Start today planning for tomorrow!
1. Complete this On-Line Request Form
2. Print, complete and fax this PDF Form to us at 1-800-675-4916.
3. Want to talk to an expert? Call us at 913-938-8097 (Canadian customers, please call 800-361-7526) to discuss modifications.
Note: - a sketch of the changes or the website floor plan marked up to reflect changes is a great way to convey the modifications in addition to a written list.
We Work Fast!
When you submit your ReDesign request, a designer will contact you within 24 business hours with a quote.
You can have your plan redesigned in as little as 14 - 21 days!
We look forward to hearing from you!
Start today planning for tomorrow!
Cost To Build
What will it cost to build your new home?
Let us help you find out!
Accurate. Fast. Trusted.
Construction Cost Estimates That Save You Time and Money.
$29.95 per plan
** Available for U.S. and Canada
With your 30-day online cost-to-build estimate you can start enjoying these benefits today.
- INSTANT RESULTS: Immediate turnaround—no need to wait days for a cost report.
- RELIABLE: Gain peace of mind and confidence that comes with a reliable cost estimate for your custom home.
- INTERACTIVE: Instantly see how costs change as you vary design options and quality levels of materials!
- REDUCE RISK: Minimize potential cost overruns by becoming empowered to make smart design decisions. Get estimates that save thousands in costly errors.
- PEACE OF MIND: Take the financial guesswork out of building your dream home.
- DETAILED COSTING: Detailed, data-backed estimates with +/-120 lines of costs / options for your project.
- EDITABLE COSTS: Edit the line-item labor & material price with the “Add/Deduct” field if you want to change a cost.
Home-Cost.com’s INSTANT™ Cost-To-Build Report also provides you these added features and capabilities:
Q & A
Previous Q & A
Q: Is the attic dormer real? In other words, are the windows visible from the attic and it expands head space in the attic or does the dormer just lay on top of the roof for looks?
A: Good morning, The dormer shown on plan #95833 is a false dormer. Thank you!
Q: In Portland we have a 20ft height limit for ADUs. This is measured from highest finished grade elevation within 5 ft of the building to the midpoint on a gamble roof. Does your 22'5 measurement refer to the absolute highest point of this roof? What would be the midpoint measurement between the top of the wall and the highest point? I'm hoping it isn't more than 20ft! I love this plan!
A: Good Morning, The measurements of the house from the top of foundation to midpoint is 15’-0”. The midpoint measurement of the house to the top of the house is 7’-5” Thank you.
Q: Is the ceiling in the upper apartment flat or is it going to have a pitch? and how is the attic space ceiling finished?
A: Good Morning, The upper apartment has a flat ceiling. The attic space ceiling is not finished that is up to you and your contractor or builder to decide the best way to finished that space. Thank you.
Common Q & A
Q: Can I make modifications to this plan?
A: Yes you can! Please click the "Modifications" tab above to get more information.
Q: What is the estimated price to build this plan?
A: The national average for a house is running right at $125.00 per SF. You can get more detailed information by clicking the Cost-To-Build tab above. Sorry, but we cannot give cost estimates for garage, multifamily or project plans.
