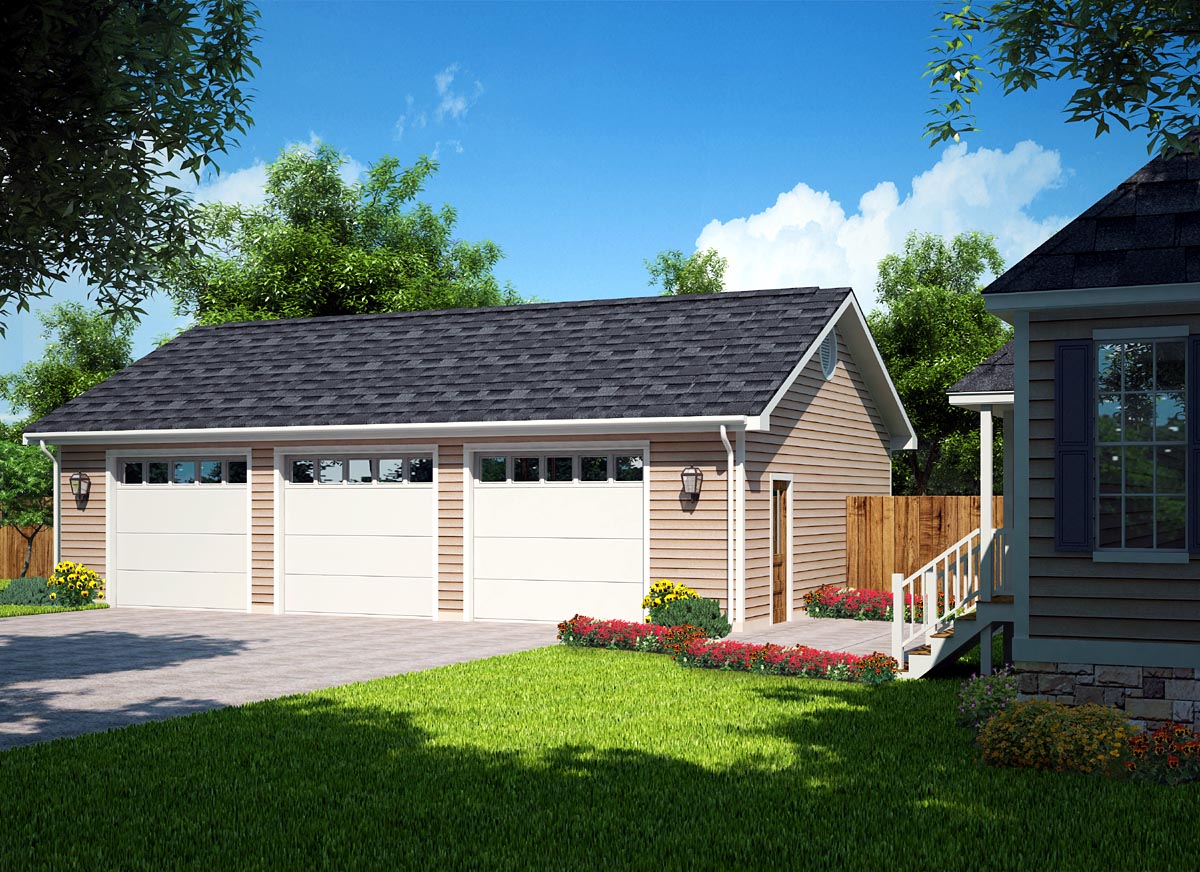

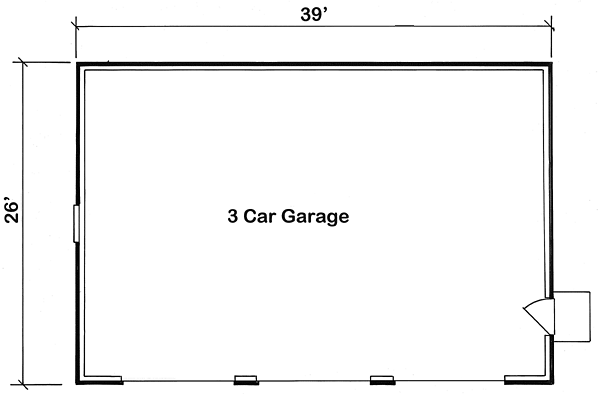

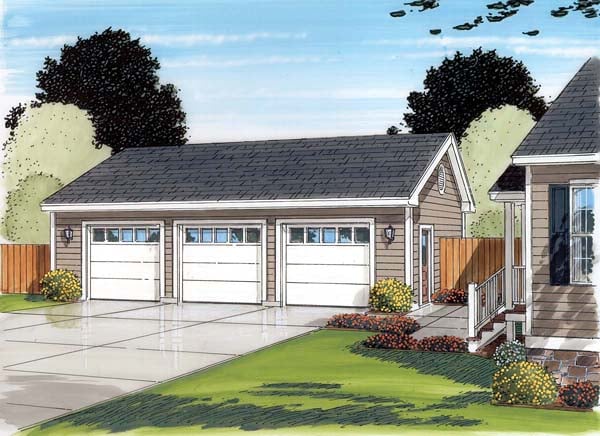

Popular size, three stall garage design, at 26 feet deep.
We include both a 7'0" and 8'0" garage doors options in the plan. Garage building plans for a simple four corner design for affordable construction.
Exterior Elevations Scaled drawings of the front, rear, sides of the home. Information pertaining to the exterior finish materials, roof pitches and exterior height dimensions.
Cabinet Plans These plans, or in some cases elevations, will detail the layout of the kitchen and bathroom cabinets at a larger scale. Available for most plans.
Typical Wall Section This section will address insulation, roof components, and interior and exterior wall finishes. Your plans will be designed with either 2x4 or 2x6 exterior walls, but most professional contractors can easily adapt the plans to the wall thickness you require.
Fireplace Details If the home you have chosen includes a fireplace, the fireplace detail will show typical methods to construct the firebox, hearth and flue chase for masonry units, or a wood frame chase for a zero-clearance unit. Available for most plans.
Foundation Plan These plans will accurately dimension the footprint of your home including load bearing p
Want to make changes?
Receive a FREE modification estimate in one of 3 ways. Our modification team is ready to help you adjust any plan to fit your needs. The ReDesign process is simple and estimates are free!
2. Print, complete and fax this PDF Form to us at 1-800-675-4916.
3. Want to talk to an expert? Call us at 913-938-8097 (Canadian customers, please call 800-361-7526) to discuss modifications.
Note: - a sketch of the changes or the website floor plan marked up to reflect changes is a great way to convey the modifications in addition to a written list.
We Work Fast!
When you submit your ReDesign request, a designer will contact you within 24 business hours with a quote.
You can have your plan redesigned in as little as 14 - 21 days!
We look forward to hearing from you!
Start today planning for tomorrow!
Cost To Build
Cost to Build Estimate
We are sorry, but an estimated cost build is not available for this particular plan.
Previous Q & A
Previous Questions and Answers
Q:Are the wall studs made of 2 x 4 or 2 x 6 and is it suitable for blown in foam insulation and can I put a heat pump NF that would suffice to heat the whole garage if you can give me any more information I would appreciate it thank you so much
A:Plan only has 2x4 exterior walls. I am sure you could blow in the insulation and you could heat and cool the garage it properly insulated - walls and attic. Not sure what NF means. A garage is just a house for cars anyway.
Date Posted: 19-Mar-19
Q:Thanks in advance for your responses to my questions... 1. What is the design height of the garage doors? 2. Slab design is "stem wall". Could plans include as standard slab with footings? 3. WHat is the eve height - need to know to ensure a boat will fit inside. 4. Cost to modify plans to include (2) 14' wide doors centered on the garage instead of the 3 doors shown.
A:1. What is the design height of the garage doors?
We include both a 7'0" and 8'0" version
2. Slab design is "stem wall". Could plans include as standard slab with footings?
Stem wall is standard - your builder could easily modify to a mono slab.
3. WHat is the eve height - need to know to ensure a boat will fit inside.
Plan includes both 8'0" and 9'0" wall vesions
4. Cost to modify plans to include (2) 14' wide doors centered on the garage instead of the 3 doors shown.
We would draw a 4 car garage version with (2)16'0" wide doors for 300.00 - it would take about 3 weeks.
Date Posted: 29-Dec-09
Q:Can I make modifications to this plan?
A:Yes you can! Please click the "Modifications" tab above to get more information.
Q:What is the estimated price to build this plan?
A:The national average for a house is running right at $125.00 per SF. You can get more detailed information by clicking the Cost-To-Build tab above. Sorry, but we cannot give cost estimates for garage, multifamily or project plans.
