2 Car Garage Apartment Plan 51820
Tudor Style 2 Car Garage Apartment with 2 Bed, 2 Bath
click for more images
Plan Pricing
Available Foundation Types:
Available Exterior Wall Types:
Prices subject to approval prior to fulfillment.Specifications
| Total Living Area: | 842 sq ft |
| Upper Living Area: | 842 sq ft |
| Garage Area: | 1064 sq ft |
| Garage Type: | Attached |
| Garage Bays: | 2 |
| Foundation Types: | Slab |
| Exterior Walls: | 2x4 2x6 - * $250.00 |
| House Width: | 38'0 |
| House Depth: | 28'0 |
| Number of Stories: | 2 |
| Bedrooms: | 2 |
| Full Baths: | 1 |
| Half Baths: | 1 |
| Max Ridge Height: | 22'10 from Front Door Floor Level |
| Primary Roof Pitch: | 10:12 |
| Roof Load: | 30 psf |
| Roof Framing: | Truss |
| Porch: | 31 sq ft |
| Deck: | 144 sq ft |
| Main Ceiling Height: | 9' |
| Upper Ceiling Height: | 8' |
Special Features:
What's Included?
4 elevations, all details, notes, etc...
Floor plans (1st, 2nd, bsmt, etc...)
Roof plan
Wall sections, sometimes building cross sections
Foundation plan & Foundation details
General notes page
Electrical plans for each floor.
Miscellaneous column, bracket, details, stair sections.
What is not included will be beam sizes, floor framing plan, roof framing plan, wall framing plans(We do not include these for a few reasons. Our plans are sold across the country, so it's not possible for us to meet local code requirements. To maintain usability, we allow for those details to be decided by local engineers and contractors so they can meet your code requirements.).
Modifications
Plan modification is a way of turning a stock plan into your unique custom plan. It's still just a small fraction of the price you would pay to create a home plan from scratch. We believe that modification estimates should be FREE!
We provide a modification service so that you can customize your new home plan to fit your budget and lifestyle.
Email Designer This is the best and quickest way to get a modification quote!
Please include your preferred Foundation Type and a Specific List of Changes. You can also attach a Sketch of Changes.
It's as simple as that!
Cost To Build
We are sorry, but an estimated cost build report is not available for this particular plan.
Q & A
Ask the Designer any question you may have. NOTE: If you have a plan modification question, please click on the Plan Modifications tab above.
Previous Q & A
A: i can get a material list done by an outside company. The cost is 400.00 and they are running around a 4 week lead time.
A: Yes, the overhead doors are 8’ tall
A: Yes, i would just remove the back concrete wall and build it with a stud wall. Likely add a door under the upper patio, and maybe another window in the garage.
A: The backside is a 4/12 pitch. I have more renderings posted that also show the backside, let me see if we can those updated on the listing for you.
Common Q & A
A: Yes you can! Please click the "Modifications" tab above to get more information.
A: The national average for a house is running right at $125.00 per SF. You can get more detailed information by clicking the Cost-To-Build tab above. Sorry, but we cannot give cost estimates for garage, multifamily or project plans.
FHP Low Price Guarantee
If you find the exact same plan featured on a competitor's web site at a lower price, advertised OR special SALE price, we will beat the competitor's price by 5% of the total, not just 5% of the difference! Our guarantee extends up to 4 weeks after your purchase, so you know you can buy now with confidence.
Photographs may show modified designs.
Elevation
Level One
Level Two
Quick Specs
842 Total Living Area842 Upper Level
2 Bedrooms
1 Full Baths, 1 Half Baths
2 Car Garage
38'0 W x 28'0 D
Quick Specs
842 Total Living Area2 Bedrooms
1 Full Baths, 1 Half Baths
2 Car Garage
38'0 W x 28'0 D
Pricing
PDF File: $800.005 Sets: $975.00
5 Sets plus PDF File: $1,050.00
CAD File: $1,095.00
more info

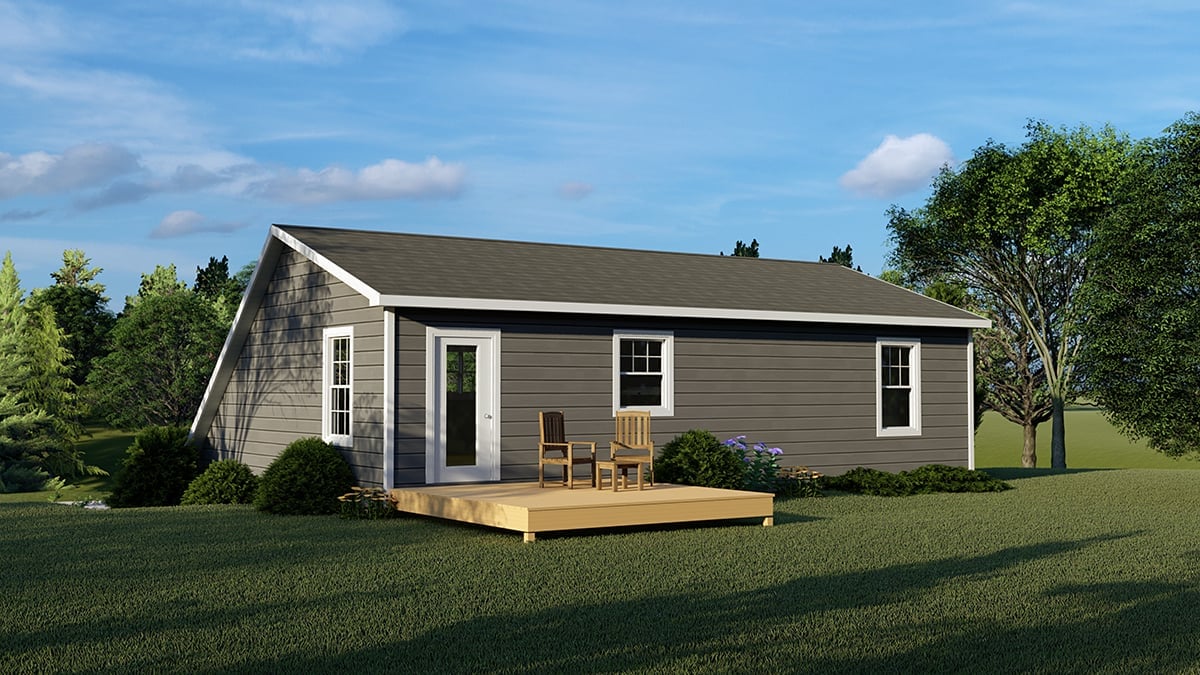

Rear Elevation
Photographs may show modified designs.
