Multi-Family Plan 73483
Ranch Style with 5 Bed, 3 Bath, 6 Car Garage
sq ft
3433beds
5baths
3bays
6width
106'depth
63'
click for more images
Plan Pricing
Additional Notes
Unit A:1 BR
1 BTH
SQ FT-1023
Unit B:
2 BR
1BTH
SQ FT-1173
Unit C:
2 BR
1 BTH
SQ FT-1237
Available Foundation Types:
Available Exterior Wall Types:
Prices subject to approval prior to fulfillment.Specifications
| Total Living Area: | 3433 sq ft |
| Garage Type: | Attached |
| Garage Bays: | 6 |
| Foundation Types: | Basement Crawlspace - * $395.00 Slab - * $395.00 |
| Exterior Walls: | 2x6 |
| House Width: | 106' |
| House Depth: | 63' |
| Number of Stories: | 1 |
| Bedrooms: | 5 |
| Full Baths: | 3 |
| Max Ridge Height: | 25' from Front Door Floor Level |
| Primary Roof Pitch: | 6:12 |
| Roof Load: | 47 psf |
| Roof Framing: | Truss |
| Porch: | 448 sq ft |
| FirePlace: | Yes |
| 1st Floor Master: | Yes |
| Main Ceiling Height: | 9' |
What's Included?
Foundation and Floor Plans at 1/4" = 1'0" scale.
Exterior Elevations of all four views, front at 1/4" = 1'0" scale, rear and sides vary from 1/8" to 1/4" = 1'0" scale.
Building Sections and Details as required to construct the individual design.
Interior Elevations of Cabinets at 1/4" = 1'0" scale.
Roof Plans
Schematic Electrical Plans with suggested switch, outlet, and light fixture locations.
General Specifications design notes.
Note: Mechanical and Plumbing drawings are not included. These should be obtained from a local mechanical contractor to ensure correct sizing of equipment for your region and climate conditions.
Modifications
1. Complete this On-Line Request Form
2. Print, complete and fax this PDF Form to us at 1-800-675-4916.
3. Want to talk to an expert? Call us at 913-938-8097 (Canadian customers, please call 800-361-7526) to discuss modifications.
Note: - a sketch of the changes or the website floor plan marked up to reflect changes is a great way to convey the modifications in addition to a written list.
We Work Fast!
When you submit your ReDesign request, a designer will contact you within 24 business hours with a quote.
You can have your plan redesigned in as little as 14 - 21 days!
We look forward to hearing from you!
Start today planning for tomorrow!
Cost To Build
We are sorry, but an estimated cost build report is not available for this particular plan.
Q & A
Ask the Designer any question you may have. NOTE: If you have a plan modification question, please click on the Plan Modifications tab above.
Common Q & A
A: Yes you can! Please click the "Modifications" tab above to get more information.
A: The national average for a house is running right at $125.00 per SF. You can get more detailed information by clicking the Cost-To-Build tab above. Sorry, but we cannot give cost estimates for garage, multifamily or project plans.
FHP Low Price Guarantee
If you find the exact same plan featured on a competitor's web site at a lower price, advertised OR special SALE price, we will beat the competitor's price by 5% of the total, not just 5% of the difference! Our guarantee extends up to 4 weeks after your purchase, so you know you can buy now with confidence.
Photographs may show modified designs.
Elevation

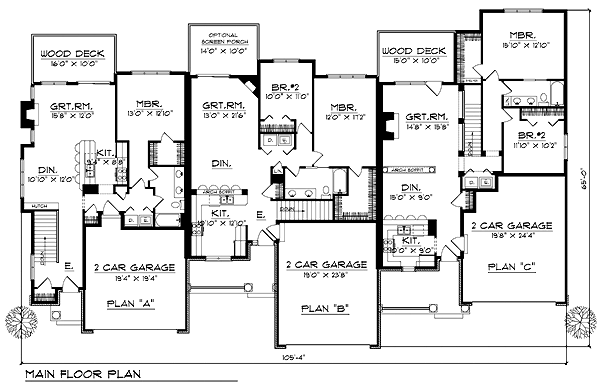

Level One
Quick Specs
3433 Total Living Area5 Bedrooms
3 Full Baths
6 Car Garage
106' W x 63' D
Quick Specs
3433 Total Living Area5 Bedrooms
3 Full Baths
6 Car Garage
106' W x 63' D
Rear Elevation
Photographs may show modified designs.
