5077 Sq Ft
, 5 Bedrooms
, 4 Full Baths , 3 Car Garage

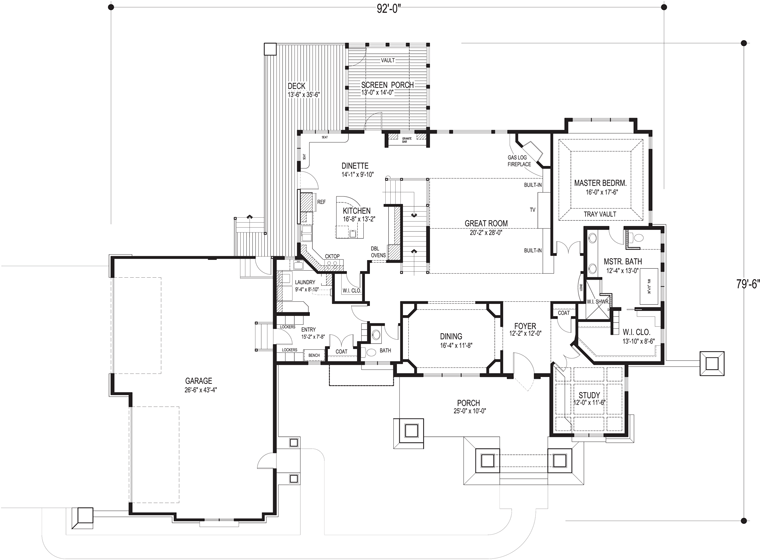

Welcome home to this delightful 5 bedroom, 4 bathroom Craftsman gem. Boasting 5,077 sq. ft. when the basement is finished, this home has everything needed for today’s active family. This master-on-the-main design features a private study with a coffered ceiling, an elegant dining room and spacious great room with a corner fireplace. The gourmet kitchen has a functional center island with a prep sink, double ovens, a separate cook-top and a walk-in pantry closet. The dinette area features built-in seating and accesses both the screen porch and the deck. Secluded in the back corner, the master suite features a dramatic tray ceiling and multiple windows. The master bath has a walk-in shower, private toilet closet, double bowl vanity and a soaking tub. Completing this suite is an oversized walk-in closet. The opposite side of this level houses a highly functional laundry room and an entry hall with storage lockers and a bench seat.

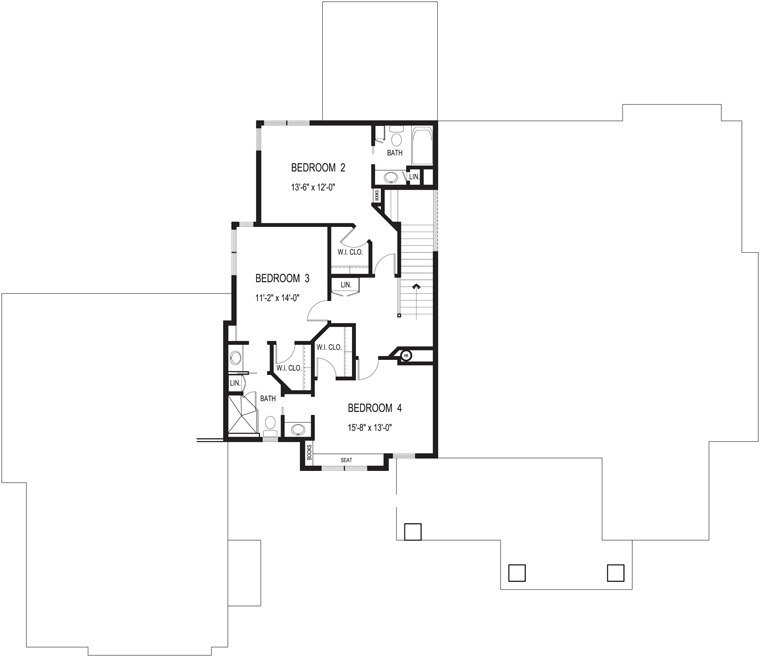

Ascend the stairs to find three additional bedrooms. Two bedrooms share a spacious shower and toilet area, while each having private sinks. All bedrooms have walk-in closets. Bedroom #2, located on the back of the house, has a private bathroom with a tub.

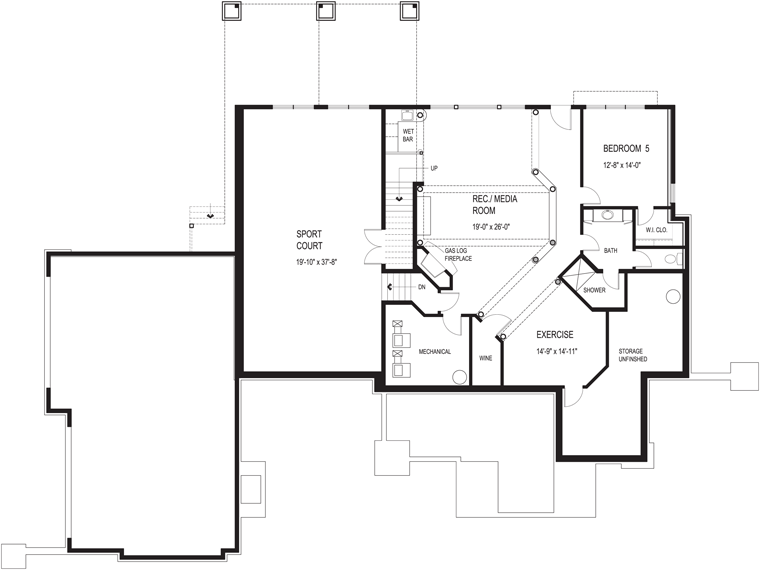

The basement level of this home has a combination recreation/media room with a corner fireplace and a wet bar. Also on this level are both an exercise room and a “sport court”! Another “plus” on this lower level is Bedroom #5 which has a walk-in closet. An oversized bathroom with a private shower room is centrally located on this level. Rounding out this level is a wine “cellar”, a spacious mechanical area and ample unfinished storage space.
5077 Total Living Area 2649 Main Level 1002 Upper Level 5 Bedrooms 4 Full Baths 3 Car Garage 92' W x 79'6 D
5 Sets: $2,050.00 PDF File: $1,950.00 CAD File: $3,295.00
Foundation Plans: include drawings for a standard, daylight or partial basement, crawlspace, pier, or slab foundation. All necessary notations and dimensions are included. (Foundation options will vary for each plan. If the home you want does not have the type of foundation you desire, contact us to discuss having that plan created.)
Detailed Floor Plans: show the placement of interior walls and the dimensions for rooms, doors, windows, stairways, etc., of each level of the house. In some cases, the door and window dimensions and/or stair details may be on a separate page.

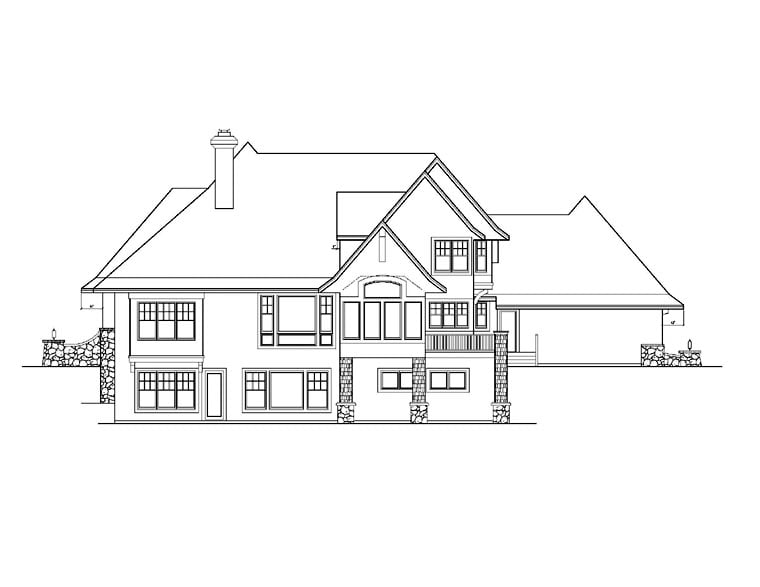

Exterior Elevations: show the front, rear and sides of the house, including exterior materials, details and measurements.
Wall Sections and/or Cross Sections: show details of the house as though it were cut in slices from the roof to the foundation. The cross sections specify the home's construction, insulation, flooring and roofing details.
Roof Details: show slope, pitch and location of dormers, gables and other roof elements, including clerestory windows and skylights. These details may be shown on the elevation sheet or on a s eparate diagram. Note: If trusses are used, we suggest using a local truss manufacturer to design your trusses to comply with your local codes and regulations.
Standard Construction Details: various details related to beam support, floor construction, connections, and roofing options.
The following may also be included:
Interior Elevations: show the specific details of cabinets (kitchen, bathroom, and utility room), fireplaces, built-in units, and other special interior features, depending on the nature and complexity of the item. Note: To save money and to accommodate your own style and taste, we suggest contacting local cabinet and fireplace distributors for sizes and styles.
Schematic Electrical Layouts: show the suggested locations for switches, fixtures and outlets. These details may be shown on the floor plan or on a separate diagram.
Want to make changes?
Receive a FREE modification estimate in one of 3 ways. Our modification team is ready to help you adjust any plan to fit your needs. The ReDesign process is simple and estimates are free!
QUICK Cost-To-Build estimates have the following assumptions:
QUICK Cost-To-Build estimates are available for single family, stick-built, detached, 1 story, 1.5 story and 2 story home plans with attached or detached garages, pitched roofs on flat to gently sloping sites.
QUICK Cost-To-Build estimates are not available for specialty plans and construction such as garage / apartment, townhouse, multi-family, hillside, flat roof, concrete walls, log cabin, home additions, and other designs inconsistent with the assumptions outlined in Item 1 above.
User is able to select and have costs instantly calculate for slab on grade, crawlspace or full basement options.
User is able to select and have costs instantly calculate different quality levels of construction including Economy, Standard, Premium. View Quality Level Assumptions.
Estimate will dynamically adjust costs based on the home plan's finished square feet, porch, garage and bathrooms.
Estimate will dynamically adjust costs based on unique zip code for project location.
All home plans are based on the following design assumptions: 8 foot basement ceiling height, 9 foot first floor ceiling height, 8 foot second floor ceiling height (if used), gable roof; 2 dormers, average roof pitch is 12:12, 1 to 2 covered porches, porch construction on foundations.
Summarized cost report will provide approximately 70 lines of cost detail within the following home construction categories: Site Work, Foundations, Basement (if used), Exterior Shell, Special Spaces (Kitchen, Bathrooms, etc), Interior Construction, Elevators, Plumbing, Heating / AC, Electrical Systems, Appliances, Contractor Markup. View a LIVE Sample Cost Report.
QUICK Cost-To-Build generates estimates only. It is highly recommend that one employs a local builder in order to get a more accurate construction cost.
All costs are "installed costs" including material, labor and sales tax.
* Limit one $19.95 credit per complete plan package order.
** Available for U.S. only.
Previous Q & A
Previous Questions and Answers
Q:I’m really interested in House Plan 92351 (order code PT101) on your website. The floor plan is nice and all, but is there any inside pictures of this home at all or that can be located? It’s hard to imagine what the inside looks like with just a floor plan. Any help would be greatly appreciated, thank you!
A:I'm sorry, no interior photos are available.
Date Posted: 08-Feb-18
Q:Are there any other plans similar to this plan? I love the facade of the house but was hoping for more rooms on the 1st floor
A:This is a one of kind design. Subsequently, no larger derivatives are available. Client should submit a modification request though as this could provide them with what they are looking for.
Date Posted: 13-Sep-16
Q:Is the great room 2 stories in heighth?
A:Great room has a sloped ceiling that slopes up to a 14ft clg and flattens off.
Date Posted: 13-Nov-15
Q:are there any interior pictures?
A:I regret that we have no additional photos available.
Date Posted: 23-Mar-15
Q:What exactly is the sport court room in the basement all about?
A:Area can be used for a half-court basketball, gym area, golf simulator etc…
Date Posted: 03-Feb-15
Q:What is the height of the sports court ceiling?
Date Posted: 30-Jan-15
Q:In this house plan is there attic space?
A:Design currently does not of livable attic space designed in it.
Date Posted: 19-May-14
Q:Is it possible if you can send anymore pictures of the exterior and the interior?
A:There are no further pictures on file for this design.
Date Posted: 26-Mar-14
Q:Can I make modifications to this plan?
A:Yes you can! Please click the "Modifications" tab above to get more information.
Q:What is the estimated price to build this plan?
A:The national average for a house is running right at $125.00 per SF. You can get more detailed information by clicking the Cost-To-Build tab above. Sorry, but we cannot give cost estimates for garage, multifamily or project plans.
