Modern Garage Apartment Plan 40823 with 650 Sq Ft, 1 Bedroom, 1 Bath, 2-Car Garage and Private Deck
Modern Garage Apartment Plan 40823 combines contemporary architecture with efficient living space and practical two-car parking. This stylish carriage house features a 650-square-foot upper-level apartment with 1 bedroom, 1 full bathroom, an open-concept living area, and a private outdoor deck. Below, a spacious drive-under garage accommodates two vehicles, making this narrow-lot-friendly design an excellent choice for guest accommodations, extended-family living, or a potential accessory dwelling unit (ADU).

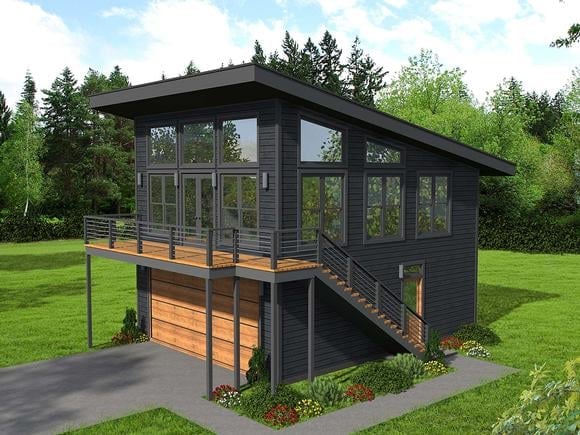

The exterior showcases bold Modern styling with an angled roofline, expansive windows, and clean architectural details. Dark gray siding paired with richly stained wood garage doors and decking creates a sophisticated contemporary appearance. Metal railings along the exterior staircase and upper deck introduce an attractive industrial influence, while floor-to-ceiling windows fill the apartment with natural light.

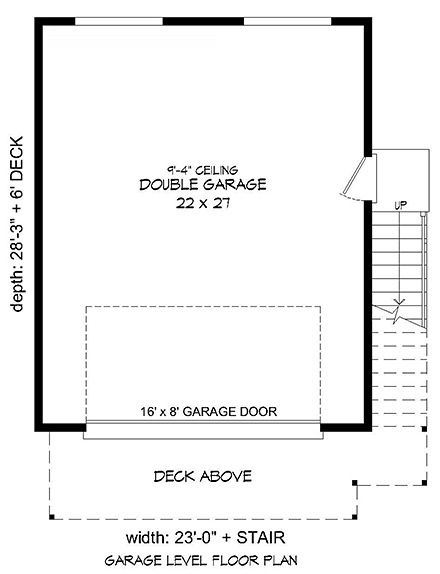

The ground-level garage features an interior measuring approximately 22 feet wide by 27 feet deep. A single 16-foot-wide by 8-foot-high overhead door provides convenient access for two vehicles. Rear windows and a window above the personnel door bring natural daylight into the garage, creating a more welcoming environment for parking, storage, or workshop activities.
With a building footprint approximately 23 feet wide by 28 feet 3 inches deep, excluding the deck and exterior staircase, this detached garage apartment is especially appealing for properties where lot width is limited.

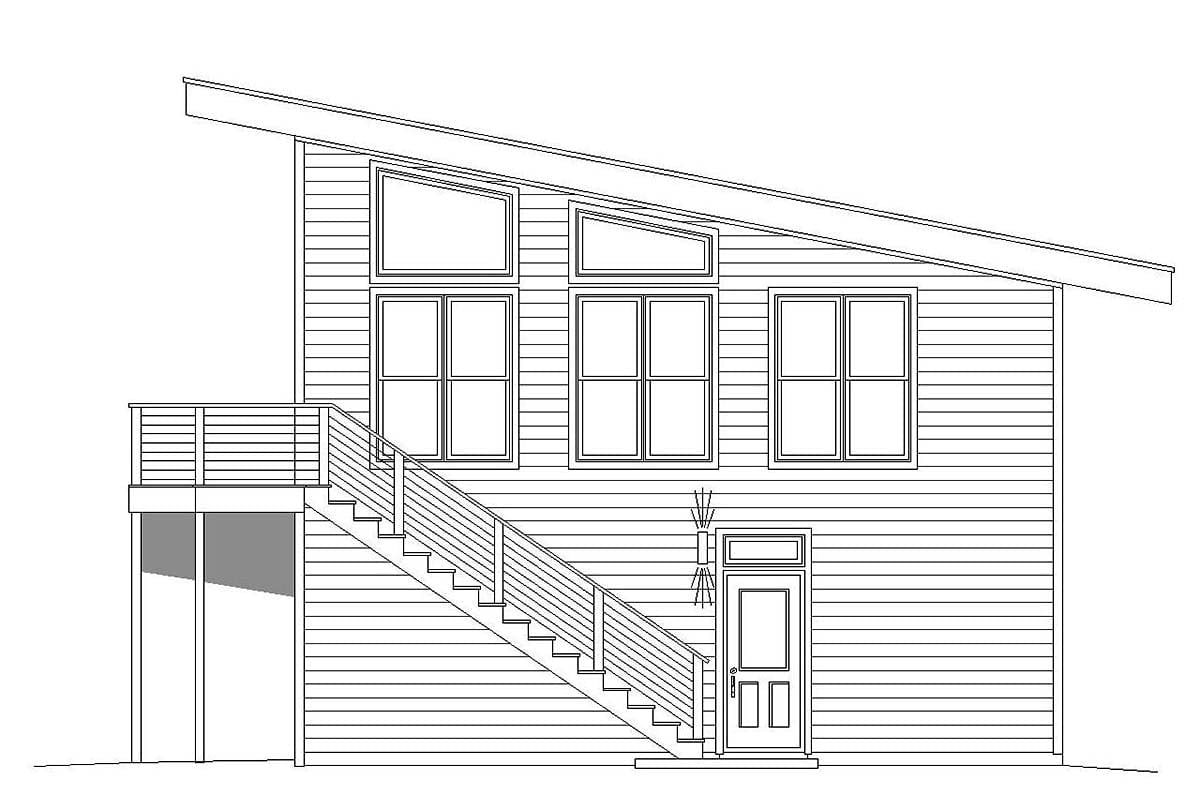

An exterior staircase provides independent access to the upper-level apartment without requiring guests to enter through the garage. This thoughtful arrangement creates separation between parking and residential activities while offering additional privacy from the main residence.

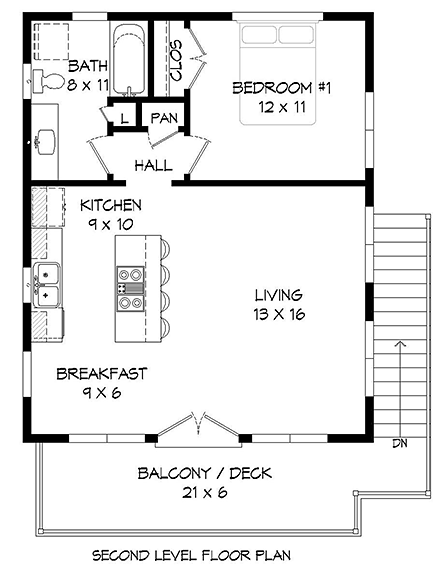

Upstairs, the open-concept living area brings the kitchen and gathering space together in a comfortable arrangement. A generous kitchen island provides preparation space and casual seating, while the sink and refrigerator are positioned along one wall to preserve an open, functional layout.
The bedroom measures approximately 12 feet by 11 feet and includes a closet. A full bathroom features a tub and shower combination, spacious vanity, and convenient linen storage. These practical amenities make the apartment suitable for comfortable everyday living.
The elevated outdoor deck extends the living experience beyond the interior, offering an inviting place for morning coffee, relaxation, or entertaining. Where local regulations permit, this versatile design may serve as an ADU, guest apartment, or rental residence.
Garage Apartment Plan 40823 delivers a distinctive combination of Modern architecture, private residential accommodations, and convenient two-car parking. Confirm local zoning and ADU requirements before construction.
Better Living by Good Design.
What's Included?
Plans include
a: Floor Plans: House plan drawings indicating dimensions for construction
b: Roof Plan: Drawings indicating roof slopes and unique conditions

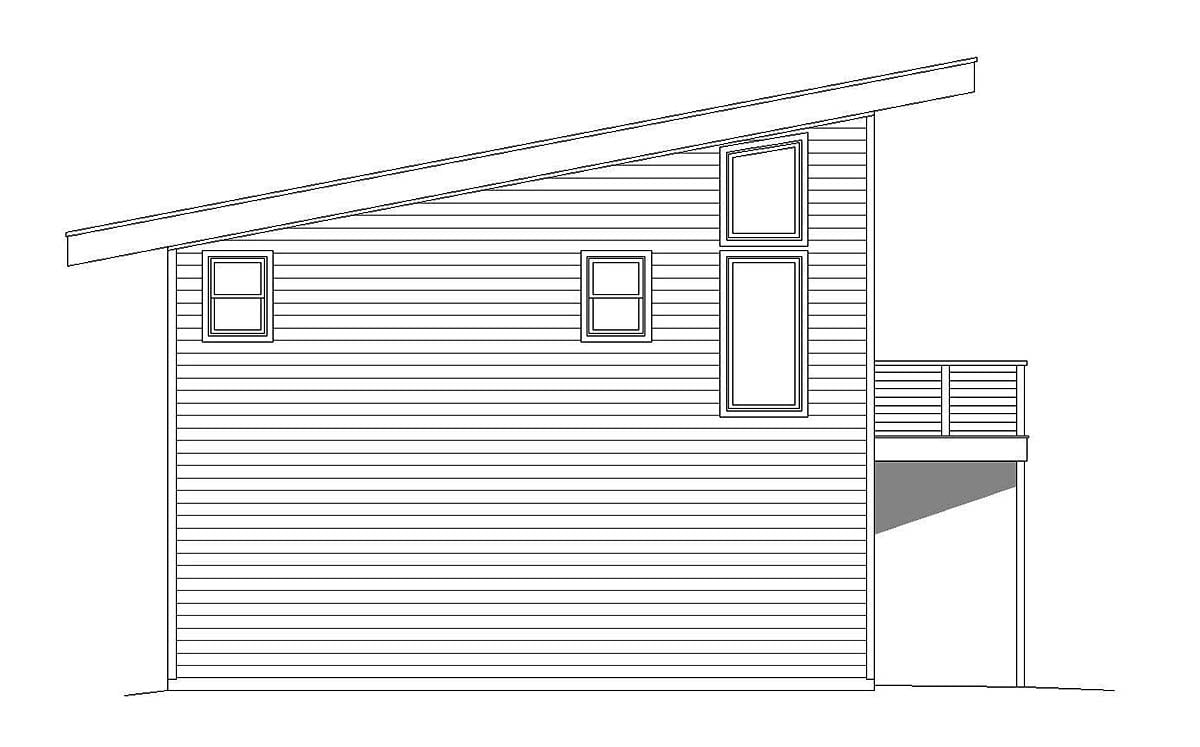

c: Exterior Elevations: Drawings showing appearance and the types of materials used for the exterior finish
d: Building Sections: Drawings cut through important locations in the structure
e: Construction Details: Drawings showing specific construction of building elements at a large scale
f: Kitchen and bath elevations
g: Electrical Plans: Basic electrical layout (suggested locations of fixtures, switches and outlets)
h: Foundation Plan: Dimensioned drawings describing specific foundation conditions for the structure CRAWLSPACE
Plans are sent in AutoCAD 2000 format
Modifications
Plan modification is a way of turning a stock plan into your unique custom plan. It's still just a small fraction of the price you would pay to create a home plan from scratch. You will receive a FREE, no obligation, modification estimate to get exactly the home plan you've been dreaming of. Simply contact the modification department 1 of 3 ways:
Call 866-465-5866 and talk to a live person that can give you and FREE modification estimate over the phone!
Email Us - Please Include your telephone number, plan number, foundation type, state you are building in and a specific list of changes.
Fax: 651-602-5050 - Make sure to include a cover sheet with your contact info. Make attention to the FamilyHomePlans.com Modification Department.
Cost To Build
What will it cost to build your new home?
Let us help you find out!
Family Home Plans has partnered with Home-Cost.com to provide you the most accurate, interactive online estimator available. Home-Cost.com is a proven leader in residential cost estimating software for over 20 years.
No Risk Offer: Order your Home-Cost Estimate now for just $29.95! We will provide you with a discount code in your receipt for when you decide to order any plan on our website than will more than pay you back for ordering an estimate.
Accurate. Fast. Trusted. Construction Cost Estimates That Save You Time and Money.
$29.95 per plan
** Available for U.S. and Canada
With your 30-day online cost-to-build estimate you can start enjoying these benefits today.
INSTANT RESULTS: Immediate turnaround—no need to wait days for a cost report.
RELIABLE: Gain peace of mind and confidence that comes with a reliable cost estimate for your custom home.
INTERACTIVE: Instantly see how costs change as you vary design options and quality levels of materials!
REDUCE RISK: Minimize potential cost overruns by becoming empowered to make smart design decisions. Get estimates that save thousands in costly errors.
PEACE OF MIND: Take the financial guesswork out of building your dream home.
DETAILED COSTING: Detailed, data-backed estimates with +/-120 lines of costs / options for your project.
EDITABLE COSTS: Edit the line-item labor & material price with the “Add/Deduct” field if you want to change a cost.
Ask the Designer any question you may have. NOTE: If you have a plan modification question, please click on the Plan Modifications tab above.
Previous Q & A
Q:Hi I have a question about plan Garage-Living Plan 40823 Can you tele the pitch the roof and the overall height of the front wall Thanks Dave
A:Hi I have a question about plan Garage-Living Plan 40823 Can you tele the pitch the roof
2.5:12
and the overall height of the front wall Thanks Dave
24'-10" Max roof height. 22'-8" overall front wall.
Q:Are there any supporting beams in the garage or is it all open?
A:A flush Glulam beam.
Q:How high are the ceilings in the upstairs? Can it be modified with higher ceilings to have the bed and bath be a loft?
A:Sloped from 7’-0” to 12’-6”
Yes
Q:How long is the roof from front to back? I want to figure out how much the 24’10” height would come down by reducing the slope to 2:12
A:37'
Q:Please tell me the max elevation height from the top of highest point of the roof to the finished grade. in front of the garage door? What is the interior height of the 2nd floor living space at the front and at the rear? what is the slope of the roof?
A:Please tell me the max elevation height from the top of highest point of the roof to the finished grade. in front of the garage door?
24’-10”
What is the interior height of the 2nd floor living space at the front and at the rear?
7’-0” vaulted to 12’-6”
what is the slope of the roof?
2.5:12
Q:What is the roof load capacity?
A:90lbs.
Q:Will the PDF print out on 22"x34" and still be to scale? How about 20" x 30"?
A:The plans are set up to print at scale on 18x24 paper. If you choose to use a larger paper, you need to select the option to print “Actual Size” so the at it remains at full scale on the larger paper. Be aware that the larger paper will have a lot of white space or margin.
Q:What is the width and depth including decks and roof overhangs?
A:Depth 28’3 + 6’ deck
Width 23’0 + 3’6 stair
Q:what is the snow load rating for this building?
A:25 pound snow load.
Q:What does the $1,253 get?
A:Your CAD file plans will be emailed to you in CAD and PDF format and WILL INCLUDE:
a) Floor Plans: Floor plan drawings indicating dimensions for construction
b) Roof Plan: Drawings indicating roof slopes and unique conditions
c) Exterior Elevations: Drawings showing appearance and the types of materials used for the exterior finish and trim
d) Building Sections: Drawings cut through important locations in the structure
e) Construction Details: Drawings showing specific construction of building elements at a large scale
f) Electrical Plans: Basic electrical layout (suggested locations of fixtures, switches and outlets)
g) Foundation Plan: Dimensioned drawings describing specific foundation conditions for the structure
h) A building license: A single-use license for construction at one location only
(NOTE: If design is to be used at subsequent locations, a discounted re-use license is required and available upon request.)
Additional notes about engineering and building codes:
Our plans are designed to meet national building codes. We do not guarantee they will meet all local building requirements or building codes influenced by local geographic or climactic factors. It is the responsibility of the owner or builder to ensure these plans comply with city, county, municipal and/or state/provincial building codes. Additionally, your plans will not be sealed or stamped by an engineer or architect. It is the owner’s (or builder’s) responsibility to hire a local professional to review and seal or stamp the plans if required by the building department. This must be handled by an engineer or architect licensed in the state/province where the plan is to be built.
Q:Max height for my building code is 24feet, anyway to knock 10inches off?
A:Yes, we can change the garage level ceiling height, or reduce the roof slope a tad. Either modification would be $250 and require 2-3 wk lead time
