2 Car Garage Apartment Plan 47102

• PDF File: $876.00
• 5 Sets: $672.00
• CAD File: $1,080.00
  Single Build License issued on CAD File orders.

Need A Materials List?

It seems that this plan does not offer a stock materials list, but we can make one for you. Please call 1-800-482-0464, x403 to discuss further.
• Right Reading Reverse: $210.00
  All sets will be Readable Reverse copies. Turn around time is usually 3 to 5 business days.
• Additional Sets: $48.00

Please take note that the designer's office will be closed December 23, 2024 – January 1, 2025 to celebrate Christmas and the New Year. They will resume on January 2, 2025.

Available Foundation Types:

• Slab : No Additional Fee

Available Exterior Wall Types:

• 2x4: No Additional Fee

Prices subject to approval prior to fulfillment.

• Shipping Policy

Total Living Area:	693 sq ft
Upper Living Area:	693 sq ft
Garage Area:	693 sq ft
Garage Type:	Detached
Garage Bays:	2
Foundation Types:	Slab
Exterior Walls:	2x4
House Width:	26'
House Depth:	27'
Number of Stories:	2
Bedrooms:	1
Full Baths:	1
Max Ridge Height:	30'8 from Front Door Floor Level
Primary Roof Pitch:	0
Roof Framing:	Unknown

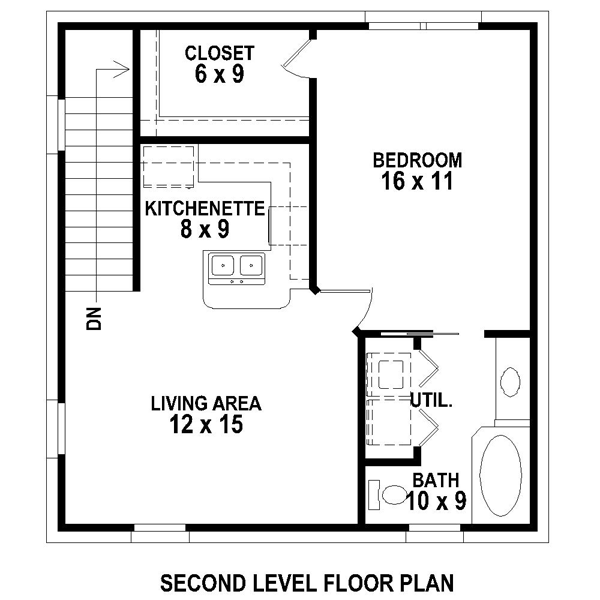

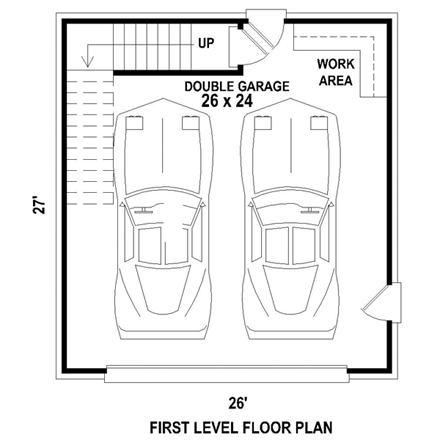

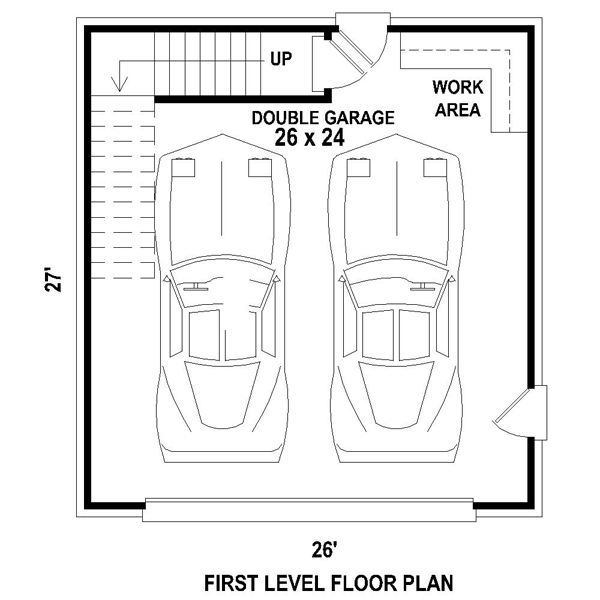

If you’re looking for a garage apartment plan for a narrow strip of property, consider this two-car garage design with workshop. At approximately 26’ wide, this garage floor plan works well in a narrow backyard while offering practical parking and comfortable living quarters that work well for rental property. The garage and workshop area cover 693 square feet of unfinished space on the main level nicely accommodating two cars while providing a space for the family handyman to work on small projects. At the top of the interior stairs, the garage apartment features a combined kitchenette and living area, a generously sized bedroom with large walk-in closet and a full bath with laundry facilities tucked inside. The living quarters offer 693 square feet of comfortable living making it a great choice to rent to a college student or singles earning extra income on the side. Simple yet functional, this carriage house plan is a great addition to any residence.

a)Floor Plans: House plan drawings indicating dimensions for construction.

b)Roof Plan: Drawings indicating roof slopes and unique conditions.

c)Exterior Elevations: Drawings showing appearance and the types of materials used in the construction.

d)Building Sections: Drawings cut through important locations in the structure.

e)Construction Details: Drawings showing specific construction of building elements at a large scale.

f)Electrical Plans: General electrical layout - light fixture and outlet locations, circuit diagrams.

g)SLAB Foundation Plan: Dimensioned drawings describing specific foundation conditions for the structure.

h)A building license: “A single-use licensed for construction at one location only.” If design is to be used at subsequent locations, a discounted re-use license is required.
