House Plan 52837

• PDF File: $970.00
• 5 Sets: $1,015.00
• 5 Sets plus PDF File: $1,110.00
• CAD File: $1,990.00
  Single Build License issued on CAD File orders.
• Materials List: $150.00
• Right Reading Reverse: $150.00
  All sets will be Readable Reverse copies. Turn around time is usually 3 to 5 business days.
• Additional Sets: $50.00

This designer cannot sell CAD files to Quebec customers. DELAY for plans by this designer: Orders placed after July 20 will not ship until the week of August 7 because of the annual Canada Construction Holiday.

Available Foundation Types:

• Basement : No Additional Fee
  Total Living Area may increase with Basement Foundation option.

Available Exterior Wall Types:

• 2x6: No Additional Fee

Prices subject to approval prior to fulfillment.

• Shipping Policy

Total Living Area:	1874 sq ft
Main Living Area:	842 sq ft
Upper Living Area:	1032 sq ft
Garage Area:	281 sq ft
Garage Type:	Attached
Garage Bays:	1
Foundation Types:	Basement
Exterior Walls:	2x6
House Width:	32'0
House Depth:	40'0
Number of Stories:	2
Bedrooms:	3
Full Baths:	1
Half Baths:	1
Max Ridge Height:	36'0 from Front Door Floor Level
Primary Roof Pitch:	6:12
Roof Framing:	Truss
2nd Floor Laundry:	Yes
Main Ceiling Height:	9'
Upper Ceiling Height:	8'

* May require additional drawing time.

Special Features:

• Coat Closet
• Deck or Patio
• Entertaining Space
• Front Porch
• Open Floor Plan
• Storage Space

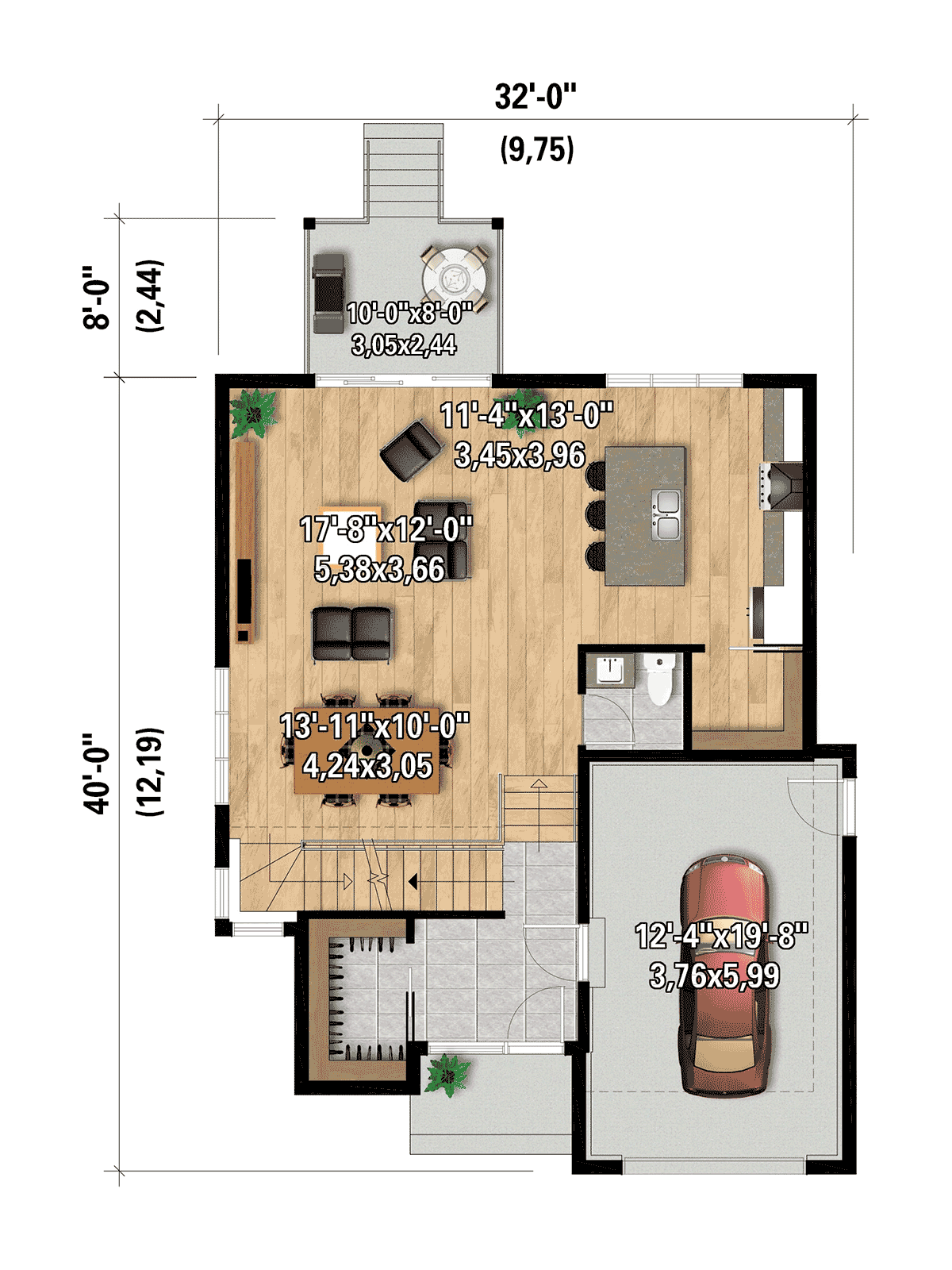

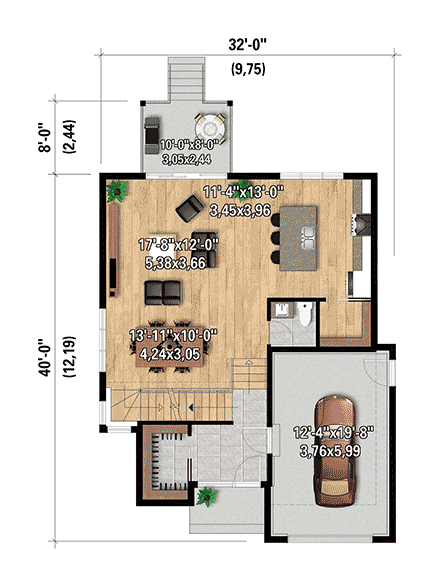

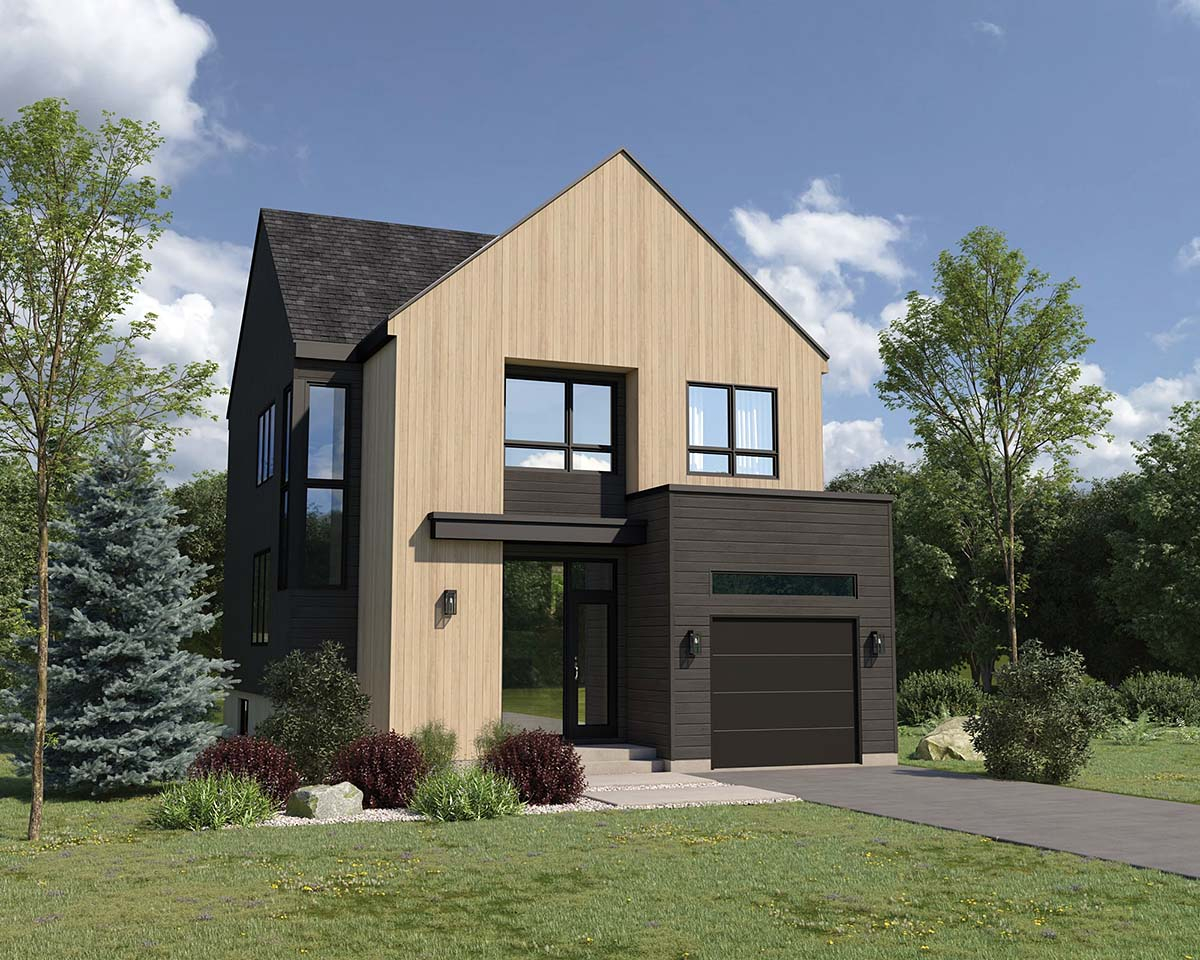

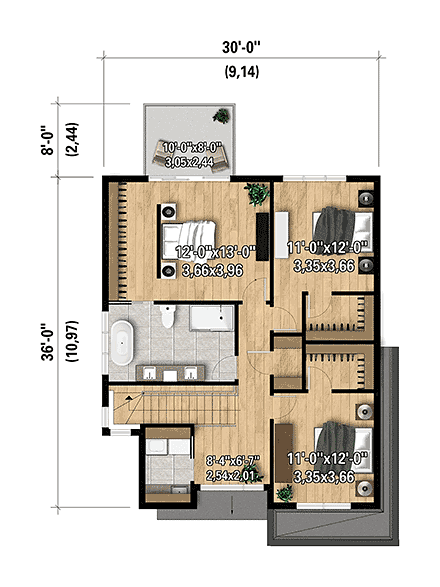

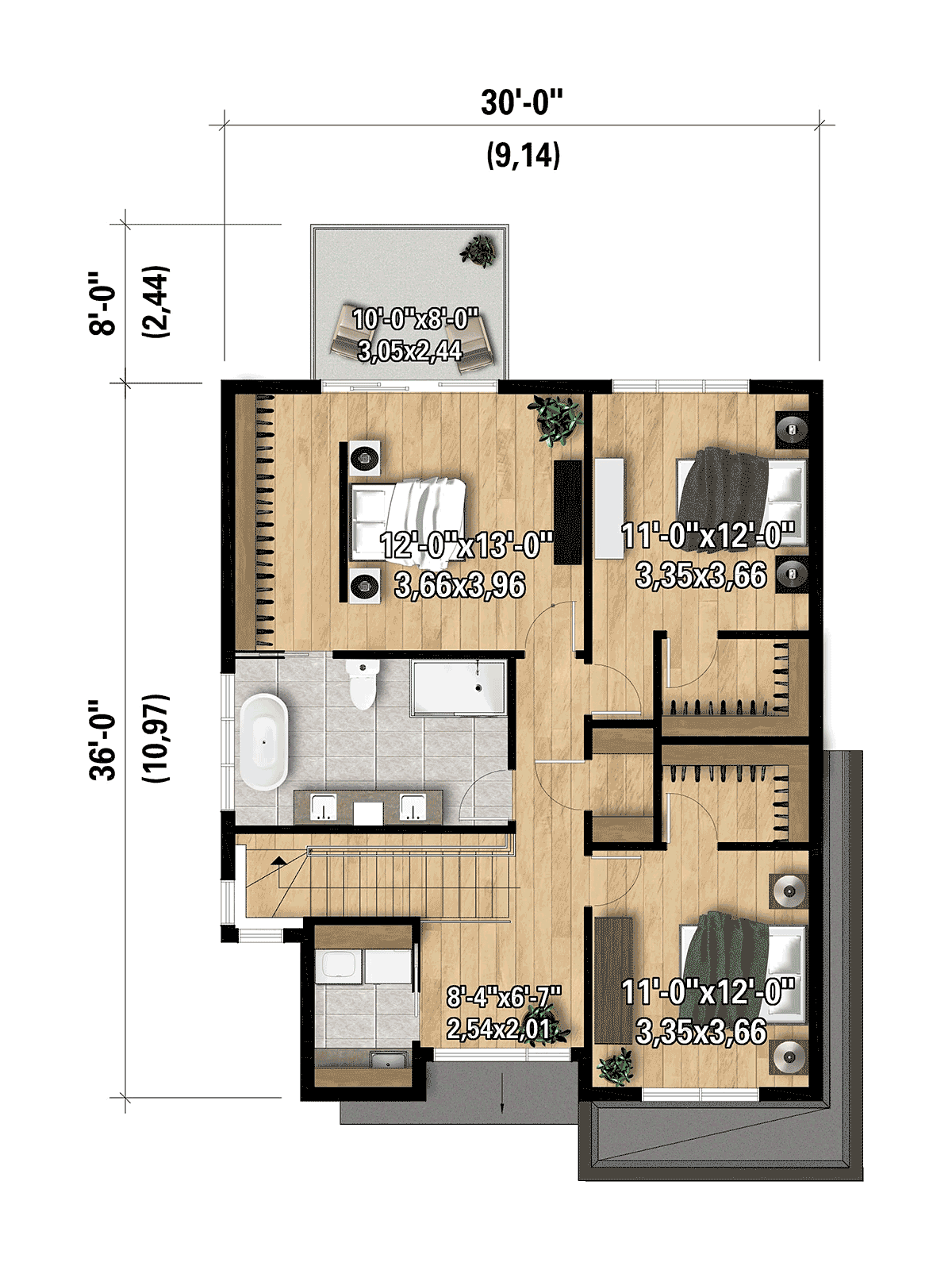

A two-storey European-styled house with many windows. The ground floor is open concept and has a large vestibule, a living room, a dining room as well as a kitchen with a walk-in pantry and a three-person island. There is also a washroom. The livable surface area is 842 sq. ft. The three bedrooms are on the second floor. The master bedroom has direct access to the bathroom. The other two bedrooms have a walk-in closet. The laundry room is also located on this floor. It has a livable surface area of 1,032 sq. ft. There is also a one car garage. The rear patio has a roof and on the second floor there is another right outside the master bedroom.

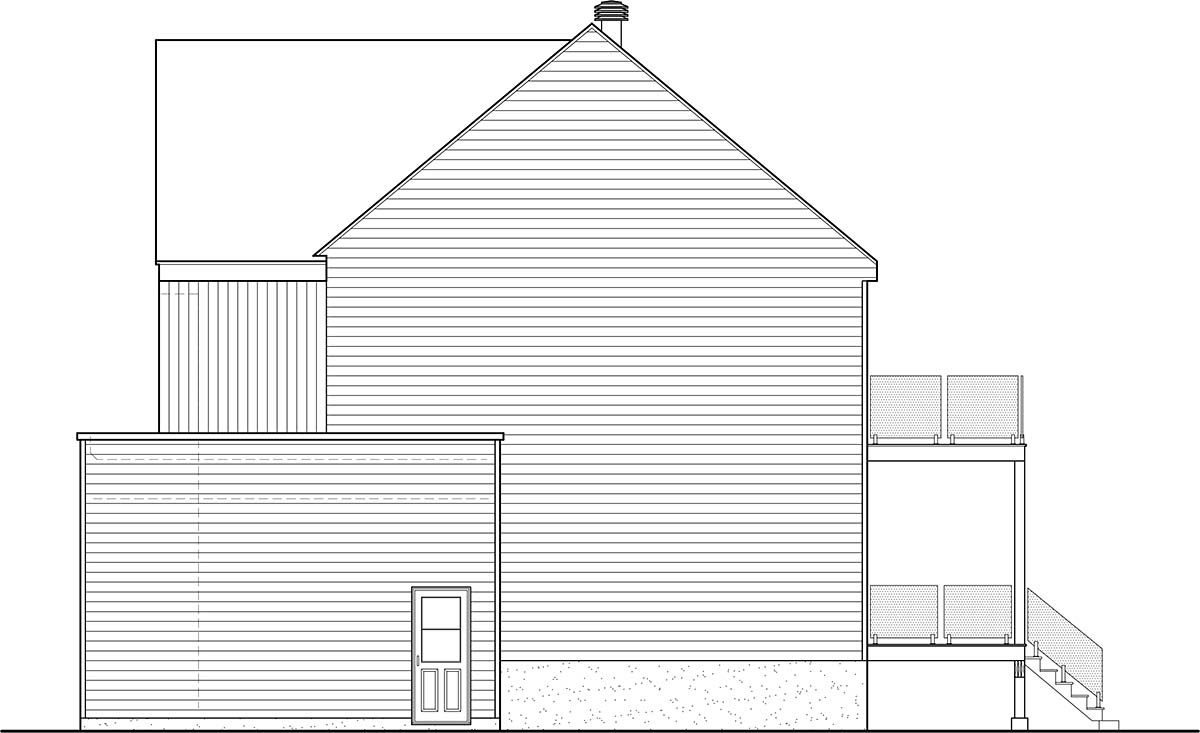

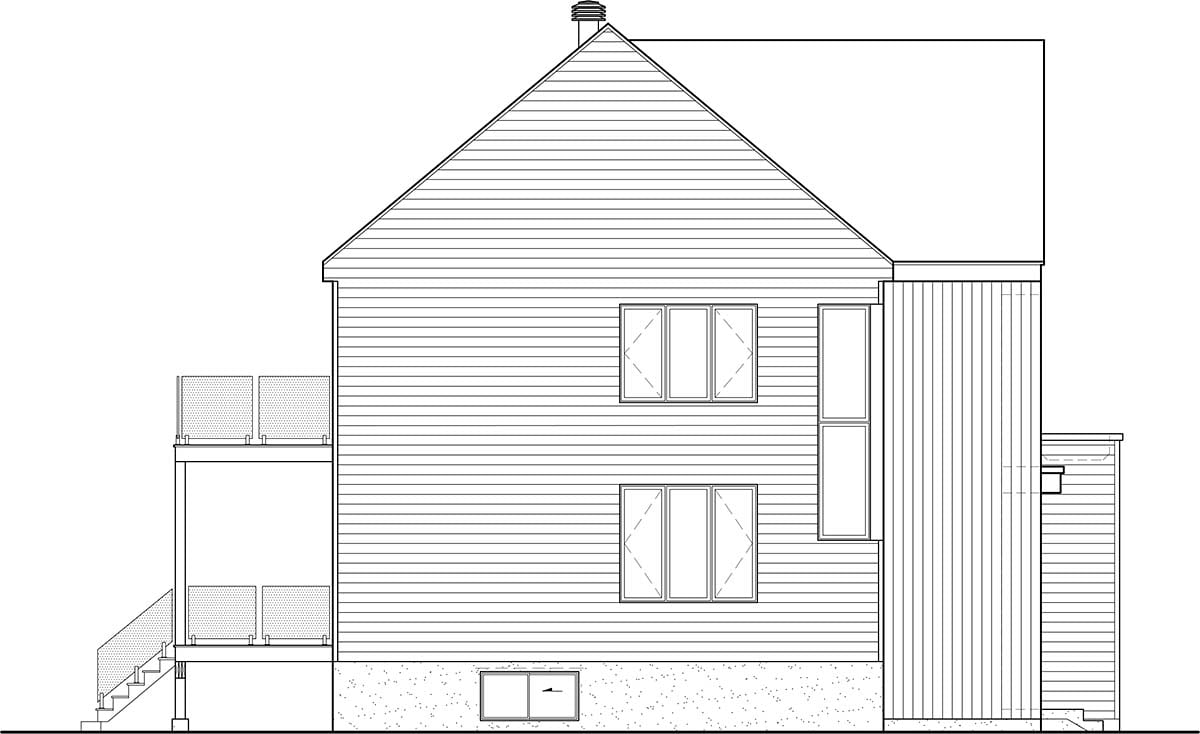

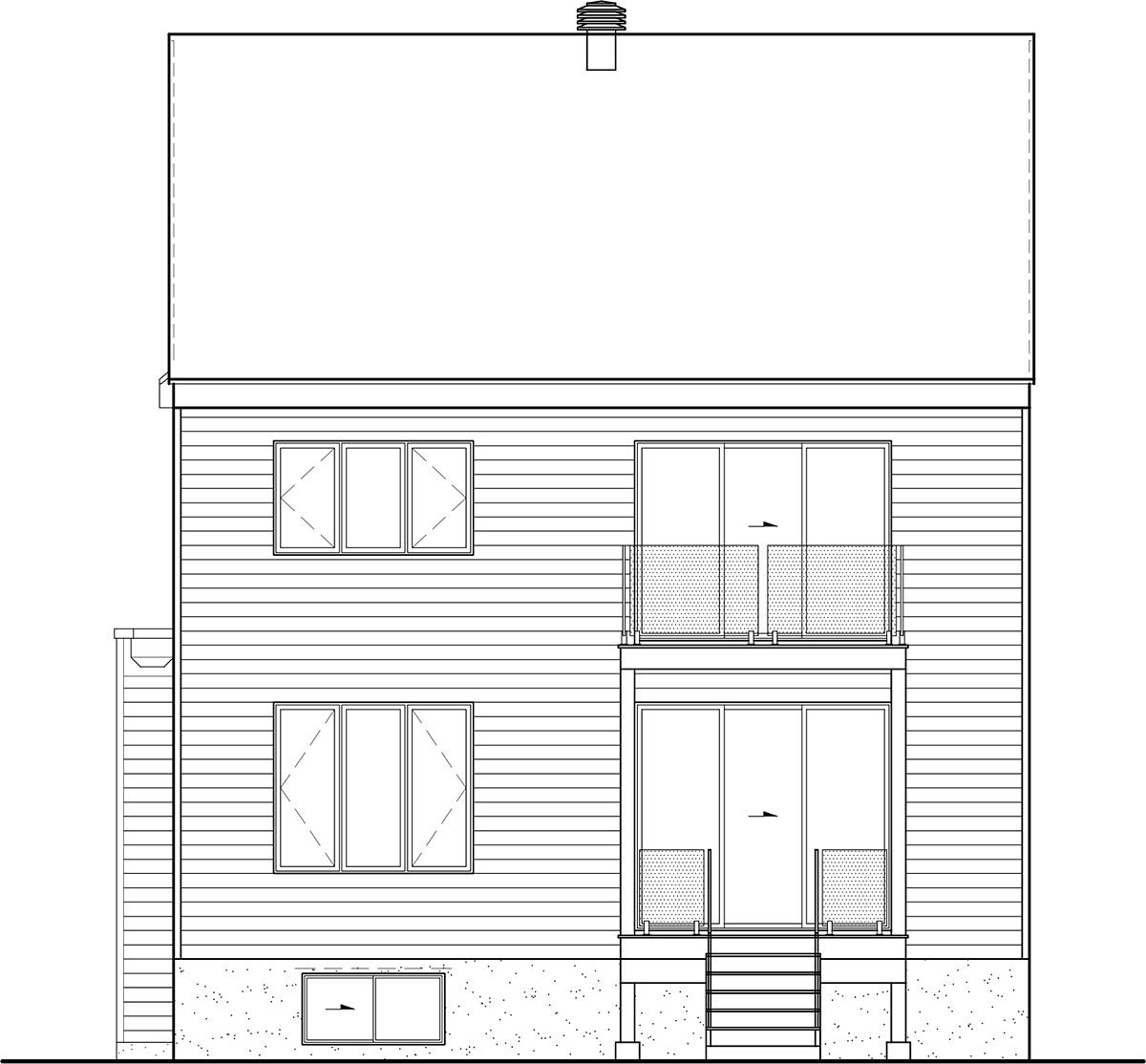

Exterior Elevations: show the front, rear and sides of the house, including exterior materials, details and measurements.

Foundation Plans: All necessary notations and dimensions are included. (Foundation options will vary for each plan. If the home you want does not have the type of foundation you desire, contact Familyhomeplans.com of your plan.)

Interior Elevations: (call 1-800-235-5700 before ordering to confirm availability) show the specific details of cabinets (kitchen, bathroom). We suggest contacting local cabinet and fireplace distributors for sizes and styles.

Schematic Electrical Layouts: (call 1-800-235-5700 before ordering to confirm availability) show the suggested locations for switches, fixtures and outlets. These details may be shown on the floor plan or on a separate diagram.

Detailed Floor Plans: show the placement of interior walls and the dimensions for rooms, doors, windows, stairways, etc., of each level of the house.

NOTE: Due to regional variations, local availability of materials, local codes, methods of installation, and individual preferences, it is impossible to include detail on heating and plumbing work on your plans. The duct work, venting, and other details will vary depending on the type of heating and cooling system (forced air, hot water, electric, solar) and the type of energy (gas, oil, electricity, solar) that you use. These details and specifications are easily obtained from your builder, contractor, and/or local suppliers.

Receive a FREE modification estimate in one of 3 ways. Our modification team is ready to help you adjust any plan to fit your needs. The ReDesign process is simple and estimates are free!

1. Complete this On-Line Request Form

2. Print, complete and fax this PDF Form to us at 1-800-675-4916.

3. Want to talk to an expert? Call us at 913-938-8097 (Canadian customers, please call 800-361-7526) to discuss modifications.

Note: - a sketch of the changes or the website floor plan marked up to reflect changes is a great way to convey the modifications in addition to a written list.
