House Plan 52838

• PDF File: $970.00
• 5 Sets: $1,015.00
• 5 Sets plus PDF File: $1,110.00
• CAD File: $1,990.00
  Single Build License issued on CAD File orders.
• Materials List: $150.00
• Right Reading Reverse: $150.00
  All sets will be Readable Reverse copies. Turn around time is usually 3 to 5 business days.
• Additional Sets: $50.00

This designer cannot sell CAD files to Quebec customers. DELAY for plans by this designer: Orders placed after July 20 will not ship until the week of August 7 because of the annual Canada Construction Holiday.

Available Foundation Types:

• Basement : No Additional Fee
  Total Living Area may increase with Basement Foundation option.

Available Exterior Wall Types:

• 2x6: No Additional Fee

Prices subject to approval prior to fulfillment.

• Shipping Policy

Total Living Area:	1970 sq ft
Main Living Area:	884 sq ft
Upper Living Area:	1086 sq ft
Garage Area:	392 sq ft
Garage Type:	Attached
Garage Bays:	1
Foundation Types:	Basement
Exterior Walls:	2x6
House Width:	38'10"
House Depth:	38'0"
Number of Stories:	2
Bedrooms:	4
Full Baths:	2
Half Baths:	1
Max Ridge Height:	29'10" from Front Door Floor Level
Primary Roof Pitch:	6:12
Roof Framing:	Truss
2nd Floor Laundry:	Yes
Main Ceiling Height:	9'
Upper Ceiling Height:	8'

* May require additional drawing time.

Special Features:

• Coat Closet
• Deck or Patio
• Entertaining Space
• Front Porch
• Mudroom
• Open Floor Plan
• Pantry
• Storage Space

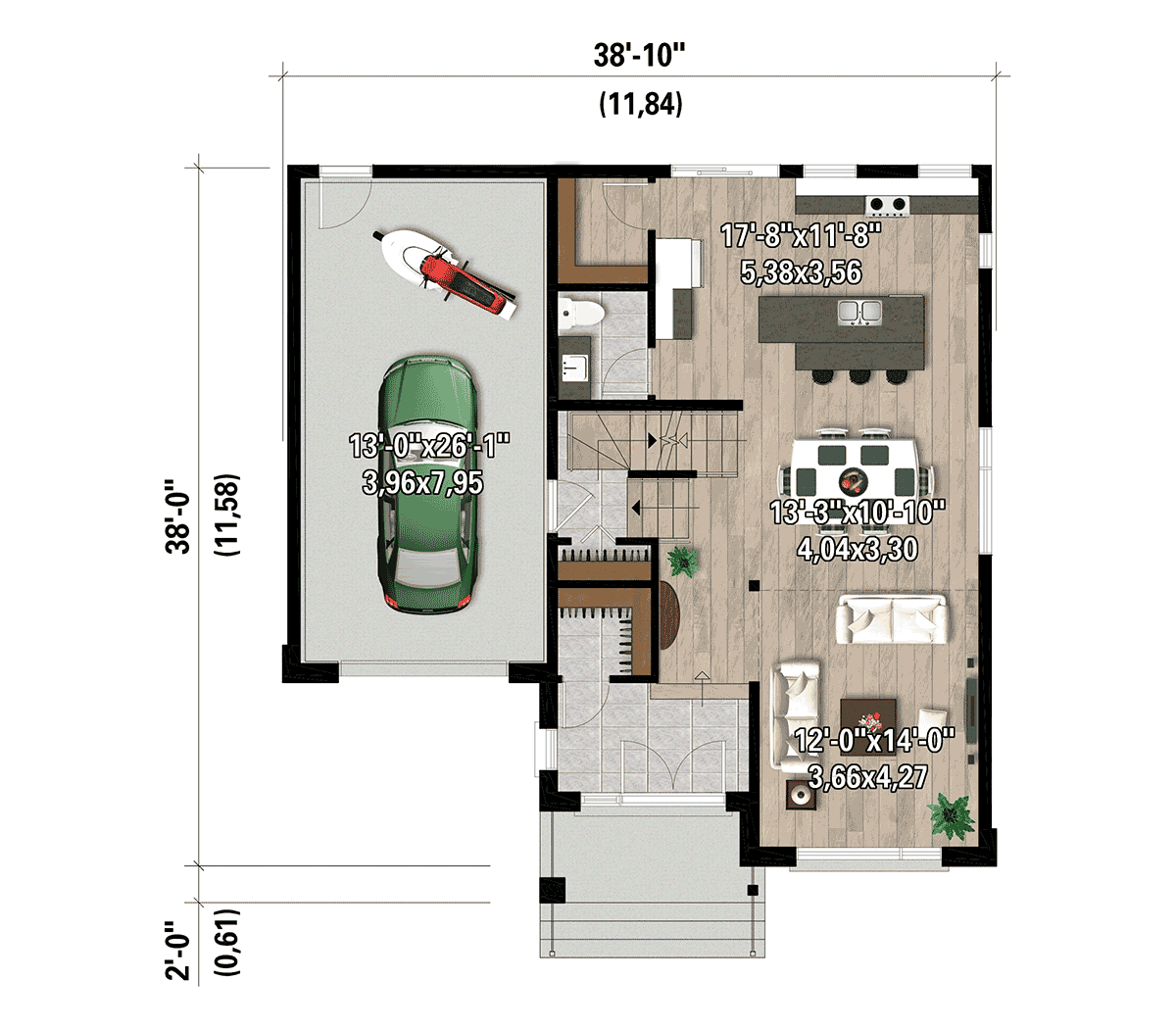

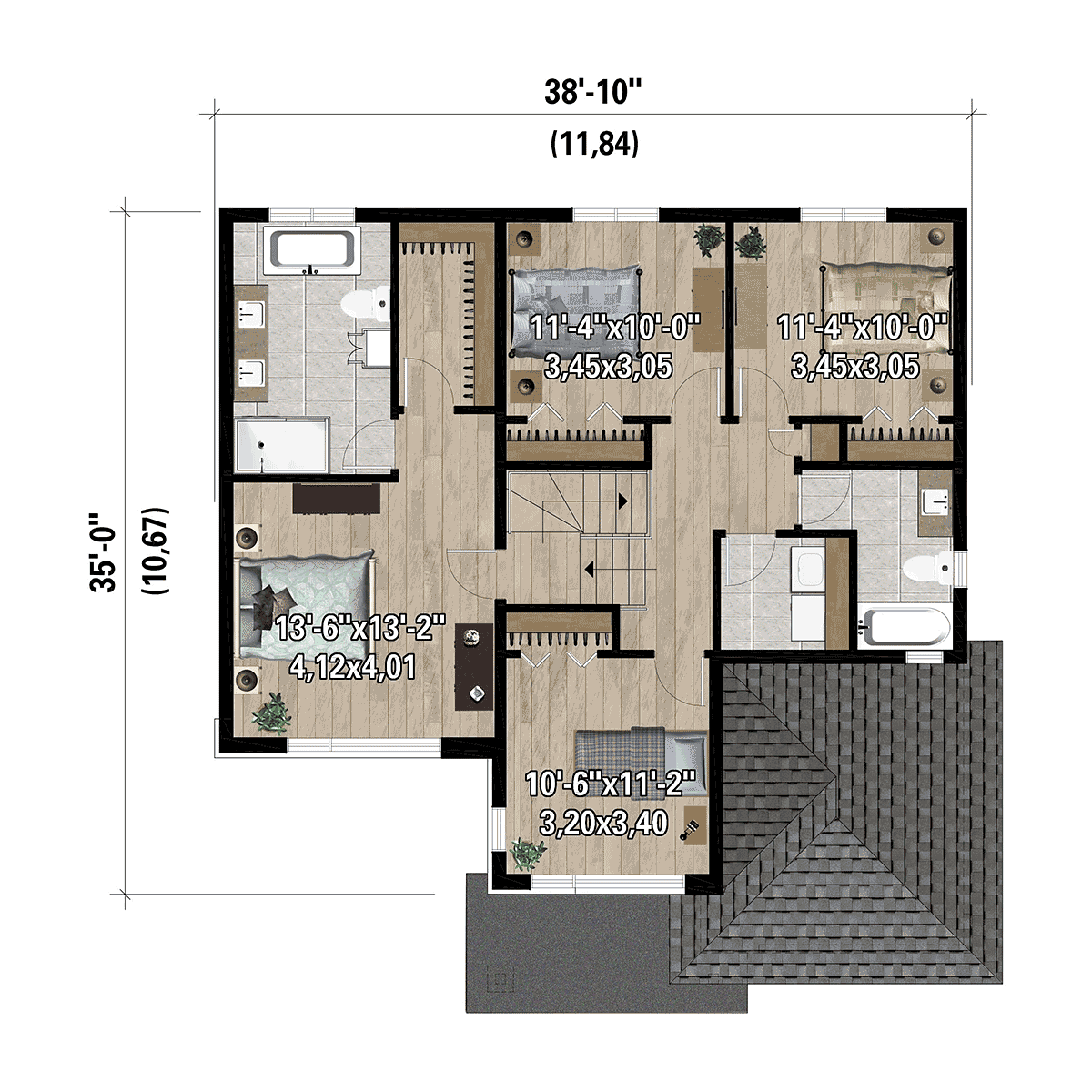

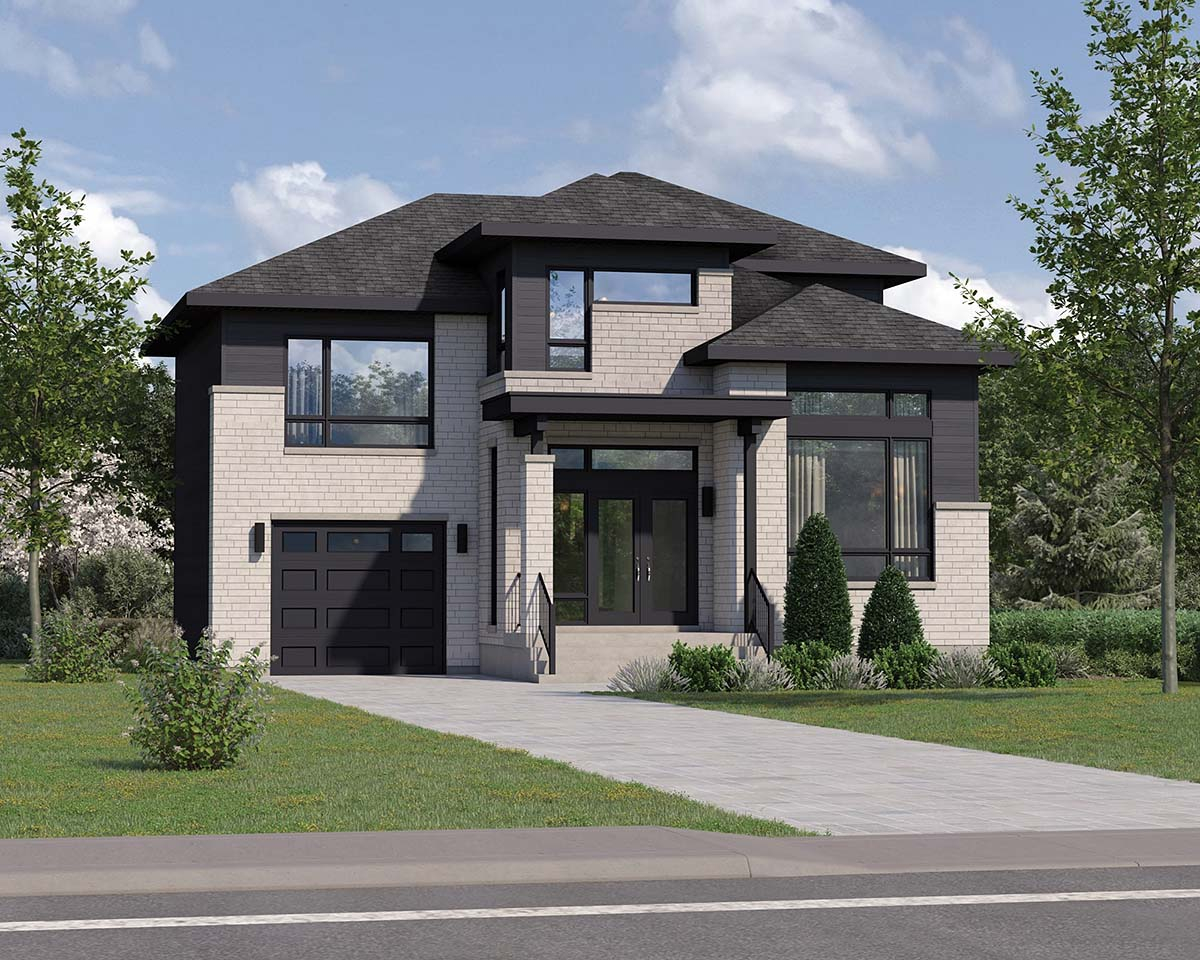

This contemporary house is perfect for a large family. The ground floor has a large vestibule with a walk-in closet. It also houses an open-concept area with the living room, dining room, washroom and kitchen. The kitchen is equipped with a walk-in pantry and a three-person island. On the second floor there are four large bedrooms. The master bedroom has a private bathroom and a walk-in closet. The other bedrooms share another complete bathroom. The laundry room is also located on this floor. The ground floor has a livable surface area of 884 sq. ft., the second floor is 1,086 sq. ft. and the garage is 392 sq. ft.

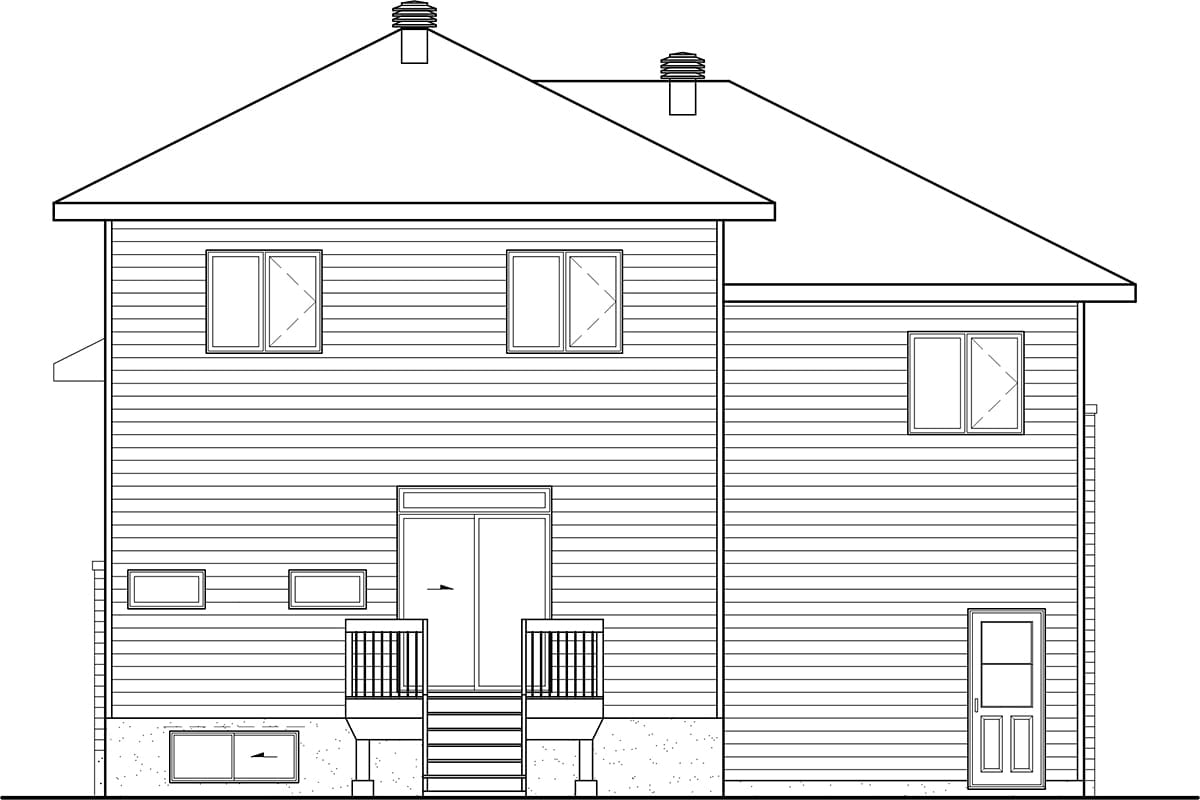

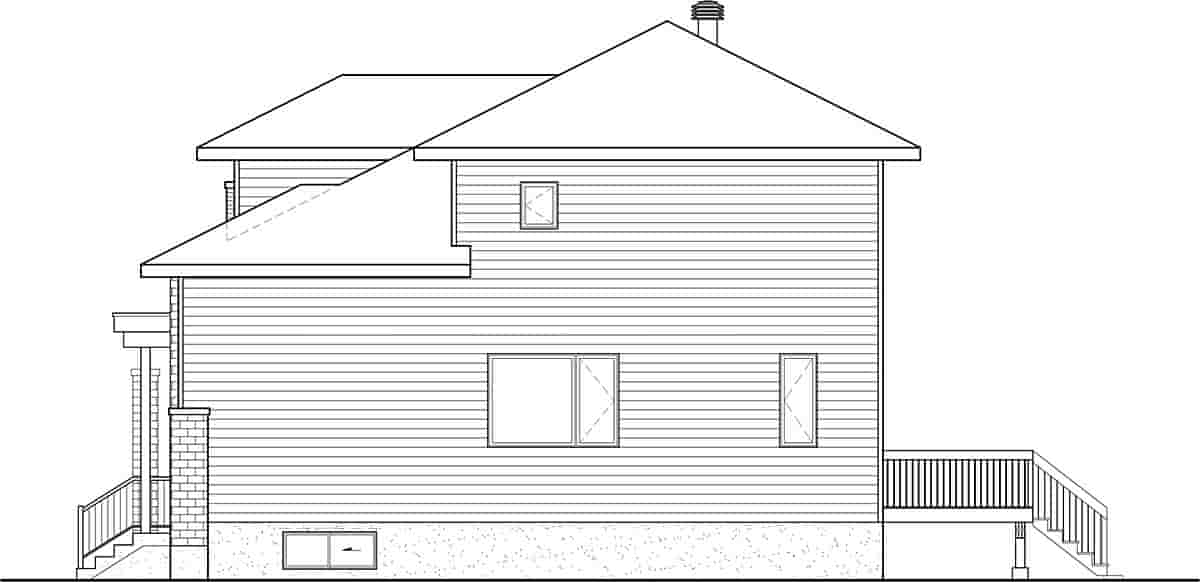

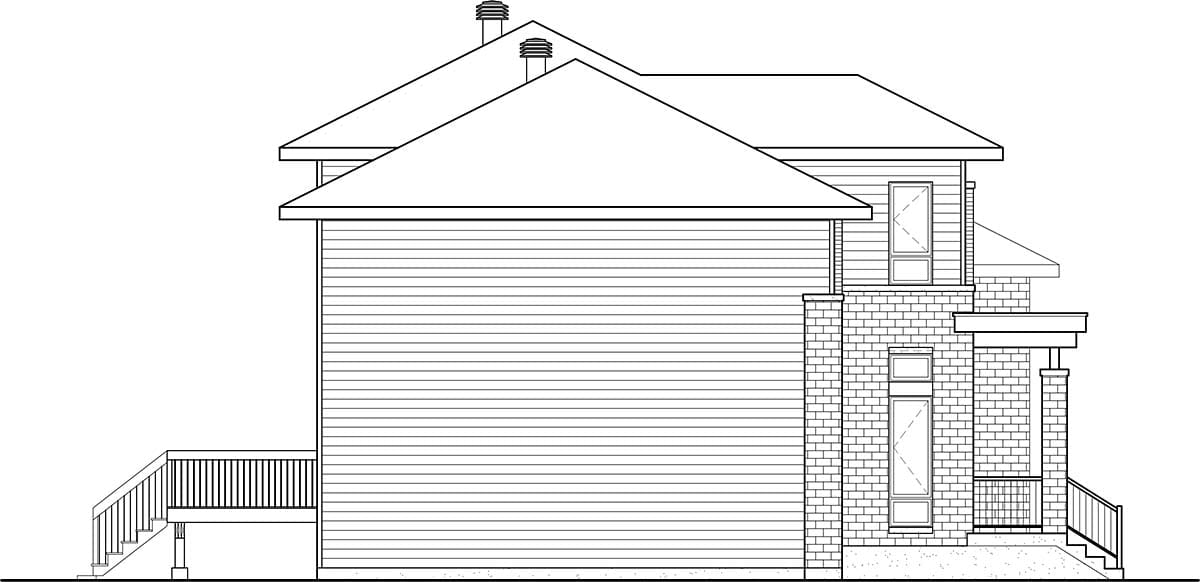

Exterior Elevations: show the front, rear and sides of the house, including exterior materials, details and measurements.

Foundation Plans: All necessary notations and dimensions are included. (Foundation options will vary for each plan. If the home you want does not have the type of foundation you desire, contact Familyhomeplans.com of your plan.)

Interior Elevations: (call 1-800-235-5700 before ordering to confirm availability) show the specific details of cabinets (kitchen, bathroom). We suggest contacting local cabinet and fireplace distributors for sizes and styles.

Schematic Electrical Layouts: (call 1-800-235-5700 before ordering to confirm availability) show the suggested locations for switches, fixtures and outlets. These details may be shown on the floor plan or on a separate diagram.

Detailed Floor Plans: show the placement of interior walls and the dimensions for rooms, doors, windows, stairways, etc., of each level of the house.

NOTE: Due to regional variations, local availability of materials, local codes, methods of installation, and individual preferences, it is impossible to include detail on heating and plumbing work on your plans. The duct work, venting, and other details will vary depending on the type of heating and cooling system (forced air, hot water, electric, solar) and the type of energy (gas, oil, electricity, solar) that you use. These details and specifications are easily obtained from your builder, contractor, and/or local suppliers.
