House Plan 60419

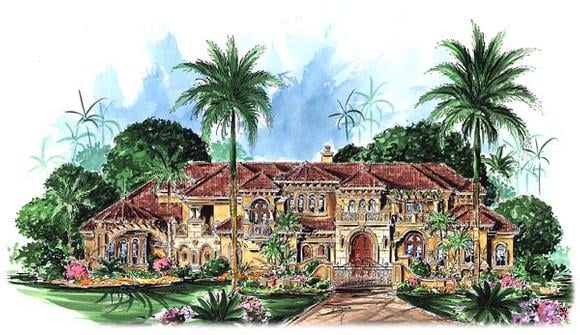

Florida, Mediterranean Style House Plan 60419 with 10178 Sq Ft, 6 Bed, 9 Bath, 6 Car Garage
sq ft
10178beds
6baths
8.5bays
6width
127'depth
121'
Click Any Image For Gallery
Plan Pricing
Need Printed Sets?
It seems that this plan only offers electronic (PDF or CAD) files. If you also need Printed Sets, please call 1-800-482-0464, x403 to discuss possible options.THIS PLAN CANNOT BE SOLD FOR CONSTRUCTION ANYWHERE IN THE STATE OF FLORIDA WITHOUT DESIGNER APPROVAL. Please call for availability.
Available Foundation Types:
Available Exterior Wall Types:
Prices subject to approval prior to fulfillment.Specifications
| Total Living Area: | 10178 sq ft |
| Main Living Area: | 6039 sq ft |
| Upper Living Area: | 4139 sq ft |
| Garage Type: | Attached |
| Garage Bays: | 6 |
| Foundation Types: | Slab |
| Exterior Walls: | Concrete |
| House Width: | 127' |
| House Depth: | 120'8 |
| Number of Stories: | 2 |
| Bedrooms: | 6 |
| Full Baths: | 8 |
| Half Baths: | 1 |
| Max Ridge Height: | 30' from Front Door Floor Level |
| Primary Roof Pitch: | 8:12 |
| Roof Framing: | Truss |
| Formal Dining Room: | Yes |
| 1st Floor Master: | Yes |
Plan Description
This Tuscan style two story home plan will create a tremendous curiosity and curbside appeal from its secretly hidden motor court and six-car garage to the elegance of the massive entry system embellished with stone and rod iron. This home is appointed with the finest of details from its massive rooms with spectacular ceiling designs to its built-in bookshelves, archways, niches and entertainment systems. The formal living and dining rooms are adorned with detail and grace, such as the beautifully appointed walk-in wet bar and see through wine humidor. The master suite has a built-in fireplace and archway, and a large circular sitting area with view of the pool. This suite also has very large walk-in closets and bath featuring garden tub, walk-in shower and separate vanities. The family room with corner pocket sliding glass doors, dinette, and gourmet kitchen are perfect for family gatherings. Entering the lanai, you will find yourself in your own backyard paradise. The pool has an array of water features that are sure to put your mind at ease. The covered lanai also hosts a large bar and grill perfect for entertaining your family and friends. Take either the elevator or the circular stair to the second floor. Upstairs you will find a fully automated theater room, 5 bedrooms 5.5 bathrooms and a game room with a wet-bar overlooking the family room. A true luxury house plan for the most discriminating buyer.
What's Included?
Drawn at 1/8" to 1/4" = 1'-0" Scale,and Includes:
Material Labels
Floor-to-Floor Heights
Roof Slope Indicators

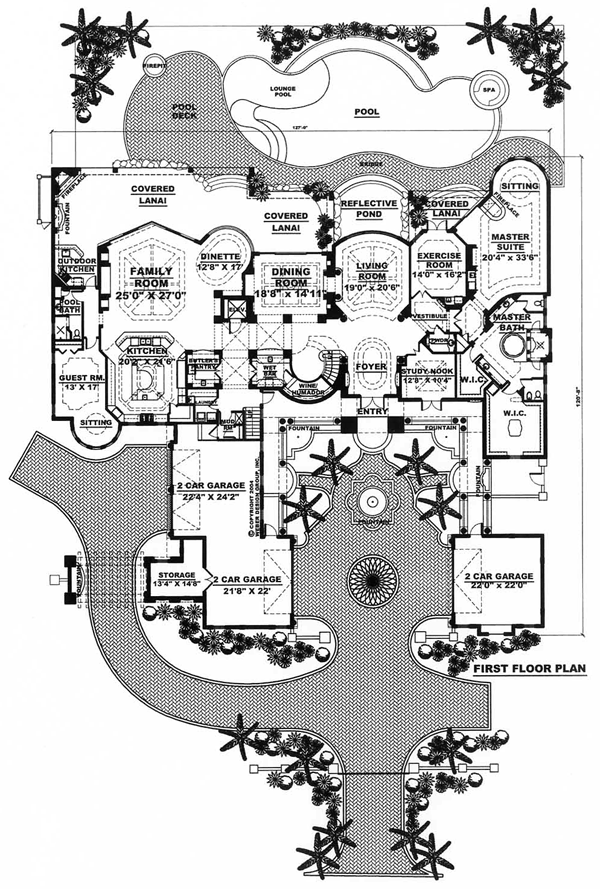

Floor Plans
Drawn at 1/8" to 1/4" = 1'-0" Scale, and Includes:
Door and Window Sizes
Completely Dimensioned Floor Plan
Room Labels and Interior Room Sizes
Electrical Layouts
Building Section Markers
All Electrical Outlets, Fixtures, and Switching
Slab Plan
Drawn at 1/8" to 1/4" = 1'-0" Scale, and Includes:
Floor and Deck Joist Size and Spacing
Rough-in Plumbing Location (if applicable)
Mechanical Equipment Locations (if applicable)
Electrical Locations (if applicable)
Roof Design Plan
Drawn at 1/8" to 1/4" = 1'-0"scale, and Includes:
All Beam and Header Heights and Locations
All Hips, Gables, Ridges and Valleys
Building Section Markers
Building Sections
Drawn at 1/8" to 1/4" = 1'-0" Scale, and Includes:
Floor Joist Size and Spacing
Floor-to-Floor Heights
Non-Typical Plate Heights Indicated
Typical Wall Sections
Drawn at 1/8" to 1/2" = 1'-0" Scale, and Includes:
All Labels Indicating Wall Construction
Foundation Wall Thickness and Reinforcing
Insulation Type and Thickness
Miscellaneous Notes and Details
Miscellaneous General Notes
Stairway details (if applicable)
Modifications
1. Complete this On-Line Request Form
2. Print, complete and fax this PDF Form to us at 1-800-675-4916.
3. Want to talk to an expert? Call us at 913-938-8097 (Canadian customers, please call 800-361-7526) to discuss modifications.
Note: - a sketch of the changes or the website floor plan marked up to reflect changes is a great way to convey the modifications in addition to a written list.
We Work Fast!
When you submit your ReDesign request, a designer will contact you within 24 business hours with a quote.
You can have your plan redesigned in as little as 14 - 21 days!
We look forward to hearing from you!
Start today planning for tomorrow!
Cost To Build
What will it cost to build your new home?
Let us help you find out!
Accurate. Fast. Trusted.
Construction Cost Estimates That Save You Time and Money.
$29.95 per plan
** Available for U.S. and Canada
With your 30-day online cost-to-build estimate you can start enjoying these benefits today.
- INSTANT RESULTS: Immediate turnaround—no need to wait days for a cost report.
- RELIABLE: Gain peace of mind and confidence that comes with a reliable cost estimate for your custom home.
- INTERACTIVE: Instantly see how costs change as you vary design options and quality levels of materials!
- REDUCE RISK: Minimize potential cost overruns by becoming empowered to make smart design decisions. Get estimates that save thousands in costly errors.
- PEACE OF MIND: Take the financial guesswork out of building your dream home.
- DETAILED COSTING: Detailed, data-backed estimates with +/-120 lines of costs / options for your project.
- EDITABLE COSTS: Edit the line-item labor & material price with the “Add/Deduct” field if you want to change a cost.
Home-Cost.com’s INSTANT™ Cost-To-Build Report also provides you these added features and capabilities:
Q & A
Ask the Designer any question you may have. NOTE: If you have a plan modification question, please click on the Plan Modifications tab above.
Previous Q & A
A: The image on the website is all we have to show the front elevation of this particular plan.
A: Master Bedroom vaulted 11' - 12'
Master Bath vaulted 11' - 12'
Living Room vaulted 23' 4" - 25' 8"
Dining Room coffered 11' 8" - 12'
Kitchen flat 12'
Dinette flat 12'
Entry barrel 11' 8"
Foyer vaulted 23' 4" - 24' 4"
Study vaulted 11' 4" - 12'
Game Room vaulted 10' - 11' 4"
Bedroom 2 flat 10'
Bedroom 3 flat 10'
Bedroom 4 flat 10'
Bedroom 5 flat 10'
Baths flat 10'
Guest Room coffered 11' - 12'
Bedroom 1 vaulted
Loft coffered 10' - 11'
Common Q & A
A: Yes you can! Please click the "Modifications" tab above to get more information.
A: The national average for a house is running right at $125.00 per SF. You can get more detailed information by clicking the Cost-To-Build tab above. Sorry, but we cannot give cost estimates for garage, multifamily or project plans.
