2 Car Garage Apartment Plan 64817
Craftsman Style 2 Car Garage Apartment with 2 Bed, 1 Bath
click for more images
Plan Pricing
** Please note that a PDF File is included with a 3 Set Order**
**Concerning all plans by this designer: Due to a certain staff shortage and upcoming summer holidays, orders received after July 6th may not be shipped before we get back in August.**
**All plans by this designer are being updated to IRC 2015 starting on March 13, 2023. This plan may be delayed by 4 business days before shipping.**
Available Foundation Types:
Available Exterior Wall Types:
Prices subject to approval prior to fulfillment.Specifications
| Total Living Area: | 1068 sq ft |
| Main Living Area: | 140 sq ft |
| Upper Living Area: | 928 sq ft |
| Garage Type: | Detached |
| Garage Bays: | 2 |
| Foundation Types: | Slab Stem Wall Slab |
| Exterior Walls: | 2x6 |
| House Width: | 32' |
| House Depth: | 32' |
| Number of Stories: | 2 |
| Bedrooms: | 2 |
| Full Baths: | 1 |
| Max Ridge Height: | 29' from Front Door Floor Level |
| Primary Roof Pitch: | 0 |
| Roof Framing: | Truss |
| Main Ceiling Height: | 8' |
What's Included?
-foundation plan
-main floor paln
-upper floor plans (if applicable)
-roof plan
-truss diagrams and building section
-construction details
-typical wall section
BCIN # for Ontario customers is available at an additional charge
-House plans with or without garage and / or apartment $300
-Multi-unit plans $400
-All other plans $150
-Garage plans with NO heating elements, $200 charge for BCIN
If you are purchasing a BCIN number for Ontario customers, and wish to purchase the PDF, a copy per Ontario rules must be mailed as well. There is no charge for the actual copy, but shipping on the copy must be purchased.
Modifications
1. Complete this On-Line Request Form
2. Print, complete and fax this PDF Form to us at 1-800-675-4916.
3. Want to talk to an expert? Call us at 913-938-8097 (Canadian customers, please call 800-361-7526) to discuss modifications.
Note: - a sketch of the changes or the website floor plan marked up to reflect changes is a great way to convey the modifications in addition to a written list.
We Work Fast!
When you submit your ReDesign request, a designer will contact you within 24 business hours with a quote.
You can have your plan redesigned in as little as 14 - 21 days!
We look forward to hearing from you!
Start today planning for tomorrow!
Cost To Build
We are sorry, but an estimated cost build report is not available for this particular plan.
Q & A
Ask the Designer any question you may have. NOTE: If you have a plan modification question, please click on the Plan Modifications tab above.
Common Q & A
A: Yes you can! Please click the "Modifications" tab above to get more information.
A: The national average for a house is running right at $125.00 per SF. You can get more detailed information by clicking the Cost-To-Build tab above. Sorry, but we cannot give cost estimates for garage, multifamily or project plans.
FHP Low Price Guarantee
If you find the exact same plan featured on a competitor's web site at a lower price, advertised OR special SALE price, we will beat the competitor's price by 5% of the total, not just 5% of the difference! Our guarantee extends up to 4 weeks after your purchase, so you know you can buy now with confidence.
Photographs may show modified designs.
Elevation
Level One

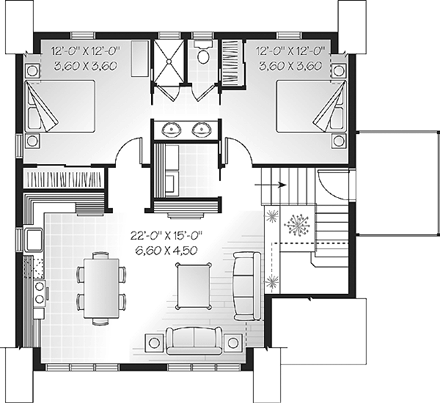

Level Two
Quick Specs
1068 Total Living Area140 Main Level
928 Upper Level
2 Bedrooms
1 Full Baths
2 Car Garage
32' W x 32' D
Quick Specs
1068 Total Living Area2 Bedrooms
1 Full Baths
2 Car Garage
32' W x 32' D

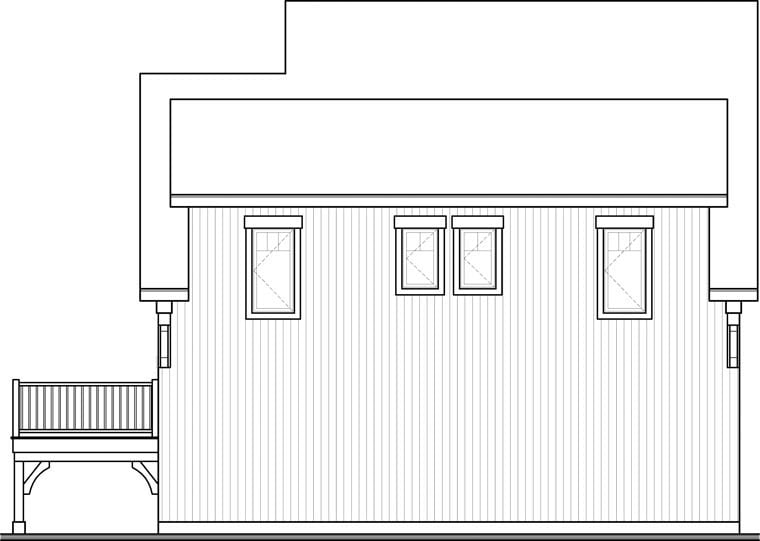

Rear Elevation
Photographs may show modified designs.Related Plans
