2 Car Garage Apartment Plan 76227

• PDF File: $1,250.00
• 3 Sets: $1,375.00
• CAD File: $1,850.00
  Single Build License issued on CAD File orders.

Need A Materials List?

It seems that this plan does not offer a stock materials list, but we can make one for you. Please call 1-800-482-0464, x403 to discuss further.
• Right Reading Reverse: $200.00
  All sets will be Readable Reverse copies. Turn around time is usually 3 to 5 business days.
• Additional Sets: $60.00

Available Foundation Types:

• Slab : $425.00
  May require additional drawing time, please call to confirm before ordering.
• Stem Wall Slab : No Additional Fee

Available Exterior Wall Types:

• 2x6: No Additional Fee

Prices subject to approval prior to fulfillment.

• Shipping Policy

Total Living Area:	1015 sq ft
Main Living Area:	151 sq ft
Upper Living Area:	864 sq ft
Garage Area:	685 sq ft
Garage Type:	Detached
Garage Bays:	2
Foundation Types:	Slab - * $425.00 Stem Wall Slab
Exterior Walls:	2x6
House Width:	24'
House Depth:	36'
Number of Stories:	2
Bedrooms:	1
Full Baths:	1
Max Ridge Height:	25'6 from Front Door Floor Level
Primary Roof Pitch:	0
Roof Load:	55 psf
Roof Framing:	Truss
Porch:	32 sq ft
Deck:	144 sq ft
2nd Floor Laundry:	Yes
Main Ceiling Height:	9'4
Upper Ceiling Height:	8'

* May require additional drawing time.

All our house plans include:

-4 elevations
-Foundation plan

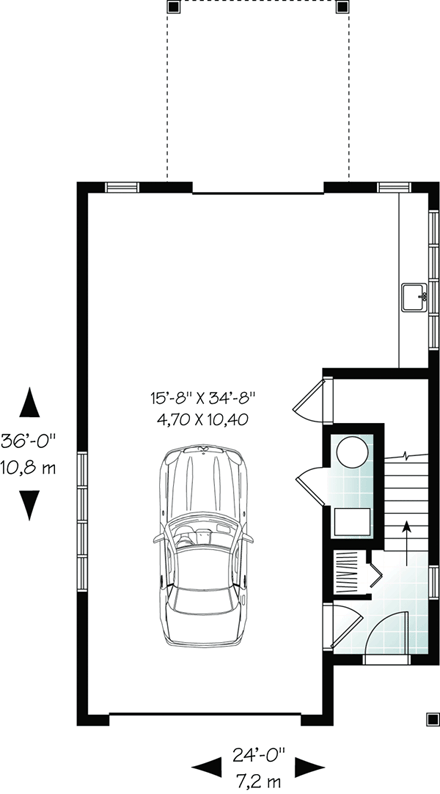

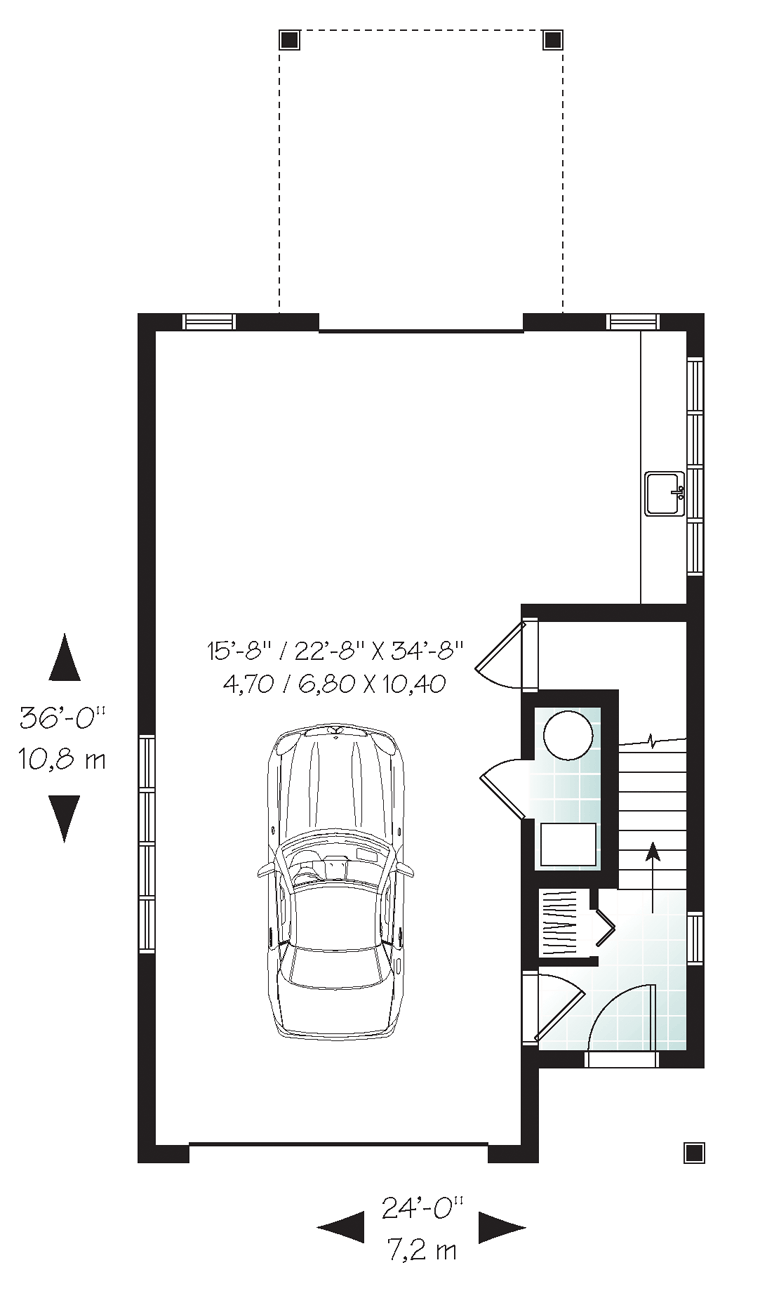

-Ground floor plan

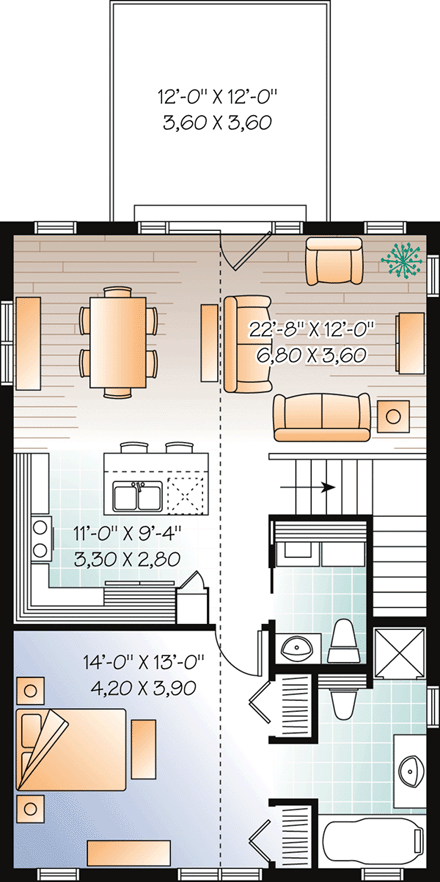

-Upper floor plan (if applicable)
-Roof plan
-Truss diagrams and building sections (manufactured trusses required – no structural details included)
-Construction details
-Typical wall section

NOT included:

-Engineering
-HVAC (Heating, ventilation and air conditioning)
-Electrical and plumbing plans

What's included in our house plans detail

BCIN # for Ontario customers is available at an additional charge

-House plans with or without garage and / or apartment $300
-Multi-unit plans $400
-All other plans $150
-Garage plans with NO heating elements, $200 charge for BCIN
  If you are purchasing a BCIN number for Ontario customers, and wish to purchase the PDF, a copy per Ontario rules must be mailed as well. There is no charge for the actual copy, but shipping on the copy must be purchased.

Plan modification is a way of turning a stock plan into your unique custom plan. It's still just a small fraction of the price you would pay to create a home plan from scratch. You will receive a FREE, no obligation, modification estimate to get exactly the home plan you've been dreaming of. Simply contact the modification department 1 of 3 ways:

Call 866-465-5866 and talk to a live person that can give you and FREE modification estimate over the phone!

Email Us - Please Include your telephone number, plan number, foundation type, state you are building in and a specific list of changes.

Fax: 651-602-5050 - Make sure to include a cover sheet with your contact info. Make attention to the FamilyHomePlans.com Modification Department.

Ask the Designer any question you may have. NOTE: If you have a plan modification question, please click on the Plan Modifications tab above.
