2 Car Garage Apartment Plan 64902
Traditional Style 2 Car Garage Apartment with 2 Bed, 2 Bath
click for more images
Plan Pricing
** Please note that a PDF File is included with a 3 Set Order**
**Concerning all plans by this designer: Due to a certain staff shortage and upcoming summer holidays, orders received after July 6th may not be shipped before we get back in August.**
**All plans by this designer are being updated to IRC 2015 starting on March 13, 2023. This plan may be delayed by 4 business days before shipping.**
Available Foundation Types:
Available Exterior Wall Types:
Prices subject to approval prior to fulfillment.Specifications
| Total Living Area: | 1096 sq ft |
| Main Living Area: | 128 sq ft |
| Upper Living Area: | 968 sq ft |
| Garage Area: | 773 sq ft |
| Garage Type: | Detached |
| Garage Bays: | 2 |
| Foundation Types: | Slab |
| Exterior Walls: | 2x6 |
| House Width: | 36' |
| House Depth: | 30' |
| Number of Stories: | 2 |
| Bedrooms: | 2 |
| Full Baths: | 2 |
| Max Ridge Height: | 27' from Front Door Floor Level |
| Primary Roof Pitch: | 12:12 |
| Roof Load: | 60 psf |
| Roof Framing: | Truss |
| Main Ceiling Height: | 9'4 |
| Upper Ceiling Height: | 8' |
What's Included?
-foundation plan
-main floor paln
-upper floor plans (if applicable)
-roof plan
-truss diagrams and building section
-construction details
-typical wall section
BCIN # for Ontario customers is available at an additional charge
-House plans with or without garage and / or apartment $300
-Multi-unit plans $400
-All other plans $150
-Garage plans with NO heating elements, $200 charge for BCIN
If you are purchasing a BCIN number for Ontario customers, and wish to purchase the PDF, a copy per Ontario rules must be mailed as well. There is no charge for the actual copy, but shipping on the copy must be purchased.
Modifications
1. Complete this On-Line Request Form
2. Print, complete and fax this PDF Form to us at 1-800-675-4916.
3. Want to talk to an expert? Call us at 913-938-8097 (Canadian customers, please call 800-361-7526) to discuss modifications.
Note: - a sketch of the changes or the website floor plan marked up to reflect changes is a great way to convey the modifications in addition to a written list.
We Work Fast!
When you submit your ReDesign request, a designer will contact you within 24 business hours with a quote.
You can have your plan redesigned in as little as 14 - 21 days!
We look forward to hearing from you!
Start today planning for tomorrow!
Cost To Build
We are sorry, but an estimated cost build report is not available for this particular plan.
Q & A
Ask the Designer any question you may have. NOTE: If you have a plan modification question, please click on the Plan Modifications tab above.
Previous Q & A
A: This plan is a 2-car garage. If you want a plan like the photos, you’ll need to make some modification.
A: Good morning, As it is now no, it would not be wide enough for a car port but could be widened if required Thanks Jessica
A: Hello, Yes, our plans are 1¼ = 1 foot And no, our plans do not have an architect stamp
A: Good day, Yes this could be done. It would need to be modified but is doable Thanks Jessica
A: Good day and thank you for taking the time to write
The posts on the left side are structural and cannot be removed without jeopardizing the integrity of the structure.
The foot print does not include the overhang which is (on the first floor) 18" left and right and 24" front and back. It is 12" on the second floor.
The height of the garage is 27'8" from the top of the foundation to the ridge and 9'4" ceiling height inside.
Please let me know if I can futher assist you.
A: Good day and thank you for your interest in our plans
The overhang cannot be designed cantilever as it does not go far enough and will not meet code requirments
The width of the main floor less the overhang is 30'
The floor is built into the truss system using 12" prefabricated joists.
A: Hello, The bathroom at the top of the stairs, on the upper floor, has a sloped ceiling. The height of this bathroom's ceiling is 8 feet and the height of the kneewall is 4 feet. If you have further questions, please contact us again. We will gladly answer you.
A: All the pictures we have posted for our plans were sent to us by customers. For this plan, to this day, we did not receive any photos.
Common Q & A
A: Yes you can! Please click the "Modifications" tab above to get more information.
A: The national average for a house is running right at $125.00 per SF. You can get more detailed information by clicking the Cost-To-Build tab above. Sorry, but we cannot give cost estimates for garage, multifamily or project plans.
FHP Low Price Guarantee
If you find the exact same plan featured on a competitor's web site at a lower price, advertised OR special SALE price, we will beat the competitor's price by 5% of the total, not just 5% of the difference! Our guarantee extends up to 4 weeks after your purchase, so you know you can buy now with confidence.
Photographs may show modified designs.

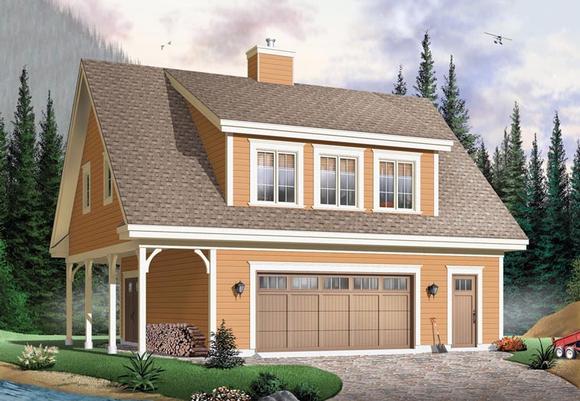

Elevation

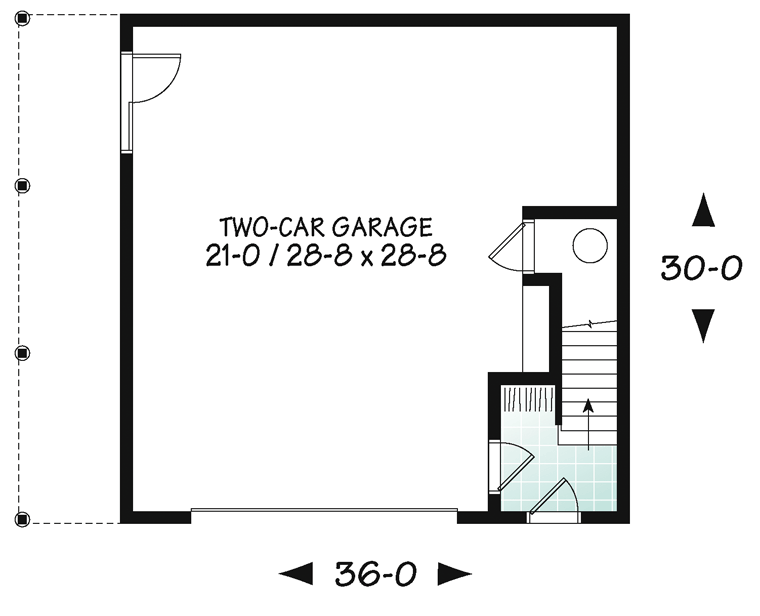

Level One

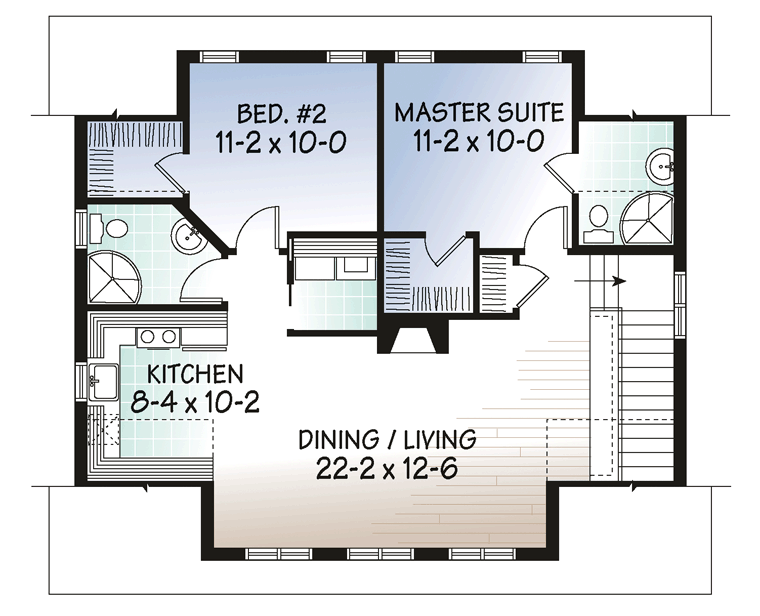

Level Two
Quick Specs
1096 Total Living Area128 Main Level
968 Upper Level
2 Bedrooms
2 Full Baths
2 Car Garage
36' W x 30' D
Quick Specs
1096 Total Living Area2 Bedrooms
2 Full Baths
2 Car Garage
36' W x 30' D
Rear Elevation
Photographs may show modified designs.
