2 Car Garage Apartment Plan 65011

• PDF File: $1,100.00
• 3 Sets: $1,225.00
• CAD File: $1,700.00
  Single Build License issued on CAD File orders.
• Right Reading Reverse: $200.00
  All sets will be Readable Reverse copies. Turn around time is usually 3 to 5 business days.
• Additional Sets: $60.00

** Please note that a PDF File is included with a 3 Set Order**



**Concerning all plans by this designer: Due to a certain staff shortage and upcoming summer holidays, orders received after July 6th may not be shipped before we get back in August.**

**All plans by this designer are being updated to IRC 2015 starting on March 13, 2023. This plan may be delayed by 4 business days before shipping.**

Available Foundation Types:

• Slab : No Additional Fee

Available Exterior Wall Types:

• 2x6: No Additional Fee

Prices subject to approval prior to fulfillment.

• Shipping Policy

Total Living Area:	992 sq ft
Main Living Area:	96 sq ft
Upper Living Area:	896 sq ft
Garage Area:	796 sq ft
Garage Type:	Detached
Garage Bays:	2
Foundation Types:	Slab
Exterior Walls:	2x6
House Width:	28'
House Depth:	32'
Number of Stories:	2
Bedrooms:	2
Full Baths:	1
Half Baths:	1
Max Ridge Height:	26'10 from Front Door Floor Level
Primary Roof Pitch:	6:12
Roof Load:	75 psf
Roof Framing:	Truss
Main Ceiling Height:	8'2

The Hillock 1

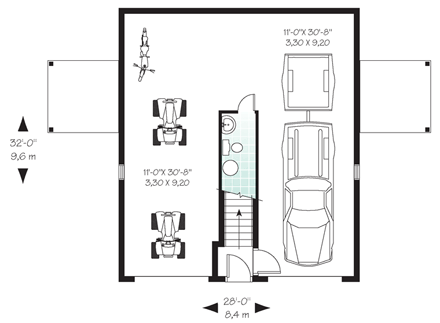

Guest house or secondary residence, here is an original house which will surely fulfill the needs of many. Combining at the same time a double garage and comfortable living accommodations, this house never ceases to gain in popularity. On the main level, we can first appreciate a most practical garage by its important depth and the fact that it will allow its owners a more than adequate apartment and the possibility of integrating a workbench over the entire rear wall. On the upper level, an ‘L’ shaped kitchen allows space enough for a table for 6 in a well lit space and, on the opposite side of the central staircase, we find a quite comfortable living room, also as well lit. As for the resting areas, we can appreciate two bedrooms, each having a large closet as well as a shower room with independent toilet and shower, without forgetting access to a beautiful outside terrace for each of the bedrooms.

-4 elevations
-foundation plan
-main floor paln
-upper floor plans (if applicable)
-roof plan
-truss diagrams and building section
-construction details
-typical wall section

BCIN # for Ontario customers is available at an additional charge

-House plans with or without garage and / or apartment $300
-Multi-unit plans $400
-All other plans $150
-Garage plans with NO heating elements, $200 charge for BCIN
  If you are purchasing a BCIN number for Ontario customers, and wish to purchase the PDF, a copy per Ontario rules must be mailed as well. There is no charge for the actual copy, but shipping on the copy must be purchased.

Receive a FREE modification estimate in one of 3 ways. Our modification team is ready to help you adjust any plan to fit your needs. The ReDesign process is simple and estimates are free!

1. Complete this On-Line Request Form

2. Print, complete and fax this PDF Form to us at 1-800-675-4916.

3. Want to talk to an expert? Call us at 913-938-8097 (Canadian customers, please call 800-361-7526) to discuss modifications.

Note: - a sketch of the changes or the website floor plan marked up to reflect changes is a great way to convey the modifications in addition to a written list.

We Work Fast!

When you submit your ReDesign request, a designer will contact you within 24 business hours with a quote.
You can have your plan redesigned in as little as 14 - 21 days!

We look forward to hearing from you!

Start today planning for tomorrow!

We are sorry, but an estimated cost build report is not available for this particular plan.
