Plan Pricing from $370.00

Plan Pricing

PDF File: $370.00
CAD File: $670.00
Single Build License issued on CAD File orders.
Right Reading Reverse: $100.00
All sets will be Readable Reverse copies. Turn around time is usually 3 to 5 business days.
Additional Sets: $50.00

Need Prints?

It seems that this plan only offers electronic (PDF or CAD) files. If you also need Printed Sets, please call 1-800-482-0464, x403 to discuss possible options.

Additional Notes

The upper storage area measures 8 feet 8 inches by approximately 22 feet 8 inches, with a 6 foot ceiling.
The size of the loft is of 10'8'x22'8'
64832,64833,64834 are this garage plan with different sizes

** Please note that a PDF File is included with a 3 Set Order**

**All plans by this designer are being updated to IRC 2015 starting on March 13, 2023. This plan may be delayed by 4 business days before shipping.**

Available Foundation Types:

Stem Wall Slab : No Additional Fee

Available Exterior Wall Types:

2x6: No Additional Fee

Prices subject to approval prior to fulfillment.

Shipping Policy

Add to cart

Specifications

Garage Area:	384 sq ft
Garage Type:	Detached
Garage Bays:	1
Foundation Types:	Stem Wall Slab
Exterior Walls:	2x6
House Width:	16'
House Depth:	24'
Number of Stories:	1
Max Ridge Height:	18'2 from Front Door Floor Level
Primary Roof Pitch:	12:12
Roof Framing:	Truss

Plan Description

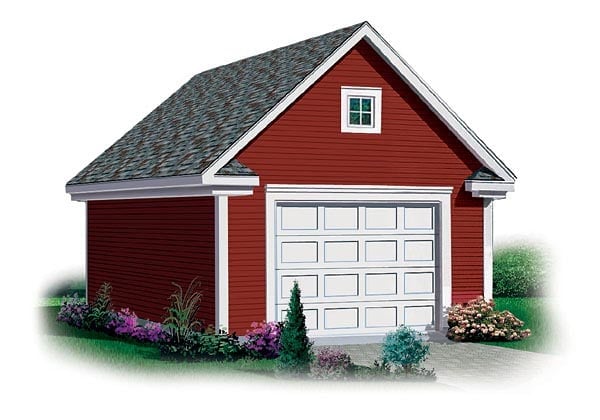

This single car garage is simple, yet functional with the added bonus of storage space above. Decorative moldings add charm and windows on both ends allow daylight into the storage area.

What's Included?

All our house plans include:

-4 elevations
-Foundation plan
-Ground floor plan
-Upper floor plan (if applicable)
-Roof plan
-Truss diagrams and building sections (manufactured trusses required – no structural details included)
-Construction details
-Typical wall section

NOT included:

-Engineering
-HVAC (Heating, ventilation and air conditioning)
-Electrical and plumbing plans

What's included in our house plans detail

BCIN # for Ontario customers is available at an additional charge

-House plans with or without garage and / or apartment $300
-Multi-unit plans $400
-All other plans $150
-Garage plans with NO heating elements, $200 charge for BCIN
If you are purchasing a BCIN number for Ontario customers, and wish to purchase the PDF, a copy per Ontario rules must be mailed as well. There is no charge for the actual copy, but shipping on the copy must be purchased.

Modifications

Want to make changes to a house plan at Family Home Plans?

Plan modification is a way of turning a stock plan into your unique custom plan. It's still just a small fraction of the price you would pay to create a home plan from scratch. You will receive a FREE, no obligation, modification estimate to get exactly the home plan you've been dreaming of. Simply contact the modification department 1 of 3 ways:

Call 866-465-5866 and talk to a live person that can give you and FREE modification estimate over the phone!

Email Us - Please Include your telephone number, plan number, foundation type, state you are building in and a specific list of changes.

Fax: 651-602-5050 - Make sure to include a cover sheet with your contact info. Make attention to the FamilyHomePlans.com Modification Department.

Q & A

Ask the Designer any question you may have. NOTE: If you have a plan modification question, please click on the Plan Modifications tab above.

Previous Q & A

Q: Thanks for your reply. Can plan 65258 accommodate a loft. The plan shows a loft; however, the size is the same as plan 65293. What is the difference?

A: Hi! For this plan it’s the same thing. It’s not a loft but storage space that is accessible only via a ladder or pulldown stairs Thanks! Jessica

Q: Can this plan accommodate a loft. If so want is the interior height at the center? Thanks, Chris

A: Good morning, Unfortunaly no, there is not enough space for a loft on the second level. Furthermore, this is accessible only with a pull-down stair or ladder Thanks Jessica

Q: I have three questions: what is the size of the side window and what is the size of the small window above the front door (in the peak) and what is the outside wall height?

A: The side window is 32' x 56", small window above the front door is 24" x 24" and the height of the outside wall is 8'-2".

Common Q & A

Q: Can I make modifications to this plan?

A: Yes you can! Please click the "Modifications" tab above to get more information.

Q: What is the estimated price to build this plan?

A: The national average for a house is running right at $125.00 per SF. You can get more detailed information by clicking the Cost-To-Build tab above. Sorry, but we cannot give cost estimates for garage, multifamily or project plans.
