House Plan 65872

Tuscan Style with 4 Bed, 4 Bath, 3 Car Garage | Plan 65872

sq ft

3349

beds

baths

bays

width

119'

depth

73'

Turn OFF Image Gallery

Add to cart

Plan Pricing from $1,795.00

Plan Pricing

PDF File: $1,795.00
5 Sets: $1,995.00
5 Sets plus PDF File: $2,095.00
CAD File: $2,795.00
Single Build License issued on CAD File orders.
CAD File Unlimited Build: $3,490.00
Unlimited Build License issued on CAD File Unlimited Build orders.

Need A Materials List?

It seems that this plan does not offer a stock materials list, but we can make one for you. Please call 1-800-482-0464, x403 to discuss further.

Right Reading Reverse: $245.00
All sets will be Readable Reverse copies. Turn around time is usually 3 to 5 business days.
Additional Sets: $60.00

Available Foundation Types:

Basement : $395.00
May require additional drawing time, please call to confirm before ordering.
Total Living Area may increase with Basement Foundation option.
Crawlspace : $195.00
May require additional drawing time, please call to confirm before ordering.
Slab : No Additional Fee

Available Exterior Wall Types:

2x6: No Additional Fee

Prices subject to approval prior to fulfillment.

Shipping Policy

Add to cart

Specifications

Total Living Area:	3349 sq ft
Main Living Area:	2541 sq ft
Upper Living Area:	808 sq ft
Bonus Area:	565 sq ft
Garage Area:	880 sq ft
Garage Type:	Attached
Garage Bays:	3
Foundation Types:	Basement - * $395.00 Total Living Area may increase with Basement Foundation option. Crawlspace - * $195.00 Slab
Exterior Walls:	2x6
House Width:	118'5
House Depth:	72'2
Number of Stories:	2
Bedrooms:	4
Full Baths:	4
Max Ridge Height:	40'4 from Front Door Floor Level
Primary Roof Pitch:	12:12
Roof Load:	20 psf
Roof Framing:	Stick
Porch:	1491 sq ft
Formal Dining Room:	Yes
FirePlace:	Yes
1st Floor Master:	Yes
Main Ceiling Height:	12'
Upper Ceiling Height:	9'

* May require additional drawing time.

What's Included?

Our working drawings include the following..
We use AutoCAD to produce our working drawings. This allows us to be 100% accurate on our dimensions as well as coordinate all drawings with the highest level of precision. Below are examples of what comes in each working drawing set...

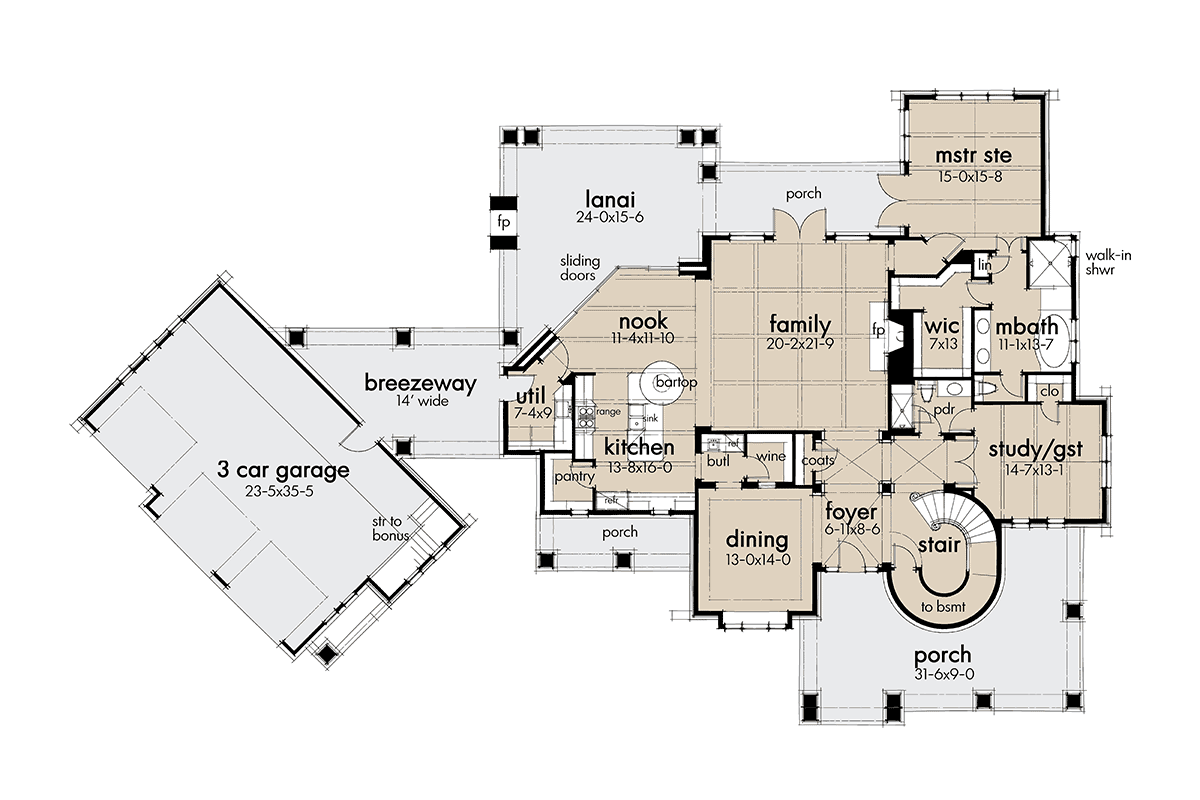

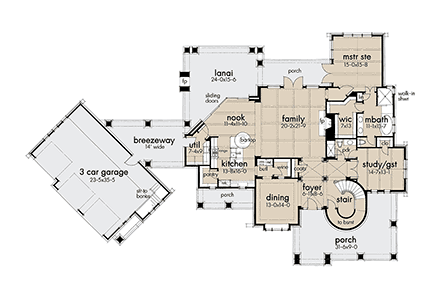

Floor Plans - For each level we include... a 1/4"=1'-0" scale floor plan indicating frame walls and masonry with dimensions, notes, door and window sizes, room names and floor finishes, cabinet, shelving, fixture locations and notes, ceiling conditions, electrical/lighting fixtures and switches.

Exterior Elevations - We include... Front Elevation at 1/4"=1'-0", side and rear elevations at 1/8"=1'-0", plate heights, roof overhangs, material/surface notes, window heights, roof pitches, material hatching for clarity, floor to floor dimensions and any other detail we feel is necessary to explain the construction.

Cabinets/Building Sections- Cabinet elevations at 3/8"=1'-0", showing cabinets, appliance locations, plumbing fixtures, shelving, counter/backsplash surface, cabinet material and finish, niche details and any other special situation that cannot be understood from the plan view. Building Sections are included only when there is no other way to indicate the spatial characteristics of the home. This information is quite often indicated well enough on the elevations and plans.

Foundation Plans - We offer a choice of three types of foundations, full basement, crawlspace, and slab foundations. Each comes fully dimensioned, and noted indicating wall composition and thickness, construction detail references to our detail page, beam, pier and column locations and sizes, stair locations for basements, reinforcing steel sizes and step downs in monolithic slabs and ventilation grilles for crawlspaces.

Framing Plans - For each level we include... a 1/8"=1'-0" scale plan indicating rafter, ceiling and floor joists locations, sizes and spacing as well as lumber grade specified, additional bracing and blocking.

Details - For each foundation type we include... 3/4"=1'-0" scale details indicating material composition, size and critical dimensions for construction of the primary foundation.

Modifications

Want to make changes to a house plan at Family Home Plans?

Plan modification is a way of turning a stock plan into your unique custom plan. It's still just a small fraction of the price you would pay to create a home plan from scratch. You will receive a FREE, no obligation, modification estimate to get exactly the home plan you've been dreaming of. Simply contact the modification department 1 of 3 ways:

Call 866-465-5866 and talk to a live person that can give you and FREE modification estimate over the phone!

Email Us - Please Include your telephone number, plan number, foundation type, state you are building in and a specific list of changes.

Fax: 651-602-5050 - Make sure to include a cover sheet with your contact info. Make attention to the FamilyHomePlans.com Modification Department.

Cost To Build

No Risk Offer: Order your Home-Cost Estimate now for just $24.95! We provide you with a 10% discount code in your receipt for when you decide to order any plan on our website that will more than pay you back!
Get more accurate results, quicker! No need to wait for a reliable cost.
Get a detailed cost report for your home plan with over 70 lines of summarized cost information in under 5 minutes!
Cost report for your zip code. (the zip code can be changed after you receive the online report)
Estimate 1, 1-1/2 or 2 story home plans. **
Interactive! Instantly see the costs change as you vary quality levels Economy, Standard, Premium and structure such as slab, basement and crawlspace.
Your estimate is active for 1 FULL YEAR!

View Sample

demo purposes only

Purchase

$24.95 per plan

** Available for U.S. only.

QUICK Cost-To-Build estimates have the following assumptions:

QUICK Cost-To-Build estimates are available for single family, stick-built, detached, 1 story, 1.5 story and 2 story home plans with attached or detached garages, pitched roofs on flat to gently sloping sites.
QUICK Cost-To-Build estimates are not available for specialty plans and construction such as garage / apartment, townhouse, multi-family, hillside, flat roof, concrete walls, log cabin, home additions, and other designs inconsistent with the assumptions outlined in Item 1 above.
User is able to select and have costs instantly calculate for slab on grade, crawlspace or full basement options.
User is able to select and have costs instantly calculate different quality levels of construction including Economy, Standard, Premium. View Quality Level Assumptions.
Estimate will dynamically adjust costs based on the home plan's finished square feet, porch, garage and bathrooms.
Estimate will dynamically adjust costs based on unique zip code for project location.
All home plans are based on the following design assumptions: 8 foot basement ceiling height, 9 foot first floor ceiling height, 8 foot second floor ceiling height (if used), gable roof; 2 dormers, average roof pitch is 12:12, 1 to 2 covered porches, porch construction on foundations.
Summarized cost report will provide approximately 70 lines of cost detail within the following home construction categories: Site Work, Foundations, Basement (if used), Exterior Shell, Special Spaces (Kitchen, Bathrooms, etc), Interior Construction, Elevators, Plumbing, Heating / AC, Electrical Systems, Appliances, Contractor Markup.
QUICK Cost-To-Build generates estimates only. It is highly recommend that one employs a local builder in order to get a more accurate construction cost.
All costs are "installed costs" including material, labor and sales tax.
** Available for U.S. only.

Q & A

Ask the Designer any question you may have. NOTE: If you have a plan modification question, please click on the Plan Modifications tab above.

Previous Q & A

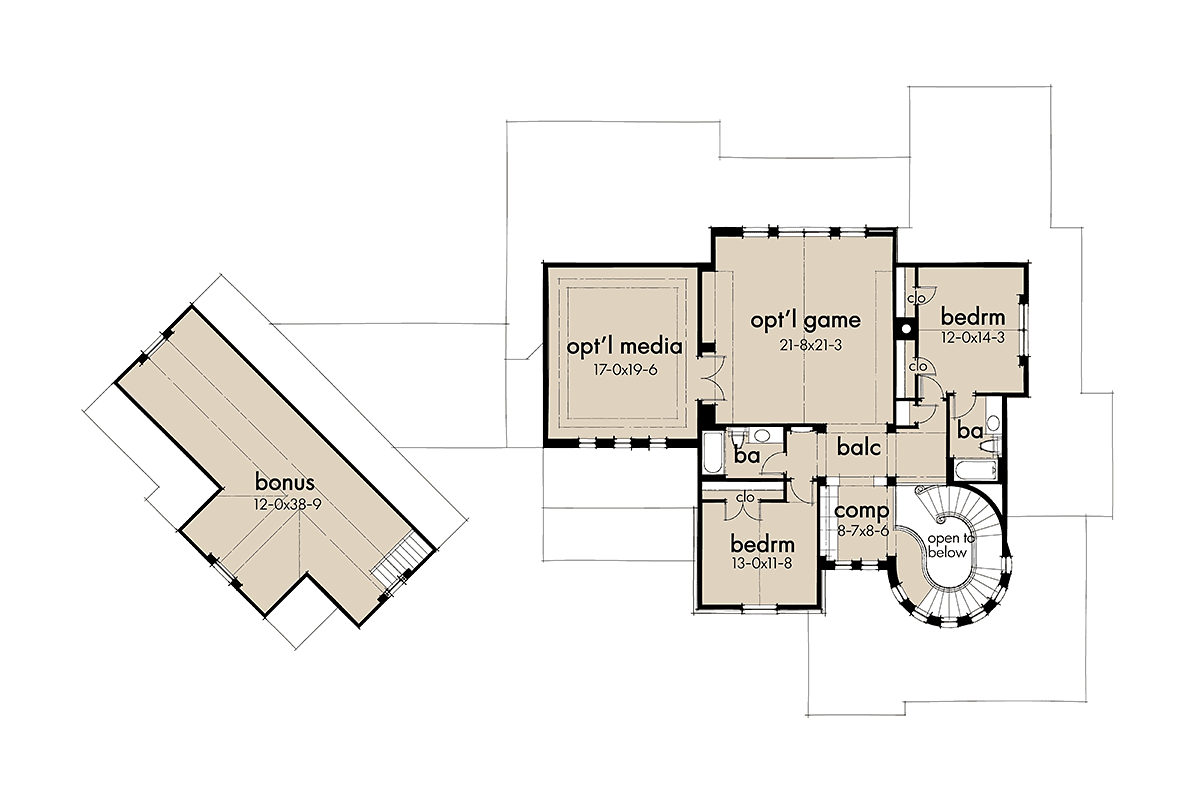

Q: What is the actual upstairs sq footage? The specs say 808sqft but the 2 bedrooms and 2 baths don't add up to that and the game and media rooms are optional? Please help.

A: The 2nd floor area is 808 SF, which includes hallways, closets, balcony and computer area. The optional game and media room are an additional 835 SF.

Q: We are considering this plan. Can you tell me what the materials are that are on the outside of the house? Is it all rock or is there siding too?

A: It is stone with shake siding.

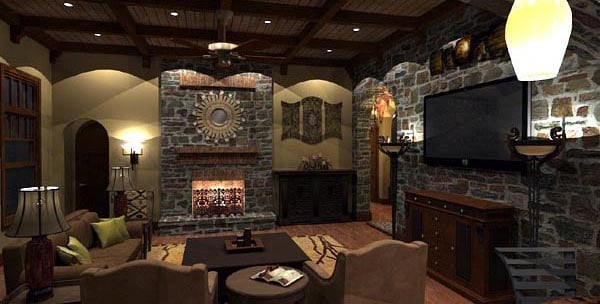

Q: What is the ceiling height in the family room? If you remove the optional room over the family room, how tall would the ceiling be, and would it be flat or vaulted?

A: It would vault to a peak of about 25’. 20’ on the sidewalls.

Q: This is a beautiful and unique floor plan. How would the front stairwell look without the basement door? Could more windows be added in the front stairwell if the basement door/stairs were not present? Lastly, could the garage Bonus Room be connected to the main house but maintain the vaulted family room and high kitchen ceiling? Thank you.

A: Windows could be added in the stair turret. Coordination with the roof system and a free standing stair would be a consideration. There’s no real way to connect the garage bonus without going over the kitchen.

Q: What is the diameter and square footage of the turret? What is the depth of the breezeway?

A: Diameter of turret is 13’-0”. Area is roughly 250 SF. Breezeway is 14’-0” deep.

Q: Hello I really like this plan but was wondering if the framing and foundation is designed for using natural stone and brick or if it can only handle faux stone.

A: We design all of our homes for using real 4” thk masonry veneer in either real stone or real brick. No faux stone.

Q: My wife and I love this house plan. Our only hesitance comes from the round stair case. Do you have the same plans with a matching square stair case? We would like the symmetry of the front left window and the stair case if that makes sense. Looking forward to your reply.

A: That could be done as a modification, but we do not have a standard version/option available in this form.

Q: I am very interested in this plan. Is there any additional detail that you can share regarding Utility room and Kitchen layout? Are there any variations that you have with a different kitchen island without the circular bartop? I would like to have a stool area around the island, just not circular. Where would a double oven be installed? Can you show me an example of the sliding doors that would be installed?

A: Kitchen cabinets/islands are easy to rework with an interior designer or kitchen specialist. Just take the plans to someone who can do this. We are showing a commercial style range with oven in our drawing, but if you wanted a double oven you could either go with a double oven range arrangement or a double oven wall unit would work to the opposite side of the window from the refrigerator. As for the sliding doors I highly recommend “NanaWall”. www.nanawall.com

Q: If you build this house on a slab, where would the mechanicals go?

A: In the attic.

Common Q & A

Q: Can I make modifications to this plan?

A: Yes you can! Please click the "Modifications" tab above to get more information.

Q: What is the estimated price to build this plan?

A: The national average for a house is running right at $125.00 per SF. You can get more detailed information by clicking the Cost-To-Build tab above. Sorry, but we cannot give cost estimates for garage, multifamily or project plans.
