House Plan 68122
Southern Style with 5 Bed, 4 Bath, 2 Car Garage
sq ft
2593beds
5baths
4bays
2width
50'depth
62'
click for more images
Plan Pricing from $1,155.00
Plan Pricing
Available Foundation Types:
Available Exterior Wall Types:
Prices subject to approval prior to fulfillment.Specifications
| Total Living Area: | 2593 sq ft |
| Main Living Area: | 1902 sq ft |
| Upper Living Area: | 691 sq ft |
| Unfinished Basement Area: | 1902 sq ft |
| Garage Area: | 540 sq ft |
| Garage Type: | Attached |
| Garage Bays: | 2 |
| Foundation Types: | Basement Crawlspace - * $245.00 Slab - * $245.00 |
| Exterior Walls: | 2x4 2x6 - * $245.00 |
| House Width: | 50' |
| House Depth: | 62' |
| Number of Stories: | 2 |
| Bedrooms: | 5 |
| Full Baths: | 4 |
| Max Ridge Height: | 30'8 from Front Door Floor Level |
| Primary Roof Pitch: | 8:12 |
| Roof Load: | 30 psf |
| Roof Framing: | Stick |
| Porch: | 154 sq ft |
| FirePlace: | Yes |
| 1st Floor Master: | Yes |
| Main Ceiling Height: | 9' |
| Upper Ceiling Height: | uch |
| Vaulted Ceiling: | Yes |
| Tray Ceiling: | Yes |
What's Included?
Cover Page
Each home plan features the rendered elevation and informative reference sections including: general notes and design criteria; abbreviations; and symbols for your plan.
Foundation
Drafted at 1/4" scale. Poured or block basement or slab foundations are standard. We also show the structural information, steel beam and pole locations and the direction and spacing of the floor system above. Optional basement, slab and crawl space foundations are available.
Main Level Floor Plan
1/4" scale. Fully dimensioned from stud to stud for ease of framing. 2"x4" walls are standard. The detailed drawings include such things as structural header locations, framing layout and kitchen layout
Second Level Floor Plan.
1/4" scale. Dimensioned from stud to stud and drafted to the same degree of detail as the main level floor plan.
Electrical and Sections
Illustrated on a separate page for clarity, the electrical plan shows suggested electrical layout for the foundation, main and second level floor plans. Typical wall, cantilever, stair, brick and fireplace sections are provided to further explain construction of these areas.
Roof Framing Plan.
Illustrated on a separate page for clarity, the roof framing plan shows the suggested dimensional plan showing lengths, runs, ridge heights and wall plate heights.
Each home plan features the rendered elevation and informative reference sections including: general notes and design criteria; abbreviations; and symbols for your plan.
Foundation
Drafted at 1/4" scale. Poured or block basement or slab foundations are standard. We also show the structural information, steel beam and pole locations and the direction and spacing of the floor system above. Optional basement, slab and crawl space foundations are available.
Main Level Floor Plan
1/4" scale. Fully dimensioned from stud to stud for ease of framing. 2"x4" walls are standard. The detailed drawings include such things as structural header locations, framing layout and kitchen layout
Second Level Floor Plan.
1/4" scale. Dimensioned from stud to stud and drafted to the same degree of detail as the main level floor plan.
Electrical and Sections
Illustrated on a separate page for clarity, the electrical plan shows suggested electrical layout for the foundation, main and second level floor plans. Typical wall, cantilever, stair, brick and fireplace sections are provided to further explain construction of these areas.
Roof Framing Plan.
Illustrated on a separate page for clarity, the roof framing plan shows the suggested dimensional plan showing lengths, runs, ridge heights and wall plate heights.
Modifications
Receive a FREE modification estimate in one of 3 ways. Our modification team is ready to help you adjust any plan to fit your needs. The ReDesign process is simple and estimates are free!
1. Complete this On-Line Request Form
2. Print, complete and fax this PDF Form to us at 1-800-675-4916.
3. Want to talk to an expert? Call us at 913-938-8097 (Canadian customers, please call 800-361-7526) to discuss modifications.
Note: - a sketch of the changes or the website floor plan marked up to reflect changes is a great way to convey the modifications in addition to a written list.
We Work Fast!
When you submit your ReDesign request, a designer will contact you within 24 business hours with a quote.
You can have your plan redesigned in as little as 14 - 21 days!
We look forward to hearing from you!
Start today planning for tomorrow!
1. Complete this On-Line Request Form
2. Print, complete and fax this PDF Form to us at 1-800-675-4916.
3. Want to talk to an expert? Call us at 913-938-8097 (Canadian customers, please call 800-361-7526) to discuss modifications.
Note: - a sketch of the changes or the website floor plan marked up to reflect changes is a great way to convey the modifications in addition to a written list.
We Work Fast!
When you submit your ReDesign request, a designer will contact you within 24 business hours with a quote.
You can have your plan redesigned in as little as 14 - 21 days!
We look forward to hearing from you!
Start today planning for tomorrow!
Cost To Build
QUICK Cost-To-Build estimates have the following assumptions:
QUICK Cost-To-Build estimates are available for single family, stick-built, detached, 1 story, 1.5 story and 2 story home plans with attached or detached garages, pitched roofs on flat to gently sloping sites.QUICK Cost-To-Build estimates are not available for specialty plans and construction such as garage / apartment, townhouse, multi-family, hillside, flat roof, concrete walls, log cabin, home additions, and other designs inconsistent with the assumptions outlined in Item 1 above.
User is able to select and have costs instantly calculate for slab on grade, crawlspace or full basement options.
User is able to select and have costs instantly calculate different quality levels of construction including Economy, Standard, Premium. View Quality Level Assumptions.
Estimate will dynamically adjust costs based on the home plan's finished square feet, porch, garage and bathrooms.
Estimate will dynamically adjust costs based on unique zip code for project location.
All home plans are based on the following design assumptions: 8 foot basement ceiling height, 9 foot first floor ceiling height, 8 foot second floor ceiling height (if used), gable roof; 2 dormers, average roof pitch is 12:12, 1 to 2 covered porches, porch construction on foundations.
Summarized cost report will provide approximately 70 lines of cost detail within the following home construction categories: Site Work, Foundations, Basement (if used), Exterior Shell, Special Spaces (Kitchen, Bathrooms, etc), Interior Construction, Elevators, Plumbing, Heating / AC, Electrical Systems, Appliances, Contractor Markup.
QUICK Cost-To-Build generates estimates only. It is highly recommend that one employs a local builder in order to get a more accurate construction cost.
All costs are "installed costs" including material, labor and sales tax.
** Available for U.S. only.
Q & A
Common Q & A
Q: Can I make modifications to this plan?
A: Yes you can! Please click the "Modifications" tab above to get more information.
Q: What is the estimated price to build this plan?
A: The national average for a house is running right at $125.00 per SF. You can get more detailed information by clicking the Cost-To-Build tab above. Sorry, but we cannot give cost estimates for garage, multifamily or project plans.
FHP Low Price Guarantee
If you find the exact same plan featured on a competitor's web site at a lower price, advertised OR special SALE price, we will beat the competitor's price by 5% of the total, not just 5% of the difference! Our guarantee extends up to 4 weeks after your purchase, so you know you can buy now with confidence.
Photographs may show modified designs.

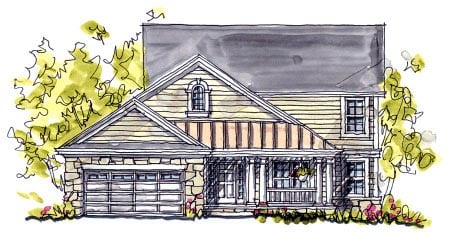

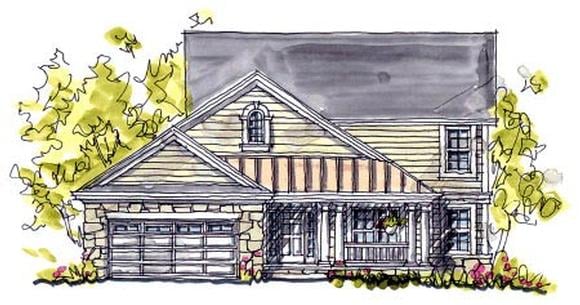

Elevation
Level One
Level Two
Quick Specs
2593 Total Living Area1902 Main Level
691 Upper Level
5 Bedrooms
4 Full Baths
2 Car Garage
50' W x 62' D
Quick Specs
2593 Total Living Area5 Bedrooms
4 Full Baths
2 Car Garage
50' W x 62' D
