Order Code: 00WEB |
Total Living Area: | 3302 sq ft |
Main Living Area: | 2201 sq ft |
Upper Living Area: | 1101 sq ft |
Unfinished Basement Area: | 1707 sq ft |
Garage Area: | 1462 sq ft |
Garage Type: | Attached |
Garage Bays: | 5 |
Foundation Types: | Basement - * $300.00 Total Living Area may increase with Basement Foundation option. Slab |
Exterior Walls: | 2x4 |
House Width: | 143'0 |
House Depth: | 68'0 |
Number of Stories: | 2 |
Bedrooms: | 5 |
Full Baths: | 5 |
Half Baths: | 2 |
Max Ridge Height: | 40'0 from Front Door Floor Level |
Primary Roof Pitch: | 12:12 |
Roof Framing: | Unknown |
Porch: | 1671 sq ft |
Formal Dining Room: | Yes |
FirePlace: | Yes |
2nd Floor Laundry: | Yes |
1st Floor Master: | Yes |
Main Ceiling Height: | 10'0 |
Upper Ceiling Height: | 9'0 |
French Country House Plans with 3302 Sq Ft, 5 Beds, 5 Full Baths, 2 Half Baths and a 5 Car Garage

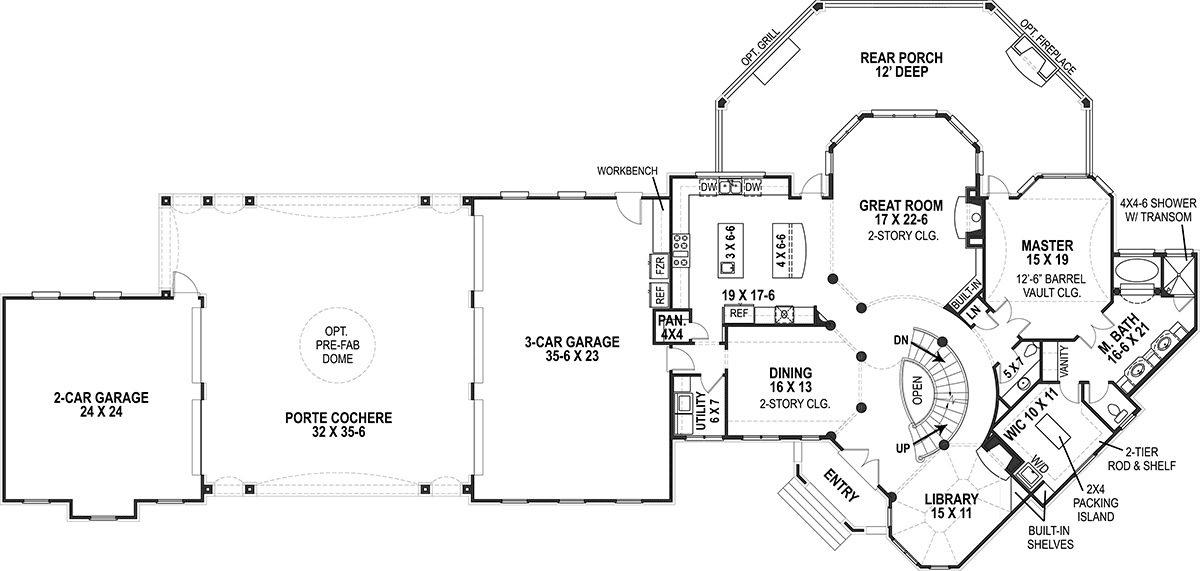

French country home plan with an impressive porte cochere and parking for up to 5 autos. A spacious 5-bedroom house plan with 5 bedrooms, 7 bathrooms, 3300 square feet and a 1700 sq ft unfinished basement. A popular floor plan with formal dining, large great room, gourmet kitchen, library, large master suite, and 12 ft deep rear porch with optional fireplace on the main level. On the second floor three bedrooms, three baths and a laundry area.A: Q: Would you be able to tell me what the dots on level one near the dinning area are ? A: structural columns Q: Also, is it possible to get a complete 1 sheet of the framing? A: This construction set offers 4 sheets of suggested framing and structural notes. These are provided as a courtesy only. We're not an engineering firm and assume no responsibility for the calculations contained in the plan. A local engineer must be consulted prior to beginning construction. These sheets are not available pre-sale.
A: We do not have any additional photos or renderings at this time
A: Good morning, We don’t have any alternate renderings for this house plan. The customer can customize the materials and/or color of the exterior with the help of their builder. If standing on the 2nd floor, you will be able to look down into 3 spaces: the dining room, great room, and foyer. All 3 of these spaces are 2-story high. On your website, we suggest making the ‘dining below’ space white so that people know it’s not a living area We call out standard US sizes (i.e. 2x4 framing) but the customer can choose to modify the materials they use at their own expense with guidance from a local professional.
A: Hello, The house was not designed for any snow load. It meets national building codes but intended for the state of GA. Kind Regards, Ana
A: We don’t have any additional photos at this time. im so sorry!
A: Under roof between all levels is 8936
A: 1 in great room 1 in library
A: The library measurement is taken at an angle… 15-ft from front window to fireplace, 11-ft from foyer to exterior wall. The wic and master are the same. Please note all measurements are taken as accurately as possible in irregular size rooms. Doors will range between 2/0 to 3/0 for single. Are there specific doorways the customer would like more information on? Kind Regards,
A: There is no list, but the structural plans do size the beams. They must be checked to make sure they meet local requirements.
A: Hello, The plan offers a very detailed set of complimentary structural notes for all levels. However, we're not an engineering firm. The builder/owner is responsible for reviewing all notes and making adjustments locally (if necessary) at the expense of the owner prior to beginning construction. Kind Regards.
A: Stone and brick but the customer can make it whatever they want in the field. For example they can keep the brick ledge (for stone/brick) and use siding/stucco/hardi plank etc on the top. Kind Regards.
A: +/- 10’8
A: The garages are +/- 30-ft high

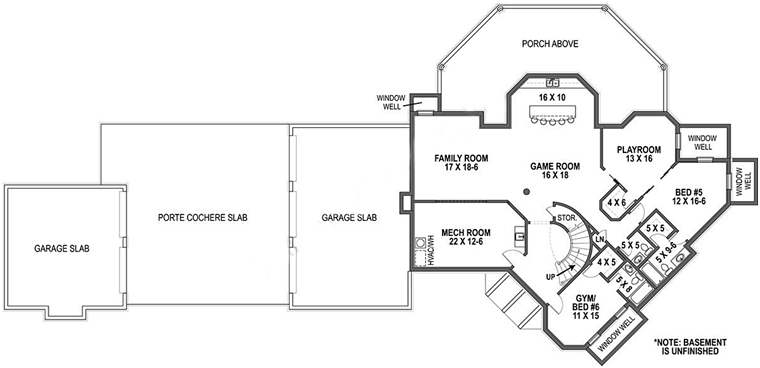

A: This home’s basement is in-ground
A: Sorry there are no photos available at this time
A: The house is approximately 87-ft wide without the porte cochere and 2-car garage.
A: Yes you can! Please click the "Modifications" tab above to get more information.
A: The national average for a house is running right at $125.00 per SF. You can get more detailed information by clicking the Cost-To-Build tab above. Sorry, but we cannot give cost estimates for garage, multifamily or project plans.
