Plan Pricing from $600.00

Plan Pricing

PDF File: $600.00
CAD File: $1,050.00
Single Build License issued on CAD File orders.

Need A Materials List?

It seems that this plan does not offer a stock materials list, but we can make one for you. Please call 1-800-482-0464, x403 to discuss further.

Right Reading Reverse: $100.00
All sets will be Readable Reverse copies. Turn around time is usually 3 to 5 business days.

Need Printed Sets?

It seems that this plan only offers electronic (PDF or CAD) files. If you also need Printed Sets, please call 1-800-482-0464, x403 to discuss possible options.

Available Foundation Types:

Crawlspace : $300.00
May require additional drawing time, please call to confirm before ordering.
Slab : No Additional Fee

Available Exterior Wall Types:

2x4: No Additional Fee

Prices subject to approval prior to fulfillment.

Shipping Policy

Add to cart

Specifications

Total Living Area:	701 sq ft
Main Living Area:	701 sq ft
Garage Type:	N/A or Unknown
Foundation Types:	Crawlspace - * $300.00 Slab
Exterior Walls:	2x4
House Width:	36'0"
House Depth:	33'4"
Number of Stories:	1
Bedrooms:	1
Full Baths:	1
Max Ridge Height:	19'0" from Front Door Floor Level
Primary Roof Pitch:	8:12
Roof Load:	40 psf
Roof Framing:	Truss and/or Stick
Porch:	400 sq ft
Main Ceiling Height:	9'0"

* May require additional drawing time.

Special Features:

Front Porch

What's Included?

Title Sheet 3D line drawing of the residence, plan number.

Foundation Plan
• Plan showing dimensional layout of slab foundation of the home.
• Necessary notations pertaining to foundation.
• Keyed section marks of footings, piers, etc.
• If optional conventional plan, floor joist type and direction. (Post-Tension slabs, basements by others.)

Detail Sheet
• This sheet has standard section details for the particular type of foundation chosen.
• Typical cornice sections and symbol schedule.
• Typical wall sections.
• Note: Above details may be on other sheets.

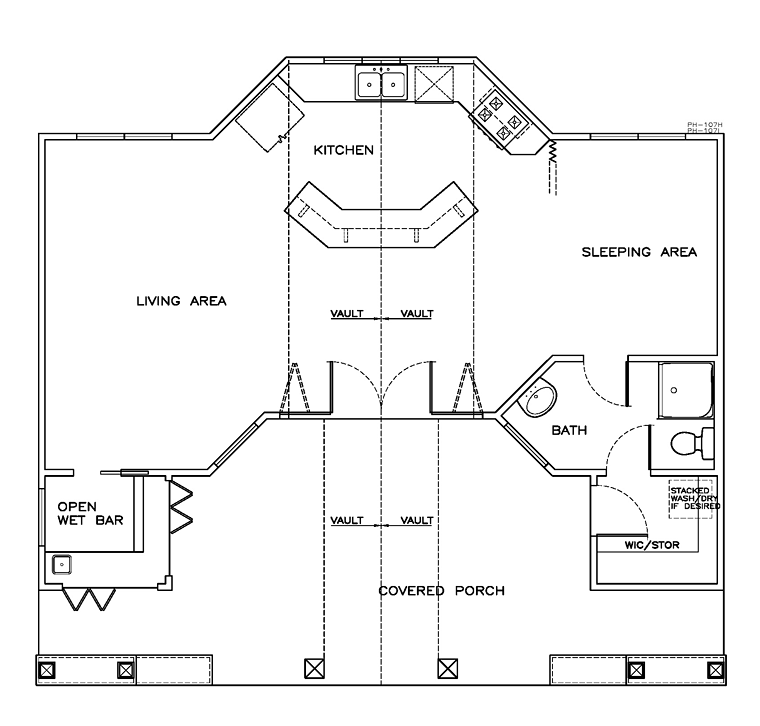

Floor Plans
• All wall placements with dimensions.
• Door & window sizes and descriptions.
• Room labels.
• Stairway dimensions, sections and layout. (May be shown on other sheets)
• Notes relating to vaults, electrical floor outlets, location of beams, headers.
• Suggested mechanical equipment locations.
Elevations
• Front, rear and all sides of the exterior elevations. (Scale – ¼” equals 1”-0)
• These sheets will include all necessary dimensions, material labels, roof slopes, pertinent dimensions.
• All architectural elements relating to the exterior of the home.
• Dormer locations on two story homes, if any.

Electrical Schematic Suggested light switch, outlet, ceiling fan locations, electrical symbol chart.

Section Drawings Cross sections of the home showing floor-ceiling heights, insulation, flooring and roofing details, as necessary.

Millwork Elevations Suggested cabinet, fireplace elevations as well as any distinctive architectural elements.

Roof Plan & Roof Framing Plan Shows the roof slopes & suggested rafter layouts.

What is not included These details can be provided by your builder or local suppliers.
• Details/layout of heating/cooling systems and ductwork.
• Plumbing schematics, pipe sizes, locations and details.
• Electrical wiring layouts and details.
• Standard, daylight or partial basement plans.
• Any other location specific engineering.
• Specification Sheets

Code Compliance Plans are drawn to meet the International Residnetial Code. In all cases specific state and local codes may apply. Consult with state and local building officials in determining your code requirements.
