Plan Pricing from $600.00

Plan Pricing

PDF File: $600.00
CAD File: $1,050.00
Single Build License issued on CAD File orders.

Need A Materials List?

It seems that this plan does not offer a stock materials list, but we can make one for you. Please call 1-800-482-0464, x403 to discuss further.

Right Reading Reverse: $100.00
All sets will be Readable Reverse copies. Turn around time is usually 3 to 5 business days.

Need Printed Sets?

It seems that this plan only offers electronic (PDF or CAD) files. If you also need Printed Sets, please call 1-800-482-0464, x403 to discuss possible options.

Available Foundation Types:

Crawlspace : $300.00
May require additional drawing time, please call to confirm before ordering.
Slab : No Additional Fee

Available Exterior Wall Types:

2x4: No Additional Fee

Prices subject to approval prior to fulfillment.

Shipping Policy

Add to cart

Specifications

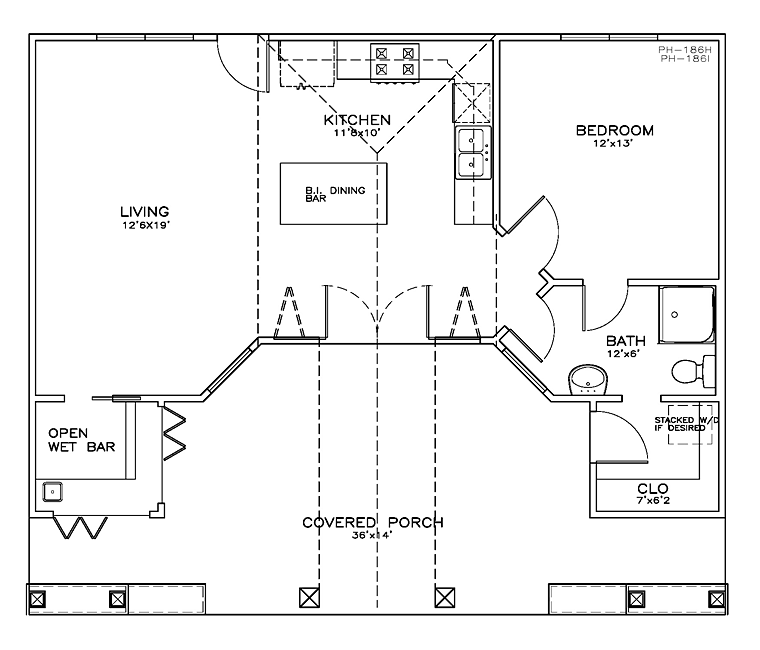

Total Living Area:	681 sq ft
Main Living Area:	681 sq ft
Garage Type:	N/A or Unknown
Foundation Types:	Crawlspace - * $300.00 Slab
Exterior Walls:	2x4
House Width:	36'0"
House Depth:	30'4"
Number of Stories:	1
Bedrooms:	1
Full Baths:	1
Max Ridge Height:	19'0" from Front Door Floor Level
Primary Roof Pitch:	8:12
Roof Load:	40 psf
Roof Framing:	Truss and/or Stick
Porch:	399 sq ft
Main Ceiling Height:	9'0"

* May require additional drawing time.

Special Features:

Front Porch

What's Included?

Title Sheet 3D line drawing of the residence, plan number.

Foundation Plan
• Plan showing dimensional layout of slab foundation of the home.
• Necessary notations pertaining to foundation.
• Keyed section marks of footings, piers, etc.
• If optional conventional plan, floor joist type and direction. (Post-Tension slabs, basements by others.)

Detail Sheet
• This sheet has standard section details for the particular type of foundation chosen.
• Typical cornice sections and symbol schedule.
• Typical wall sections.
• Note: Above details may be on other sheets.

Floor Plans
• All wall placements with dimensions.
• Door & window sizes and descriptions.
• Room labels.
• Stairway dimensions, sections and layout. (May be shown on other sheets)
• Notes relating to vaults, electrical floor outlets, location of beams, headers.
• Suggested mechanical equipment locations.
Elevations
• Front, rear and all sides of the exterior elevations. (Scale – ¼” equals 1”-0)
• These sheets will include all necessary dimensions, material labels, roof slopes, pertinent dimensions.
• All architectural elements relating to the exterior of the home.
• Dormer locations on two story homes, if any.

Electrical Schematic Suggested light switch, outlet, ceiling fan locations, electrical symbol chart.

Section Drawings Cross sections of the home showing floor-ceiling heights, insulation, flooring and roofing details, as necessary.

Millwork Elevations Suggested cabinet, fireplace elevations as well as any distinctive architectural elements.

Roof Plan & Roof Framing Plan Shows the roof slopes & suggested rafter layouts.

What is not included These details can be provided by your builder or local suppliers.
• Details/layout of heating/cooling systems and ductwork.
• Plumbing schematics, pipe sizes, locations and details.
• Electrical wiring layouts and details.
• Standard, daylight or partial basement plans.
• Any other location specific engineering.
• Specification Sheets
