House Plan 75477
Traditional Style House Plan 75477 with 5384 Sq Ft, 5 Bed, 5 Bath, 3 Car Garage
sq ft
5384beds
5baths
3.5bays
3width
93'depth
48'
Click Any Image For Gallery
Plan Pricing from $3,319.00
Plan Pricing
Available Foundation Types:
Available Exterior Wall Types:
Prices subject to approval prior to fulfillment.Specifications
| Total Living Area: | 5384 sq ft |
| Lower Living Area: | 1992 sq ft |
| Main Living Area: | 2248 sq ft |
| Upper Living Area: | 1144 sq ft |
| Bonus Area: | 763 sq ft |
| Garage Area: | 616 sq ft |
| Garage Type: | Attached |
| Garage Bays: | 3 |
| Foundation Types: | Crawlspace - * $295.00 Slab - * $295.00 Walkout Basement |
| Exterior Walls: | 2x6 |
| House Width: | 92'8 |
| House Depth: | 47'8 |
| Number of Stories: | 2 |
| Bedrooms: | 5 |
| Full Baths: | 3 |
| 3/4 Baths: | 1 |
| Half Baths: | 1 |
| Primary Roof Pitch: | 0 |
| Roof Framing: | Truss |
| Porch: | 108 sq ft |
| Deck: | 1500 sq ft |
| FirePlace: | Yes |
| 1st Floor Master: | Yes |
| Main Ceiling Height: | 9' |
| Upper Ceiling Height: | 9' |
Plan Description
Modern Style Craftsman House Plan

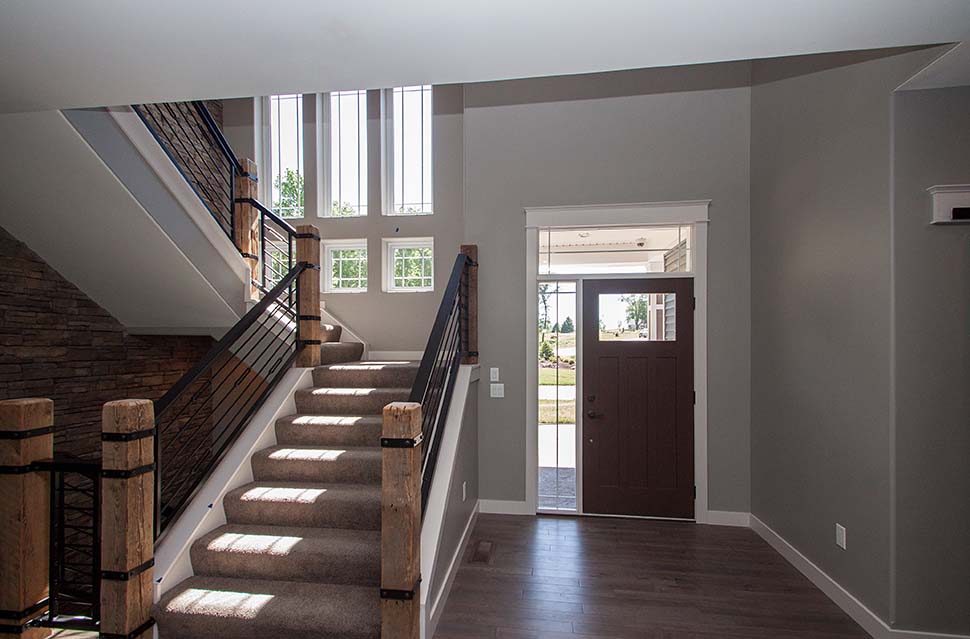

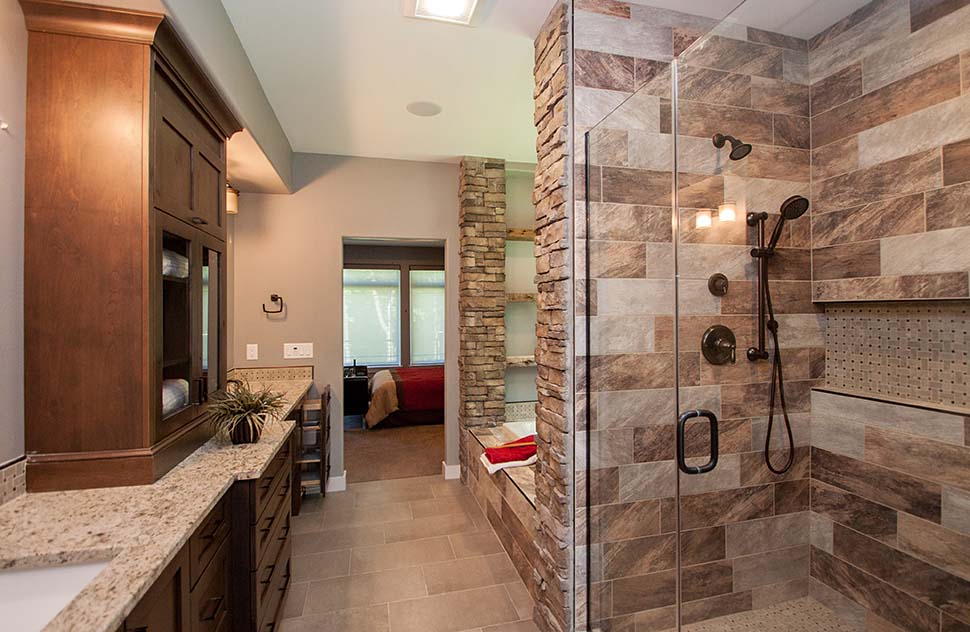

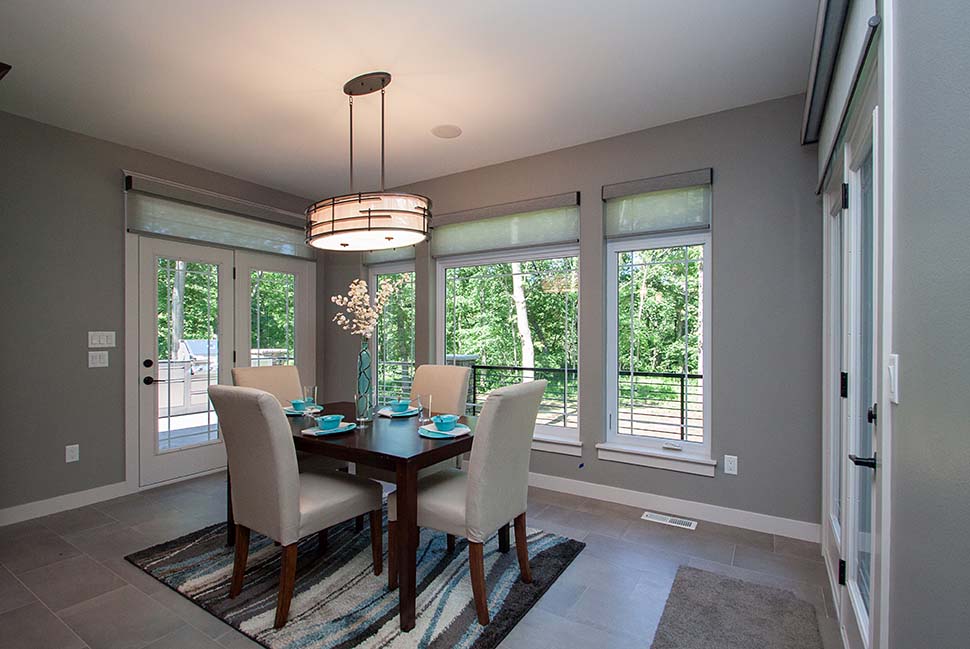

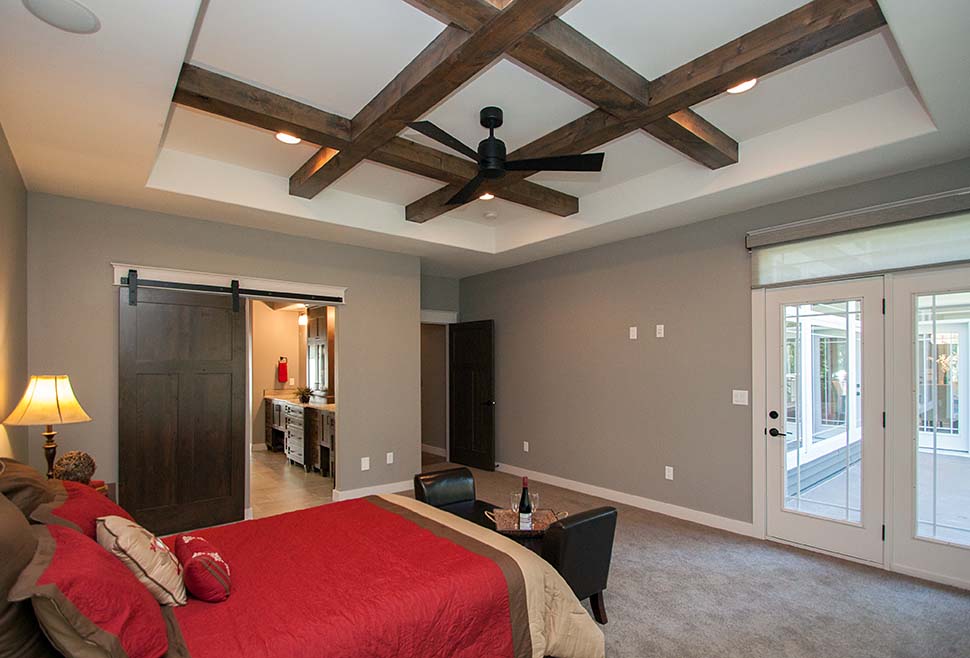

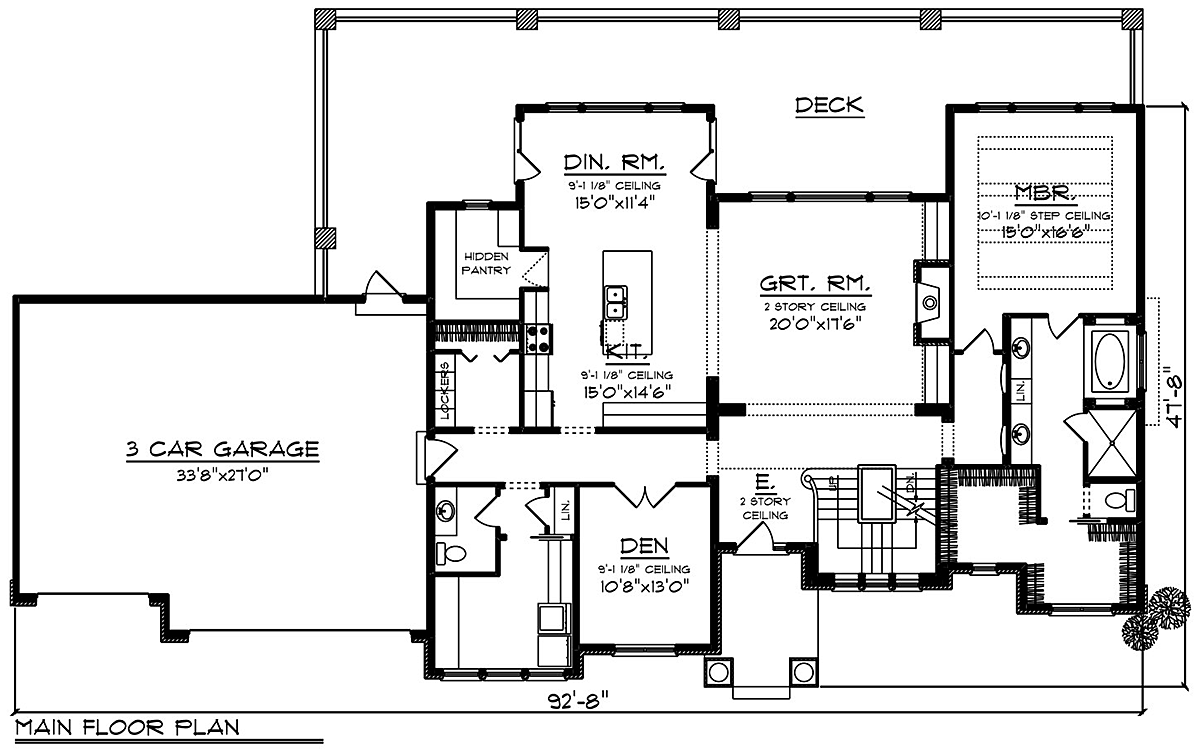

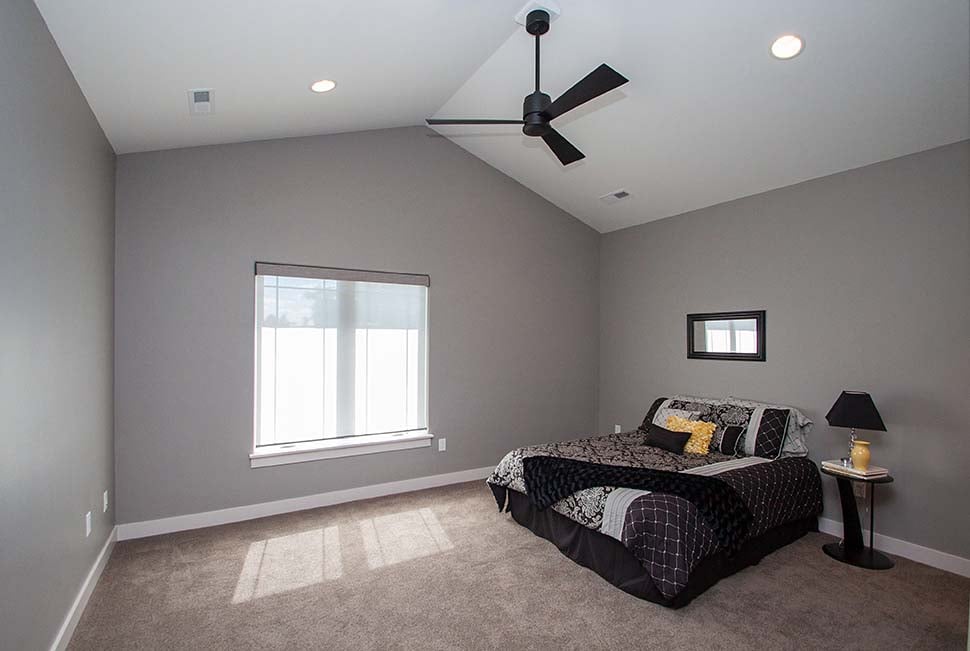

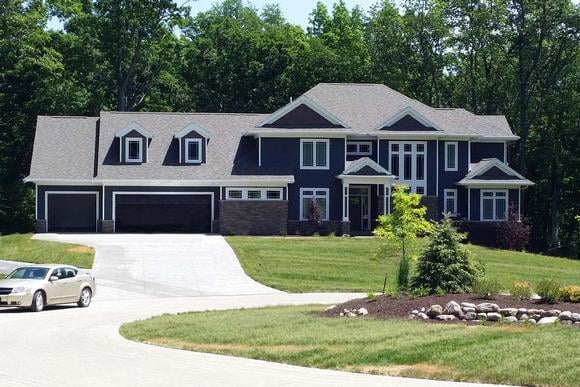

Craftsman details combine a mix of stone, shingle and horizontal siding to create a curbside appeal that is sure to attract attention on this craftsman two-story house plan design. High ceilings welcome you into this home and draw you into the great room where a wall of windows allows plenty of natural light in to warm the area. An open concept floor plan includes a center island in the kitchen that overlooks the dining and great rooms to create a spacious living area. The main floor master suite includes his and hers walk-in closets, dual sinks and a Jacuzzi tub in the bathroom. Three additional bedrooms, each with walk-in closet are located on the second floor, and a spacious bonus room is also located over the garage. The finished walkout basement includes another bedroom, a spacious family room with wet bar and room for a game table, a theater room and an extra flex/exercise room space. A three-stall garage completes the home.Special Features:
What's Included?
Cover sheet with Front Rendering.
Foundation and Floor Plans at 1/4" = 1'0" scale.
Exterior Elevations of all four views, front at 1/4" = 1'0" scale, rear and sides vary from 1/8" to 1/4" = 1'0" scale.
Building Sections and Details as required to construct the individual design.
Interior Elevations of Cabinets at 1/4" = 1'0" scale.
Roof Plans
Schematic Electrical Plans with suggested switch, outlet, and light fixture locations.
General Specifications design notes.
Note: Mechanical and Plumbing drawings are not included. These should be obtained from a local mechanical contractor to ensure correct sizing of equipment for your region and climate conditions.
Foundation and Floor Plans at 1/4" = 1'0" scale.
Exterior Elevations of all four views, front at 1/4" = 1'0" scale, rear and sides vary from 1/8" to 1/4" = 1'0" scale.
Building Sections and Details as required to construct the individual design.
Interior Elevations of Cabinets at 1/4" = 1'0" scale.
Roof Plans
Schematic Electrical Plans with suggested switch, outlet, and light fixture locations.
General Specifications design notes.
Note: Mechanical and Plumbing drawings are not included. These should be obtained from a local mechanical contractor to ensure correct sizing of equipment for your region and climate conditions.
Modifications
Receive a FREE modification estimate in one of 3 ways. Our modification team is ready to help you adjust any plan to fit your needs. The ReDesign process is simple and estimates are free!
1. Complete this On-Line Request Form
2. Print, complete and fax this PDF Form to us at 1-800-675-4916.
3. Want to talk to an expert? Call us at 913-938-8097 (Canadian customers, please call 800-361-7526) to discuss modifications.
Note: - a sketch of the changes or the website floor plan marked up to reflect changes is a great way to convey the modifications in addition to a written list.
We Work Fast!
When you submit your ReDesign request, a designer will contact you within 24 business hours with a quote.
You can have your plan redesigned in as little as 14 - 21 days!
We look forward to hearing from you!
Start today planning for tomorrow!
1. Complete this On-Line Request Form
2. Print, complete and fax this PDF Form to us at 1-800-675-4916.
3. Want to talk to an expert? Call us at 913-938-8097 (Canadian customers, please call 800-361-7526) to discuss modifications.
Note: - a sketch of the changes or the website floor plan marked up to reflect changes is a great way to convey the modifications in addition to a written list.
We Work Fast!
When you submit your ReDesign request, a designer will contact you within 24 business hours with a quote.
You can have your plan redesigned in as little as 14 - 21 days!
We look forward to hearing from you!
Start today planning for tomorrow!
