Plan Pricing from $1,160.00

Plan Pricing

PDF File: $1,160.00
CAD File: $2,160.00
Single Build License issued on CAD File orders.

Need A Materials List?

It seems that this plan does not offer a stock materials list, but we can make one for you. Please call 1-800-482-0464, x403 to discuss further.

Right Reading Reverse: $250.00
All sets will be Readable Reverse copies. Turn around time is usually 3 to 5 business days.
Additional Sets: $65.00

Need Printed Sets?

It seems that this plan only offers electronic (PDF or CAD) files. If you also need Printed Sets, please call 1-800-482-0464, x403 to discuss possible options.

Additional Notes

foundation type is screw pile

Available Foundation Types:

Crawlspace : $425.00
May require additional drawing time, please call to confirm before ordering.
Pile : No Additional Fee
Slab : $425.00
May require additional drawing time, please call to confirm before ordering.
Stem Wall Slab : $425.00
May require additional drawing time, please call to confirm before ordering.

Available Exterior Wall Types:

2x4: No Additional Fee

Prices subject to approval prior to fulfillment.

Shipping Policy

Add to cart

Specifications

Total Living Area:	480 sq ft
Main Living Area:	480 sq ft
Garage Type:	None
See our garage plan collection. If you order a house and garage plan at the same time, you will get 10% off your total order amount.
Foundation Types:	Crawlspace - * $425.00 Pile Slab - * $425.00 Stem Wall Slab - * $425.00
Exterior Walls:	2x4
House Width:	24
House Depth:	20
Number of Stories:	1
Bedrooms:	2
Full Baths:	1
Max Ridge Height:	13'9 from Front Door Floor Level
Primary Roof Pitch:	0
Roof Load:	55 psf
Roof Framing:	Stick
Porch:	95 sq ft
1st Floor Master:	Yes

* May require additional drawing time.

Plan Description

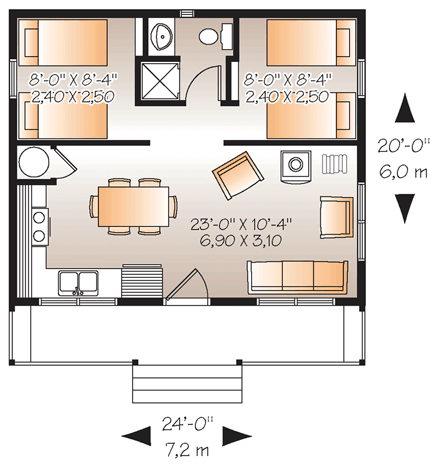

Tiny Floor Plan Under 500 Sq Ft has 2 Bedrooms and 1 Bathroom

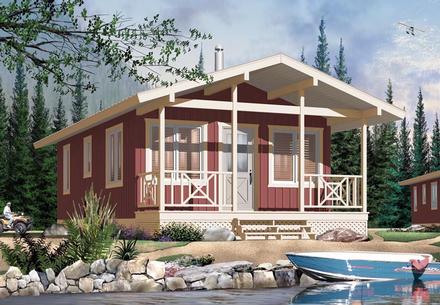

A tiny home plan with a 480 sq ft floor plan. The perfect cabin for lake front, mountainside or ocean side living. Sold as a getaway or vacation house plan with 2 bedrooms, a bathroom with a stand-up shower, a full kitchen, eating area and media area. Commonly used as a fishing cabin, hunting cabin or beach house. The contemporary design has high windows that let the sunshine in or can be adapted to help warm air exhaust. Recognized as an efficient tiny home plan. Plans to build a tiny house

What's Included?

All our house plans include:

-4 elevations
-Foundation plan
-Ground floor plan
-Upper floor plan (if applicable)
-Roof plan
-Truss diagrams and building sections (manufactured trusses required – no structural details included)
-Construction details
-Typical wall section

NOT included:

-Engineering
-HVAC (Heating, ventilation and air conditioning)
-Electrical and plumbing plans

What's included in our house plans detail

BCIN # for Ontario customers is available at an additional charge

-House plans with or without garage and / or apartment $300
-Multi-unit plans $400
-All other plans $150
-Garage plans with NO heating elements, $200 charge for BCIN
If you are purchasing a BCIN number for Ontario customers, and wish to purchase the PDF, a copy per Ontario rules must be mailed as well. There is no charge for the actual copy, but shipping on the copy must be purchased.

Modifications

Want to make changes to a house plan at Family Home Plans?

Plan modification is a way of turning a stock plan into your unique custom plan. It's still just a small fraction of the price you would pay to create a home plan from scratch. You will receive a FREE, no obligation, modification estimate to get exactly the home plan you've been dreaming of. Simply contact the modification department 1 of 3 ways:

Call 866-465-5866 and talk to a live person that can give you and FREE modification estimate over the phone!

Email Us - Please Include your telephone number, plan number, foundation type, state you are building in and a specific list of changes.

Fax: 651-602-5050 - Make sure to include a cover sheet with your contact info. Make attention to the FamilyHomePlans.com Modification Department.

Cost To Build

No Risk Offer: Order your Home-Cost Estimate now for just $24.95! We provide you with a 10% discount code in your receipt for when you decide to order any plan on our website that will more than pay you back!
Get more accurate results, quicker! No need to wait for a reliable cost.
Get a detailed cost report for your home plan with over 70 lines of summarized cost information in under 5 minutes!
Cost report for your zip code. (the zip code can be changed after you receive the online report)
Estimate 1, 1-1/2 or 2 story home plans. **
Interactive! Instantly see the costs change as you vary quality levels Economy, Standard, Premium and structure such as slab, basement and crawlspace.
Your estimate is active for 1 FULL YEAR!

View Sample

demo purposes only

Purchase

$24.95 per plan

** Available for U.S. only.

QUICK Cost-To-Build estimates have the following assumptions:

QUICK Cost-To-Build estimates are available for single family, stick-built, detached, 1 story, 1.5 story and 2 story home plans with attached or detached garages, pitched roofs on flat to gently sloping sites.
QUICK Cost-To-Build estimates are not available for specialty plans and construction such as garage / apartment, townhouse, multi-family, hillside, flat roof, concrete walls, log cabin, home additions, and other designs inconsistent with the assumptions outlined in Item 1 above.
User is able to select and have costs instantly calculate for slab on grade, crawlspace or full basement options.
User is able to select and have costs instantly calculate different quality levels of construction including Economy, Standard, Premium. View Quality Level Assumptions.
Estimate will dynamically adjust costs based on the home plan's finished square feet, porch, garage and bathrooms.
Estimate will dynamically adjust costs based on unique zip code for project location.
All home plans are based on the following design assumptions: 8 foot basement ceiling height, 9 foot first floor ceiling height, 8 foot second floor ceiling height (if used), gable roof; 2 dormers, average roof pitch is 12:12, 1 to 2 covered porches, porch construction on foundations.
Summarized cost report will provide approximately 70 lines of cost detail within the following home construction categories: Site Work, Foundations, Basement (if used), Exterior Shell, Special Spaces (Kitchen, Bathrooms, etc), Interior Construction, Elevators, Plumbing, Heating / AC, Electrical Systems, Appliances, Contractor Markup.
QUICK Cost-To-Build generates estimates only. It is highly recommend that one employs a local builder in order to get a more accurate construction cost.
All costs are "installed costs" including material, labor and sales tax.
** Available for U.S. only.

Q & A

Ask the Designer any question you may have. NOTE: If you have a plan modification question, please click on the Plan Modifications tab above.

Previous Q & A

Q: I have a client who may order this plan, PDF, screw pile foundation, and 2x4 wall. He wants to know if there would be any delay after placing the order?

A: Hey! If the customer purchase the plan as is (screw pile) et will be getting both the 2x4 and 2x6 exterior wall versions Would take about 24-48 business hours to get the pdf Hope this helps!

Q: Do the dimensions shown include the porch or is that extra square footage?

A: The total square footage does not include the porch. The porch would be an extra 96 square feet and is 24’ x 4’

Q: Hi, I am thinking of purchasing these plans, however, I was wondering if you could tell me the configuration of the foundation of this plan if I was to purchase and go the route of a post foundation. I see you provide all different foundation options, however, I'd just like to know the grid pattern. Is it 3x3, 3x4, 4x4 etc Thanks.

A: Not sure what the customer is looking for information wise. This plan comes standard with screw pile foundation. They would have to see how this would be designed on their lot with a local screw pile manufacturer. We cannot determine the number of screw piles. For the grid pattern, we do not understand what they mean. If you can get more information we may be able to give more information

Q: what is required to make this a 4 season home? just add insulation or does it require 2x6 exterior walls to meet code?

A: Good day, The good news is that for this plan, when ordered comes with both an isolated and non-isolated version. One is for 4 season living so the customer is free to choose. I hope this helps! Jessica

Q: Does it have a raised floor and what’s the height of the front and back elevations

A: Good morning, For the roof of this plan, it starts at 8’-0’’ and goes up to 11’-5’’ Hope this helps! Jessica

Q: I noticed that this is identical to the Drummond W1904 plan. I would like to build the slightly larger W1904 V2 plan with a laundry area. Is it possible to modify this plan? Also, we live in South Carolina and the county building code (Chester County) calls for the American building code version, not the international building code version.

A: Hi There, Yes, this plan could be modified and complies with the US building codes Thanks Jessica

Q: How many times can I build using the same drawings?

A: Good day, You are authorised to build only once. However, a multi-use licence can be made available for multiple constructions. Jessica

Q: does this plan have a laundry area?

A: Seeing as this is a 3 season cottage it does not have space for a laundry area. The plan (that is not isolated and is in 2x4 exterior walls) is not designed for permanent living and would need to modified for this.

Q: I can't remember if I submitted this question earlier, but what are the dimensions of the bathroom please?

A: The size of the bathroom for this plan is 6'4" wide x 5'8" deep

Q: Plan 76166 Order# 00WEB Does the plan set include the plumbing layout?

A: Our plans do not include the plumbing layout as this will be determined by the professional who does the actual installation.

Q: How much would this plan cost to build with standard house materials?

A: Since the building cost differ from one region to the other, from state to state, we do not provide building costs. You may refer to a local builder who should be able to provide you with, at least, a cost per square foot.

Common Q & A

Q: Can I make modifications to this plan?

A: Yes you can! Please click the "Modifications" tab above to get more information.

Q: What is the estimated price to build this plan?

A: The national average for a house is running right at $125.00 per SF. You can get more detailed information by clicking the Cost-To-Build tab above. Sorry, but we cannot give cost estimates for garage, multifamily or project plans.
