House Plan 76167
Tiny Home fits a Narrow Lot - 540 sq ft Floor Plan with Two Bedrooms and One Bathroom | Plan 76167
sq ft
540beds
2baths
1bays
0width
18'depth
30'
Plan Pricing from $1,160.00
Plan Pricing
Need Printed Sets?
It seems that this plan only offers electronic (PDF or CAD) files. If you also need Printed Sets, please call 1-800-482-0464, x403 to discuss possible options.Additional Notes
foundation type is screw and pileAvailable Foundation Types:
Available Exterior Wall Types:
Prices subject to approval prior to fulfillment.Specifications
| Total Living Area: | 540 sq ft |
| Main Living Area: | 540 sq ft |
| Garage Type: | None |
| See our garage plan collection. If you order a house and garage plan at the same time, you will get 10% off your total order amount. | |
| Foundation Types: | Crawlspace - * $425.00 Pile Slab - * $425.00 Stem Wall Slab - * $425.00 |
| Exterior Walls: | 2x4 |
| House Width: | 18 |
| House Depth: | 30 |
| Number of Stories: | 1 |
| Bedrooms: | 2 |
| Full Baths: | 1 |
| Max Ridge Height: | 13'2 from Front Door Floor Level |
| Primary Roof Pitch: | 0 |
| Roof Load: | 55 psf |
| Roof Framing: | Stick |
| Porch: | 88 sq ft |
| 1st Floor Master: | Yes |
| Main Ceiling Height: | 8'2 |
Plan Description
Tiny Home fits a Narrow Lot - 540 sq ft Floor Plan with Two Bedrooms and One Bathroom
A generous overhang off the front of this tiny home plan shades its deep front porch. This design is not so “tiny” that it is inconvenient to live in, but small enough to be considered as a compact or affordable house plan. This floor plan has been sold many times as a lake house, beach house, hunting cabin, fishing cabin, guest house or even vacation home. A place to eat, a place to sleep, a place to relax, that is what this tiny cabin plan offers.What's Included?
All our house plans include:
-4 elevations
-Foundation plan
-Ground floor plan
-Upper floor plan (if applicable)
-Roof plan
-Truss diagrams and building sections (manufactured trusses required – no structural details included)
-Construction details
-Typical wall section
NOT included:
-Engineering
-HVAC (Heating, ventilation and air conditioning)
-Electrical and plumbing plans
What's included in our house plans detail
BCIN # for Ontario customers is available at an additional charge
-House plans with or without garage and / or apartment $300
-Multi-unit plans $400
-All other plans $150
-Garage plans with NO heating elements, $200 charge for BCIN
If you are purchasing a BCIN number for Ontario customers, and wish to purchase the PDF, a copy per Ontario rules must be mailed as well. There is no charge for the actual copy, but shipping on the copy must be purchased.
-4 elevations
-Foundation plan
-Ground floor plan
-Upper floor plan (if applicable)
-Roof plan
-Truss diagrams and building sections (manufactured trusses required – no structural details included)
-Construction details
-Typical wall section
NOT included:
-Engineering
-HVAC (Heating, ventilation and air conditioning)
-Electrical and plumbing plans
What's included in our house plans detail
BCIN # for Ontario customers is available at an additional charge
-House plans with or without garage and / or apartment $300
-Multi-unit plans $400
-All other plans $150
-Garage plans with NO heating elements, $200 charge for BCIN
If you are purchasing a BCIN number for Ontario customers, and wish to purchase the PDF, a copy per Ontario rules must be mailed as well. There is no charge for the actual copy, but shipping on the copy must be purchased.
Modifications
Plan modification is a way of turning a stock plan into your unique custom plan. It's still just a small fraction of the price you would pay to create a home plan from scratch. You will receive a FREE, no obligation, modification estimate to get exactly the home plan you've been dreaming of. Simply contact the modification department 1 of 3 ways:
Call 866-465-5866 and talk to a live person that can give you and FREE modification estimate over the phone!
Email Us - Please Include your telephone number, plan number, foundation type, state you are building in and a specific list of changes.
Fax: 651-602-5050 - Make sure to include a cover sheet with your contact info. Make attention to the FamilyHomePlans.com Modification Department.
Call 866-465-5866 and talk to a live person that can give you and FREE modification estimate over the phone!
Email Us - Please Include your telephone number, plan number, foundation type, state you are building in and a specific list of changes.
Fax: 651-602-5050 - Make sure to include a cover sheet with your contact info. Make attention to the FamilyHomePlans.com Modification Department.
Cost To Build
QUICK Cost-To-Build estimates have the following assumptions:
QUICK Cost-To-Build estimates are available for single family, stick-built, detached, 1 story, 1.5 story and 2 story home plans with attached or detached garages, pitched roofs on flat to gently sloping sites.QUICK Cost-To-Build estimates are not available for specialty plans and construction such as garage / apartment, townhouse, multi-family, hillside, flat roof, concrete walls, log cabin, home additions, and other designs inconsistent with the assumptions outlined in Item 1 above.
User is able to select and have costs instantly calculate for slab on grade, crawlspace or full basement options.
User is able to select and have costs instantly calculate different quality levels of construction including Economy, Standard, Premium. View Quality Level Assumptions.
Estimate will dynamically adjust costs based on the home plan's finished square feet, porch, garage and bathrooms.
Estimate will dynamically adjust costs based on unique zip code for project location.
All home plans are based on the following design assumptions: 8 foot basement ceiling height, 9 foot first floor ceiling height, 8 foot second floor ceiling height (if used), gable roof; 2 dormers, average roof pitch is 12:12, 1 to 2 covered porches, porch construction on foundations.
Summarized cost report will provide approximately 70 lines of cost detail within the following home construction categories: Site Work, Foundations, Basement (if used), Exterior Shell, Special Spaces (Kitchen, Bathrooms, etc), Interior Construction, Elevators, Plumbing, Heating / AC, Electrical Systems, Appliances, Contractor Markup.
QUICK Cost-To-Build generates estimates only. It is highly recommend that one employs a local builder in order to get a more accurate construction cost.
All costs are "installed costs" including material, labor and sales tax.
** Available for U.S. only.
Q & A
Previous Q & A
Q: Hello, is the shower designed for a 32"X32" stall? I'm also wondering if I could place a compact stackable W/D (24"X27") in place of the water heater, then move the water heater over the toilet as a compact tankless water heater.. Thanks in advance for any help.
A: Hi, The shower is designed for a 32”x32” stall. Also, it’s possible to place a stackable W/D, the space available is 32”x 29”. The changes you want to make are possible. I hope it’s answer your question. Have a good day
Q: the specs say 1 bedroom but the drawing shows 2 bedrooms but no bedroom doors. Is it 1 bedroom or 2? Does the plan have doors for the bedrooms? Thanks, Rod
A: Good day, This plan does have 2 bedrooms but no doors. It’s a 2-3 season type cottage plan, not a full year-long living cottage. There are no closets or washer and dryer space either. Thanks Jessica
Common Q & A
Q: Can I make modifications to this plan?
A: Yes you can! Please click the "Modifications" tab above to get more information.
Q: What is the estimated price to build this plan?
A: The national average for a house is running right at $125.00 per SF. You can get more detailed information by clicking the Cost-To-Build tab above. Sorry, but we cannot give cost estimates for garage, multifamily or project plans.
FHP Low Price Guarantee
If you find the exact same plan featured on a competitor's web site at a lower price, advertised OR special SALE price, we will beat the competitor's price by 5% of the total, not just 5% of the difference! Our guarantee extends up to 4 weeks after your purchase, so you know you can buy now with confidence.
Call 800-482-0464
click image to enlargeInfo Brochure
Photographs may show modified designs.

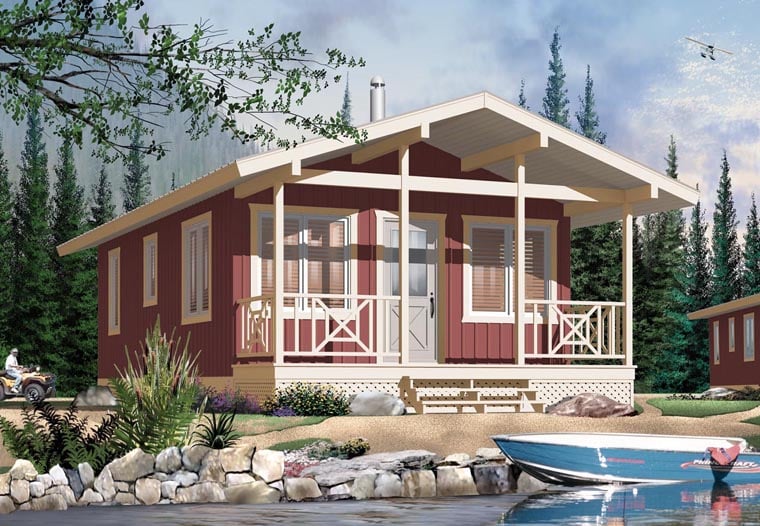

Elevation

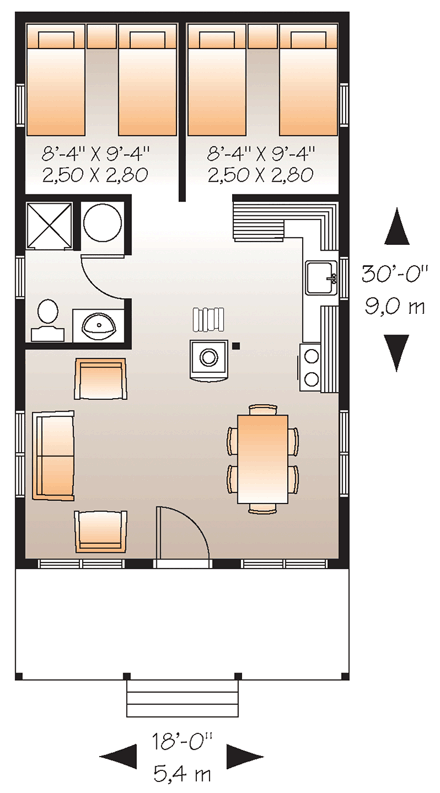

Level One
Quick Specs
540 Total Living Area540 Main Level
2 Bedrooms
1 Full Baths
18 W x 30 D
Quick Specs
540 Total Living Area2 Bedrooms
1 Full Baths
18 W x 30 D
