Plan Pricing from $2,195.00

Plan Pricing

PDF File: $2,195.00
CAD File: $3,145.00
Single Build License issued on CAD File orders.
Concerning PDF or CAD File Orders: Designer requires that a End User License Agreement be signed before fulfilling PDF and CAD File order.

Need A Materials List?

It seems that this plan does not offer a stock materials list, but we can make one for you. Please call 1-800-482-0464, x403 to discuss further.

Right Reading Reverse: $350.00
All sets will be Readable Reverse copies. Turn around time is usually 3 to 5 business days.
Additional Sets: $70.00

Need Printed Sets?

It seems that this plan only offers electronic (PDF or CAD) files. If you also need Printed Sets, please call 1-800-482-0464, x403 to discuss possible options.

Additional Notes

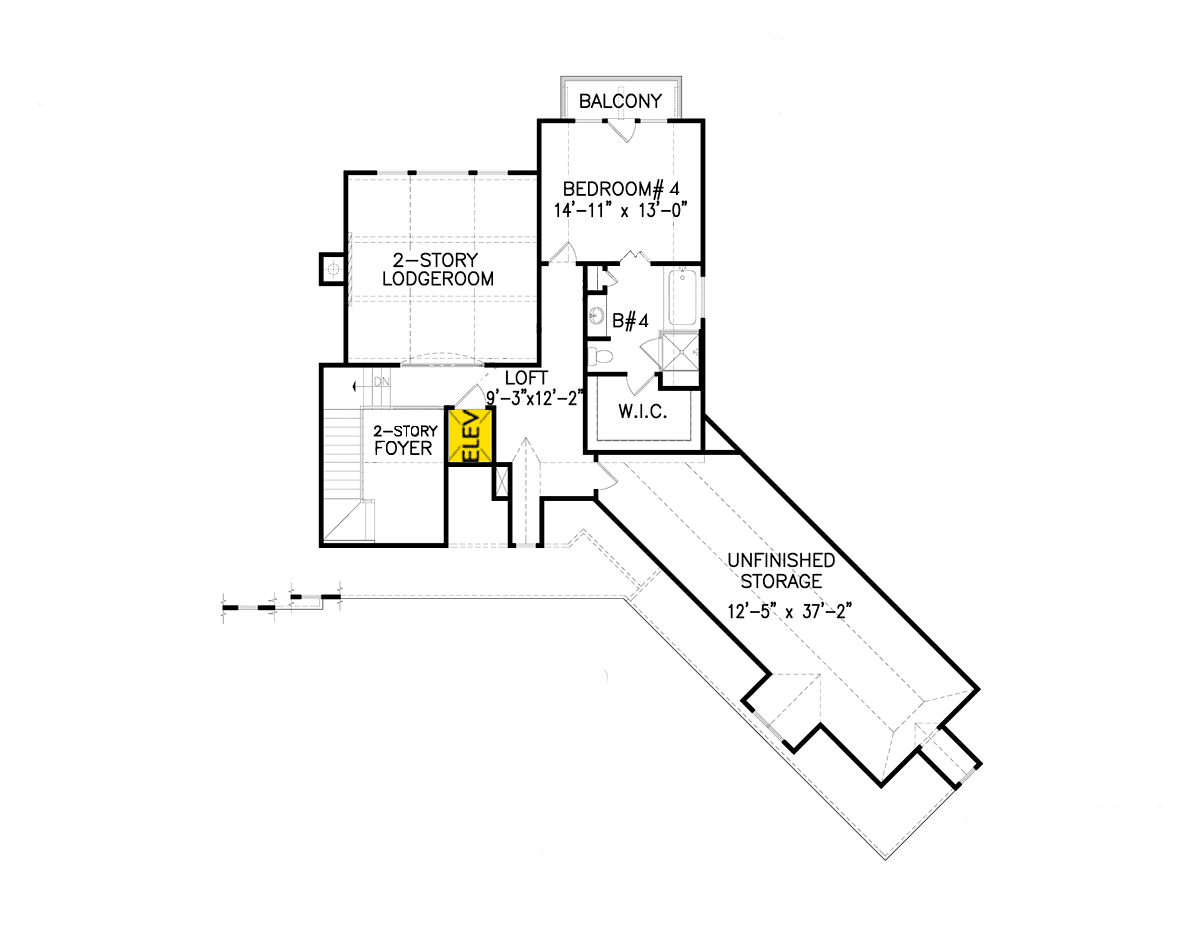

2nd floor: 612 s.f. (optional)

$95.00 to add a PDF File to a CAD file order. Call the sales office to add this option to your order.

Available Foundation Types:

Basement : No Additional Fee
Total Living Area may increase with Basement Foundation option.
Crawlspace : $350.00
May require additional drawing time, please call to confirm before ordering.
Slab : $350.00
May require additional drawing time, please call to confirm before ordering.

Available Exterior Wall Types:

2x4: No Additional Fee

Prices subject to approval prior to fulfillment.

Shipping Policy

Add to cart

Specifications

Total Living Area:	2337 sq ft
Main Living Area:	2337 sq ft
Garage Area:	738 sq ft
Garage Type:	Attached
Garage Bays:	3
Foundation Types:	Basement Crawlspace - * $350.00 Slab - * $350.00
Exterior Walls:	2x4
House Width:	82'11
House Depth:	80'11
Number of Stories:	2
Bedrooms:	4
Full Baths:	3
Half Baths:	1
Max Ridge Height:	28'4 from Front Door Floor Level
Primary Roof Pitch:	0
Roof Framing:	Unknown
Porch:	554 sq ft
FirePlace:	Yes
1st Floor Master:	Yes
Main Ceiling Height:	10'
Upper Ceiling Height:	9'

* May require additional drawing time.

Special Features:

2nd Floor Balcony
Deck or Patio
Entertaining Space
Front Porch
Mudroom
Open Floor Plan
Outdoor Fireplace
Pantry
Rear Porch
Storage Space

Plan Description

Craftsman Tudor Home Plan #80703 is 2373 Sq Ft, 4 Bedrooms, 3.5 Bathrooms and a 2 Car Garage

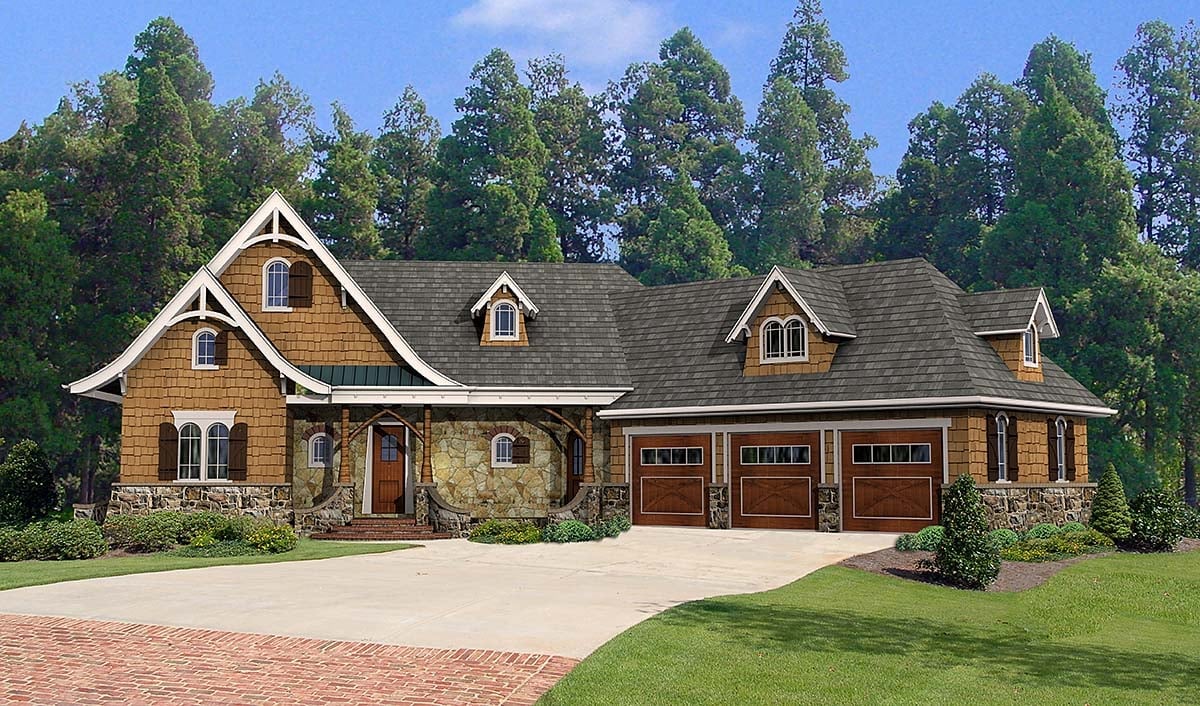

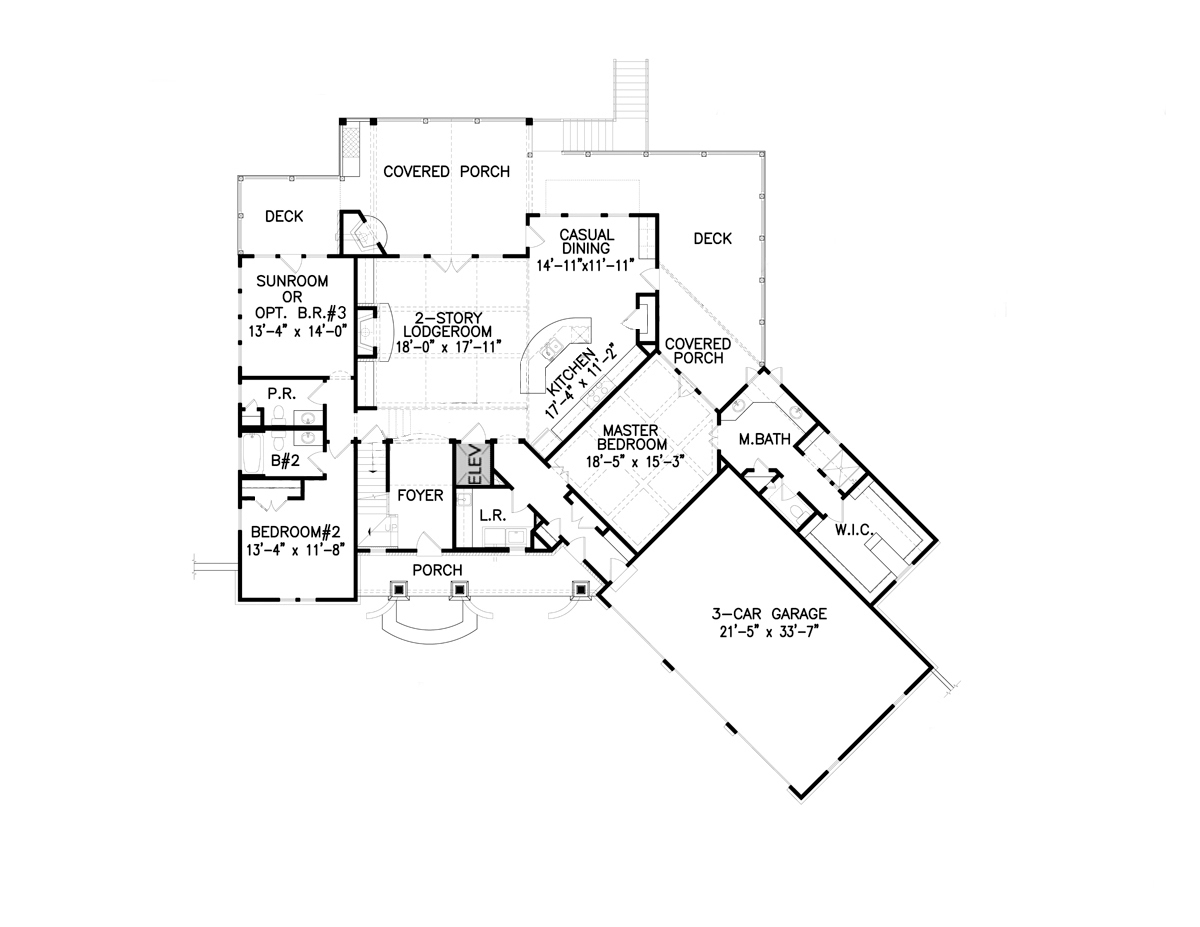

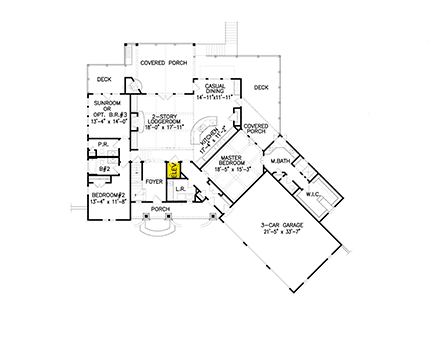

New Tudor style house plan with strong craftsman design features. This two-story home plan has the option of 3 bedroom or 4 bedroom based on your requirements. The sun room can double as bedroom three on the main floor if necessary. The covered rear porch connects to a wrap around deck. A covered porch is also accessible from the master suite on the main floor. Above the master and garage is a huge unfinished storage area.

What's Included?

1. Exterior elevations – Included are front, rear, left and right side views of the exterior of the house. Exterior materials, construction details and measurements are also noted.

2. Foundation Plan – Includes layout of foundation support walls, plus excavated and unexcavated areas, if applicable.

3. Detailed Floor Plans – These plans show the layout of each floor of the house, including room dimensions, window and doors sizes and keys for cross section details provided later in the plans. Engineered floor joist, ceiling joist and roof plans are not included in some plans. Local engineers or manufacturing engineers are widely available to supply the services that apply to local geographic conditions.

4. Interior Details – These drawings show the specific details and design of special interior features.

5. Roof Plan – Includes the overall layout for roof construction. If trusses are used, we recommend using a local truss manufacturer to ensure compliance with local codes and regulations.

6. Cross Section Details – Important changes in floor, ceiling and roof heights or the relationship of one level to another are called out. Exterior details such as railing and banding may also be shown.

7. Electrical – Electrical floor plan schematics for 1st and 2nd floors.

Modifications

Want to make changes to a house plan at Family Home Plans?

Receive a FREE modification estimate.

Plan modification is a way of turning a stock plan into your unique custom plan. It's still just a small fraction of the price you would pay to create a home plan from scratch. We believe that modification estimates should be FREE!

We provide a modification service so that you can customize your new home plan to fit your budget and lifestyle.

Click to Email Us This is the best and quickest way to get a modification quote!

Please include your preferred Foundation Type and a Specific List of Changes. You can also attach a Sketch of Changes.

It's as simple as that!

Cost To Build

No Risk Offer: Order your Home-Cost Estimate now for just $24.95! We provide you with a 10% discount code in your receipt for when you decide to order any plan on our website that will more than pay you back!
Get more accurate results, quicker! No need to wait for a reliable cost.
Get a detailed cost report for your home plan with over 70 lines of summarized cost information in under 5 minutes!
Cost report for your zip code. (the zip code can be changed after you receive the online report)
Estimate 1, 1-1/2 or 2 story home plans. **
Interactive! Instantly see the costs change as you vary quality levels Economy, Standard, Premium and structure such as slab, basement and crawlspace.
Your estimate is active for 1 FULL YEAR!

View Sample

demo purposes only

Purchase

$24.95 per plan

** Available for U.S. only.

QUICK Cost-To-Build estimates have the following assumptions:

QUICK Cost-To-Build estimates are available for single family, stick-built, detached, 1 story, 1.5 story and 2 story home plans with attached or detached garages, pitched roofs on flat to gently sloping sites.
QUICK Cost-To-Build estimates are not available for specialty plans and construction such as garage / apartment, townhouse, multi-family, hillside, flat roof, concrete walls, log cabin, home additions, and other designs inconsistent with the assumptions outlined in Item 1 above.
User is able to select and have costs instantly calculate for slab on grade, crawlspace or full basement options.
User is able to select and have costs instantly calculate different quality levels of construction including Economy, Standard, Premium. View Quality Level Assumptions.
Estimate will dynamically adjust costs based on the home plan's finished square feet, porch, garage and bathrooms.
Estimate will dynamically adjust costs based on unique zip code for project location.
All home plans are based on the following design assumptions: 8 foot basement ceiling height, 9 foot first floor ceiling height, 8 foot second floor ceiling height (if used), gable roof; 2 dormers, average roof pitch is 12:12, 1 to 2 covered porches, porch construction on foundations.
Summarized cost report will provide approximately 70 lines of cost detail within the following home construction categories: Site Work, Foundations, Basement (if used), Exterior Shell, Special Spaces (Kitchen, Bathrooms, etc), Interior Construction, Elevators, Plumbing, Heating / AC, Electrical Systems, Appliances, Contractor Markup.
QUICK Cost-To-Build generates estimates only. It is highly recommend that one employs a local builder in order to get a more accurate construction cost.
All costs are "installed costs" including material, labor and sales tax.
** Available for U.S. only.

Q & A

Common Q & A

Q: Can I make modifications to this plan?

A: Yes you can! Please click the "Modifications" tab above to get more information.

Q: What is the estimated price to build this plan?

A: The national average for a house is running right at $125.00 per SF. You can get more detailed information by clicking the Cost-To-Build tab above. Sorry, but we cannot give cost estimates for garage, multifamily or project plans.
