Garage-Living Plan 83414

Barn Style Garage with Apartment | Plan 83414

sq ft

1016

beds

baths

1.5

bays

width

40'

depth

50'

Turn OFF Image Gallery

Add to cart

Plan Pricing from $1,025.00

Plan Pricing

PDF File: $1,025.00
5 Sets: $1,190.00
5 Sets plus PDF File: $1,235.00
CAD File: $1,475.00
Single Build License issued on CAD File orders.
Concerning PDF or CAD File Orders: Designer requires that a End User License Agreement be signed before fulfilling PDF and CAD File order.
Materials List: $368.75
Right Reading Reverse: $200.00
All sets will be Readable Reverse copies. Turn around time is usually 3 to 5 business days.
Additional Sets: $35.00

Additional Notes

Upper Ceiling Height" 5'6" to 9'

Materials List may take 3-5 weeks to fulfill depending on availability.

Available Foundation Types:

Slab : No Additional Fee

Available Exterior Wall Types:

2x6: No Additional Fee

Prices subject to approval prior to fulfillment.

Shipping Policy

Add to cart

Specifications

Total Living Area:	1016 sq ft
Upper Living Area:	1016 sq ft
Garage Area:	1500 sq ft
Garage Type:	Detached
Garage Bays:	2
Foundation Types:	Slab
Exterior Walls:	2x6
House Width:	40'0
House Depth:	50'0
Number of Stories:	2
Full Baths:	1
Half Baths:	1
Max Ridge Height:	32'6 from Front Door Floor Level
Primary Roof Pitch:	10:12
Roof Load:	20 psf
Roof Framing:	Stick
Porch:	540 sq ft
Main Ceiling Height:	16'
Vaulted Ceiling:	Yes

Special Features:

Deck or Patio
Entertaining Space
Open Floor Plan

What's Included?

Plans include

a: Floor Plans: House plan drawings indicating dimensions for construction
b: Roof Plan: Drawings indicating roof slopes and unique conditions

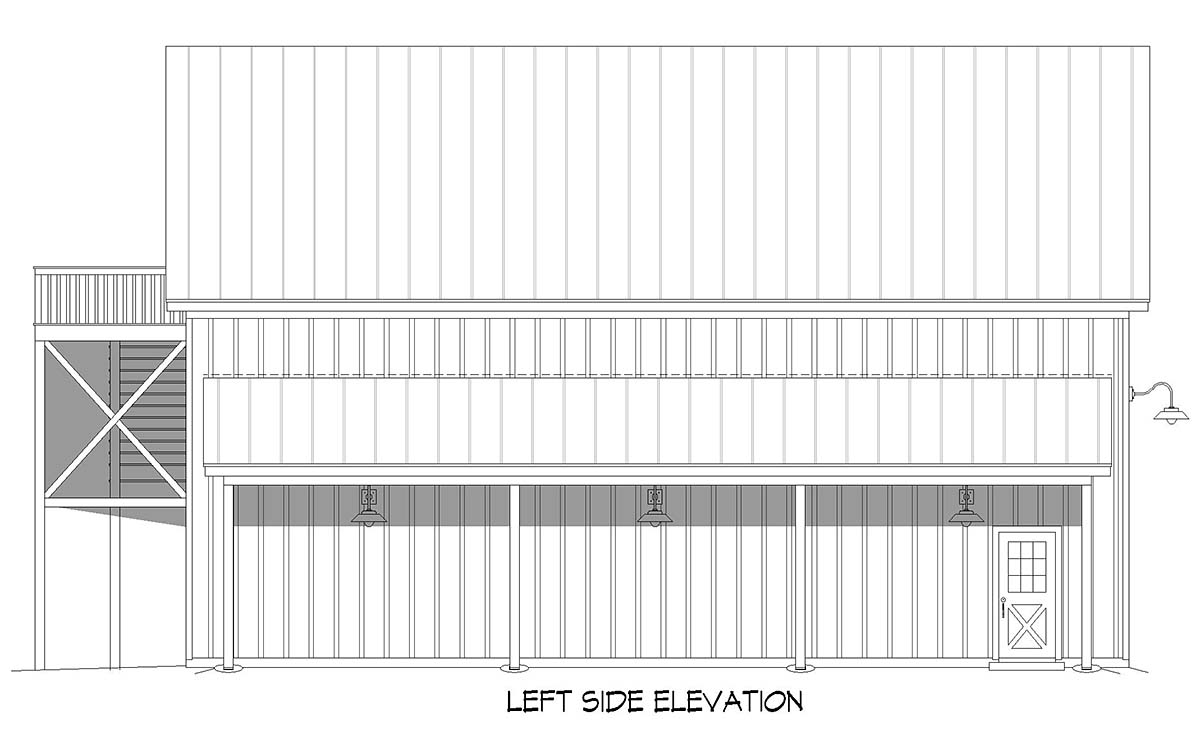

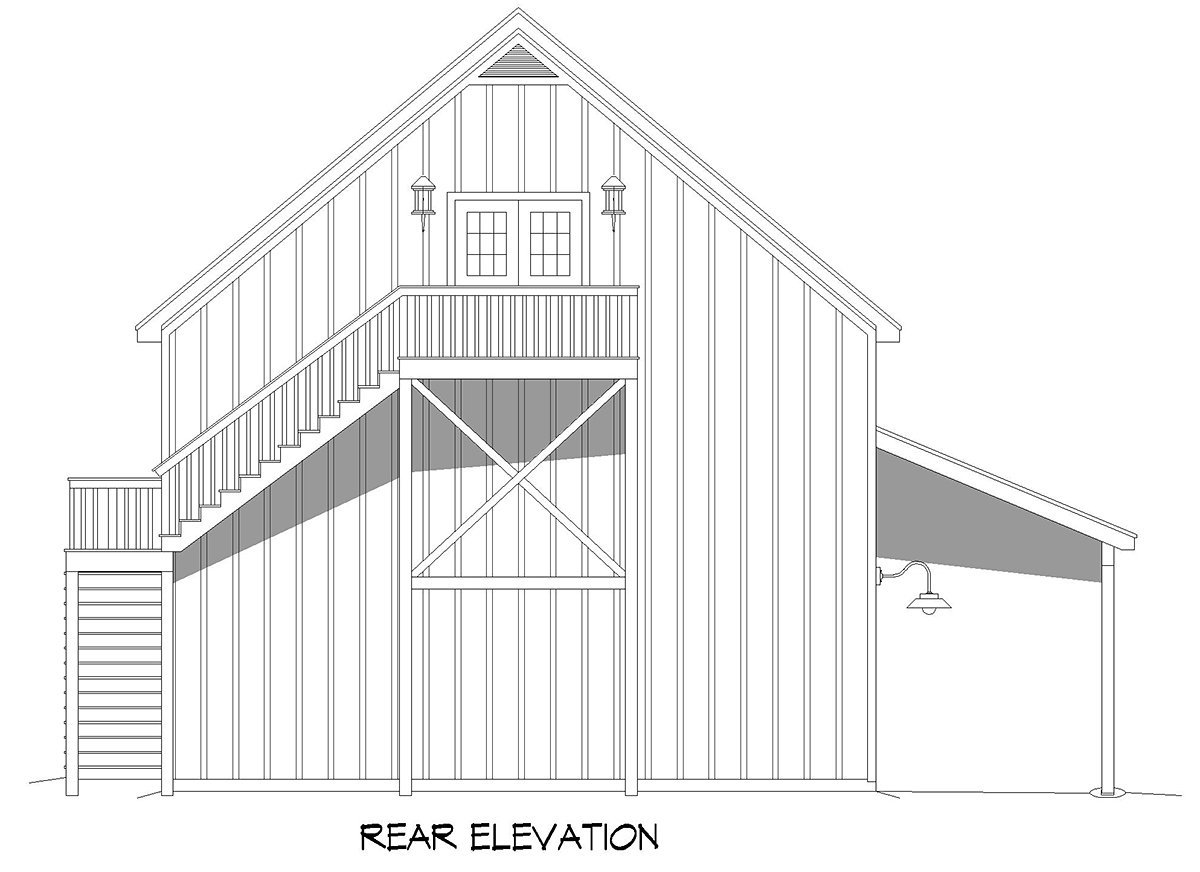

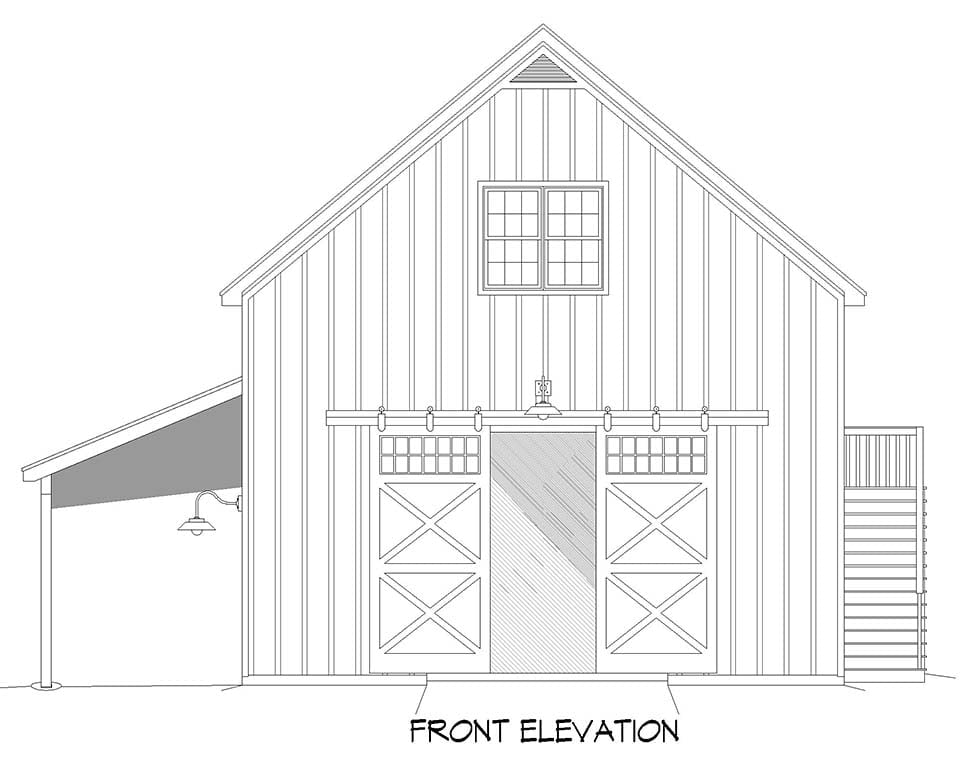

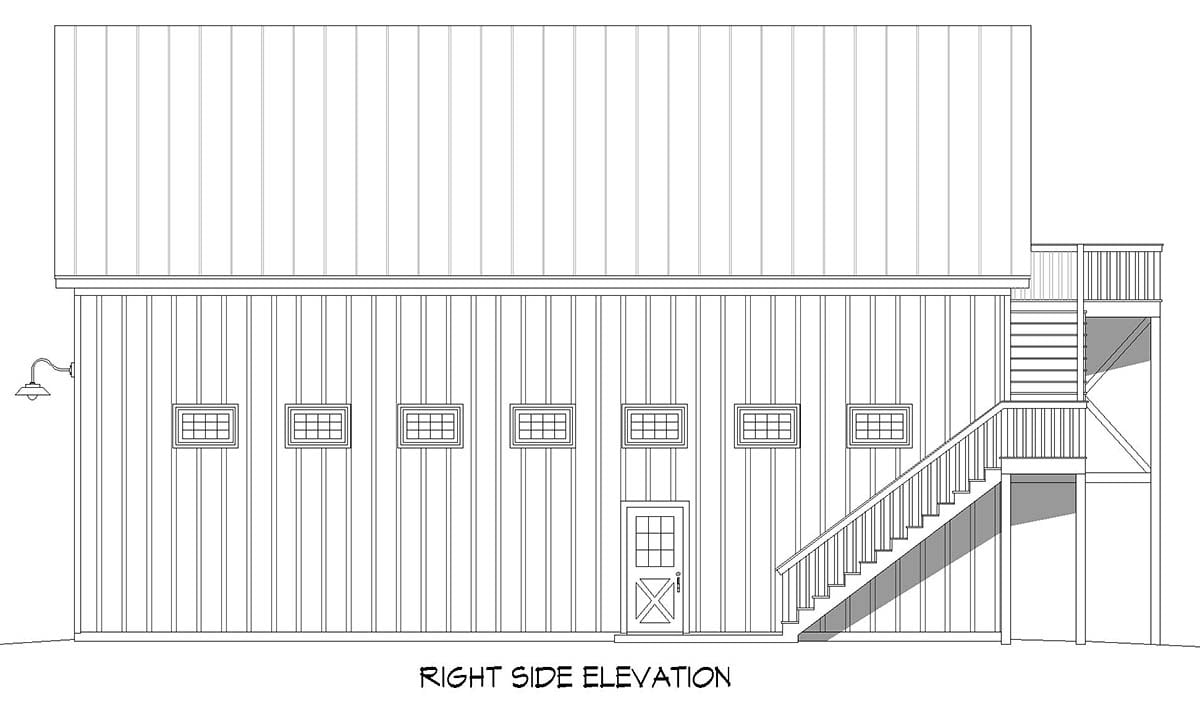

c: Exterior Elevations: Drawings showing appearance and the types of materials used for the exterior finish
d: Building Sections: Drawings cut through important locations in the structure
e: Construction Details: Drawings showing specific construction of building elements at a large scale
f: Kitchen and bath elevations
g: Electrical Plans: Basic electrical layout (suggested locations of fixtures, switches and outlets)
h: Foundation Plan: Dimensioned drawings describing specific foundation conditions for the structure CRAWLSPACE

Plans are sent in AutoCAD 2000 format
