House Plan 83507
Contemporary Ranch with Features Galore
sq ft
2554beds
3baths
3bays
3width
79'depth
57'
click for more images
FHP Low Price Guarantee
If you find the exact same plan featured on a competitor's web site at a lower price, advertised OR special SALE price, we will beat the competitor's price by 5% of the total, not just 5% of the difference! Our guarantee extends up to 4 weeks after your purchase, so you know you can buy now with confidence.
Plan Pricing
The CAD files comes with a multi-use license
Available Foundation Types:
Available Exterior Wall Types:
Prices subject to approval prior to fulfillment.Specifications
| Total Living Area: | 2554 sq ft |
| Main Living Area: | 2554 sq ft |
| Garage Area: | 775 sq ft |
| Garage Type: | Attached |
| Garage Bays: | 3 |
| Foundation Types: | Basement - * $488.00 Total Living Area may increase with Basement Foundation option. Crawlspace Slab |
| Exterior Walls: | 2x6 |
| House Width: | 79'0 |
| House Depth: | 57'0 |
| Number of Stories: | 1 |
| Bedrooms: | 3 |
| Full Baths: | 3 |
| Max Ridge Height: | 17'10 from Front Door Floor Level |
| Primary Roof Pitch: | 3:12 |
| Roof Load: | 25 psf |
| Roof Framing: | Truss and/or Stick |
| FirePlace: | Yes |
| Main Ceiling Height: | 10' |
Special Features:
Plan Description
Contemporary Ranch with Features Galore
Contemporary Ranch House Plan 83507 has 2,554 square feet of living space, 3 bedrooms, and 3 bathrooms. Modern touches include a combination of stone and wood siding, modern garage doors, tall windows, and clerestory windows. Choose a metal roof, and it will be years before you have to worry about roof maintenance again! Your family will have plenty of space to park because of the 3 car garage, and there's even a mechanical room in the back. Stay organized thanks to the mud room at the garage entrance. It includes a drop zone with bench and storage, broom closet and coat closet. Keep reading to learn more.
Contemporary Ranch House Plan Great for Entertaining
When you are first starting out as a homeowner, you’ll likely want to spend plenty of time hosting your friends and family. Firstly, the dining area is the perfect place to hold a formal dinner. From this area, your guests will have a beautiful view out into the great room, with a fire snapping and crackling in the fireplace and snow falling outside. The ceiling is vaulted, and we recommend adding wood or wood-look beams on the ceiling for a beautiful aesthetic.
Secondly, more casual affairs can be held in the great room, which gives you plenty of space to seat friends in comfortable armchairs. The spacious kitchen means that you can get everyone involved in the cooking, laughing and talking as you all prepare your favorite dishes. Thirdly, when the weather is nice, you can invite your guests out to the back covered porch. The porch measures 31 feet wide by 10 feet deep, and it has a vaulted ceiling which makes it seem even larger. Seat everyone in comfortable patio chairs where you can while away the evening in conversation.
3 Bedrooms (one being an optional den)
Contemporary Ranch House Plan 83507 has a total of three bedrooms. Bedroom 3 is labeled: it is a potential den. If you don’t need the extra bedroom space, then this room could become any number of things: a studio, hobby room, or even an office. This room has the potential to become your favorite area in the house. Bedroom 2 has its own private bathroom and nice corner windows. When it comes to laundry, everyone can get there easily because the laundry room is located close to all of the bedrooms.
The master bedroom gives you a great view out to your perfectly manicured backyard. This feature will surely tempt you to call in sick to work. Then you can stay home, snuggle under the covers and spend a lazy day watching movies. The view is repeated in the master bathroom because windows are present on two walls. Mom and Dad have a double vanity, freestanding tub, private toilet closet, and very large walk in closet. Another interesting feature in the ensuite—the tile shower is an open design, so you can forgo the shower doors. No more scrubbing glass doors!
What's Included?
In addition to the front exterior, your drawing set will include drawings of the rear and sides of your house as well. These drawings give notes on exterior materials and finishes. Particular attention is given to cornice detail, brick and stone accents, or other finish items that make your home unique.
Note: Sections and Elevations depict the default foundation, regardless of optional foundation page choices
Foundation Plan
The foundation page dimensions, concrete walls, footings, pads, posts, beams, bearing walls, and any stepped foundation information along with any retaining wall info (schematic only). A typical wall section for the home is also usually included on this page (if not, it is elsewhere in your plan set, as space allows). If your plan features a poured concrete slab rather than a basement or crawlspace, the foundation page shows footings and details for the slab, and includes plumbing locations.
Floor Plan(s)
Exterior and interior wall framing, and windows/doors are dimensioned. Room sizes are indicated and any beams, posts and structural bearing points are called out. The floorplans include an electrical legend, and electrical fittings, lights and outlets are shown. Floor Plans will also indicate cross–section details (provided on the sections page) and show any special framing details applicable to the design. Cabinet elevations are included for kitchen and bathrooms; some designs feature cabinet elevations for design–related built–ins too.
Building Sections
Building sections show changes in floor, ceiling, or roof height, and the relationship of one level to another. Our section pages also show how the stairs are calculated (if there are some!) and depict roof and foundation members. We try and draw sections to show the most useful information — choosing locations where there are elements you or your contractor might need clarification on.
Note: Sections and Elevations depict the default foundation, regardless of optional foundation page choices
Roof Plan
Roof framing or truss directions are shown, slope directions are indicated and structural members are sized and called out if applicable. The gravity loads used to calculate the rafters, beams and posts are indicated , and we also show gutters, downspouts, and any roof venting required for your home.
Notes and Details Page(s)
Your home comes detailed to meet the requirements of the latest adopted version of the ‘International Residential Code’, and our notes and details pages outline all the elements applicable to the design of your home. Compliance with further standards may need to be incorporated into your plan set, depending the requirements of your building department — these are usually done locally.
Modifications
1. Complete this On-Line Request Form
2. Print, complete and fax this PDF Form to us at 1-800-675-4916.
3. Want to talk to an expert? Call us at 913-938-8097 (Canadian customers, please call 800-361-7526) to discuss modifications.
Note: - a sketch of the changes or the website floor plan marked up to reflect changes is a great way to convey the modifications in addition to a written list.
We Work Fast!
When you submit your ReDesign request, a designer will contact you within 24 business hours with a quote.
You can have your plan redesigned in as little as 14 - 21 days!
We look forward to hearing from you!
Start today planning for tomorrow!
Cost To Build
QUICK Cost-To-Build estimates have the following assumptions:
QUICK Cost-To-Build estimates are available for single family, stick-built, detached, 1 story, 1.5 story and 2 story home plans with attached or detached garages, pitched roofs on flat to gently sloping sites.QUICK Cost-To-Build estimates are not available for specialty plans and construction such as garage / apartment, townhouse, multi-family, hillside, flat roof, concrete walls, log cabin, home additions, and other designs inconsistent with the assumptions outlined in Item 1 above.
User is able to select and have costs instantly calculate for slab on grade, crawlspace or full basement options.
User is able to select and have costs instantly calculate different quality levels of construction including Economy, Standard, Premium. View Quality Level Assumptions.
Estimate will dynamically adjust costs based on the home plan's finished square feet, porch, garage and bathrooms.
Estimate will dynamically adjust costs based on unique zip code for project location.
All home plans are based on the following design assumptions: 8 foot basement ceiling height, 9 foot first floor ceiling height, 8 foot second floor ceiling height (if used), gable roof; 2 dormers, average roof pitch is 12:12, 1 to 2 covered porches, porch construction on foundations.
Summarized cost report will provide approximately 70 lines of cost detail within the following home construction categories: Site Work, Foundations, Basement (if used), Exterior Shell, Special Spaces (Kitchen, Bathrooms, etc), Interior Construction, Elevators, Plumbing, Heating / AC, Electrical Systems, Appliances, Contractor Markup.
QUICK Cost-To-Build generates estimates only. It is highly recommend that one employs a local builder in order to get a more accurate construction cost.
All costs are "installed costs" including material, labor and sales tax.
** Available for U.S. only.
Q & A
Ask the Designer any question you may have. NOTE: If you have a plan modification question, please click on the Plan Modifications tab above.
Common Q & A
A: Yes you can! Please click the "Modifications" tab above to get more information.
A: The national average for a house is running right at $125.00 per SF. You can get more detailed information by clicking the Cost-To-Build tab above. Sorry, but we cannot give cost estimates for garage, multifamily or project plans.
FHP Low Price Guarantee
If you find the exact same plan featured on a competitor's web site at a lower price, advertised OR special SALE price, we will beat the competitor's price by 5% of the total, not just 5% of the difference! Our guarantee extends up to 4 weeks after your purchase, so you know you can buy now with confidence.
FHP Low Price Guarantee
If you find the exact same plan featured on a competitor's web site at a lower price, advertised OR special SALE price, we will beat the competitor's price by 5% of the total, not just 5% of the difference! Our guarantee extends up to 4 weeks after your purchase, so you know you can buy now with confidence.
click image to enlargeInfo Brochure

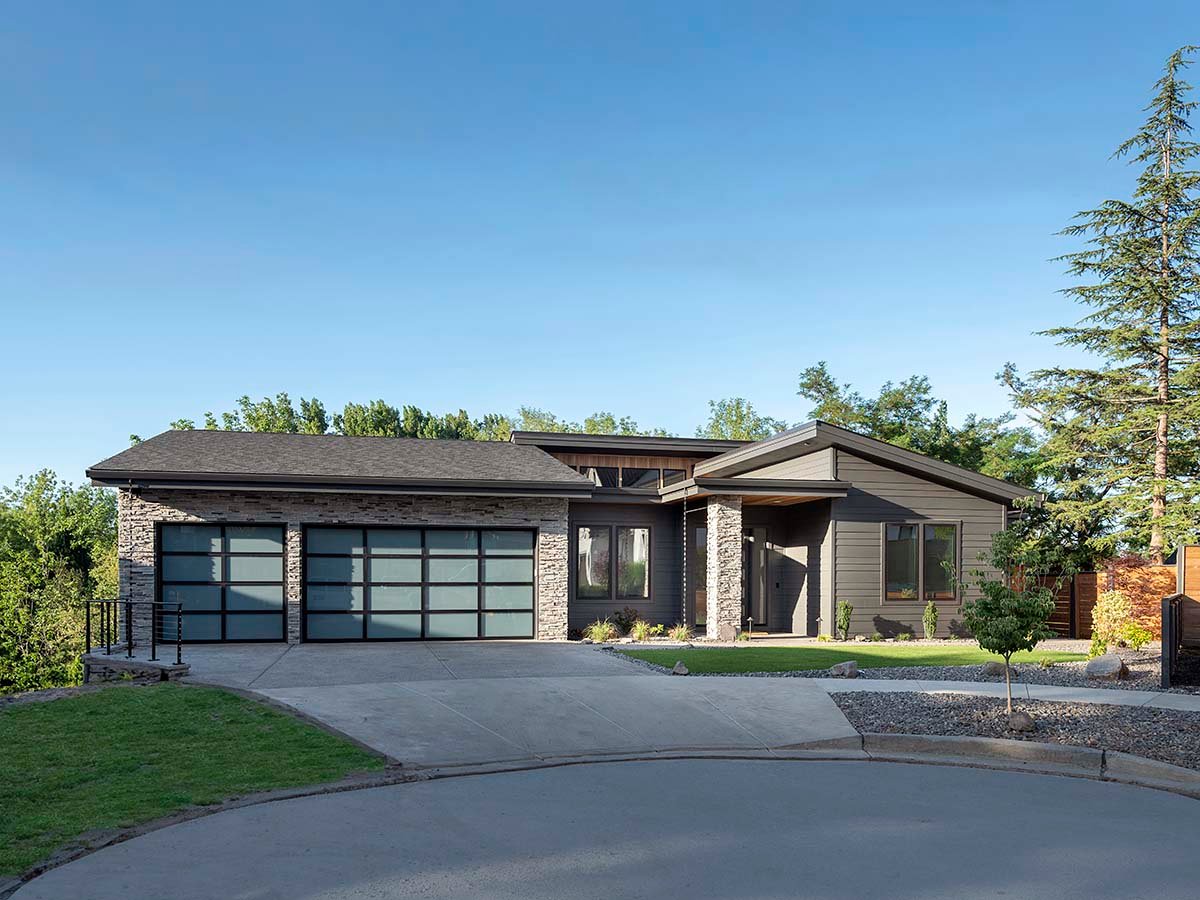

Photographs may show modified designs.
Elevation

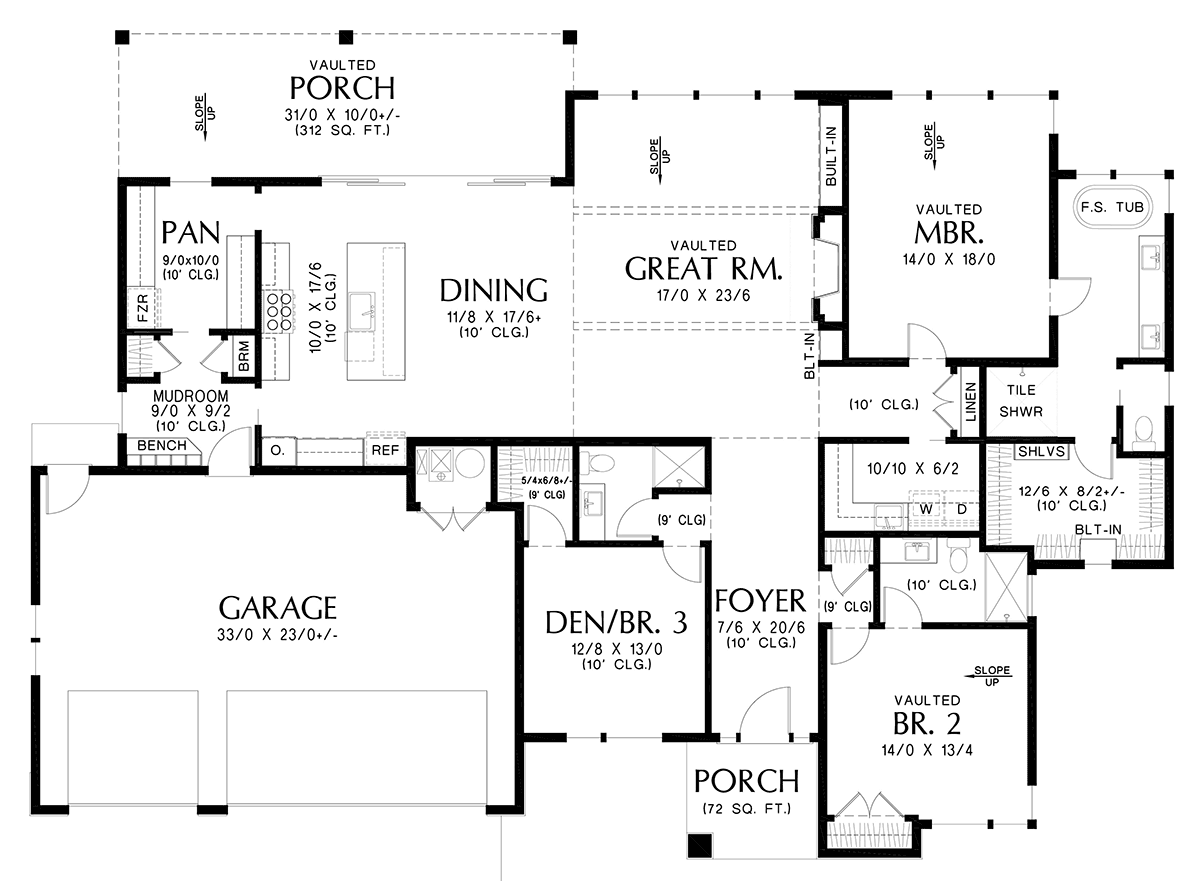

Level One
Quick Specs
2554 Total Living Area2554 Main Level
3 Bedrooms
3 Full Baths
3 Car Garage
79'0 W x 57'0 D
Quick Specs
2554 Total Living Area3 Bedrooms
3 Full Baths
3 Car Garage
79'0 W x 57'0 D

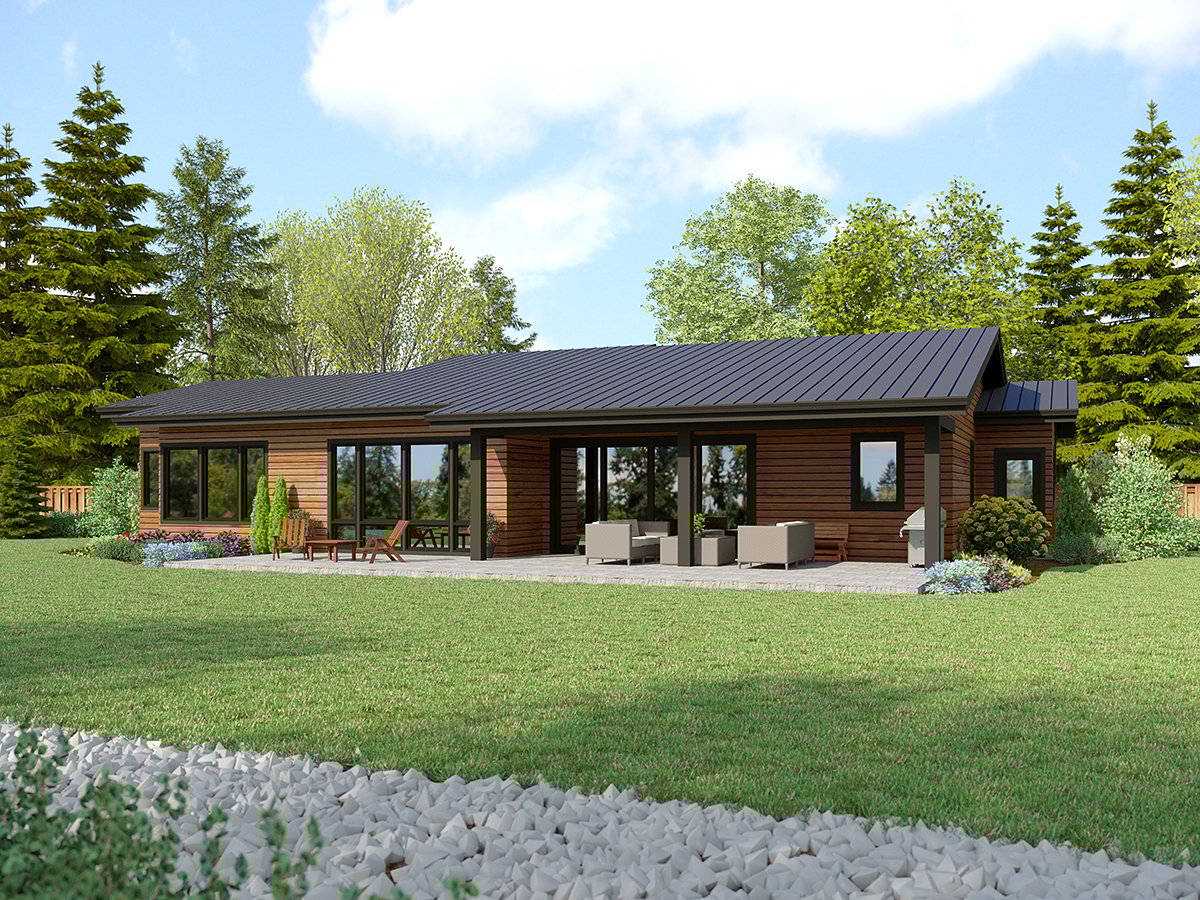

Rear Elevation
Photographs may show modified designs.
