House Plan 83686
sq ft
1497beds
3baths
2bays
2width
61'depth
42'
Quick Specs
1497 Total Living Area1497 Main Level
3 Bedrooms, 2 Full Baths
2 Car Garage
60'2" W x 41'10" D
Quick Pricing
PDF File: $950.005 Sets: $1,095.00
5 Sets plus PDF File: $1,250.00
Unlimited Use PDF: $1,495.00
CAD File: $1,650.00
Plan Pricing
Additional Notes
Basement Height: 8'Available Foundation Types:
Available Exterior Wall Types:
Prices subject to approval prior to fulfillment.Specifications
| Total Living Area: | 1497 sq ft |
| Main Living Area: | 1497 sq ft |
| Unfinished Basement Area: | 1497 sq ft |
| Garage Area: | 490 sq ft |
| Garage Type: | Attached |
| Garage Bays: | 2 |
| Foundation Types: | Basement Crawlspace - * $350.00 Slab - * $350.00 Stem Wall Slab - * $350.00 Walkout Basement - * $350.00 Total Living Area may increase with Basement Foundation option. |
| Exterior Walls: | 2x4 - * $250.00 2x6 |
| House Width: | 60'2" |
| House Depth: | 41'10" |
| Number of Stories: | 1 |
| Bedrooms: | 3 |
| Full Baths: | 2 |
| Max Ridge Height: | 17'0" from Front Door Floor Level |
| Primary Roof Pitch: | 8:12 |
| Roof Framing: | Truss |
| Porch: | 240 sq ft |
| Main Ceiling Height: | 9' |
Special Features:
Associated Styles:
Plan Description
Traditional Style, 1497 Sq Ft, 3 Bed, 2 Bath, 2 Car
Ranch, Traditional Style House Plan 83686 with 1497 Sq Ft, 3 Bed, 2 Bath, 2 Car GarageWhat's Included?
Pages
1. Notes

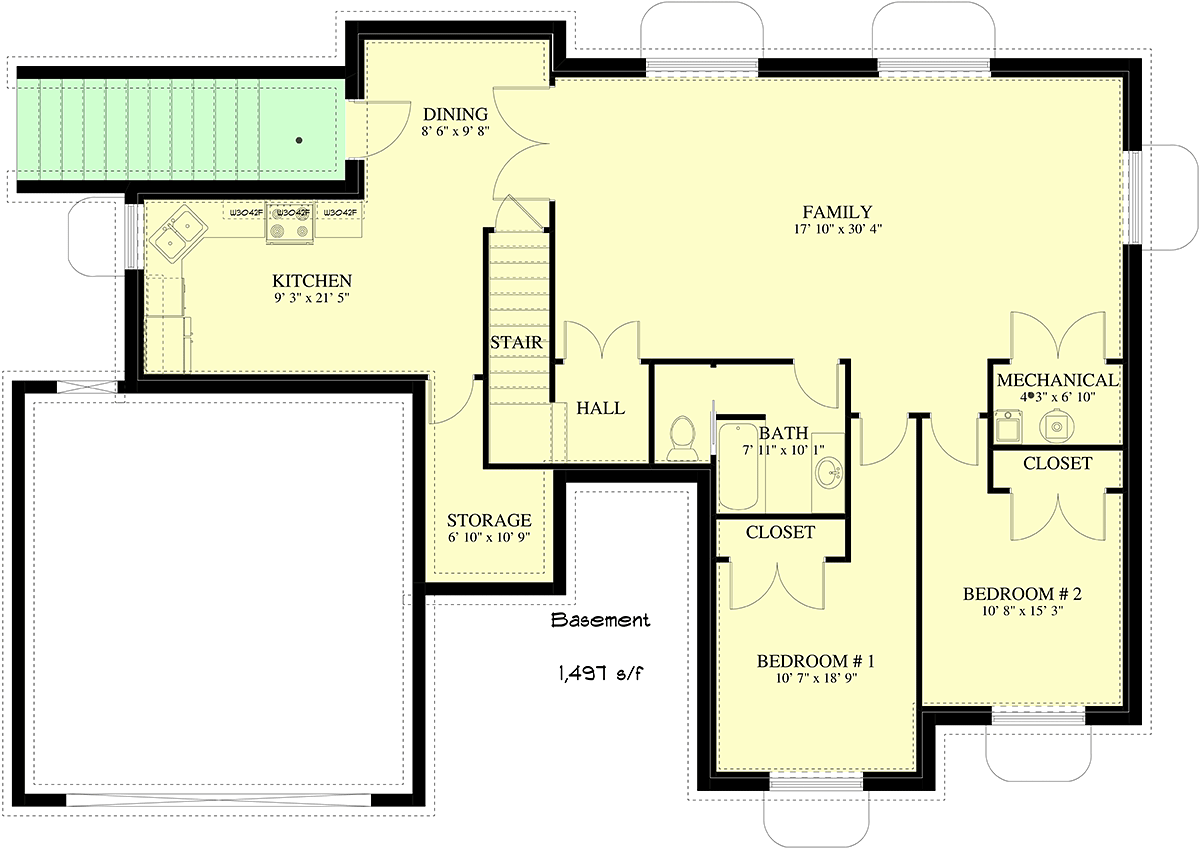

2. Basement/Foundation

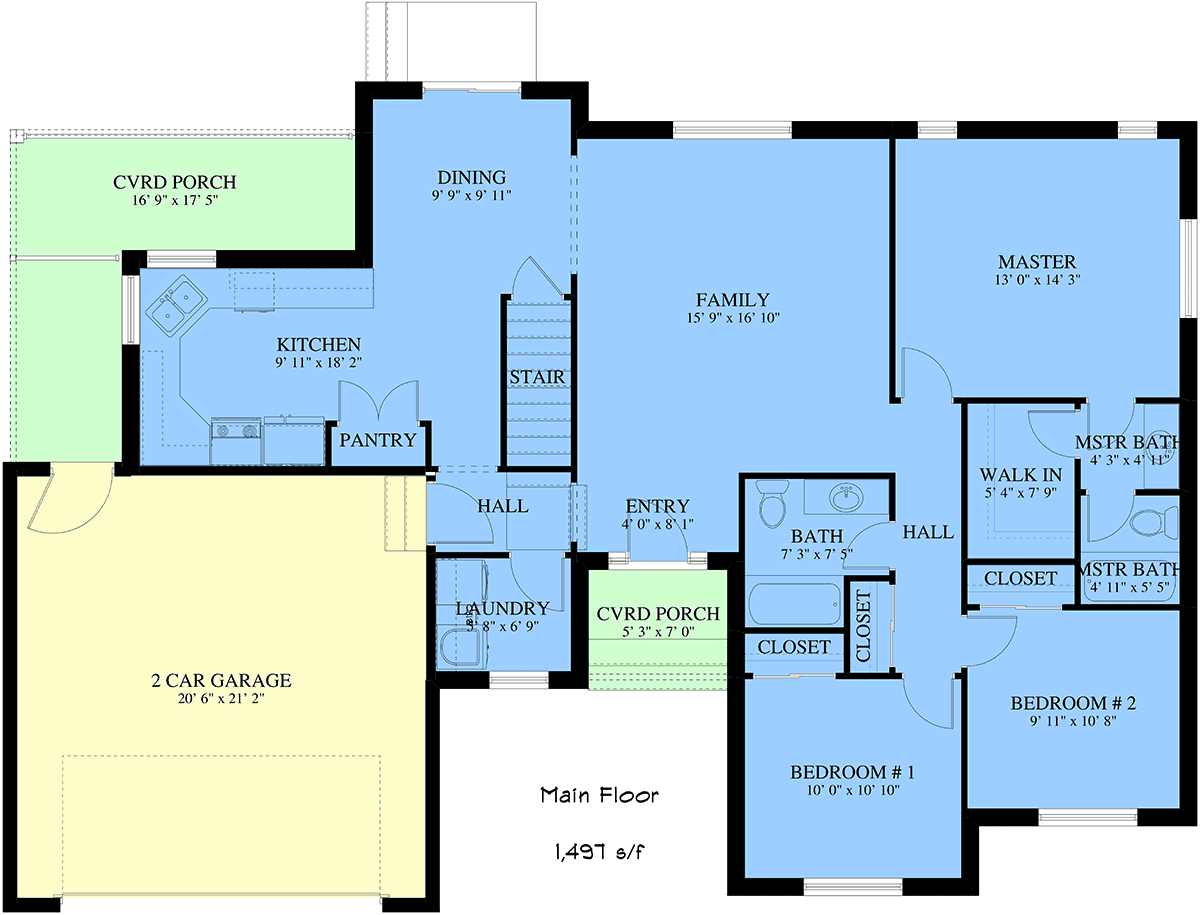

3. Main Floor
4. Upper Floor
5. Main Floor Framing
6. Upper Floor Framing
7. Roof Framing
8. Front/Rear Elevations
9. Left Right Elevations
10. Cross Sections
11. Basement Electrical
12. Main Floor Electrical
13, Upper Floor Electrical
14. Details
In the case of single story plans, Pages 4, 6, and 13 are eliminated.
Modifications
1. Complete this On-Line Request Form
2. Print, complete and fax this PDF Form to us at 1-800-675-4916.
3. Want to talk to an expert? Call us at 913-938-8097 (Canadian customers, please call 800-361-7526) to discuss modifications.
Note: - a sketch of the changes or the website floor plan marked up to reflect changes is a great way to convey the modifications in addition to a written list.
We Work Fast!
When you submit your ReDesign request, a designer will contact you within 24 business hours with a quote.
You can have your plan redesigned in as little as 14 - 21 days!
We look forward to hearing from you!
Start today planning for tomorrow!
Cost To Build
What will it cost to build your new home?
Let us help you find out!
Accurate. Fast. Trusted.
Construction Cost Estimates That Save You Time and Money.
$29.95 per plan
** Available for U.S. and Canada
With your 30-day online cost-to-build estimate you can start enjoying these benefits today.
- INSTANT RESULTS: Immediate turnaround—no need to wait days for a cost report.
- RELIABLE: Gain peace of mind and confidence that comes with a reliable cost estimate for your custom home.
- INTERACTIVE: Instantly see how costs change as you vary design options and quality levels of materials!
- REDUCE RISK: Minimize potential cost overruns by becoming empowered to make smart design decisions. Get estimates that save thousands in costly errors.
- PEACE OF MIND: Take the financial guesswork out of building your dream home.
- DETAILED COSTING: Detailed, data-backed estimates with +/-120 lines of costs / options for your project.
- EDITABLE COSTS: Edit the line-item labor & material price with the “Add/Deduct” field if you want to change a cost.
Home-Cost.com’s INSTANT™ Cost-To-Build Report also provides you these added features and capabilities:
Q & A
Ask the Designer any question you may have. NOTE: If you have a plan modification question, please click on the Plan Modifications tab above.
Common Q & A
A: Yes you can! Please click the "Modifications" tab above to get more information.
A: The national average for a house is running right at $125.00 per SF. You can get more detailed information by clicking the Cost-To-Build tab above. Sorry, but we cannot give cost estimates for garage, multifamily or project plans.
