House Plan 86572

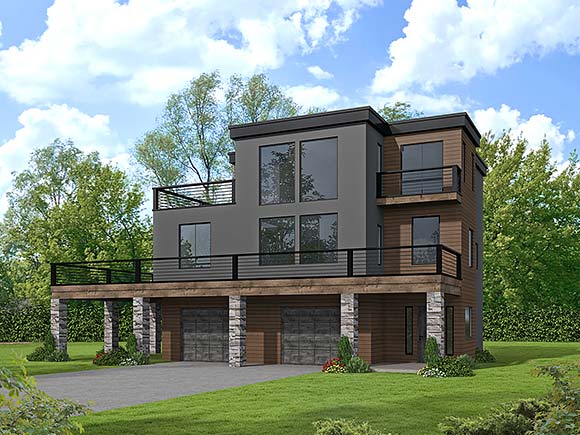

Southwest Style House Plan 86572 with 2142 Sq Ft, 3 Bed, 3 Bath, 2 Car Garage
sq ft
2142beds
3baths
3bays
2width
40'depth
36'
Click Any Image For Gallery
Plan Pricing
Need Printed Sets?
It seems that this plan only offers electronic (PDF or CAD) files. If you also need Printed Sets, please call 1-800-482-0464, x403 to discuss possible options.Additional Notes
Lower Level - 9'Available Foundation Types:
Available Exterior Wall Types:
Prices subject to approval prior to fulfillment.Specifications
| Total Living Area: | 2142 sq ft |

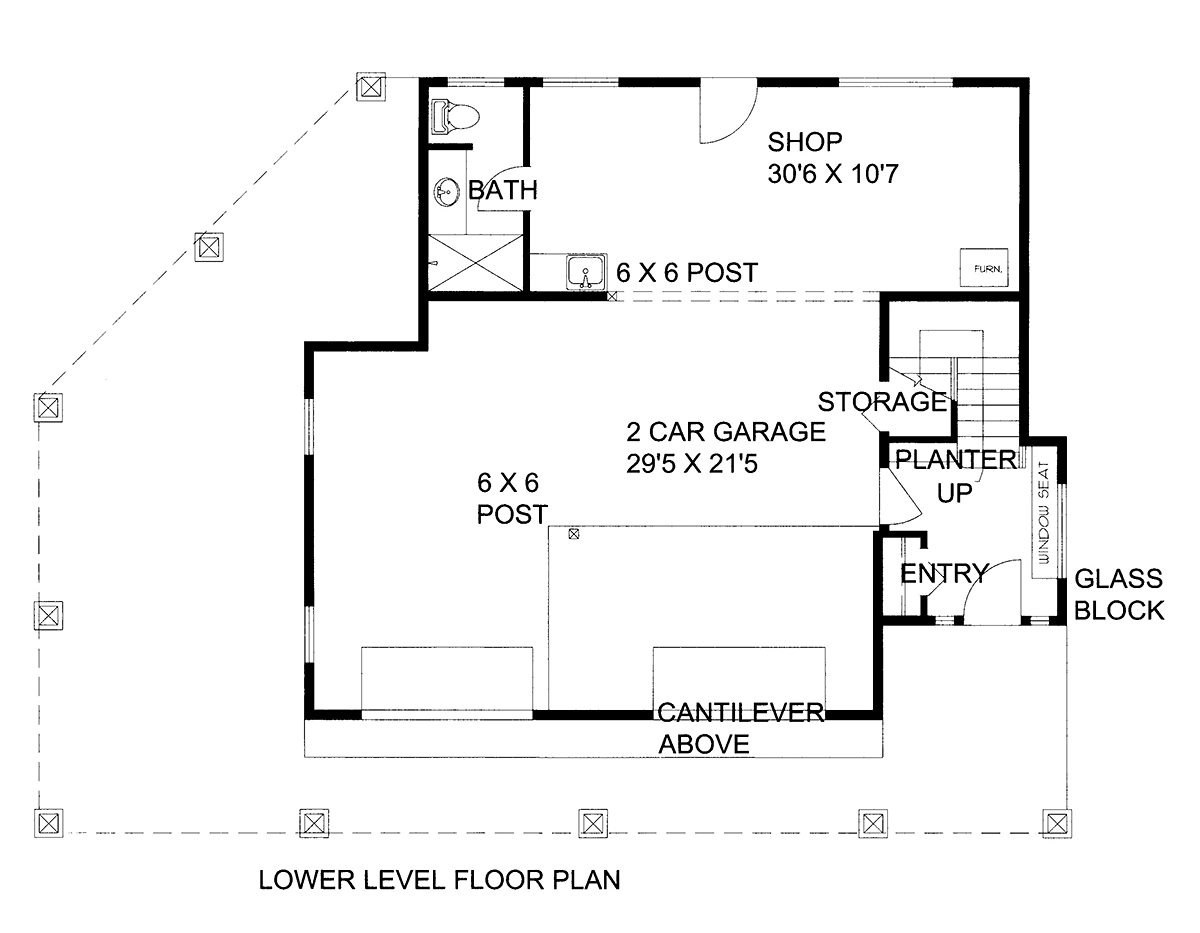

| Lower Living Area: | 98 sq ft |
| Main Living Area: | 1205 sq ft |

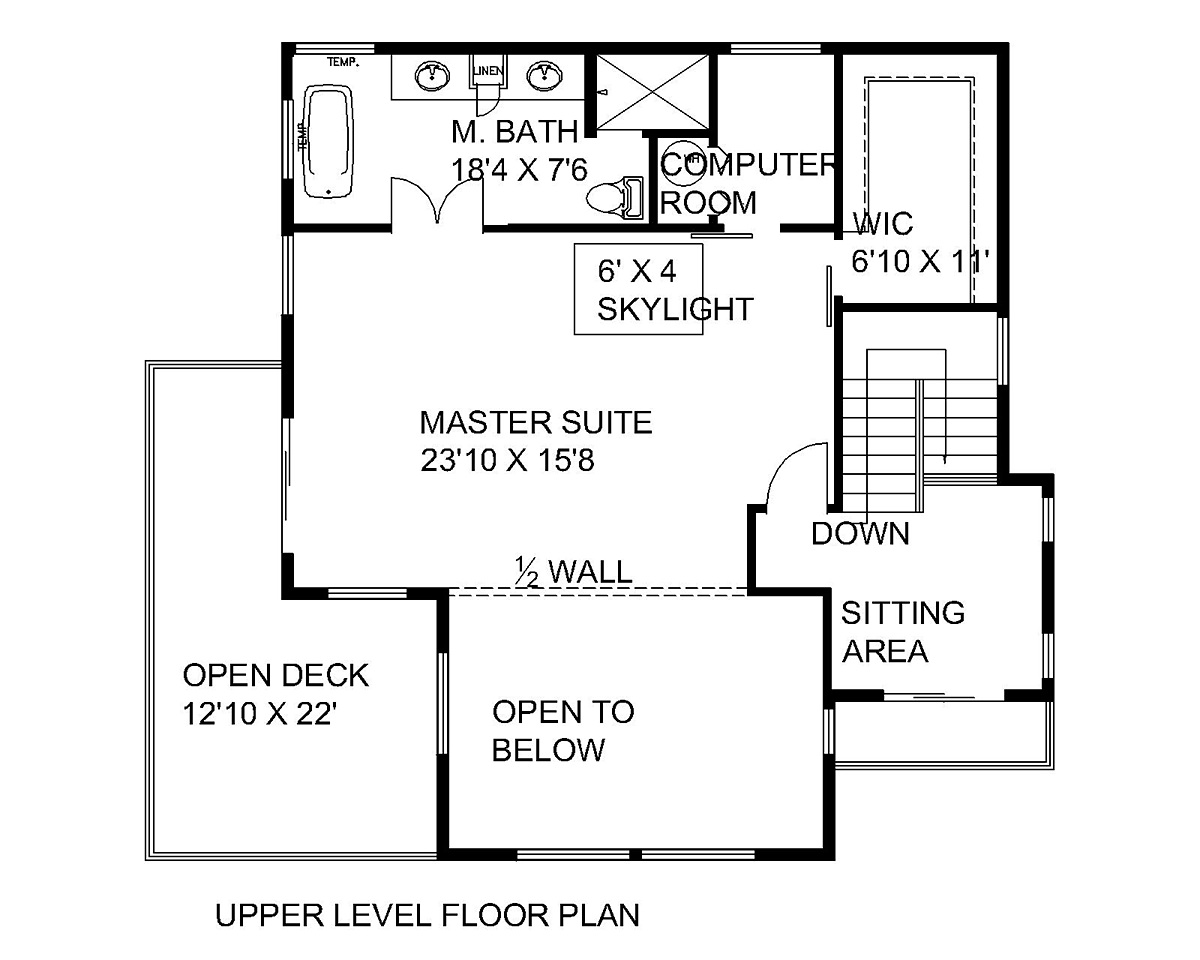

| Upper Living Area: | 839 sq ft |
| Garage Area: | 1107 sq ft |
| Garage Type: | Drive Under |
| Garage Bays: | 2 |
| Foundation Types: | Slab |
| Exterior Walls: | 2x6 |
| House Width: | 40' |
| House Depth: | 36' |
| Number of Stories: | 3 |
| Bedrooms: | 3 |
| Full Baths: | 3 |
| Max Ridge Height: | 30' from Front Door Floor Level |
| Primary Roof Pitch: | 0 |
| Roof Framing: | Truss |
| Porch: | 1076 sq ft |
| FirePlace: | Yes |
| Main Ceiling Height: | 9' |
| Upper Ceiling Height: | 9' |
| Vaulted Ceiling: | Yes |
Plan Description
Southwest Style, 2142 Sq Ft, 3 Bed, 3 Bath, 2 Car
Southwest Style House Plan 86572 with 2142 Sq Ft, 3 Bed, 3 Bath, 2 Car GarageWhat's Included?

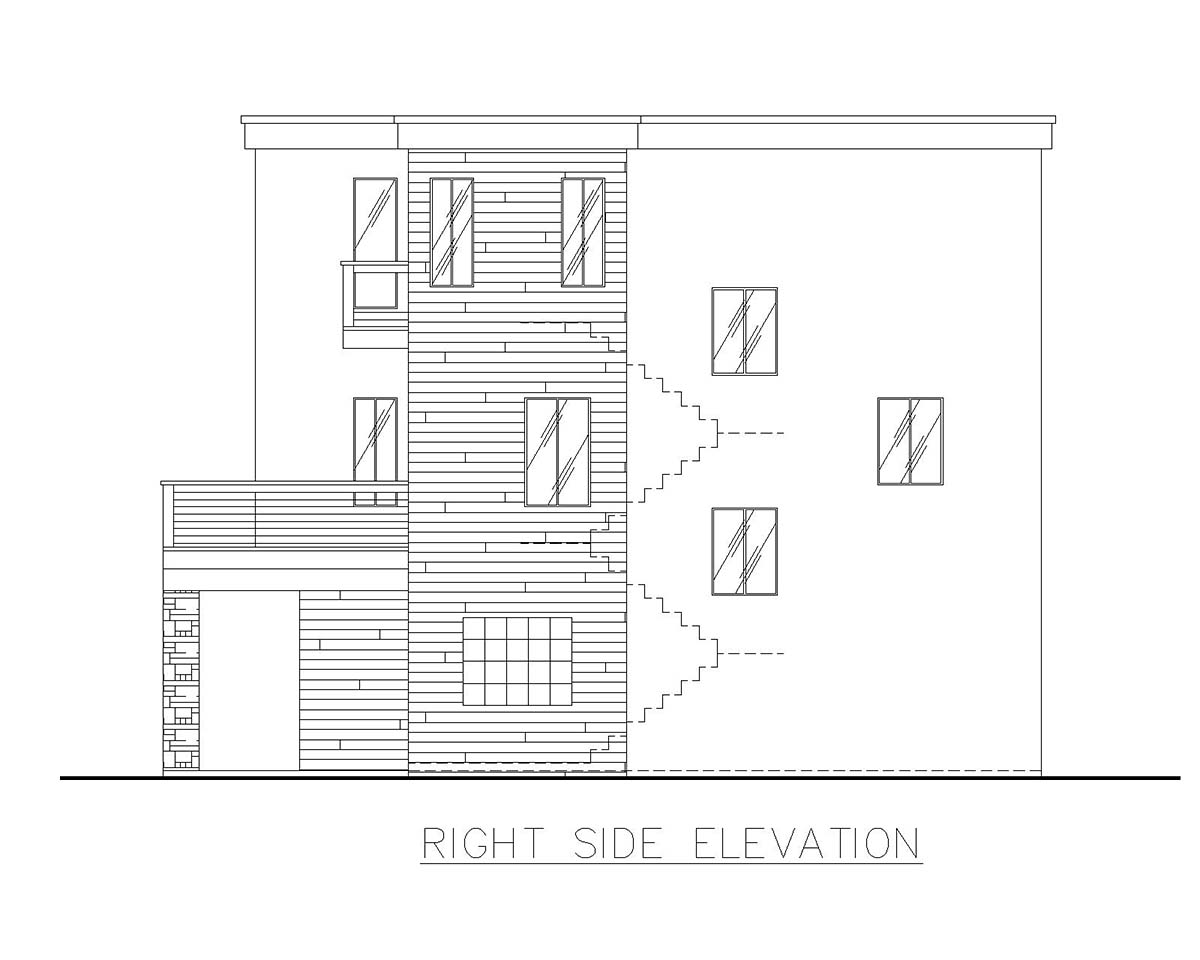

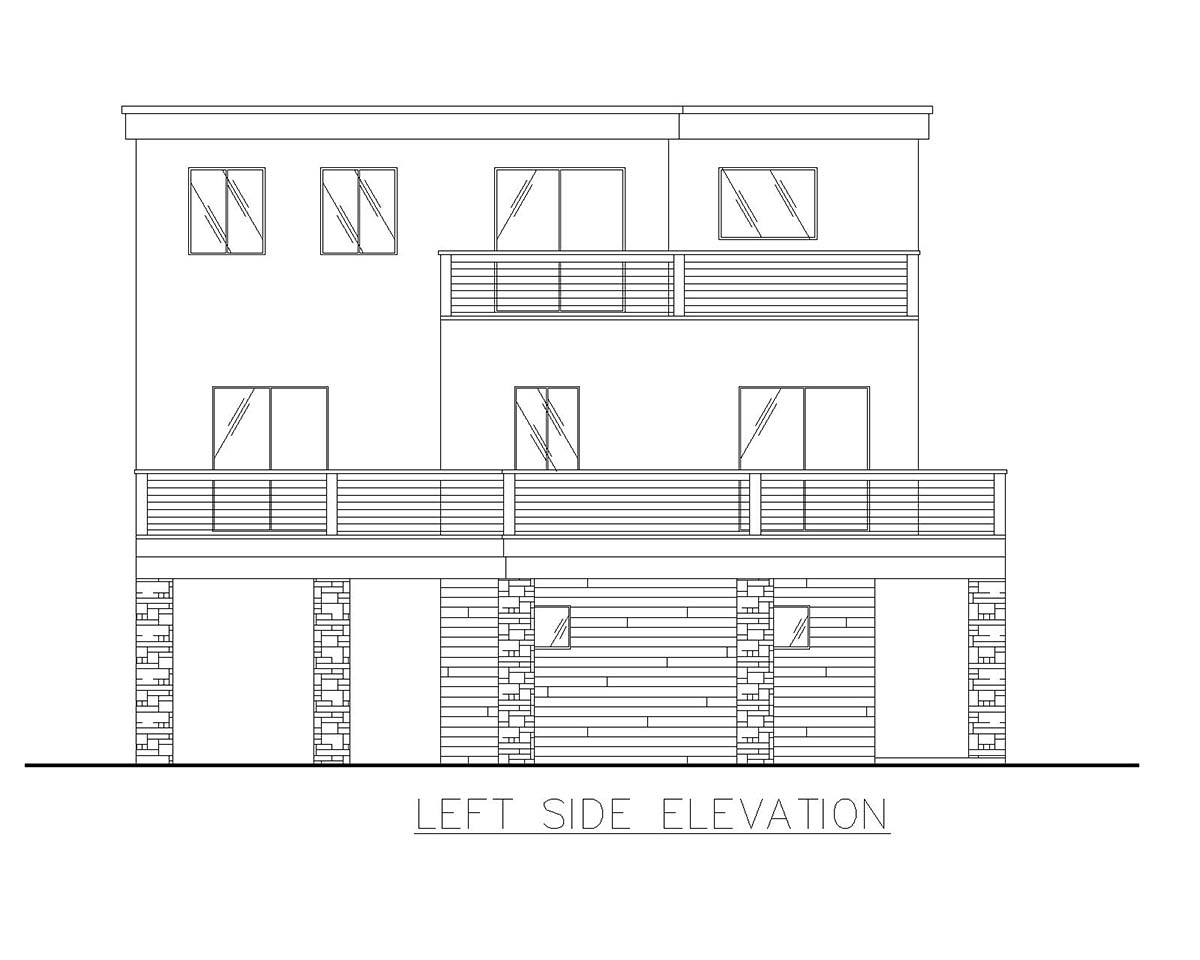

Detailed Elevations
Detailed Floor Plans
Foundation Plan
Floor Framing Plan
Roof framing Plan
Cross Sections
Electrical Plans
General Notes to cover entire project
Joist size, beam size, connections and hardware are shown. Materials list is not.
