Multi-Family Plan 43706

• 1 Set: $1,300.00 **
• 5 Sets plus PDF File: $1,925.00
• PDF File Unlimited Build: $3,250.00
  Unlimited Build License issued on PDF File Unlimited Build orders.
• CAD File Unlimited Build: $3,575.00
  Unlimited Build License issued on CAD File Unlimited Build orders.

Need A Materials List?

It seems that this plan does not offer a stock materials list, but we can make one for you. Please call 1-800-482-0464, x403 to discuss further.
• Right Reading Reverse: $410.00
  All sets will be Readable Reverse copies. Turn around time is usually 3 to 5 business days.
• Additional License Fee: $1,300.00
  Provides you with one additional license to build (a total of two builds).
• Additional Sets: $65.00

** 1 Set order does not include a License-To-Build. For bidding purposes only. Customer can upgrade order within 90 days.

Available Foundation Types:

• Slab : No Additional Fee

Available Exterior Wall Types:

• 2x4: $475.00
  (Please call for drawing time.)
• 2x6: No Additional Fee

Prices subject to approval prior to fulfillment.

• Shipping Policy

Total Living Area:	2756 sq ft
Main Living Area:	1896 sq ft
Upper Living Area:	860 sq ft
Garage Area:	818 sq ft
Garage Type:	Attached
Garage Bays:	4
Foundation Types:	Slab
Exterior Walls:	2x4 - * $475.00 2x6
House Width:	76'0
House Depth:	44'0
Number of Stories:	2
Bedrooms:	6
Full Baths:	4
Half Baths:	2
Max Ridge Height:	24'3 from Front Door Floor Level
Primary Roof Pitch:	6:12
Roof Load:	25 psf
Roof Framing:	Truss and/or Stick
Main Ceiling Height:	9'
Upper Ceiling Height:	9'

* May require additional drawing time.

Special Features:

• Deck or Patio
• Front Porch
• Open Floor Plan

Well-appointed Duplex Plan Offers Privacy and Modern Floor Plans in Each Unit.

Multi-Family Plan 43706 offers privacy and modern floor plans in each unit. From the street, the country charm catches your attention along with the 2 car garage included with each unit. Cozy covered porches frame the front door, providing shelter from the elements for visiting family and friends. Landlords will choose this duplex plan because the materials are simple. For example, choose basic vinyl siding for easy maintenance. Plus, these materials are easy to come by during the construction process.

Multi-Family Plan with Open Living Space

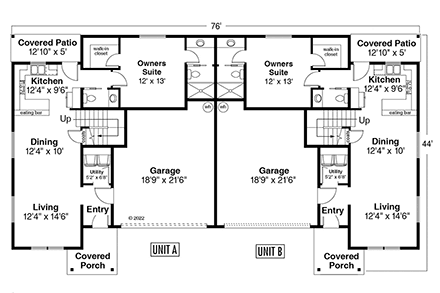

Inside, the entry offers privacy to the main living area. Right off the entry is access to the attached 2 car garage, and straight ahead is the laundry room. If the kids just got done with a muddy soccer game, they can leave dirty uniforms right there in the laundry room. Parents will appreciate these small details because it keeps the rest of the house more clean. A cased opening to the left opens to the great room style living area where dining, kitchen, and living room are completely open to each other.

Entertaining is easy because there is no separation between the host and the guests when meals are being prepared. Enjoy sitting down for a meal at the dining table which is located right in the middle of all the action. Easily move platters of food from the kitchen to the table because they are in such close proximity. If the kids are playing video games in the living room, that's no problem because you don't have to hunt them down when it's time to sit down and eat.

Duplex Floor Plan With 3 Bedrooms Per Unit

Off the kitchen a short hallway leads to the main floor owners' suite which boasts a walk-in closet and private bathroom. The owner's bedroom is 12' wide by 13' deep, and we like how the shower and toilet is separated from the sink by a pocket door. This is a nice little feature to give the occupants more privacy if desired. Right outside of the master suite, you will find a powder room to serve your guests, and there is a back door to the covered patio. Set up a couple of chairs and enjoy the peaceful sound of the crickets in the evening.

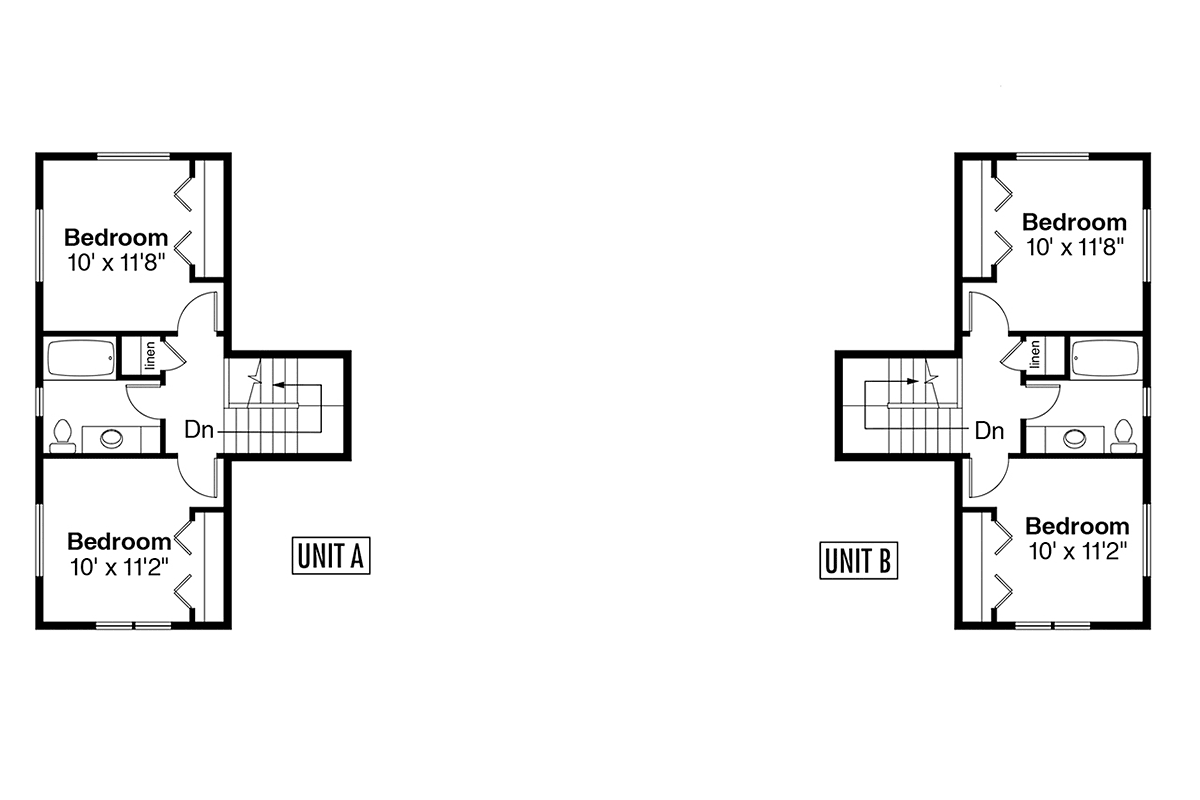

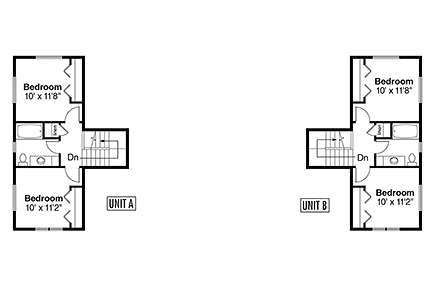

Each unit offers a two story floor plan where two additional bedrooms are located along with a full bathroom. The kids not only have their own bedrooms, but they also have their own level of the house! There is a linen closet outside of the bathroom so you have a place to store extra towels.

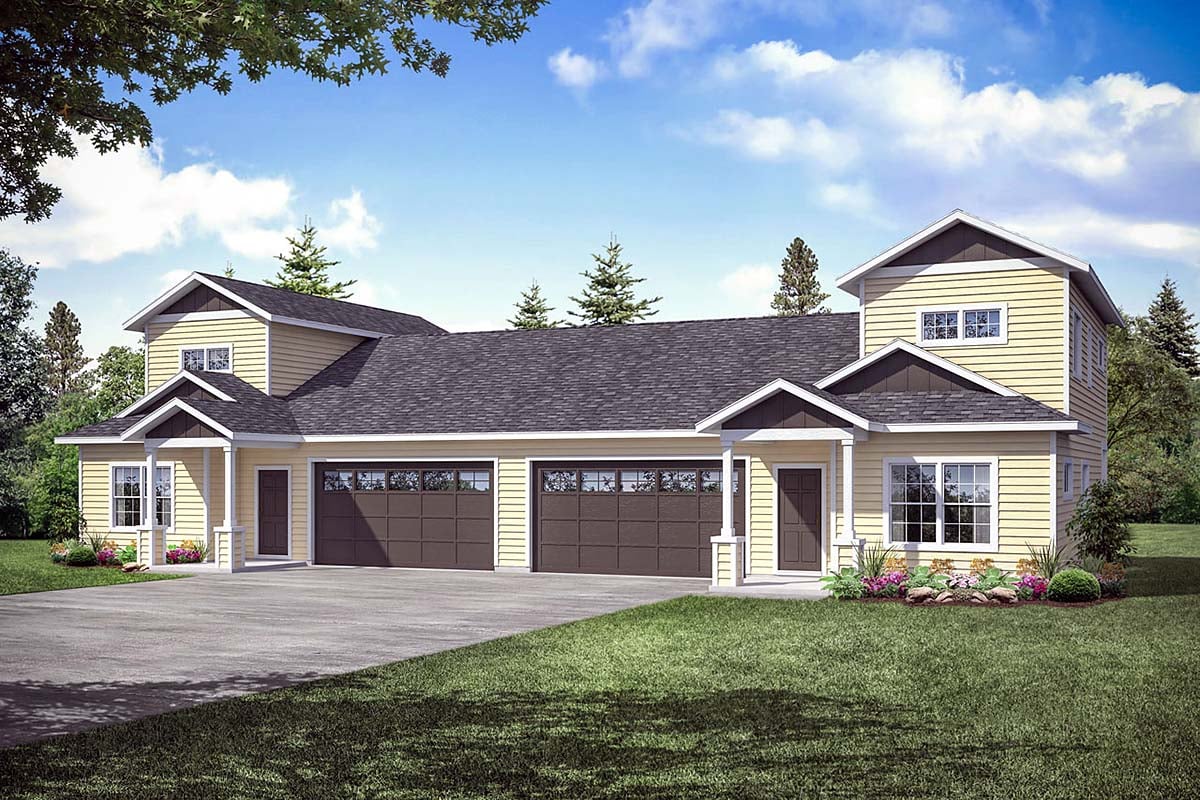

Artist's Rendering: An artist's drawing of the home, usually viewed from the front.

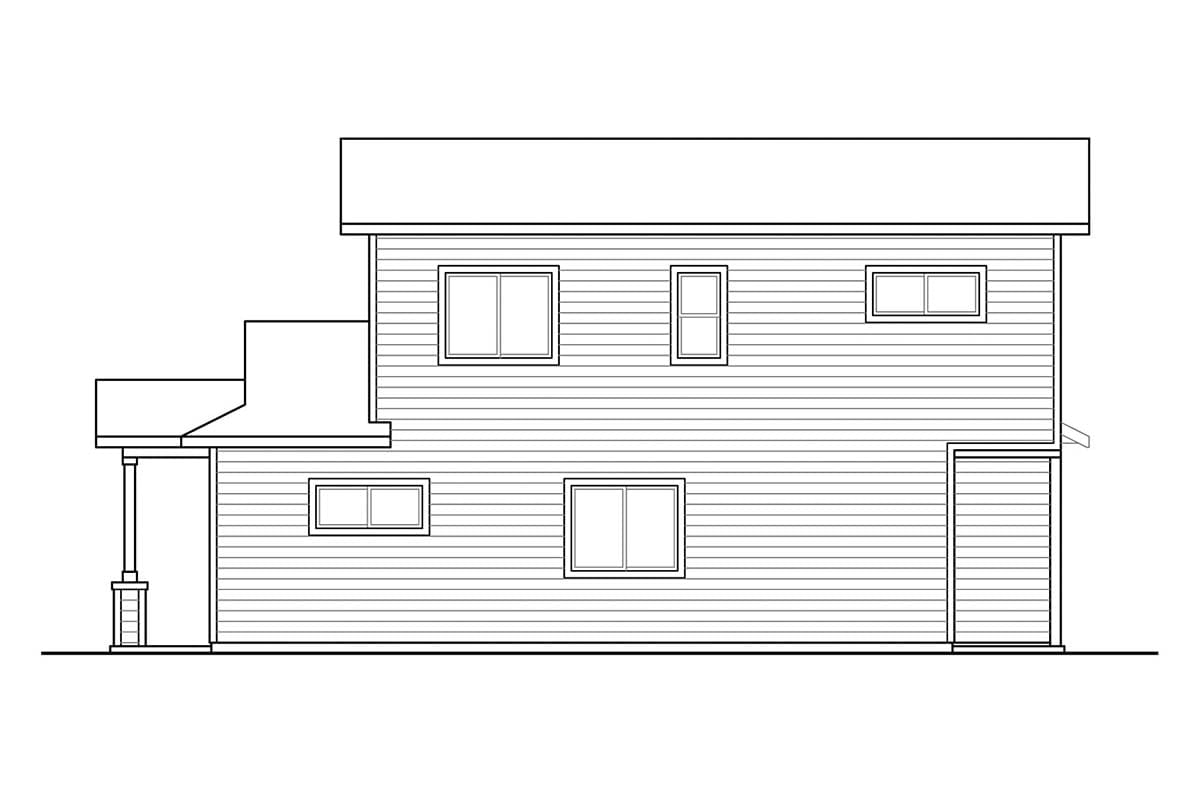

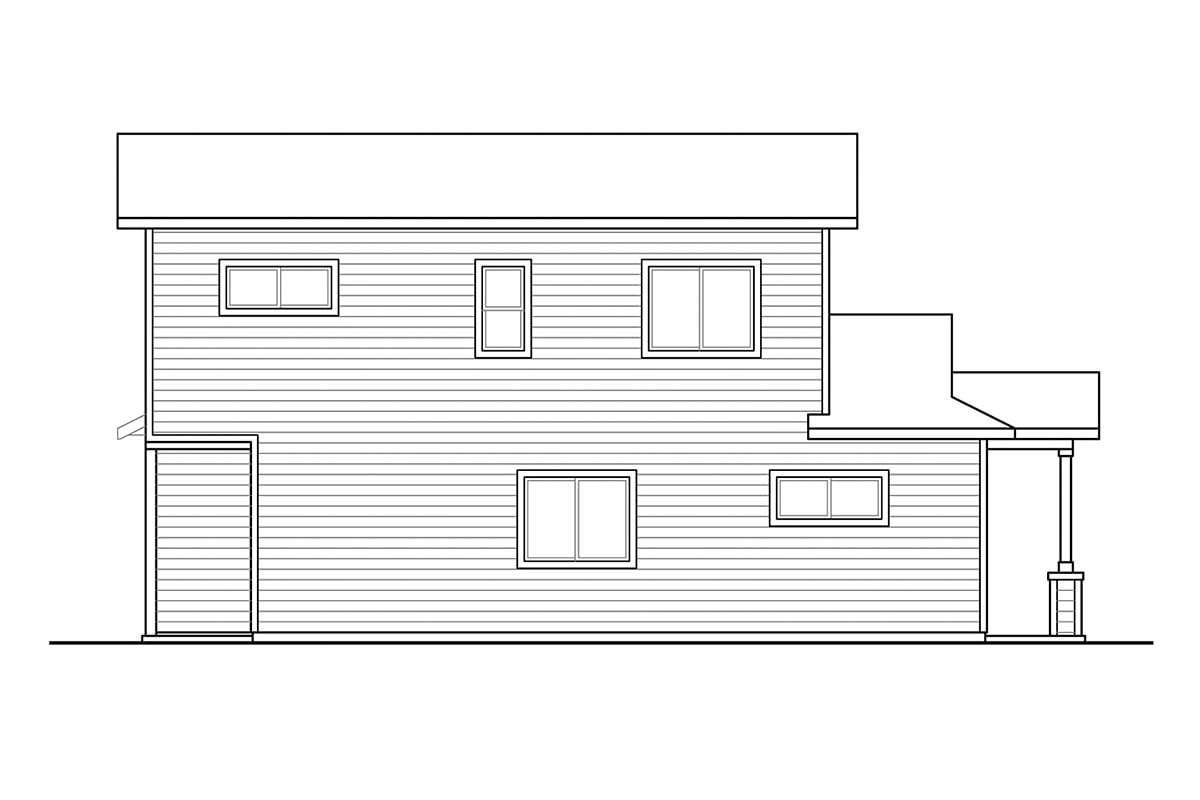

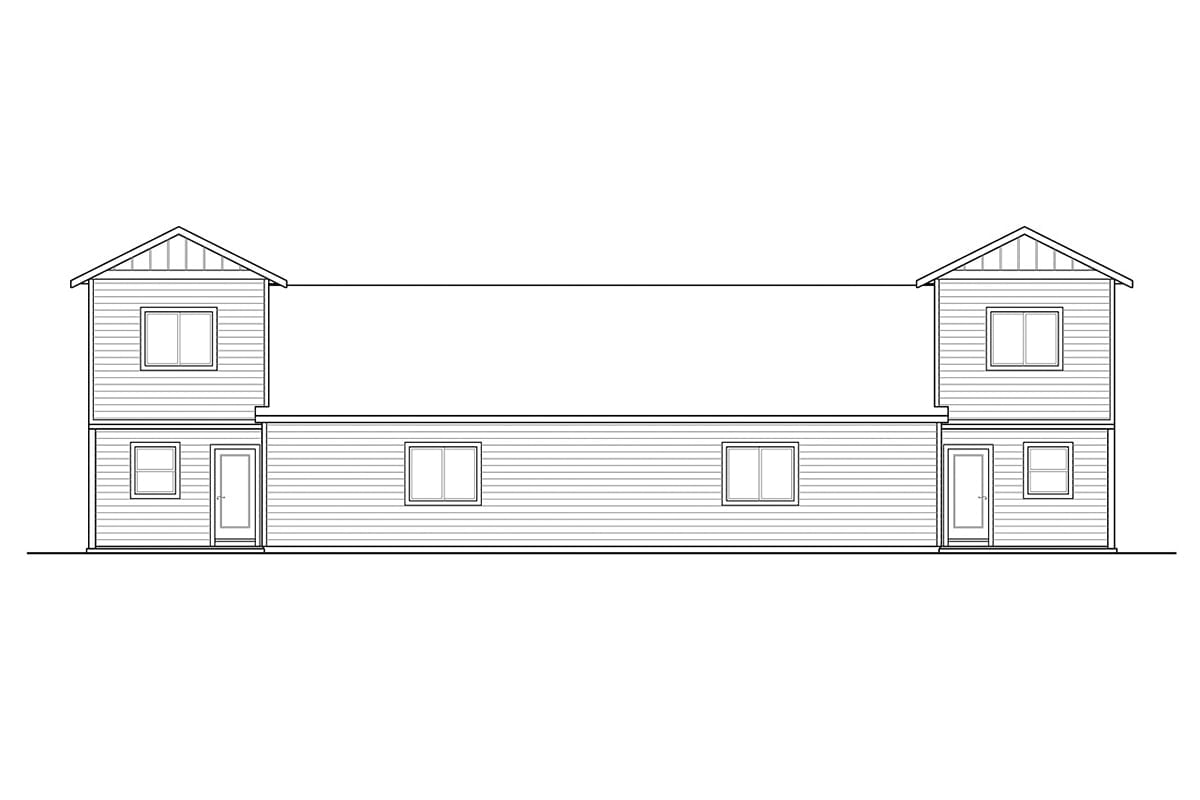

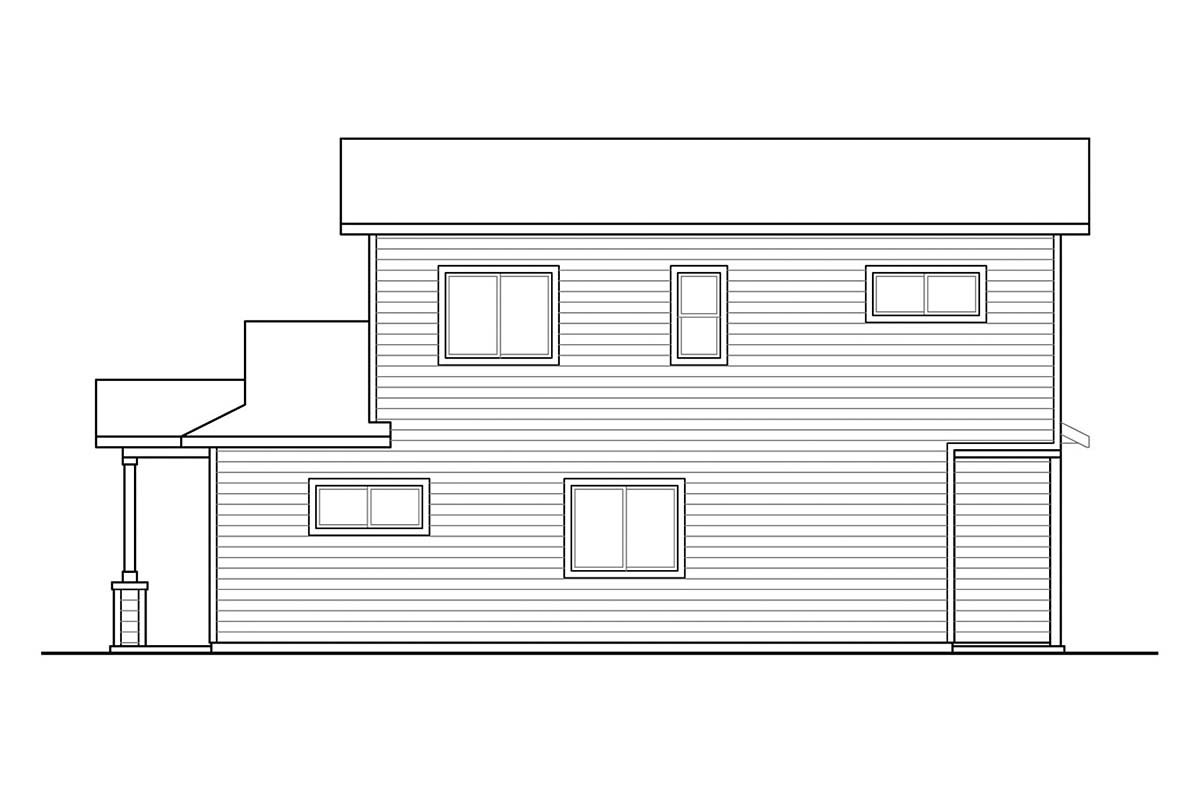

Elevations: Drawings which show the front, sides, and rear of the home, including exterior materials, trim sizes, roof pitches, etc.

Main Floor Plan: Shows the placement and dimensions of all walls, doors, and windows. Includes the location of beams, ceiling heights, pertinent interior elevations, etc.

Second Floor Plan (if any): Shows the second floor in the same detail as the main floor. Includes second floor framing and details.

Foundation Plan: Shows the location of all concrete footings, floor beams, first floor framing, and foundation details.

Basement Plan (if any): Included if the plan has a basement alternative. Shows all basement details. Plans which include alternate basement stair location or main basement stair will include a basement plan. Other plans can be modified to include a basement foundation.

Roof Framing Plan: Shows roof outlines, conventional framing and/or trusses, beams, roof framing details, etc.

Details: Drawings which show specific details such as fireplaces, stairways, decks, etc.

Section: A drawing of a cross-section of the home. Shows support members, exterior and interior materials, insulation, and foundation.

Electrical Plan: A schematic layout of all lighting and electrical outlets.
