Garage-Living Plan 60099

• PDF File: $1,595.00
• 5 Sets: $1,495.00
• CAD File: $1,895.00
  Single Build License issued on CAD File orders.

Need A Materials List?

It seems that this plan does not offer a stock materials list, but we can make one for you. Please call 1-800-482-0464, x403 to discuss further.
• Right Reading Reverse: $437.50
  All sets will be Readable Reverse copies. Turn around time is usually 3 to 5 business days.

Designer does not allow modifications be made to PDF. Please order CAD file for modifications.

Available Foundation Types:

• Slab : No Additional Fee

Available Exterior Wall Types:

• 2x6: No Additional Fee

Prices subject to approval prior to fulfillment.

• Shipping Policy

Total Living Area:	1339 sq ft
Main Living Area:	130 sq ft
Upper Living Area:	1209 sq ft
Garage Area:	1267 sq ft
Garage Type:	Attached
Garage Bays:	3
Foundation Types:	Slab
Exterior Walls:	2x6
House Width:	48'0
House Depth:	32'0
Number of Stories:	2
Bedrooms:	2
Full Baths:	1
Half Baths:	1
Max Ridge Height:	31'10 from Front Door Floor Level
Primary Roof Pitch:	12:12
Roof Framing:	Stick
Main Ceiling Height:	10'
Upper Ceiling Height:	9'

Special Features:

• Deck or Patio
• Entertaining Space
• Jack and Jill Bathroom
• Open Floor Plan
• Pantry
• Storage Space

2 Bed Farmhouse Style Garage Apartment Plan

Farmhouse Style Garage Apartment Plan 60099 has 3 bays for parking on the ground floor and a 2 bedroom apartment upstairs. In total, the garage area is 1,267 square feet, and the living area is 1,339 square feet. The exterior is composed of an attractive combination of cedar shingle siding and stone paired with a red metal roof. Special Farmhouse Style details include a country cupola, decorated gable, and board and batten shutters.

Garage Apartment Plan With 3 Car Parking

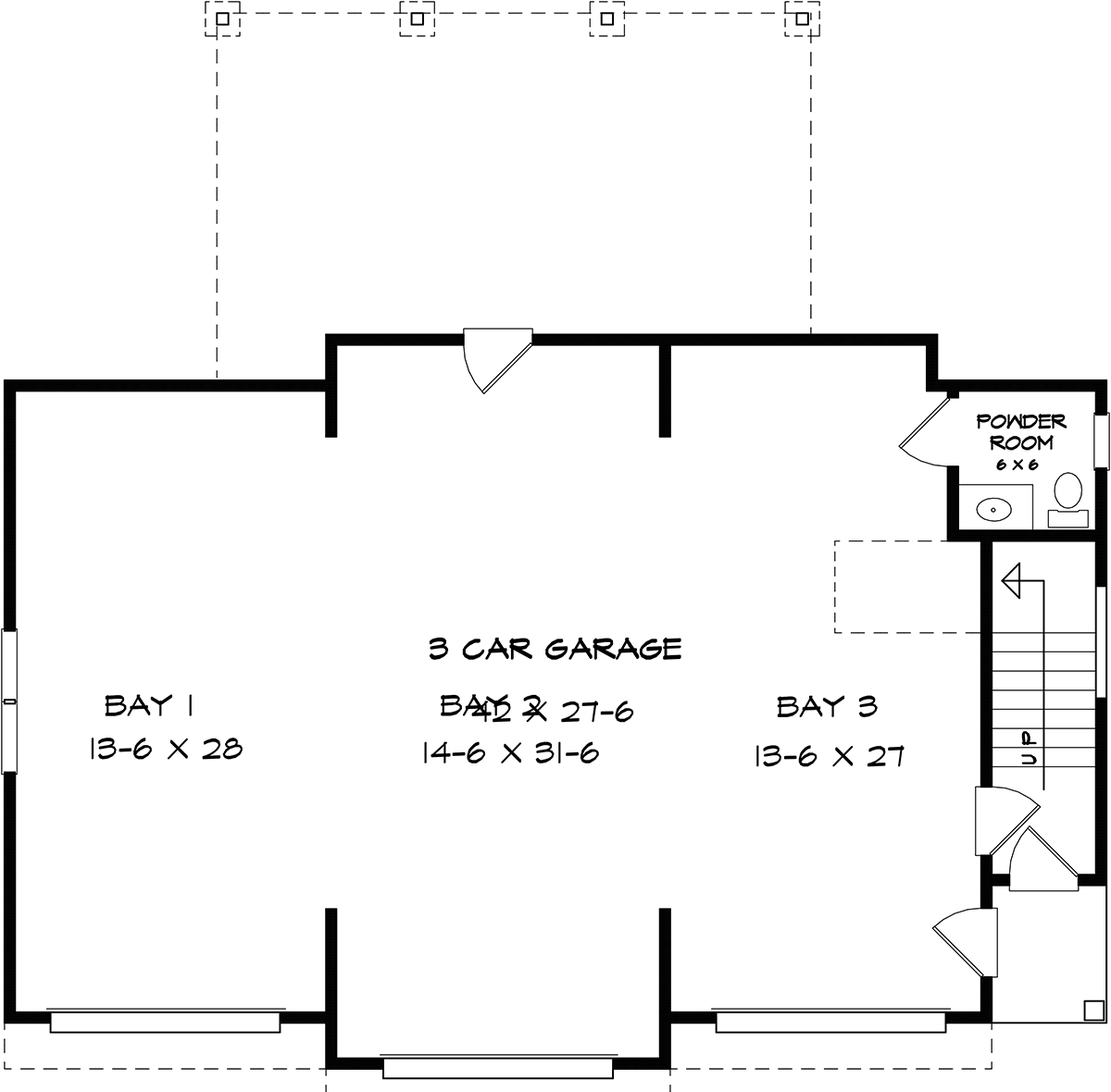

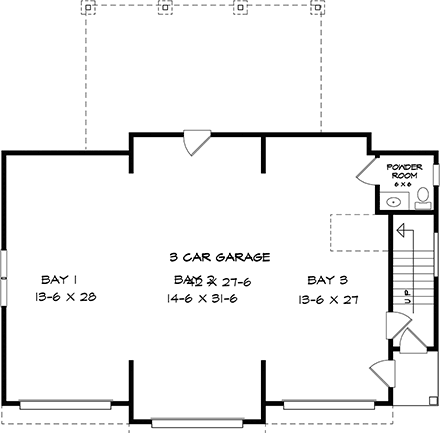

The ground floor has a small entry porch where you will be protected from the rain while you unlock the door. From here, you can take the man door into the 3 bay garage parking area. Bay 1 measures 13'6 wide by 28' deep for your smaller vehicle. The middle parking area measures 14'6 wide by 31'6 deep to accommodate a larger vehicle, or you can use the extra space for storage. Bay 3 measures 13'6 wide by 27' deep. For convenience, a half bathroom is available in the back corner of the garage space.

This large carriage house plan has several uses and advantages. Firstly, if you don't need parking for 3 vehicles, there is always the option for storage. For example, line the back wall with cabinets and peg board to display and store sporting equipment and a wide variety of tools. Secondly, garage living space is an excellent investment. Rent out the upper-level apartment for extra income. Thirdly, this 3 car garage apartment adds significant value to your property when it comes to re-sale. Buyers will snap up this property when they consider it's value.

Carriage House Living Space

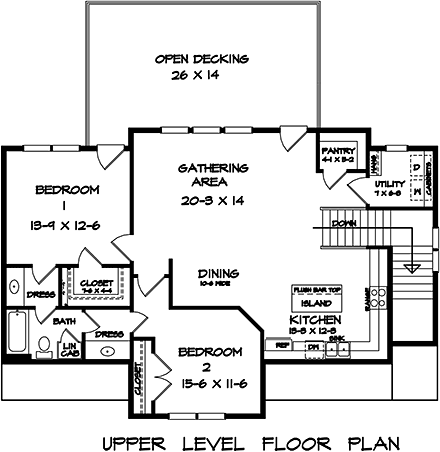

Garage Apartment Plan 60099 has a spacious and functional living space. The gathering area, kitchen, and dining are all part of the open concept living space. Traffic flows gracefully around the island in the kitchen, and it's easy to serve breakfast at the eating bar. Although it's an apartment, there is plenty of elbow room even when guests come over. Your tenants will love the expansive open deck on the back of the building. It's a private space to enjoy the outdoors.

Bedroom 1 functions as the master bedroom, and occupants will be happy with the good-sized walk-in closet. There is only one bathroom upstairs, but it functions just fine because it's a Jack and Jill bath. Each bedroom has its own sink for basic tasks, and the private area with tub and toilet is shared. Remember, there is always the main-level powder room available for emergencies.

In addition, there is a walk-in pantry and a good-sized laundry room off the living space. In conclusion, everything you need in a garage apartment is included in this lovely Farmhouse Style design.

These plans agree with basic FHA/VA regulations, and meet (CABO) one and two family dwelling code. Check with your builder regarding local codes that may vary. Minor alterations can be made by your local builder without drawing new plans. The owner and contractor assume the responsibility to meet all local codes.

Square footage calculations are based on total heated space only and will NOT include garages, porches or exterior storage areas. NOTE: Thses plans will include ALL of the following:

FOUNDATION PLAN-On many of our plans we offer you options on the type of foundation you prefer. The available options for each plan are shown on the page with the plans.

FLOOR PLAN-Included with your plans will be a detailed floor plan, 1/4 inch scale, including location of lights, receptacles, switches and plumbing fixtures. Window and door sizes are noted.

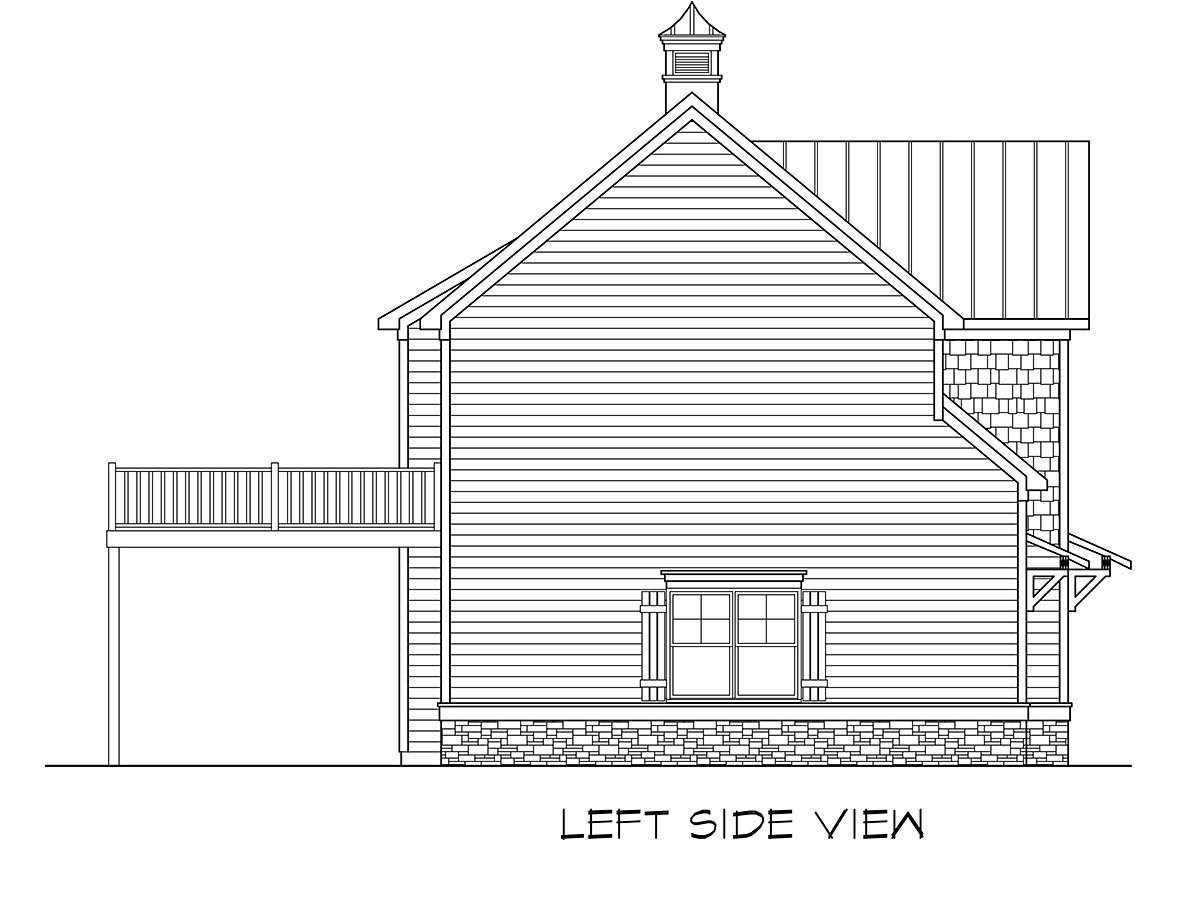

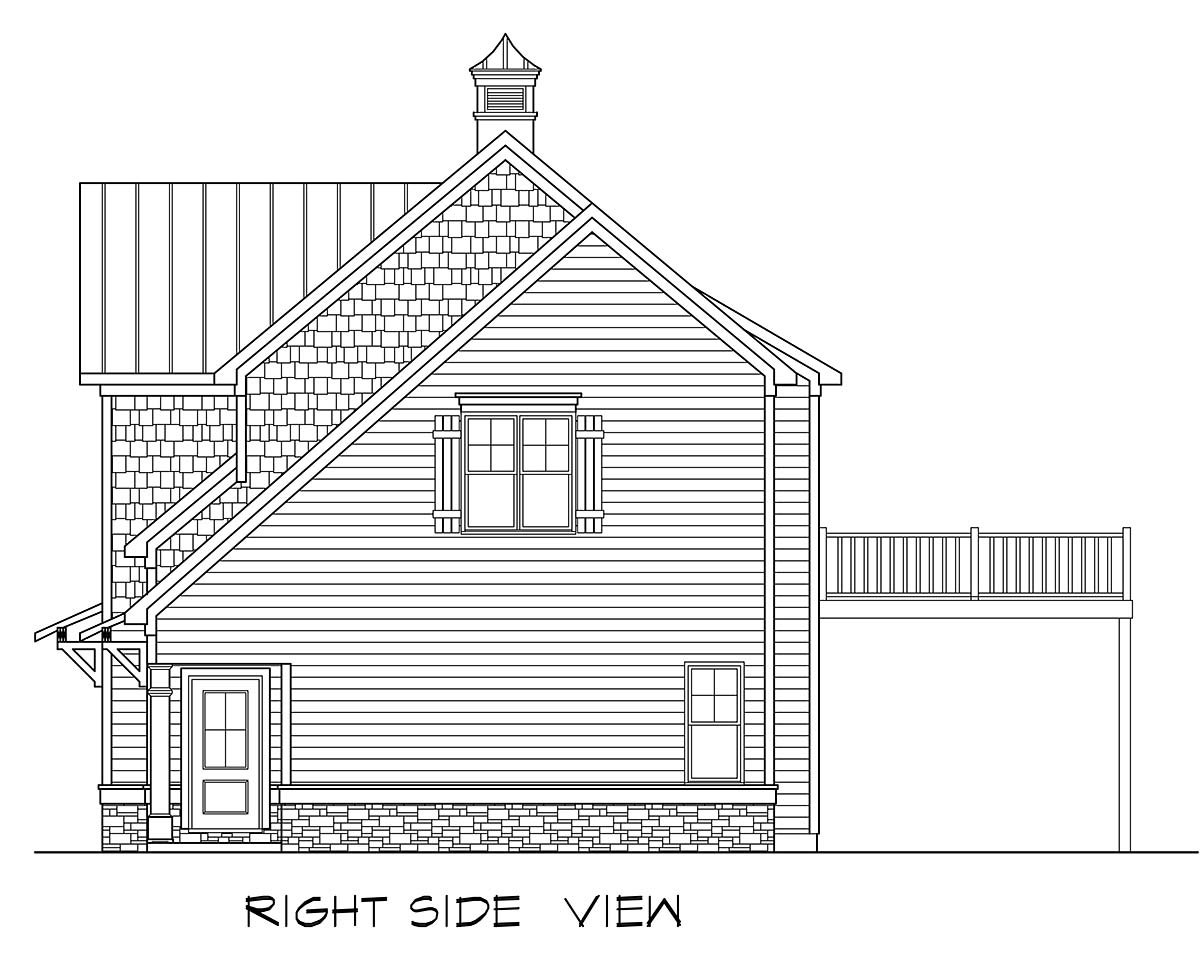

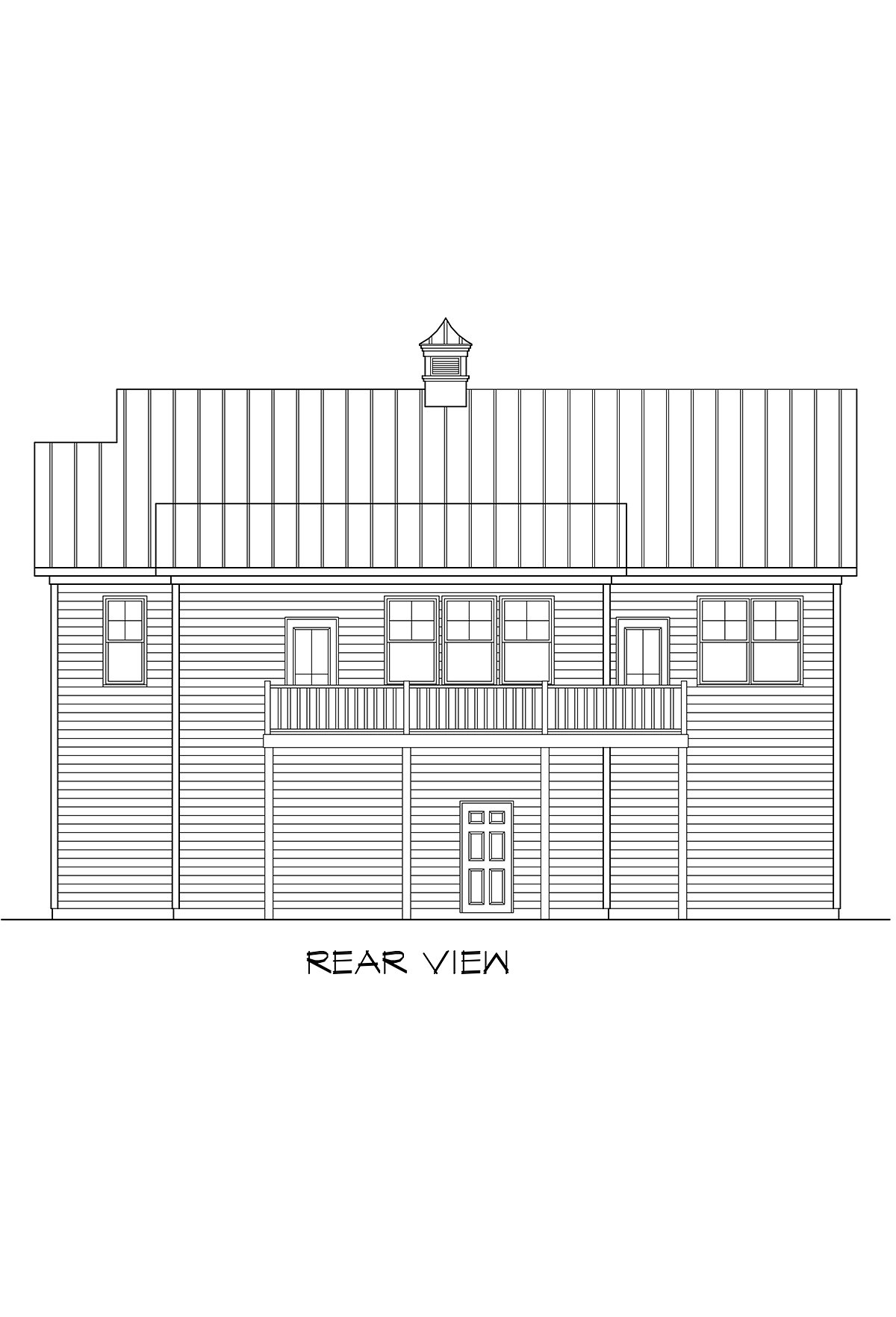

ELEVATIONS-Our plans include complete front elevations drawns at 1/4" scale, other elevations drawn at 1/8" scale.

DETAILS-We furnish any necessary sections for construction of the home like Wall Sections, Stair Sections, Foundation Sections, etc.

Receive a FREE modification estimate:

Plan modification is a way of turning a stock plan into your unique custom plan. It's still just a small fraction of the price you would pay to create a home plan from scratch. We believe that modification estimates should be FREE!

We provide a modification service so that you can customize your new home plan to fit your budget and lifestyle.

Simply contact the modification department via...

Email Us This is the best and quickest way to get a modification quote!

Please include your Telephone Number, Plan Number, Foundation Type, State you are building in and a Specific List of Changes.

It's as simple as that!

Ask the Designer any question you may have. NOTE: If you have a plan modification question, please click on the Plan Modifications tab above.

Common Q & A
