Click Any Image For Gallery

Add to cart

Plan Pricing from $1,100.00

Plan Pricing

PDF File: $1,100.00
5 Sets: $1,265.00
5 Sets plus PDF File: $1,312.00
CAD File: $1,600.00
Single Build License issued on CAD File orders.
Concerning PDF or CAD File Orders: Designer requires that a End User License Agreement be signed before fulfilling PDF and CAD File order.
Materials List: $368.75
Right Reading Reverse: $200.00
All sets will be Readable Reverse copies. Turn around time is usually 3 to 5 business days.
Additional Sets: $35.00

Materials List may take 3-5 weeks to fulfill depending on availability.

Available Foundation Types:

Slab : No Additional Fee

Available Exterior Wall Types:

2x6: No Additional Fee

Prices subject to approval prior to fulfillment.

Shipping Policy

Add to cart

Specifications

Total Living Area:	1319 sq ft
Main Living Area:	129 sq ft
Upper Living Area:	1190 sq ft
Garage Area:	1237 sq ft
Garage Type:	Drive Under
Garage Bays:	2
Foundation Types:	Slab
Exterior Walls:	2x6
House Width:	42'8
House Depth:	59'0
Number of Stories:	2
Bedrooms:	1
Full Baths:	1
Max Ridge Height:	34'0 from Front Door Floor Level
Primary Roof Pitch:	2:12
Roof Framing:	Truss
Porch:	1730 sq ft
2nd Floor Laundry:	Yes
Main Ceiling Height:	14'6
Upper Ceiling Height:	9'0

Plan Description

Modern Style Garage Apartment House Plan

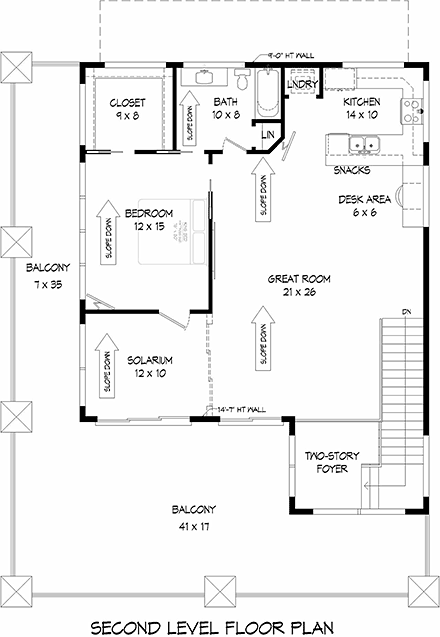

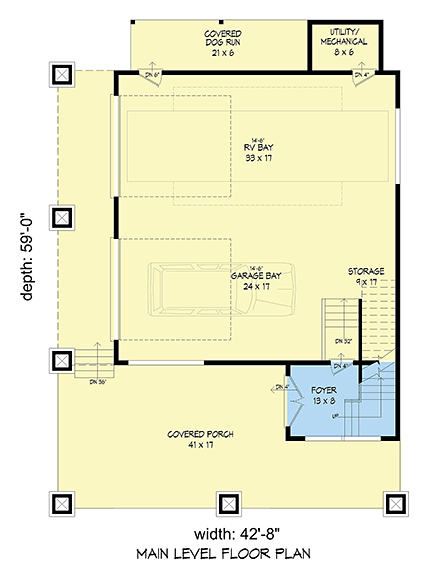

NEW Garage apartment plan that is already a social media gem. The two car garage apartment plan blends the best of everything in a carriage house. An RV bay, covered dog run, storage area, covered porch, large balcony, lots of windows, solarium, one bedroom, This may be the perfect lakeside getaway plan or vacation home plan. This garage with living space above is going to be popular if you are building a home or garage.

Special Features:

2nd Floor Balcony
Front Porch

What's Included?

Plans include

a: Floor Plans: House plan drawings indicating dimensions for construction
b: Roof Plan: Drawings indicating roof slopes and unique conditions
c: Exterior Elevations: Drawings showing appearance and the types of materials used for the exterior finish
d: Building Sections: Drawings cut through important locations in the structure
e: Construction Details: Drawings showing specific construction of building elements at a large scale
f: Kitchen and bath elevations
g: Electrical Plans: Basic electrical layout (suggested locations of fixtures, switches and outlets)
h: Foundation Plan: Dimensioned drawings describing specific foundation conditions for the structure CRAWLSPACE

Plans are sent in AutoCAD 2000 format

Modifications

Want to make changes to a house plan at Family Home Plans?

Plan modification is a way of turning a stock plan into your unique custom plan. It's still just a small fraction of the price you would pay to create a home plan from scratch. You will receive a FREE, no obligation, modification estimate to get exactly the home plan you've been dreaming of. Simply contact the modification department 1 of 3 ways:

Call 866-465-5866 and talk to a live person that can give you and FREE modification estimate over the phone!

Email Us - Please Include your telephone number, plan number, foundation type, state you are building in and a specific list of changes.

Fax: 651-602-5050 - Make sure to include a cover sheet with your contact info. Make attention to the FamilyHomePlans.com Modification Department.

Cost To Build

What will it cost to build your new home?
Let us help you find out!

Family Home Plans has partnered with Home-Cost.com to provide you the most accurate, interactive online estimator available. Home-Cost.com is a proven leader in residential cost estimating software for over 20 years.
No Risk Offer: Order your Home-Cost Estimate now for just $29.95! We will provide you with a discount code in your receipt for when you decide to order any plan on our website than will more than pay you back for ordering an estimate.

Accurate. Fast. Trusted.
Construction Cost Estimates That Save You Time and Money.

$29.95 per plan

** Available for U.S. and Canada

With your 30-day online cost-to-build estimate you can start enjoying these benefits today.

INSTANT RESULTS: Immediate turnaround—no need to wait days for a cost report.
RELIABLE: Gain peace of mind and confidence that comes with a reliable cost estimate for your custom home.
INTERACTIVE: Instantly see how costs change as you vary design options and quality levels of materials!
REDUCE RISK: Minimize potential cost overruns by becoming empowered to make smart design decisions. Get estimates that save thousands in costly errors.
PEACE OF MIND: Take the financial guesswork out of building your dream home.
DETAILED COSTING: Detailed, data-backed estimates with +/-120 lines of costs / options for your project.
EDITABLE COSTS: Edit the line-item labor & material price with the “Add/Deduct” field if you want to change a cost.

View Sample Report

View Feature List

Home-Cost.com’s INSTANT™ Cost-To-Build Report also provides you these added features and capabilities:

Accurate cost database of 43,000 zip codes (US & Canada)
Print cost reports or export to Excel®
General Contractor or Owner-Builder contracting
Estimate 1, 1½, 2 and 3-story home designs
Slab, crawlspace, basement or walkout basement
Foundation depth / excavation costs based on zip code
Cost impact of bonus rooms and open-to-below space
Pitched roof or flat roof homes
Drive-under and attached garages
Garage living – accessory dwelling unit (ADU) homes
Duplex multi-family homes
Barndominium / Farmdominium homes
RV grages and Barndos with oversized overhead doors
Costs adjust based on ceiling height of home or garage
Exterior wall options: wood, metal stud, block
Roofing options: asphalt, metal, wood, tile, slate
Siding options: vinyl, cement fiber, stucco, brick, metal
Appliances range from economy to commercial grade
Multiple kitchen & bath counter / cabinet selections
Countertop options range from laminate to stone
HVAC, fireplace, plumbing and electrical systems
Fire suppression / sprinkler system
Elevators

Q & A

Ask the Designer any question you may have. NOTE: If you have a plan modification question, please click on the Plan Modifications tab above.

Previous Q & A

Q: Hello. We are very interested in your design. Its a immaculate piece. However we are in ottawa county in ohio and we are trying to gauge the cost to build this. Unfortunately, we aren't sure we want to spend 1000 or 500 or whatever only to fund its way more then we want to spend. Is there a min or a fraction of your prints that we could share with builders in order to get a general idea? And then of course we would buy the whole plan prints. Thank you. Chris the deputy for toledo ohio

A: Chris You can show the builder the online version of the plan, or you can purchase the PDF study set. He should be able to give you a ballpark figure based on the information online https://www.familyhomeplans.com/plan_details.cfm?PlanNumber=51522 Steve

Q: What is included in a set of dwgs,? Framing plan? Elevations , foundation , details ECT. thanks

A: Your final plans WILL INCLUDE: a) Floor Plans: Floor plan drawings indicating dimensions for construction b) Roof Plan: Drawings indicating roof slopes and unique conditions c) Exterior Elevations: Drawings showing appearance and the types of materials used for the exterior finish and trim d) Building Sections: Drawings cut through important locations in the structure e) Construction Details: Drawings showing specific construction of building elements at a large scale f) Electrical Plans: Basic electrical layout (suggested locations of fixtures, switches and outlets) g) Foundation Plan: Dimensioned drawings describing specific foundation conditions for the structure h) A building license: A single-use license for construction at one location only (NOTE: If design is to be used at subsequent locations, a discounted re-use license is required and available upon request.) Additional notes about engineering and building codes: Our plans are designed to meet national building codes. We do not guarantee they will meet all local building requirements or building codes influenced by local geographic or climactic factors. It is the responsibility of the owner or builder to ensure these plans comply with city, county, municipal and/or state/provincial building codes. Additionally, your plans will not be sealed or stamped by an engineer or architect. It is the owner’s (or builder’s) responsibility to hire a local professional to review and seal or stamp the plans if required by the building department. This must be handled by an engineer or architect licensed in the state/province where the plan is to be built. At your service, Stev

Common Q & A

Q: Can I make modifications to this plan?

A: Yes you can! Please click the "Modifications" tab above to get more information.

Q: What is the estimated price to build this plan?

A: The national average for a house is running right at $125.00 per SF. You can get more detailed information by clicking the Cost-To-Build tab above. Sorry, but we cannot give cost estimates for garage, multifamily or project plans.
