House Plan 52021
sq ft
3644beds
4baths
4bays
3width
104'depth
67'
Thumbnails: ON | OFF
Quick Specs
3644 Total Living Area3644 Main Level
4 Bedrooms, 4 Full Baths, 1 3/4 Baths
3 Car Garage
104'0 W x 66'8 D
Quick Pricing
PDF File: $1,665.00CAD File: $1,865.00
Plan Pricing from $1,665.00
Plan Pricing
Need Printed Sets?
It seems that this plan only offers electronic (PDF or CAD) files. If you also need Printed Sets, please call 1-800-482-0464 to discuss possible options. Typical printed set will cost $25.00 plus shipping.Sorry, but this plan cannot be sold in the following zip codes: 30041, 30501, 30504, 30506, 30542, 30566, or the entire state of North Carolina.
Available Foundation Types:
Available Exterior Wall Types:
Prices subject to approval prior to fulfillment.Specifications
| Total Living Area: | 3644 sq ft |
| Main Living Area: | 3644 sq ft |
| Unfinished Basement Area: | 3644 sq ft |
| Garage Area: | 910 sq ft |
| Garage Type: | Attached |
| Garage Bays: | 3 |
| Foundation Types: | Walkout Basement |
| Exterior Walls: | 2x4 |
| House Width: | 104'0 |
| House Depth: | 66'8 |
| Number of Stories: | 1 |
| Bedrooms: | 4 |
| Full Baths: | 4 |
| 3/4 Baths: | 1 |
| Max Ridge Height: | 29'6 from Front Door Floor Level |
| Primary Roof Pitch: | 12:12 |
| Roof Framing: | Truss and/or Stick |
| Porch: | 475 sq ft |
| Formal Dining Room: | Yes |
| FirePlace: | Yes |
| 1st Floor Master: | Yes |
| Main Ceiling Height: | 10' |
Special Features:
Associated Styles:
Plan Description
Craftsman Ranch Tudor House Plan with 3,644 Sq Ft, 4 Bed, 5 Bath, 3 Car Garage
Discover the perfect blend of elegance and comfort with this Craftsman Ranch Tudor house plan, offering 3,644 sq ft of luxurious living space all on a single level. With 4 spacious bedrooms, 4 full baths, a 3/4 bath, and a generous 3-car attached garage, this home is designed for both family living and entertaining in style. The impressive 104-foot width and 66-foot depth create a grand presence, while a walkout basement option delivers added flexibility and future expansion possibilities.The exterior boasts undeniable curb appeal, highlighted by classic Craftsman and Tudor details, a welcoming front porch, and a striking roofline with a 12:12 pitch. A covered rear porch with an outdoor fireplace extends your living space outdoors, providing the ultimate setting for gatherings or relaxing evenings.
Inside, the open floor plan seamlessly connects the great room, formal dining area, and kitchen, all under soaring 10-foot ceilings. Entertaining is effortless with dedicated entertaining spaces and a spacious walk-in pantry that keeps the chef's essentials organized. The kitchen and breakfast room flow naturally into the main living areas, enhanced by custom touches like beamed ceilings and abundant natural light.
The primary suite is a true retreat, featuring a first-floor location for convenience and privacy. A luxurious bathroom and expansive closet space ensure comfort and ease, while the possibility of a second master suite offers flexibility for multi-generational living or long-term guests.
Three additional bedrooms provide plenty of room for family or visitors, each with easy access to well-appointed bathrooms. Versatile flex spaces, a dedicated study, and ample storage throughout the home cater to your evolving needs.
Enjoy outdoor living at its finest with 475 sq ft of porch space, including a covered rear area with a fireplace—perfect for year-round entertaining. A mudroom and dedicated storage spaces add everyday convenience.
This Craftsman Ranch Tudor house plan is ideal for families, empty nesters, or anyone seeking a timeless, age-in-place design with all the comforts of modern luxury living.
What's Included?
Exterior Elevations
Plans include detailed front, sides, and rear exterior drawings. These drawings give notes on all exterior materials and finishes (siding, brick, stone, etc).

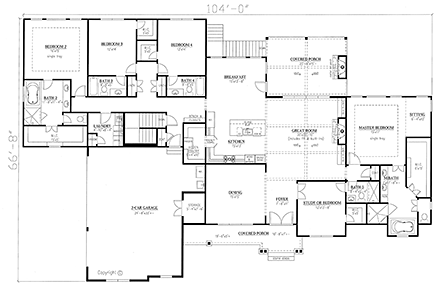

Floor Plan(s)
Dimensioned exterior and interior wall framing along with labeled windows/doors sizes in each room of home. Wall heights are indicated for each level. Room sizes are indicated and any beams, posts and structural bearing points are called out.
Foundation Plan and Footings
The foundation page shows concrete walls, footings, pads, posts, beams, bearing walls, and any retaining wall info (schematic only). Typical wall section details are shown for various footings. On plans drawn as walk out basements, if you choose the optional Slab foundation, the slab foundation will not be reflected in the exterior elevations.
Roof Plan
Roof plan showing all hips, ridges, and valleys along with slope directions are indicated. Structural members are sized and called out if applicable.
Building Sections & Details
Building sections show changes in floor, ceiling, or roof height, and the relationship of one level to another. Some plans will have additional cross–section and details as needed for displaying any special framing details applicable to the design.
Notes and Details Page(s)
The floorplans include an electrical legend, electrical fittings, lights, and outlets are shown. Plans meet the requirements of the ‘International Residential Code’. Compliance with further standards may need to be incorporated into your plan set, depending the requirements of your local/state building department — these typically are done locally.
Plans include detailed front, sides, and rear exterior drawings. These drawings give notes on all exterior materials and finishes (siding, brick, stone, etc).
Floor Plan(s)
Dimensioned exterior and interior wall framing along with labeled windows/doors sizes in each room of home. Wall heights are indicated for each level. Room sizes are indicated and any beams, posts and structural bearing points are called out.
Foundation Plan and Footings
The foundation page shows concrete walls, footings, pads, posts, beams, bearing walls, and any retaining wall info (schematic only). Typical wall section details are shown for various footings. On plans drawn as walk out basements, if you choose the optional Slab foundation, the slab foundation will not be reflected in the exterior elevations.
Roof Plan
Roof plan showing all hips, ridges, and valleys along with slope directions are indicated. Structural members are sized and called out if applicable.
Building Sections & Details
Building sections show changes in floor, ceiling, or roof height, and the relationship of one level to another. Some plans will have additional cross–section and details as needed for displaying any special framing details applicable to the design.
Notes and Details Page(s)
The floorplans include an electrical legend, electrical fittings, lights, and outlets are shown. Plans meet the requirements of the ‘International Residential Code’. Compliance with further standards may need to be incorporated into your plan set, depending the requirements of your local/state building department — these typically are done locally.
Modifications
Receive a FREE modification estimate in one of 3 ways. Our modification team is ready to help you adjust any plan to fit your needs. The ReDesign process is simple and estimates are free!
1. Complete this On-Line Request Form
2. Print, complete and fax this PDF Form to us at 1-800-675-4916.
3. Want to talk to an expert? Call us at 913-938-8097 (Canadian customers, please call 800-361-7526) to discuss modifications.
Note: - a sketch of the changes or the website floor plan marked up to reflect changes is a great way to convey the modifications in addition to a written list.
We Work Fast!
When you submit your ReDesign request, a designer will contact you within 24 business hours with a quote.
You can have your plan redesigned in as little as 14 - 21 days!
We look forward to hearing from you!
Start today planning for tomorrow!
1. Complete this On-Line Request Form
2. Print, complete and fax this PDF Form to us at 1-800-675-4916.
3. Want to talk to an expert? Call us at 913-938-8097 (Canadian customers, please call 800-361-7526) to discuss modifications.
Note: - a sketch of the changes or the website floor plan marked up to reflect changes is a great way to convey the modifications in addition to a written list.
We Work Fast!
When you submit your ReDesign request, a designer will contact you within 24 business hours with a quote.
You can have your plan redesigned in as little as 14 - 21 days!
We look forward to hearing from you!
Start today planning for tomorrow!
Cost To Build
What will it cost to build your new home?
Let us help you find out!
Accurate. Fast. Trusted.
Construction Cost Estimates That Save You Time and Money.
$29.95 per plan
** Available for U.S. and Canada
With your 30-day online cost-to-build estimate you can start enjoying these benefits today.
- INSTANT RESULTS: Immediate turnaround—no need to wait days for a cost report.
- RELIABLE: Gain peace of mind and confidence that comes with a reliable cost estimate for your custom home.
- INTERACTIVE: Instantly see how costs change as you vary design options and quality levels of materials!
- REDUCE RISK: Minimize potential cost overruns by becoming empowered to make smart design decisions. Get estimates that save thousands in costly errors.
- PEACE OF MIND: Take the financial guesswork out of building your dream home.
- DETAILED COSTING: Detailed, data-backed estimates with +/-120 lines of costs / options for your project.
- EDITABLE COSTS: Edit the line-item labor & material price with the “Add/Deduct” field if you want to change a cost.
Home-Cost.com’s INSTANT™ Cost-To-Build Report also provides you these added features and capabilities:
Q & A
Ask the Designer any question you may have. NOTE: If you have a plan modification question, please click on the Plan Modifications tab above.
Previous Q & A

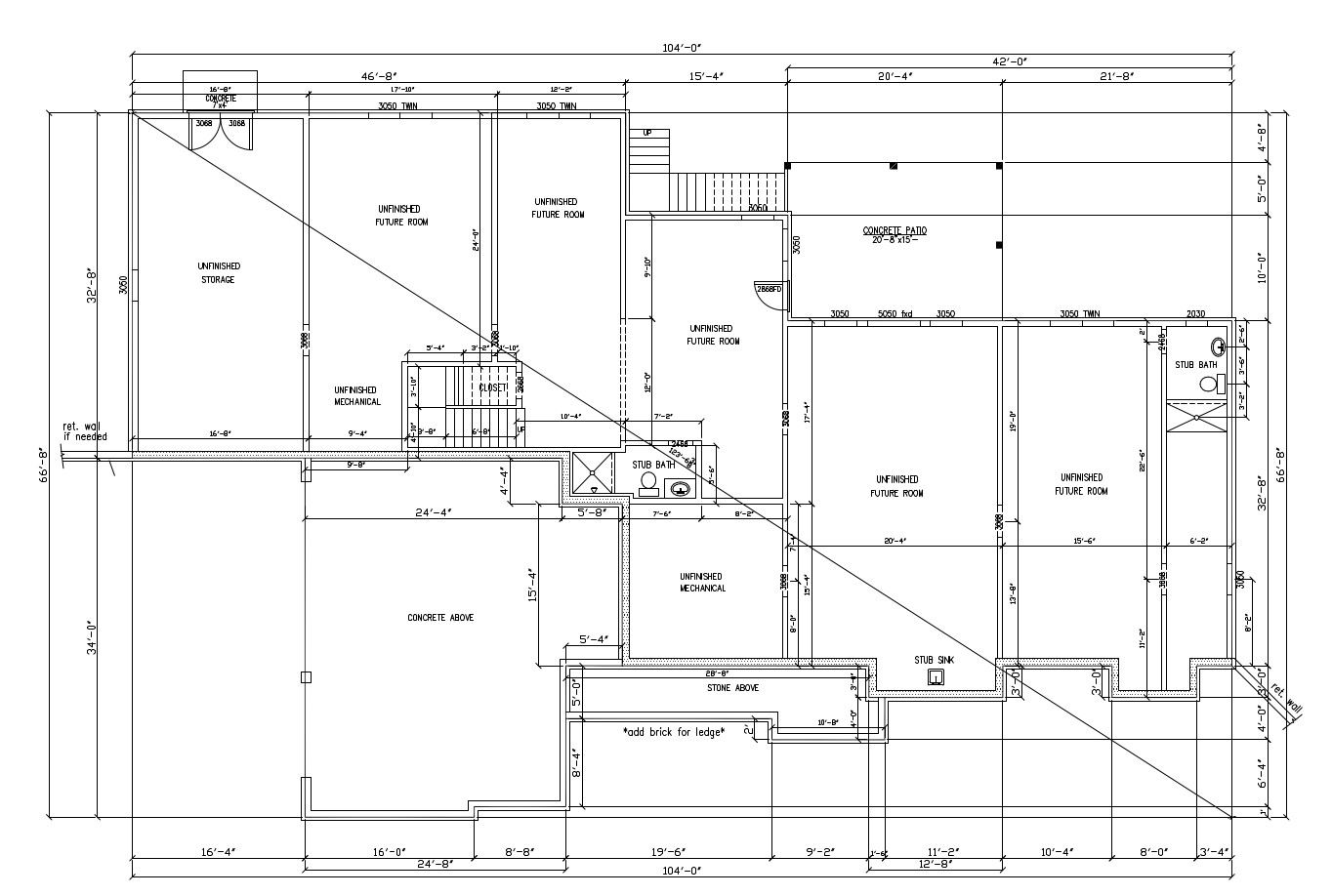

Q: What does the basement layout look like for this? From the pictures there is 2 levels
