House Plan 52946

• PDF File of Same Plan: $2,815.00
• CAD File of Same Plan: $2,815.00

• Right Reading (True) Reverse: $437.50
  All sets will be Readable Reverse copies. Turn around time is usually 3 to 5 business days.

PLAN RESTRICTIONS: CANNOT BE SOLD TO BE BUILT IN LEE OR COLLIER COUNTIES, FLORIDA

Available Foundation Types:

• Slab : No Additional Fee

Available Exterior Wall Types:

• 2x4: $437.50
  (Please call for drawing time.)
• 2x6: $437.50
  (Please call for drawing time.)
• 2x8: $437.50
  (Please call for drawing time.)
• Concrete: No Additional Fee

Prices subject to approval prior to fulfillment.

• Shipping Policy

Total Living Area:	3130 sq ft
Main Living Area:	3130 sq ft
Garage Area:	871 sq ft
Garage Type:	Attached
Garage Bays:	3
Foundation Types:	Slab
Exterior Walls:	2x4 - * $437.50 2x6 - * $437.50 2x8 - * $437.50 Concrete
House Width:	84'0
House Depth:	79'6
Number of Stories:	1
Bedrooms:	4
Full Baths:	3
Max Ridge Height:	27'8 from Front Door Floor Level
Primary Roof Pitch:	6:12
Roof Framing:	Truss
Porch:	1102 sq ft
Formal Dining Room:	Yes
FirePlace:	Yes
1st Floor Master:	Yes

* May require additional drawing time.

Special Features:

• Lania
• Outdoor Kitchen
• Pantry
• Storage Space
• Study

COASTAL CONTEMPORARY HOUSE PLAN

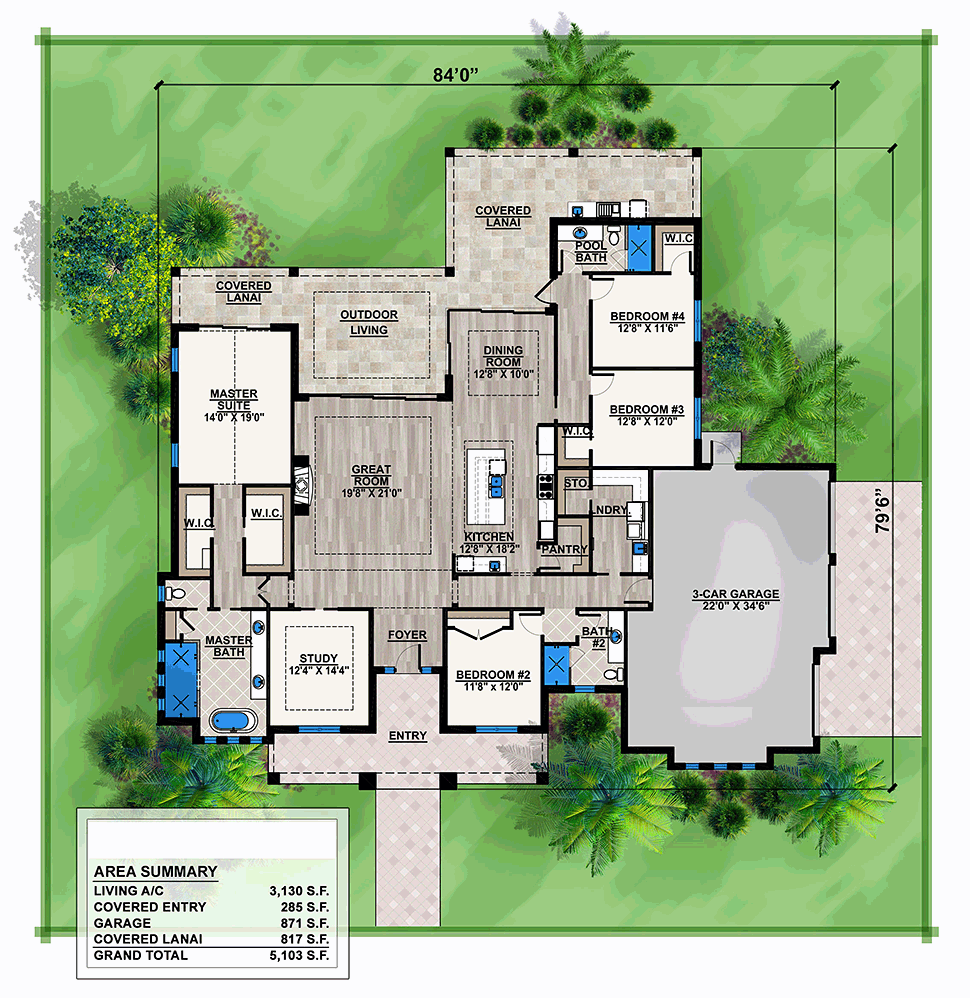

This 3,130sf coastal contemporary house plan features 4 bedrooms, 3 bathrooms and a 3 car garage. Its design includes a slab foundation, CMU block walls, stucco lap finish and metal roof. It is 84' wide, 79’6? deep and 27’8? high. This house plan features a welcoming entry, open floor and and a covered lanai with outdoor kitchen. Other amenities include a great room, island kitchen, dining room, study and a laundry room. The private master bedroom suite features 2 walk-in closets, shower, tub, dual sinks and a water closet.

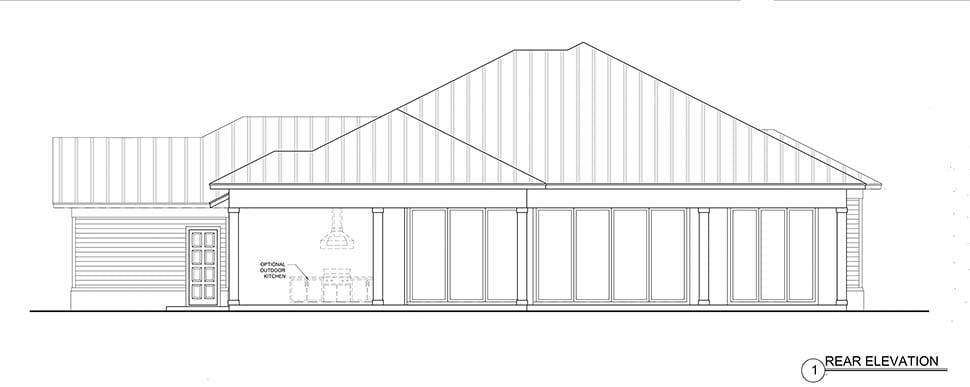

Elevations:
Drawn at 1/8" to 1/4" = 1’0" scale and includes:
*Material Labels
*Floor-To-Floor Heights
*Roof Slope Indicators

Floor Plans:
Drawn at 1/8" to 1/4" = 1’0" scale and includes:
*Door and Window Sizes
*Completely Dimensioned Floor Plan
*Room Labels and Interior Room Sizes

Electrical Layouts:
*Building Section Markers
*Electrical Outlets, Fixtures and Switching

Foundation or Slab Plan:
Drawn at 1/8" to 1/4" = 1’0" scale and includes:
*Floor and Deck Joist Sizes, Spacing and Direction
*Rough-in Plumbing Location (if applicable)
*Mechanical Equipment Locations (if applicable)
*Electrical Locations (if applicable)

Roof Design Plan:
Drawn to 1/8" to 1/4" = 1’0" scale and includes:
*All Beam and Header Heights and Locations
*All Hips, Gables, Ridges and Valley
*Building Section Markers

Building Sections:
Drawn to 1/8" to 1/4" = 1’0" scale and includes:
*Floor Joist Size and Spacing
*Floor-To-Floor Heights
*Non-Typical Plate Heights Indicated

Typical Wall Sections:
Drawn at 1/8" to 1/4" = 1’0" scale and includes:
*All Labels Indicating Wall Construction
*Foundation Wall Thickness and Reinforcing
*Insulation Type and Thickness

Miscellaneous Notes and Details:
*Miscellaneous General Notes
*Stairway Details (if applicable)

Receive a FREE modification estimate in one of 3 ways. Our modification team is ready to help you adjust any plan to fit your needs. The ReDesign process is simple and estimates are free!

1. Complete this On-Line Request Form

2. Print, complete and fax this PDF Form to us at 1-800-675-4916.

3. Want to talk to an expert? Call us at 913-938-8097 (Canadian customers, please call 800-361-7526) to discuss modifications.

Note: - a sketch of the changes or the website floor plan marked up to reflect changes is a great way to convey the modifications in addition to a written list.

We Work Fast!

When you submit your ReDesign request, a designer will contact you within 24 business hours with a quote.
You can have your plan redesigned in as little as 14 - 21 days!

We look forward to hearing from you!

Start today planning for tomorrow!

• No Risk Offer: Order the QUICK-Cost-To-Build now and when you do decide to order any house plan, $10.00 will be deducted from your order! *
• Get more accurate results, quicker! No need to wait for a reliable cost.
• Get a detailed cost report for your home plan with over 70 lines of summarized cost information in under 5 minutes!
• Cost report for your zip code. (the zip code can be changed after you receive the online report)
• Estimate 1, 1-1/2 or 2 story home plans. **
• Interactive! Instantly see the costs change as you vary quality levels Economy, Standard, Premium and structure such as slab, basement and crawlspace.
• Your estimate is active for 1 FULL YEAR!
