House Plan 59013
Ranch Style with 3 Bed, 3 Bath, 2 Car Garage | Plan 59013
sq ft
1799beds
3baths
2.5bays
2width
78'depth
46'
Plan Pricing
Additional Notes
Basement Version of Plan is 59018Available Foundation Types:
Available Exterior Wall Types:
Prices subject to approval prior to fulfillment.Specifications
| Total Living Area: | 1799 sq ft |
| Main Living Area: | 1799 sq ft |

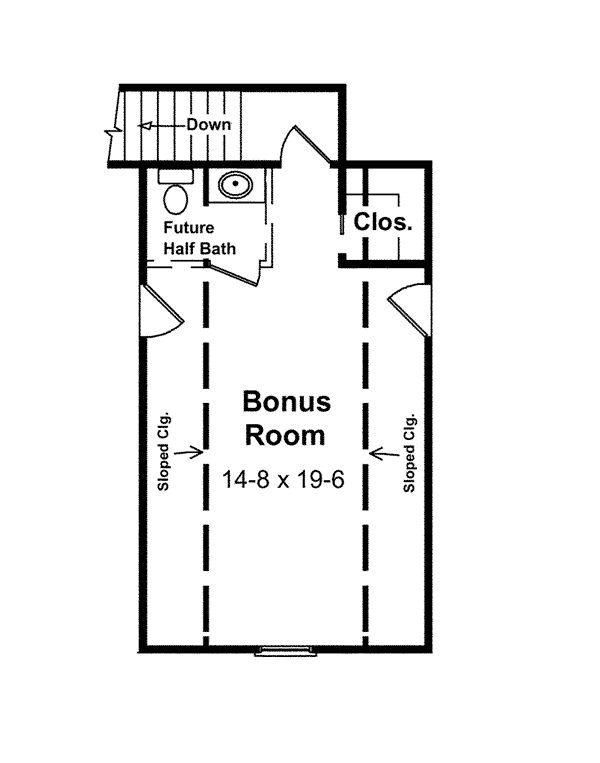

| Bonus Area: | 394 sq ft |
| Unfinished Basement Area: | 1799 sq ft |
| Garage Area: | 581 sq ft |
| Garage Type: | Attached |
| Garage Bays: | 2 |
| Foundation Types: | Basement Crawlspace Stem Wall Slab |
| Exterior Walls: | 2x4 |
| House Width: | 78' |
| House Depth: | 46' |
| Number of Stories: | 1 |
| Bedrooms: | 3 |
| Full Baths: | 2 |
| Half Baths: | 1 |
| Max Ridge Height: | 26' from Front Door Floor Level |
| Primary Roof Pitch: | 10:12 |
| Roof Load: | 40 psf |
| Roof Framing: | Stick |
| Porch: | 377 sq ft |
| Formal Dining Room: | Yes |
| FirePlace: | Yes |
| 1st Floor Master: | Yes |
| Main Ceiling Height: | 9' |
| Upper Ceiling Height: | 8' |
| Vaulted Ceiling: | Yes |
Special Features:
Plan Description

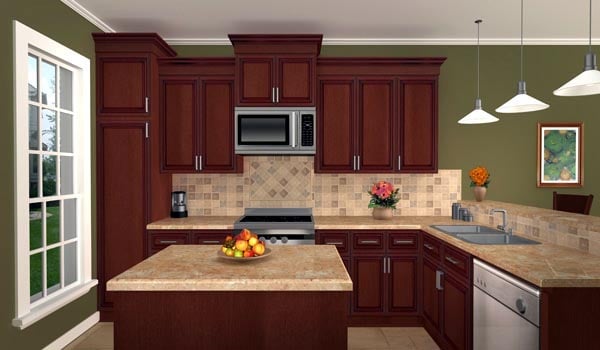

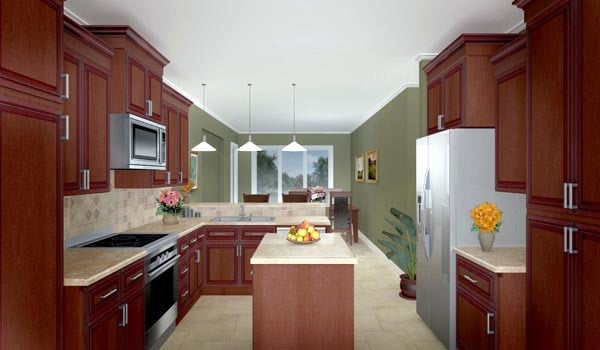

This home features a beautiful traditional styling and the most-popular split-bedroom floorplan layout. The expansive and well-appointed master suite includes large his and her walk-in closets, an oversized jet tub, separate shower, compartmentalized toilet and dual vanities. The optional bonus room, over the garage, serves well as a fourth bedroom, game room, or much-needed home office. Enjoy the convenience of the optional office/lounge/bonus room located off the master suite. The large kitchen includes the very popular oversized island and features a raised bar conversations with close friends and family. Enjoy the view from your great room as your gas log fireplace keeps you and your family warm on those cold winter nights. This home includes the features that your family wants!
What's Included?

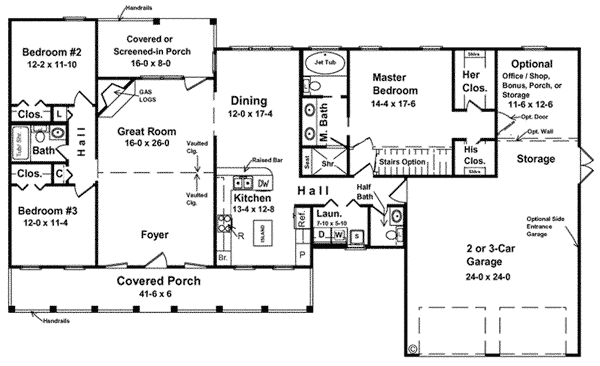

Floor Plan/Plans (scale: 1/4" = 1' - 0")
Cabinet Elevations (scale: 3/8" = 1' - 0")
Electrical Plan Layout with Electrical Symbols Legend
Exterior Elevations (typically 4)
Typical Exterior Wall Section (scale: 3/4" = 1' - 0")
Section Thru Building (usually 1/2" = 1' - 0", transverse section)
Roof Drainage Plan (scale: 1/8" = 1' - 0")
Foundation Plan and Details (plan scale: 1/4" = 1'-0"; details: 3/4"=1'-0")
Short-form FHA/VA Specifications form
License to Build
Plans range in number of pages from 5 to 13 pages on 24" x 36" sheets. Any plan less than 1200 heated sq ft is formatted on 18x24 size paper. Printed on a wide-format xerox machine to guarantee quality of the prints and very good legibility. Prints are printed on white bond paper. Reproducible plans are printed on eraseable vellum.
This Plan is a USDA Rural Development Certified Plan
Modifications
Plan modification is a way of turning a stock plan into your unique custom plan. It's still just a small fraction of the price you would pay to create a home plan from scratch. We believe that modification estimates should be FREE!
We provide a modification service so that you can customize your new home plan to fit your budget and lifestyle.
Simply contact the modification department via...
Email Us This is the best and quickest way to get a modification quote!
Please include your Telephone Number, Plan Number, Foundation Type, State you are building in and a Specific List of Changes.
It's as simple as that!
Cost To Build
QUICK Cost-To-Build estimates have the following assumptions:
QUICK Cost-To-Build estimates are available for single family, stick-built, detached, 1 story, 1.5 story and 2 story home plans with attached or detached garages, pitched roofs on flat to gently sloping sites.QUICK Cost-To-Build estimates are not available for specialty plans and construction such as garage / apartment, townhouse, multi-family, hillside, flat roof, concrete walls, log cabin, home additions, and other designs inconsistent with the assumptions outlined in Item 1 above.
User is able to select and have costs instantly calculate for slab on grade, crawlspace or full basement options.
User is able to select and have costs instantly calculate different quality levels of construction including Economy, Standard, Premium. View Quality Level Assumptions.
Estimate will dynamically adjust costs based on the home plan's finished square feet, porch, garage and bathrooms.
Estimate will dynamically adjust costs based on unique zip code for project location.
All home plans are based on the following design assumptions: 8 foot basement ceiling height, 9 foot first floor ceiling height, 8 foot second floor ceiling height (if used), gable roof; 2 dormers, average roof pitch is 12:12, 1 to 2 covered porches, porch construction on foundations.
Summarized cost report will provide approximately 70 lines of cost detail within the following home construction categories: Site Work, Foundations, Basement (if used), Exterior Shell, Special Spaces (Kitchen, Bathrooms, etc), Interior Construction, Elevators, Plumbing, Heating / AC, Electrical Systems, Appliances, Contractor Markup.
QUICK Cost-To-Build generates estimates only. It is highly recommend that one employs a local builder in order to get a more accurate construction cost.
All costs are "installed costs" including material, labor and sales tax.
** Available for U.S. only.
Q & A
Ask the Designer any question you may have. NOTE: If you have a plan modification question, please click on the Plan Modifications tab above.
Previous Q & A
A: Hello, No, these dormers are not currently open to the interior, but your builder could make the center dormer open to the great room since the ceiling is vaulted there. The kitchen/breakfast area could be vaulted, and then that dormer too could be open to the kitchen area. I doubt you would want to vault the bedroom, so that dormer would just stay in the attic. Those minor changes could be done onsite by the builder. Thanks.
A: Hello, The windows on the front porch are a common size, 32" wide by 72" tall. You can use whatever size windows you want, as long as the size meets egress requirements for a bedroom window. So 32"x60" would be smallest possible size for a bedroom, unless it’s a casement type window. Fire code…. The three doors on the front are each 36" wide with a half circle transom above. Most of the other windows are 32" wide by 72" tall along the rear. Any of the sizes can be changed onsite. Thanks.
A: Hello, The kitchen pantry cabinet is 36"x24" deep, with a 16" long counter between it and the refrigerator. You could enlarge the pantry all the way to the refrigerator if you want a bigger space. The laundry room is 7-10" wide by 5'-10" deep. Thanks.
A: Hello, The great room vault starts at 10', and slopes at 10" per foot to a peak approx. 20'-10" above the floor. You could use a lower slope for the vault if you don’t want that much height to heat and cool. The optional office is 11' wide by 13' deep to the dashed "optional wall" .
A: Bed 2 - 11'4"x 11'6" Bed 3 - 10'10"x 11'6" Hall Bath - 7'10" x 5' Island Size - 2'6" x 3'6" Half Bath - 4'8" x 5'2" Master Shower - 6'6"x 3'8" Master Sinks - 6'6"x 6'6" Master Toilet - 6'6"x 6'4" His Closet - 4'8"x 4'8" Her Closet - 4'8"x 8'2" Bonus Closet - 4'8"x 4'
A: Hello, The great room ceiling has separate rafters that are dropped down several feet below the actual roof decking. There is plenty of room for insulation and ac ducts in the attic. The vault starts about 9 feet high, and slopes up at 8 inches per foot, to a peak approx. 17' above the floor. If you go through the attic access doors in the sidewalls of bonus room, you can access the area above the kitchen, dining, master suite, and laundry and storage. None of that attic is floored, but you an floor whatever portion you want . Thanks.
Common Q & A
A: Yes you can! Please click the "Modifications" tab above to get more information.
A: The national average for a house is running right at $125.00 per SF. You can get more detailed information by clicking the Cost-To-Build tab above. Sorry, but we cannot give cost estimates for garage, multifamily or project plans.
