|Order Code: 00WEB|
|Total Living Area:||1852 sq ft|
|Main Living Area:||1852 sq ft|
|Bonus Area:||370 sq ft|
|Unfinished Basement Area:||1852 sq ft|
|Garage Area:||569 sq ft|
|Number of Stories:||1|
|Max Ridge Height:||24' from Front Door Floor Level|
|Primary Roof Pitch:||10:12|
|Roof Load:||40 psf|
|Porch:||375 sq ft|
|1st Floor Master:||Yes|
|Main Ceiling Height:||9'|
|Upper Ceiling Height:||8'|

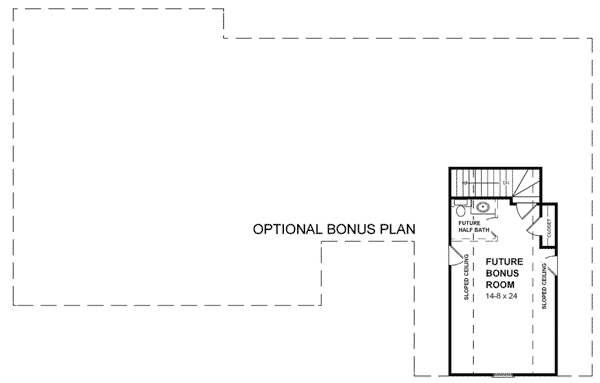

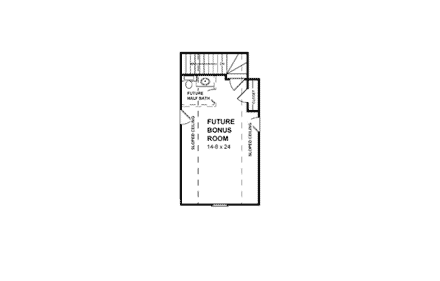

This is a wonderful plan which offers the basement foundation for which so many have asked (slab and crawlspace also). Beautiful styling that is sure to serve many persons needs. Split bed room plan. Optional Bonus room over the garage. Wonderful master closets. Office/lounge/bonus room off master suite. Country kitchen. Raised food bar. Fireplace. Vaulted ceiling in great room. A great value.
demo purposes onlyPurchase
A: Hello, The note on the plan concerning the "optional side entrance garage" is just a note to let folks know that the door could be moved to the side. The plan is not available with the side entry. We can modify the plans to make it side entry for $195 in addition to the purchase of the plan package. Allow 3 to 5 working days. When your ready to proceed, call the website to place the order. Be sure to tell them that you have requested modifications. We will then modify the plan and process the modification fee separately, and send the customized plans to you.
A: Hello, All the ceilings are 9', except the great room, which is vaulted and peaks approx. 19' above the floor. The great room vault is not the rafters. We have a separate set of rafters/ceiling joists dropped down inside the attic to provide space for the insulation. It is possible to extend it all the way to the roof, but it would be extremely high. Don’t recommend that, and structurally it would require cross beams through the vaulted area to hold the roof up. Dormers are open to attic only. They are only for appearance. Basement height is 8', but could be whatever you want. That can easily be changed onsite. This plan comes with two types of basement plans. One type uses concrete block exterior walls, and regular lumber for floor joists. The other type uses poured in place concrete exterior walls, and prefab floor joists (Floor trusses) to span greater distances with fewer interior supports.. so you can choose which one to use, as both come with the plan. Thanks. Modification Department Stephen Mathis, CPBD
A: Yes you can! Please click the "Modifications" tab above to get more information.
A: The national average for a house is running right at $125.00 per SF. You can get more detailed information by clicking the Cost-To-Build tab above. Sorry, but we cannot give cost estimates for garage, multifamily or project plans.
If you find the exact same plan featured on a competitor's web site at a lower price, advertised OR special SALE price, we will beat the competitor's price by 5% of the total, not just 5% of the difference! Our guarantee extends up to 4 weeks after your purchase, so you know you can buy now with confidence.
Have any Questions? Please Call 800-482-0464 and our Sales Staff will be able to answer most questions and take your order over the phone. If you prefer to order online click the button below.Add to cart
