Plan Pricing from $900.00

Plan Pricing

PDF File: $900.00
1 Set: $800.00 **
5 Sets: $1,000.00
5 Sets plus PDF File: $1,200.00
CAD File: $1,550.00
Single Build License issued on CAD File orders.
Materials List: $150.00
Right Reading Reverse: $150.00
All sets will be Readable Reverse copies. Turn around time is usually 3 to 5 business days.
Additional Sets: $65.00

** 1 Set order does not include a License-To-Build. For bidding purposes only. Customer can upgrade order within 90 days.

Available Foundation Types:

Slab : No Additional Fee

Available Exterior Wall Types:

2x4: No Additional Fee

Prices subject to approval prior to fulfillment.

Shipping Policy

Add to cart

Specifications

Total Living Area:	400 sq ft
Main Living Area:	400 sq ft
Garage Type:	None
See our garage plan collection. If you order a house and garage plan at the same time, you will get 10% off your total order amount.
Foundation Types:	Slab
Exterior Walls:	2x4
House Width:	20'
House Depth:	32'
Number of Stories:	1
Bedrooms:	1
Full Baths:	1
Max Ridge Height:	19' from Front Door Floor Level
Primary Roof Pitch:	12:12
Roof Framing:	Stick
Porch:	240 sq ft
1st Floor Master:	Yes
Main Ceiling Height:	8'

Special Features:

Front Porch
Rear Porch

Plan Description

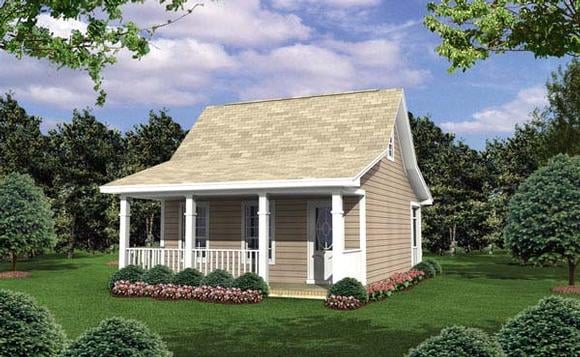

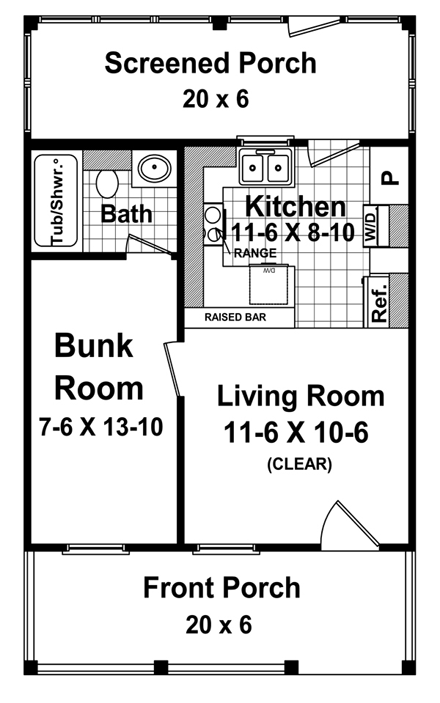

This plan features a cost-effective design that is ideal for use as a fishing/hunting camp or just for weekend fun. The bunk room is insulated should the owner want to place a heat/cool unit in the bunk room. The screened porch feature has been much-requested, keeps insects out, and allows cool breezes to flow through while the occupants view the scenery outside. Slab foundation provides an excellent value. Great design for the weekend and for hunting season!

What's Included?

Cover Sheet, showing architectural rendering of the residence

Floor Plan/Plans (scale: 1/4" = 1' - 0")

Cabinet Elevations (scale: 3/8" = 1' - 0")

Electrical Plan Layout with Electrical Symbols Legend

Exterior Elevations (typically 4)

Typical Exterior Wall Section (scale: 3/4" = 1' - 0")

Section Thru Building (usually 1/2" = 1' - 0", transverse section)

Roof Drainage Plan (scale: 1/8" = 1' - 0")

Foundation Plan and Details (plan scale: 1/4" = 1'-0"; details: 3/4"=1'-0")

Short-form FHA/VA Specifications form

License to Build

Plans range in number of pages from 5 to 13 pages on 24" x 36" sheets. Any plan less than 1200 heated sq ft is formatted on 18x24 size paper. Printed on a wide-format xerox machine to guarantee quality of the prints and very good legibility. Prints are printed on white bond paper. Reproducible plans are printed on eraseable vellum.

This Plan is a USDA Rural Development Certified Plan

Modifications

Want to make changes to a house plan at Family Home Plans?

Receive a FREE modification estimate:

Plan modification is a way of turning a stock plan into your unique custom plan. It's still just a small fraction of the price you would pay to create a home plan from scratch. We believe that modification estimates should be FREE!

We provide a modification service so that you can customize your new home plan to fit your budget and lifestyle.

Simply contact the modification department via...

Email Us This is the best and quickest way to get a modification quote!

Please include your Telephone Number, Plan Number, Foundation Type, State you are building in and a Specific List of Changes.

It's as simple as that!

Cost To Build

No Risk Offer: Order your Home-Cost Estimate now for just $24.95! We provide you with a 10% discount code in your receipt for when you decide to order any plan on our website that will more than pay you back!
Get more accurate results, quicker! No need to wait for a reliable cost.
Get a detailed cost report for your home plan with over 70 lines of summarized cost information in under 5 minutes!
Cost report for your zip code. (the zip code can be changed after you receive the online report)
Estimate 1, 1-1/2 or 2 story home plans. **
Interactive! Instantly see the costs change as you vary quality levels Economy, Standard, Premium and structure such as slab, basement and crawlspace.
Your estimate is active for 1 FULL YEAR!

View Sample

demo purposes only

Purchase

$24.95 per plan

** Available for U.S. only.

QUICK Cost-To-Build estimates have the following assumptions:

QUICK Cost-To-Build estimates are available for single family, stick-built, detached, 1 story, 1.5 story and 2 story home plans with attached or detached garages, pitched roofs on flat to gently sloping sites.
QUICK Cost-To-Build estimates are not available for specialty plans and construction such as garage / apartment, townhouse, multi-family, hillside, flat roof, concrete walls, log cabin, home additions, and other designs inconsistent with the assumptions outlined in Item 1 above.
User is able to select and have costs instantly calculate for slab on grade, crawlspace or full basement options.
User is able to select and have costs instantly calculate different quality levels of construction including Economy, Standard, Premium. View Quality Level Assumptions.
Estimate will dynamically adjust costs based on the home plan's finished square feet, porch, garage and bathrooms.
Estimate will dynamically adjust costs based on unique zip code for project location.
All home plans are based on the following design assumptions: 8 foot basement ceiling height, 9 foot first floor ceiling height, 8 foot second floor ceiling height (if used), gable roof; 2 dormers, average roof pitch is 12:12, 1 to 2 covered porches, porch construction on foundations.
Summarized cost report will provide approximately 70 lines of cost detail within the following home construction categories: Site Work, Foundations, Basement (if used), Exterior Shell, Special Spaces (Kitchen, Bathrooms, etc), Interior Construction, Elevators, Plumbing, Heating / AC, Electrical Systems, Appliances, Contractor Markup.
QUICK Cost-To-Build generates estimates only. It is highly recommend that one employs a local builder in order to get a more accurate construction cost.
All costs are "installed costs" including material, labor and sales tax.
** Available for U.S. only.

Q & A

Ask the Designer any question you may have. NOTE: If you have a plan modification question, please click on the Plan Modifications tab above.

Previous Q & A

Q: how big is one set....Is that a single building

A: One set means "One complete set of blueprints intended for bidding purposes ONLY".- This package does NOT come with a legal license to build the house. If you intend to build the house, you would need to choose the 5 set, pdf, or CAD file plan package. Five sets means "five complete sets of blueprints" This package DOES come with a legal license to build the house once. All these other packages below also come with the legal license to build the house once- PDF means an electronic copy of the files in adobe "pdf" format. Cad files are autocad format electronic drawing files intended for use by a local design professional who has the CAD software. CAD files do come with a pdf electronic copy of the plans so that you can open and view the files, or make prints using the pdf. Thanks. Stephen Mathis, CPBD

Q: Do the detailed plans include a closet in bunk room and an area for the furnace and air conditioner?

A: Hello, No. It would be simple to add a built in closet in the bunk room if desired, or just use furniture for that. The best place for a built in closet would be along the bathroom wall. The heat and air unit would be located either in the attic, or under the house if it were a crawlspace foundation. Many people choose hotel type hvac units for houses this small. They are less costly. Would probably need two of them for this plan though. Another option would be to create a small closet on the screened porch to place the mechanical unit inside. Depending on foundation type, the return air duct could go under or above. Same for water heater. Suggest using a tankless water heater which can mount anywhere, even on the exterior wall. Have a good day.

Common Q & A

Q: Can I make modifications to this plan?

A: Yes you can! Please click the "Modifications" tab above to get more information.

Q: What is the estimated price to build this plan?

A: The national average for a house is running right at $125.00 per SF. You can get more detailed information by clicking the Cost-To-Build tab above. Sorry, but we cannot give cost estimates for garage, multifamily or project plans.
