House Plan 63178
Modern Mediterranean
sq ft
1280beds
3baths
2bays
2width
40'depth
48'
click for more images
Plan Pricing from $850.00
Plan Pricing
Available Foundation Types:
Available Exterior Wall Types:
Prices subject to approval prior to fulfillment.Specifications
| Total Living Area: | 1280 sq ft |
| Main Living Area: | 1280 sq ft |
| Garage Area: | 372 sq ft |
| Garage Type: | Attached |
| Garage Bays: | 2 |
| Foundation Types: | Slab |
| Exterior Walls: | Concrete |
| House Width: | 40' |
| House Depth: | 48' |
| Number of Stories: | 1 |
| Bedrooms: | 3 |
| Full Baths: | 2 |
| Max Ridge Height: | 18'9 from Front Door Floor Level |
| Primary Roof Pitch: | 6:12 |
| Roof Framing: | Truss |
| Porch: | 20 sq ft |
| 1st Floor Master: | Yes |
| Main Ceiling Height: | 8' |
Plan Description
Modern Mediterranean
This striking Mediterranean opens to a vaulted combination living/dining room with a view to the rear of the home and glass sliders opening to the covered patio. A pass-through and eating bar separate the Great Room from the kitchen, which offers plenty of space plus an attached breakfast area. Convenient laundry facilities lie close to the master bedroom and bath. The elegantly vaulted master suite offers his and her closets and a lovely bay window; the bath has a private toilet. The secondary bedrooms also display vaulted ceilings.What's Included?
A. Cover sheet with front renderings and general notes.
B. Foundation plan (Slab standard) 1/4"=1'0", Other foundations may be available as an option. Call for availability and/or modification quotation.
C. Floor plans for each floor including all dimensions, 1/4" = 1'0".
D. All 4 Elevations, front (1/4" = 1'0"), rear and sides (1/8" or 1/4" = 1'0").
E. Building Section.
F. Detail Sheets.
G. Roof Plan (does not include truss layout and profiles which are determined in area of construction.)
H. Electrical plans of each floor. (Outlet, switch and fixture layout only)
Note: Due to regional variations, local availability of materials, local codes, methods of installation, and individual preferences, it is impossible to include much detail on heating, plumbing, and electrical work on your plans. The ductwork, venting, and other details will vary depending on the type of heating and cooling system (forced air, hot water, electric, solar) and the type of energy (gas, oil, electricity, solar) you use. The details and specifications are easily obtained from your builder, contractor, and/or local suppliers
B. Foundation plan (Slab standard) 1/4"=1'0", Other foundations may be available as an option. Call for availability and/or modification quotation.
C. Floor plans for each floor including all dimensions, 1/4" = 1'0".
D. All 4 Elevations, front (1/4" = 1'0"), rear and sides (1/8" or 1/4" = 1'0").
E. Building Section.
F. Detail Sheets.
G. Roof Plan (does not include truss layout and profiles which are determined in area of construction.)
H. Electrical plans of each floor. (Outlet, switch and fixture layout only)
Note: Due to regional variations, local availability of materials, local codes, methods of installation, and individual preferences, it is impossible to include much detail on heating, plumbing, and electrical work on your plans. The ductwork, venting, and other details will vary depending on the type of heating and cooling system (forced air, hot water, electric, solar) and the type of energy (gas, oil, electricity, solar) you use. The details and specifications are easily obtained from your builder, contractor, and/or local suppliers
Modifications
Receive a FREE modification estimate in one of 3 ways. Our modification team is ready to help you adjust any plan to fit your needs. The ReDesign process is simple and estimates are free!
1. Complete this On-Line Request Form
2. Print, complete and fax this PDF Form to us at 1-800-675-4916.
3. Want to talk to an expert? Call us at 913-938-8097 (Canadian customers, please call 800-361-7526) to discuss modifications.
Note: - a sketch of the changes or the website floor plan marked up to reflect changes is a great way to convey the modifications in addition to a written list.
We Work Fast!
When you submit your ReDesign request, a designer will contact you within 24 business hours with a quote.
You can have your plan redesigned in as little as 14 - 21 days!
We look forward to hearing from you!
Start today planning for tomorrow!
1. Complete this On-Line Request Form
2. Print, complete and fax this PDF Form to us at 1-800-675-4916.
3. Want to talk to an expert? Call us at 913-938-8097 (Canadian customers, please call 800-361-7526) to discuss modifications.
Note: - a sketch of the changes or the website floor plan marked up to reflect changes is a great way to convey the modifications in addition to a written list.
We Work Fast!
When you submit your ReDesign request, a designer will contact you within 24 business hours with a quote.
You can have your plan redesigned in as little as 14 - 21 days!
We look forward to hearing from you!
Start today planning for tomorrow!
Cost To Build
QUICK Cost-To-Build estimates have the following assumptions:
QUICK Cost-To-Build estimates are available for single family, stick-built, detached, 1 story, 1.5 story and 2 story home plans with attached or detached garages, pitched roofs on flat to gently sloping sites.QUICK Cost-To-Build estimates are not available for specialty plans and construction such as garage / apartment, townhouse, multi-family, hillside, flat roof, concrete walls, log cabin, home additions, and other designs inconsistent with the assumptions outlined in Item 1 above.
User is able to select and have costs instantly calculate for slab on grade, crawlspace or full basement options.
User is able to select and have costs instantly calculate different quality levels of construction including Economy, Standard, Premium. View Quality Level Assumptions.
Estimate will dynamically adjust costs based on the home plan's finished square feet, porch, garage and bathrooms.
Estimate will dynamically adjust costs based on unique zip code for project location.
All home plans are based on the following design assumptions: 8 foot basement ceiling height, 9 foot first floor ceiling height, 8 foot second floor ceiling height (if used), gable roof; 2 dormers, average roof pitch is 12:12, 1 to 2 covered porches, porch construction on foundations.
Summarized cost report will provide approximately 70 lines of cost detail within the following home construction categories: Site Work, Foundations, Basement (if used), Exterior Shell, Special Spaces (Kitchen, Bathrooms, etc), Interior Construction, Elevators, Plumbing, Heating / AC, Electrical Systems, Appliances, Contractor Markup.
QUICK Cost-To-Build generates estimates only. It is highly recommend that one employs a local builder in order to get a more accurate construction cost.
All costs are "installed costs" including material, labor and sales tax.
** Available for U.S. only.
Q & A
Previous Q & A
Q: What does volume ceiling mean? Is that the same as valuted?
A: Yes
Common Q & A
Q: Can I make modifications to this plan?
A: Yes you can! Please click the "Modifications" tab above to get more information.
Q: What is the estimated price to build this plan?
A: The national average for a house is running right at $125.00 per SF. You can get more detailed information by clicking the Cost-To-Build tab above. Sorry, but we cannot give cost estimates for garage, multifamily or project plans.
FHP Low Price Guarantee
If you find the exact same plan featured on a competitor's web site at a lower price, advertised OR special SALE price, we will beat the competitor's price by 5% of the total, not just 5% of the difference! Our guarantee extends up to 4 weeks after your purchase, so you know you can buy now with confidence.
Photographs may show modified designs.

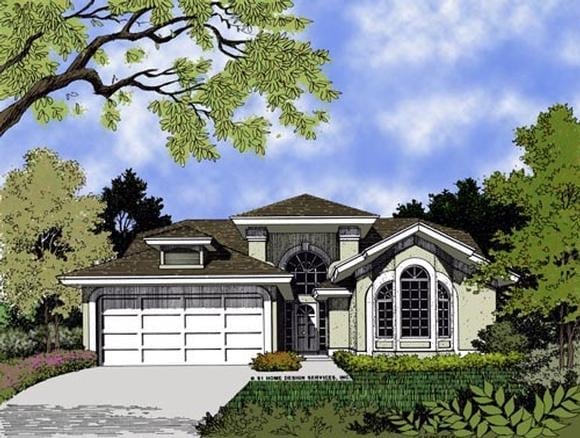

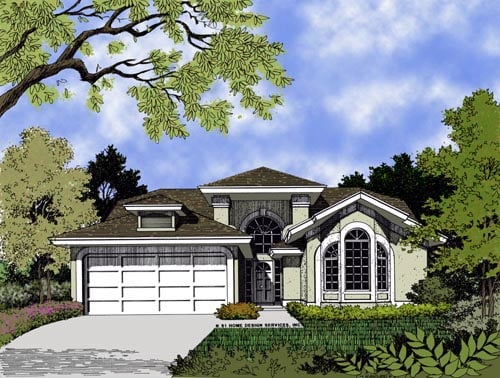

Elevation
Level One
Quick Specs
1280 Total Living Area1280 Main Level
3 Bedrooms
2 Full Baths
2 Car Garage
40' W x 48' D
Quick Specs
1280 Total Living Area3 Bedrooms
2 Full Baths
2 Car Garage
40' W x 48' D
Pricing
PDF File: $850.005 Sets: $1,050.00
5 Sets plus PDF File: $1,200.00
CAD File: $1,700.00
more info
Rear Elevation
Photographs may show modified designs.
